Blizzard MystACL Z IP
Details
At A Glance:
- Outdoor-rated 400W RGBW zoomable batten moving head
- IP65-rated for outdoor use, weatherproof housing
- Seamless connectivity ft. retractable end-to-end fixture alignment system
Tech Specs
Dynamic Lighting FX:

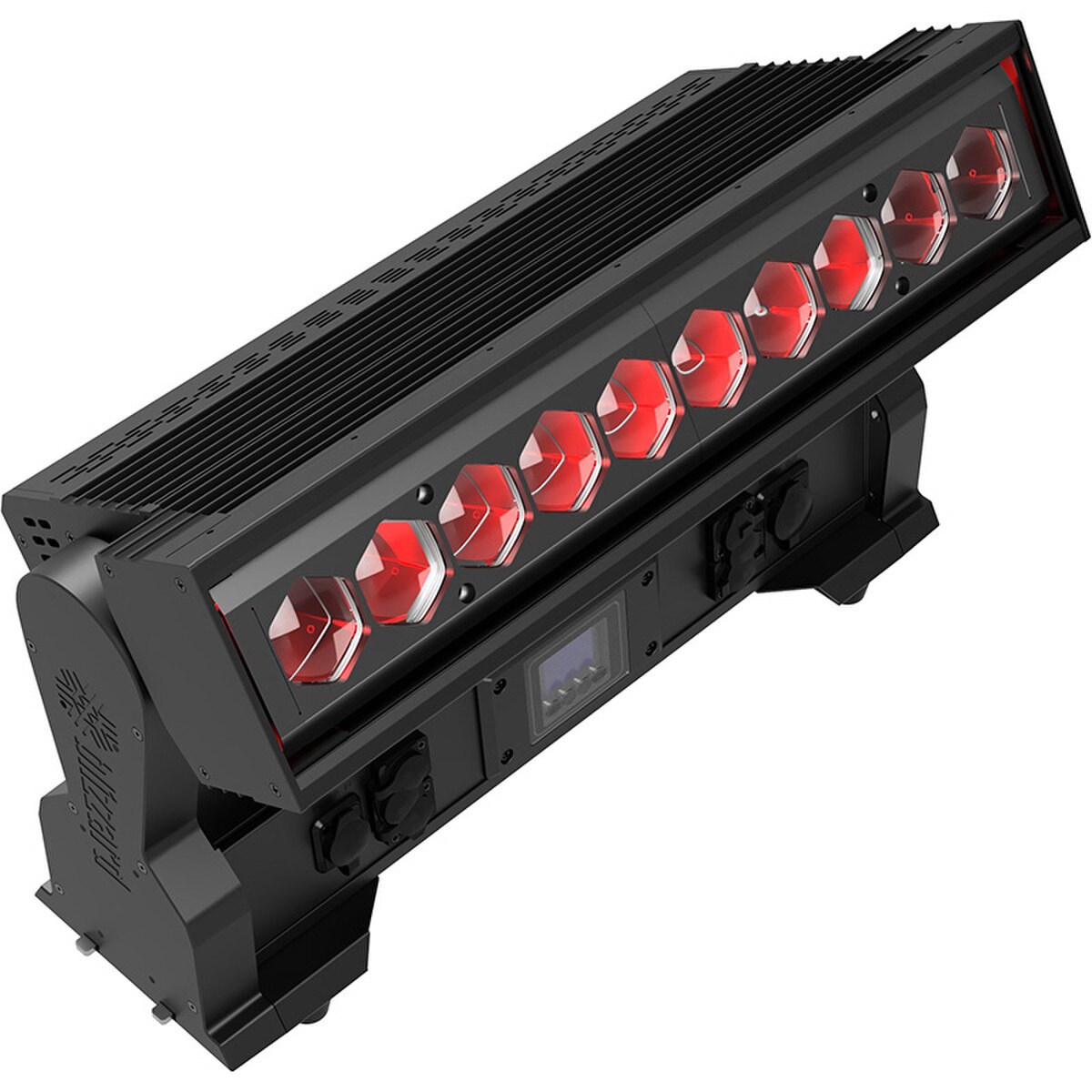

The MystACL Z™ IP is an IP65 rated outdoor LED fixture, that comes fitted with 10* high-output 40W 4-in-1 RGBW LEDs that guarantee brilliant, flicker-free lighting. Its motorized 3 to 60-degree zoom capability allows for a seamless transition from a tight row of sharp colored beams to a wide wash effect. Furthermore, this luminaire features a remarkable 240-degree motorized tilt, that enables precise, fluid movements that can craft captivating visual displays in any outdoor environments.
Loaded With Features:
Equipped with a broad range of features, it not only offers basic functionality, but also dual-group pixel mapping, and full pixel mapping capabilities. But truly unique is its three-layer sets in 28-channel DMX mode, which allows adjustable pixel layer lengths of two overlapping groups of user-selectable background colors or patterns. Housed in a sleek, weatherproof design, it supports both 5-pin DMX and ArtNet, and can be navigated easily through its LCD control menu with touch-sensitive buttons.
Backed & Certified:
MystACL Z™ IP fixtures are ETL listed, and of course they are covered by Blizzard’s 2-year limited warranty.
Optical:
- 10* 40W RGBW 4-in-1 LEDs (50,000 hrs.)
- 3-60° zoom
Luminous Intensity:
- 7,422 Lux @ 2.5M (3°)
- 1,083 Lux @ 2.5M (60°)
- 1,635 Lux @ 5M (3°)
- 366 Lux @ 5M (60°)
Control:
- DMX-512, Art-Net
- 5-pin DMX in/out
- 13/26/28/46-channel DMX
- 4-button menu with LCD display
- DMX512, M/S, auto mode
Power & Current:
- 100-240VAC, 50-60 Hz
- Consumption: 304W, 2.67A, PF: .98
- PowerCON® TRUE1-compatible in/out
Dimensions:
- 12.5" x 6.25" x 11.4"
- 34.7lbs
Warranty:
- 2 Year - Extendable
Certifications:
- ETL Certified
Blizzard MystACL Z IP User Manual.pdf
Blizzard MystACL Z IP Cutsheet.pdf
Blizzard MystACL Z IP Dimensions.pdf
