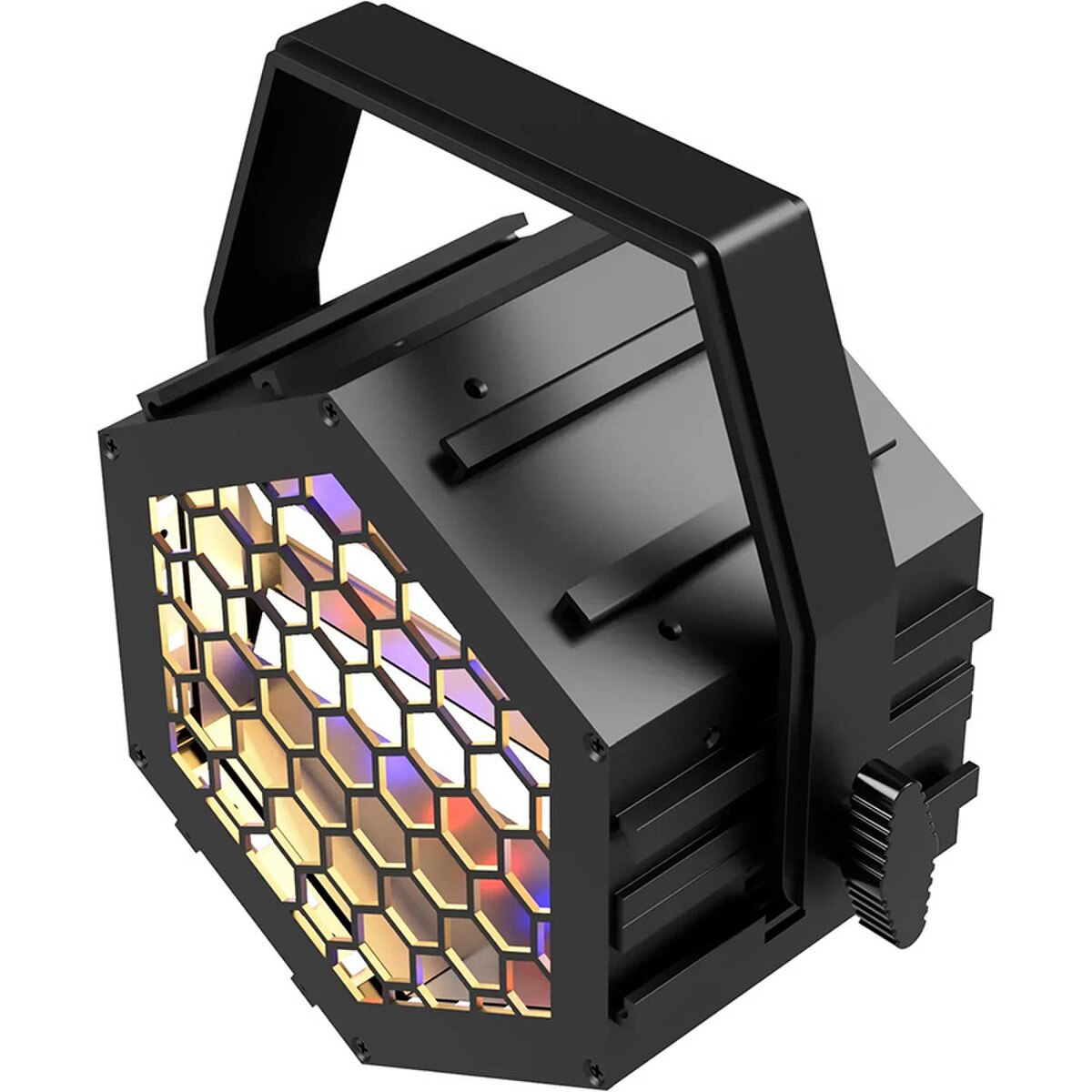

Blizzard Nexys Flux

At A Glance:

• Vintage Warm white strobe/blinder + RGB LED backlight effects
• Design arrays in any direction (horizontally, vertically or diagonally) with a unique interlocking housing
• 1 of 3 modular LED fixtures. Interlocks with Nexys™ RGBW and Nexys™ WW

Tech Specs

Modular Innovation:

Nexys™ Flux is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a vintage ambiance, its 80W, 2000K WW LED acts as a retro strobe/blinder with a broad 120° beam. Meanwhile, its 6-pixel RGB backlight adds dynamic, contrasting color effects.

Loaded With Features:

It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCONTRUE1 compatible in/out connections.

Optical:

• 1x 80W Warm White 2000K LED
• 24x SMD 5050 RGB 0.5W LEDs (6x4 LED sections)
• 120° beam angle
• 213 Lux @ 2.5M
• 56 Lux @ 5M

Control:

• Protocol: USITT DMX-512
• 5-pin DMX in/out
• 4/8/20-channel DMX
• 4-button menu with LCD display
• DMX512, M/S, auto mode

Power & Current:

• 100-250VAC, 50-60 Hz
• Consumption: 83W, 1.1A, PF: .63
• PowerCON® TRUE1-compatible in/out

Dimensions:

• 17.9" x 4.9" x 6.8"
• 5.6lbs

In the Box:

• Nexys™ Flux fixture
• Dual mounting brackets
• Omega bracket with quick-lock quarter turn fasteners (clamp not included)

Warranty:

• 2 Year - Extendable
