Blizzard Nexys RGBW

(0)No Reviews yet
SKU: Blizzard Nexys RGBW


At A Glance:

  • 40W RGBW LED with Fresnel lens + RGB diffused ring & backlight
  • Design arrays in any direction with its unique interlocking housing
  • 1 of 3 modular LED fixtures. Interlocks with Nexys™ Flux and Nexys™ WW

Tech Specs

Modular Innovation:

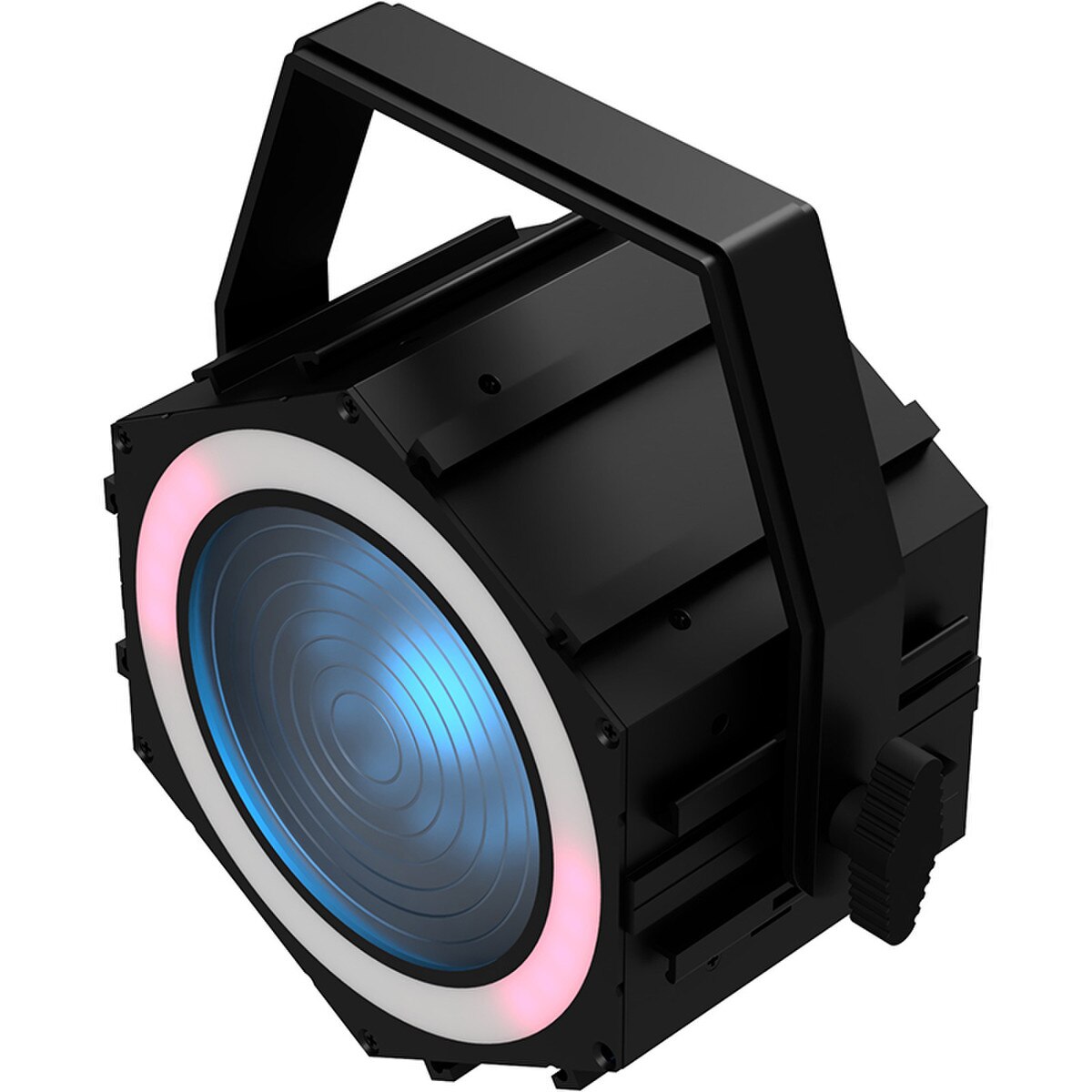

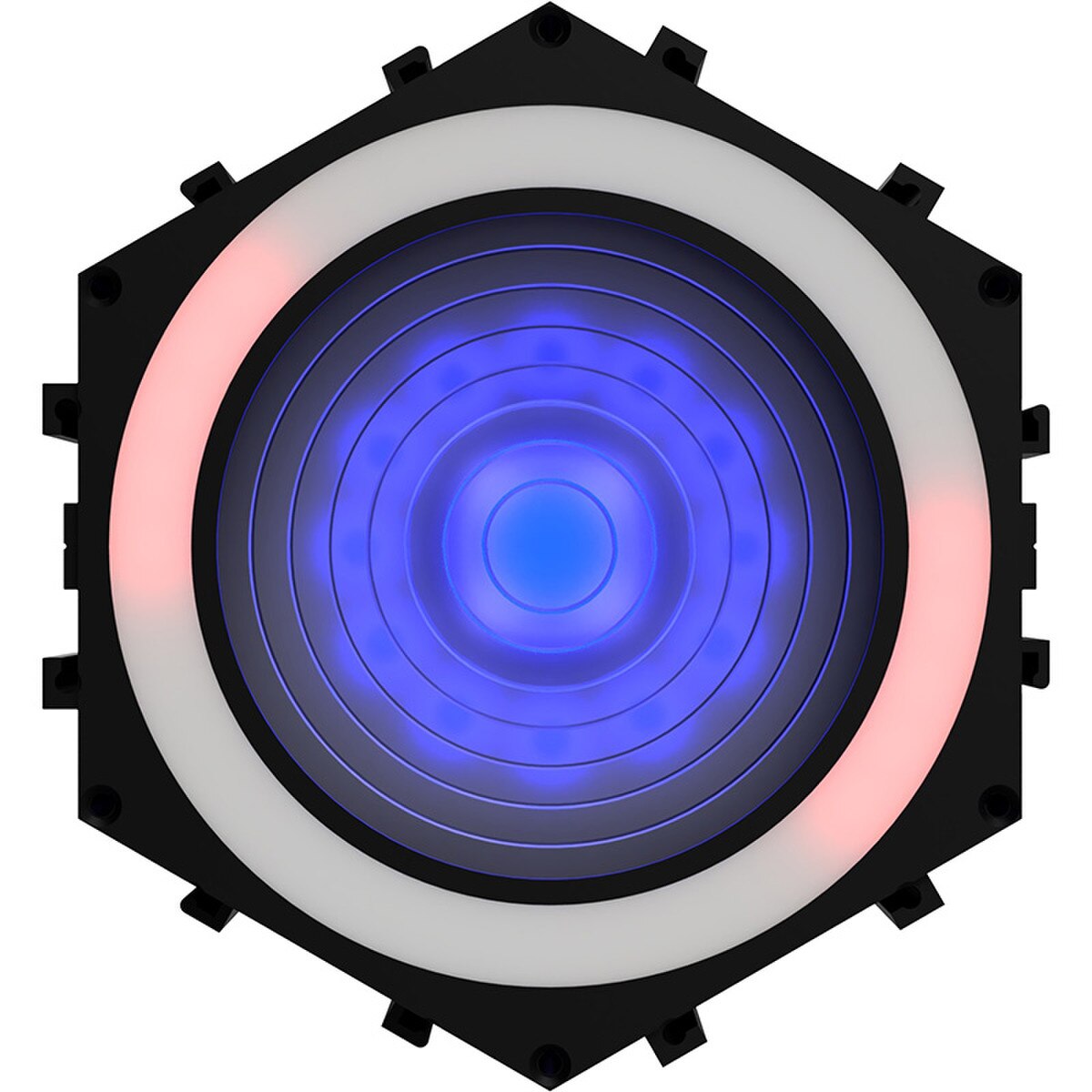

Nexys™ RGBW is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a 40W RGBW LED with a 10° Fresnel lens for sharp color beams. Additionally, it features an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight for enhanced visual effects.

Loaded With Features:

It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections.


  • 1x 40W flicker-free RGBW LED
  • 36x and 18x SMD 5050 RGB 50mW LEDs (outer and backlight)
  • 10° beam angle
  • 3,253 Lux @ 2.5M
  • 936 Lux @ 5M


  • Protocol: USITT DMX-512
  • 5-pin DMX in/out
  • 18/45/57-channel DMX
  • 4-button menu with LCD display
  • DMX512, M/S, auto mode

Power & Current:

  • 100-250VAC, 50-60 Hz
  • Consumption: 65W, .87A, PF: .64
  • PowerCON® TRUE1-compatible in/out


  • 17.9" x 4.9" x 6.8"
  • 5.3lbs

In the Box:

  • Nexys™ RGBW fixture
  • Dual mounting brackets
  • Omega bracket with quick-lock quarter turn fasteners (clamp not included)


  • 2 Year - Extendable

Blizzard Nexys RGBW User Manual.pdf
Blizzard Nexys RGBW Cutsheet.pdf
Blizzard Nexys RGBW Dimensions.pdf
