Blizzard Nexys WW

At A Glance:

• 80W Warm White LED (3200K) w/Fresnel lens
• 36x SMD 5050 RGB 50mW LEDs (outer ring)
• 18x SMD 5050 RGB 50mW (backlight)

Tech Specs

Modular Innovation:

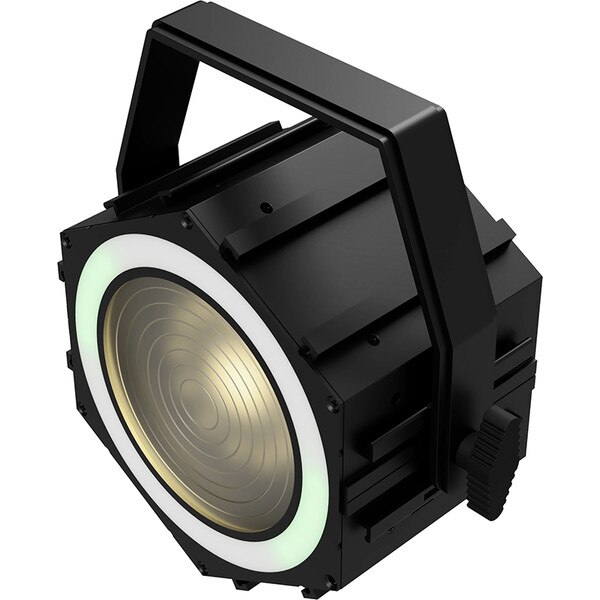

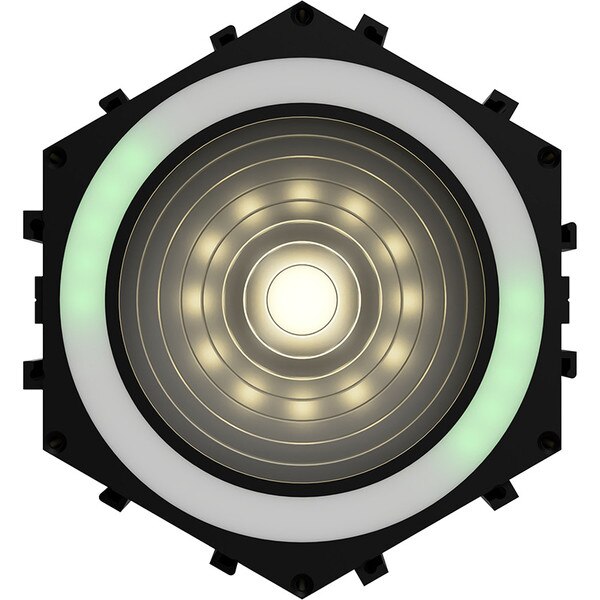

Nexys™ WW is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a 80W LED with a 10° Fresnel lens for a sharp warm white beam. Additionally, it features an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight for enhanced visual effects.

Loaded With Features:

It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections.

Optical:

• 80W flicker-free WW LED (3200K)
• 36x and 18x SMD 5050 RGB 50mW LEDs (outer and backlight)
• 10° beam angle
• 6,107 Lux @ 2.5M
• 1,354 Lux @ 5M

Control:

• Protocol: USITT DMX-512
• 5-pin DMX in/out
• 6/11/42-channel DMX
• 4-button menu with LCD display
• DMX512, M/S, auto mode

Power & Current:

• 100-250VAC, 50-60 Hz
• Consumption: 90W, 1.21A, PF: .64
• PowerCON® TRUE1-compatible in/out

Dimensions:

• 17.9" x 4.9" x 6.8"
• 5.3lbs

In the Box:

• Nexys™ WW fixture
• Dual mounting brackets
• Omega bracket with quick-lock quarter turn fasteners (clamp not included)

Warranty:

• 2 Year - Extendable

Blizzard Nexys WW User Manual.pdf
Blizzard Nexys WW Cutsheet.pdf
Blizzard Nexys WW Dimensions.pdf
