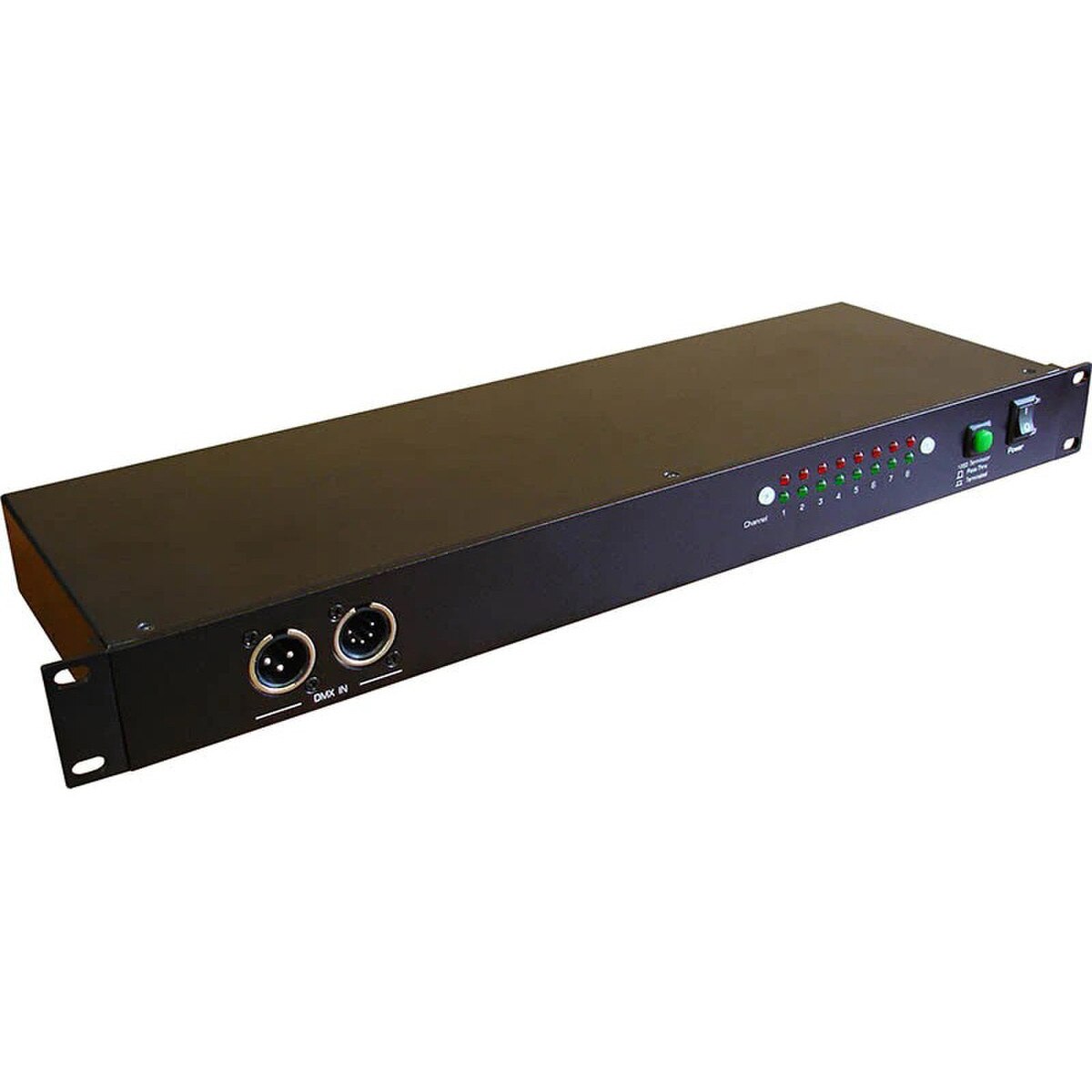

Blizzard DMX 8-Way Distributor

At A Glance:

• Fully compliant to DMX-512 (1990)
• 3pin & 5pin DMX Input and DMX Thru
• 100% electrical isolation between in/output

Absolute Electrical Isolation:

Meet Blizzard's 8-way DMX distributor, the Pipeline™! The unit has 2x inputs and 8x outputs and features absolute electrical isolation between input and outputs and between all of the outputs.

There are two types of DMX connectors (3-pin) for each individual channel. Each DMX output features an independent driver. Along with Blizzard's Pipeline™, you can run up to 32 units per one output channel.

Overview:

• 100% electronic isolation between output/output
• Signal & power LED indicator for each output
• Terminator resistor switch for end of a DMX chain

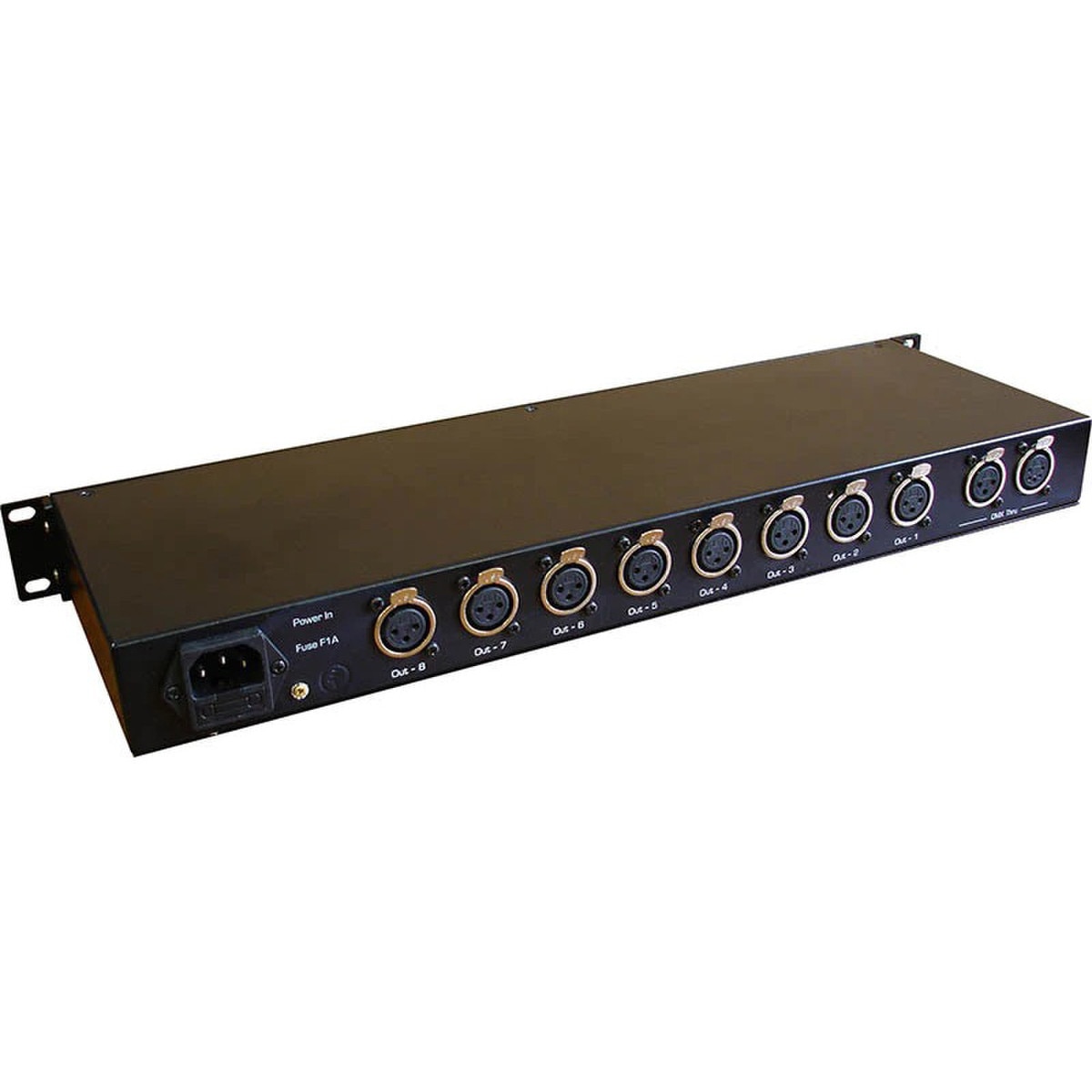

• Power input via IEC connector on rear panel
• Removable rack wings for Rack mount or wall mount
• Anodized aluminum front panel

Power:

• Power input: AC120V 50Hz/60Hz
• Consumption: 10W

Warranty:

• 2-year limited warranty

Dimensions & Weight:

• 19" L x 5.2" W x 1.8" H
• 5.8 lbs
