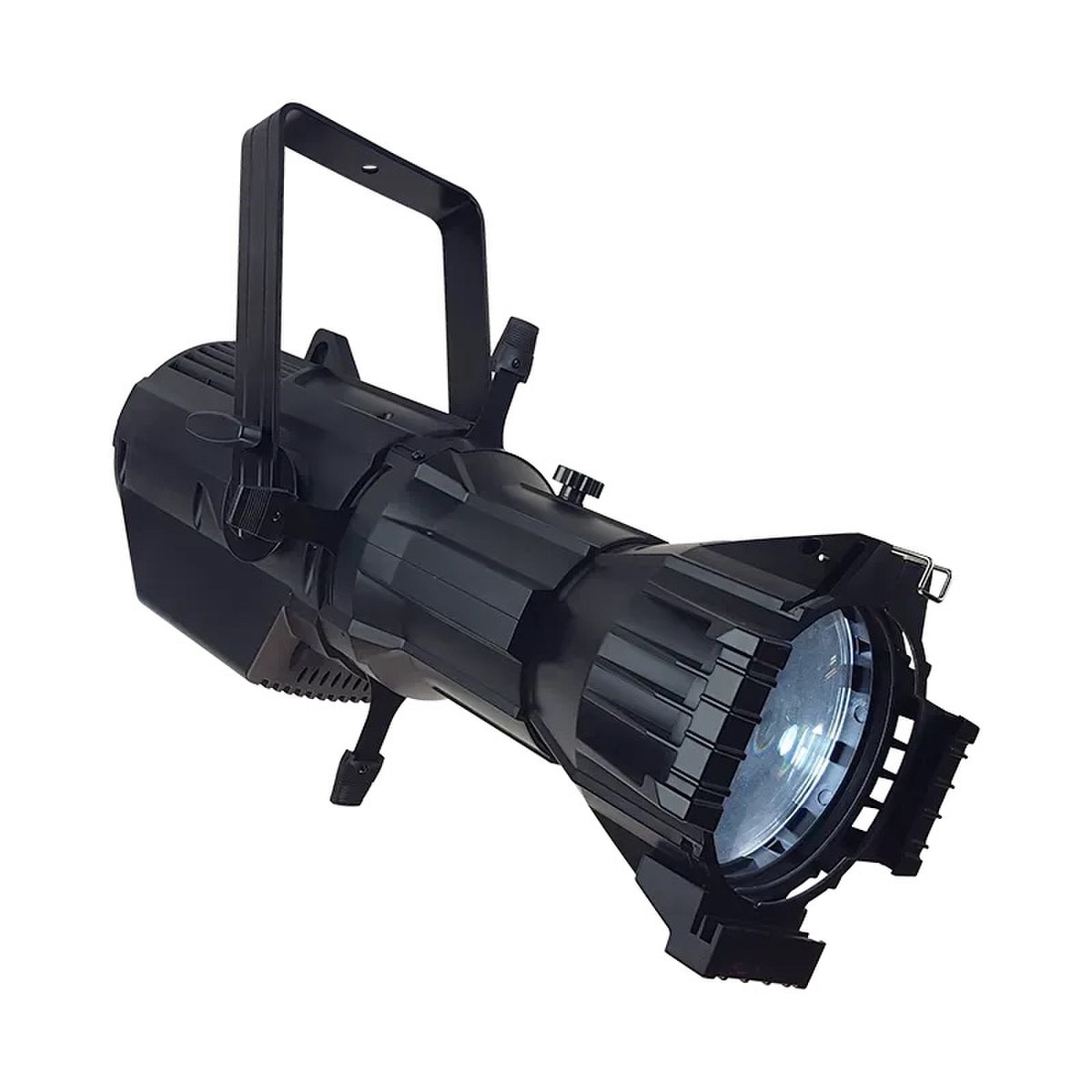

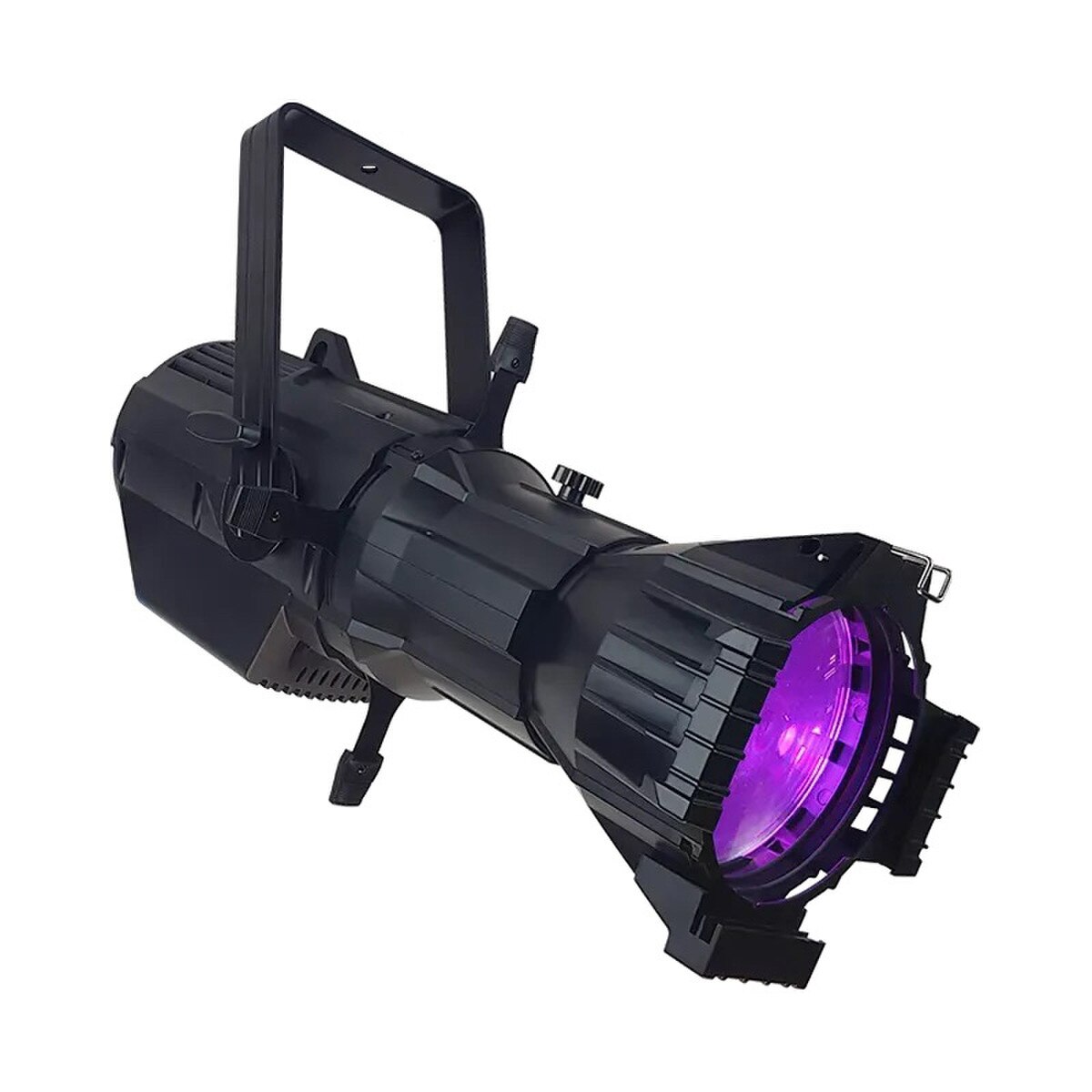

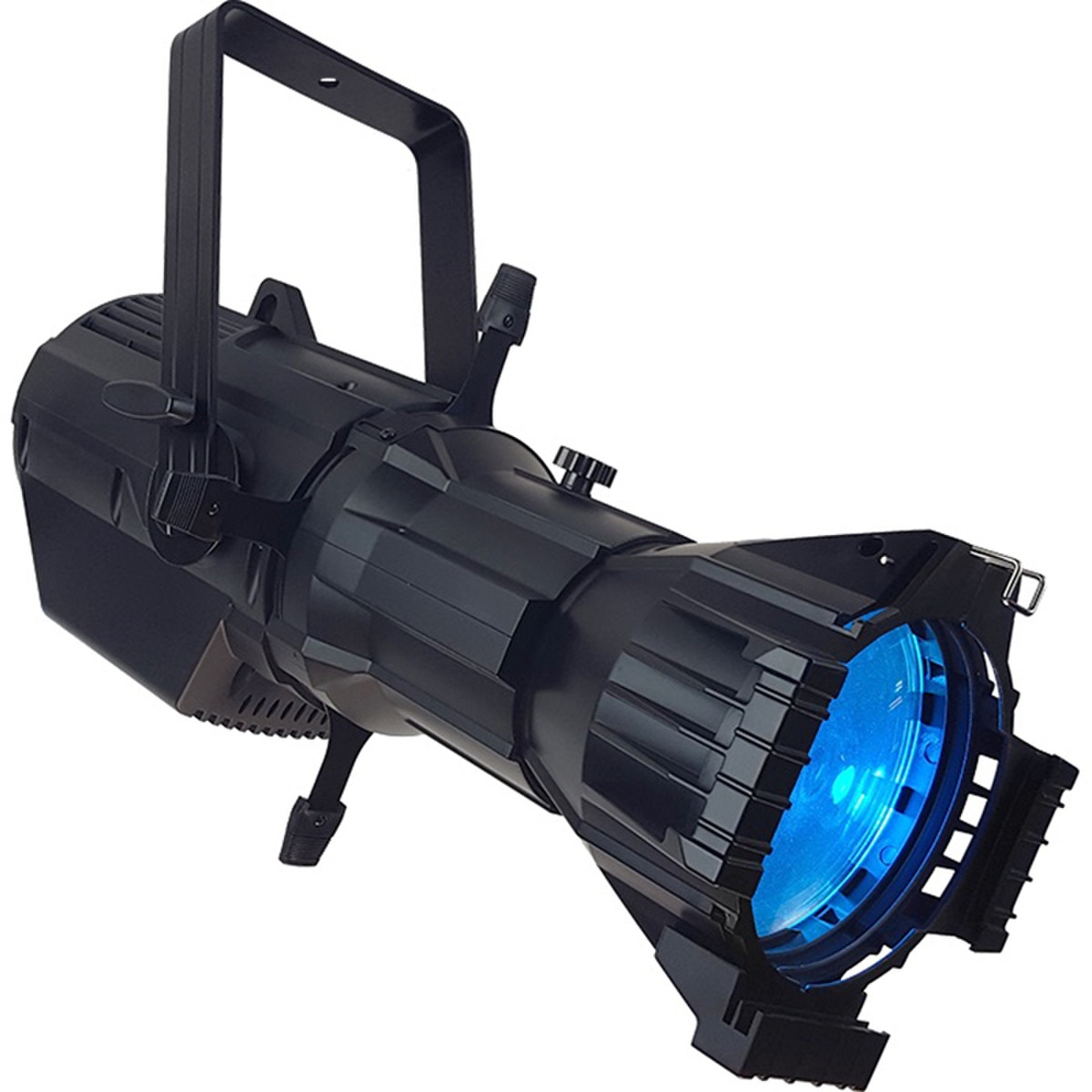

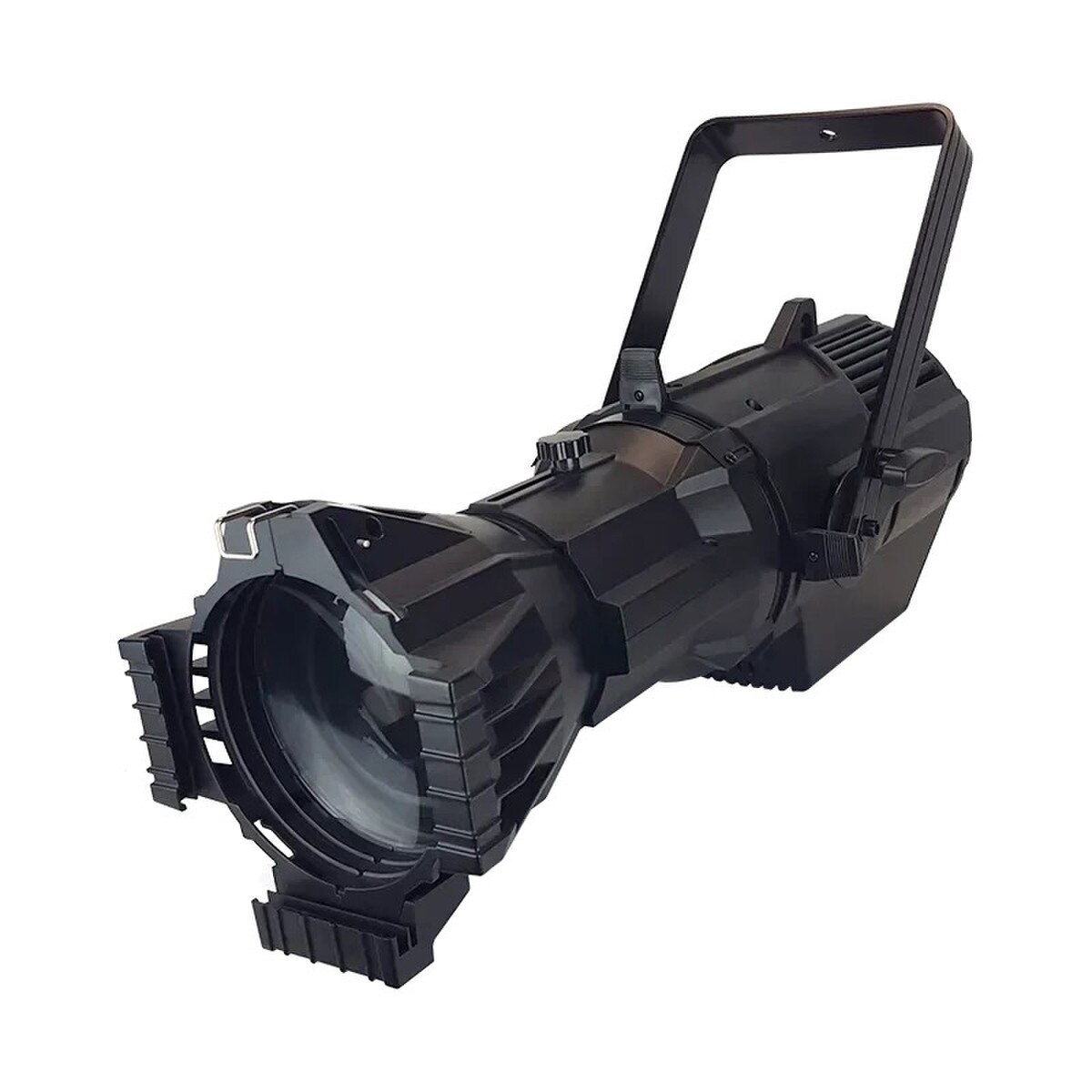

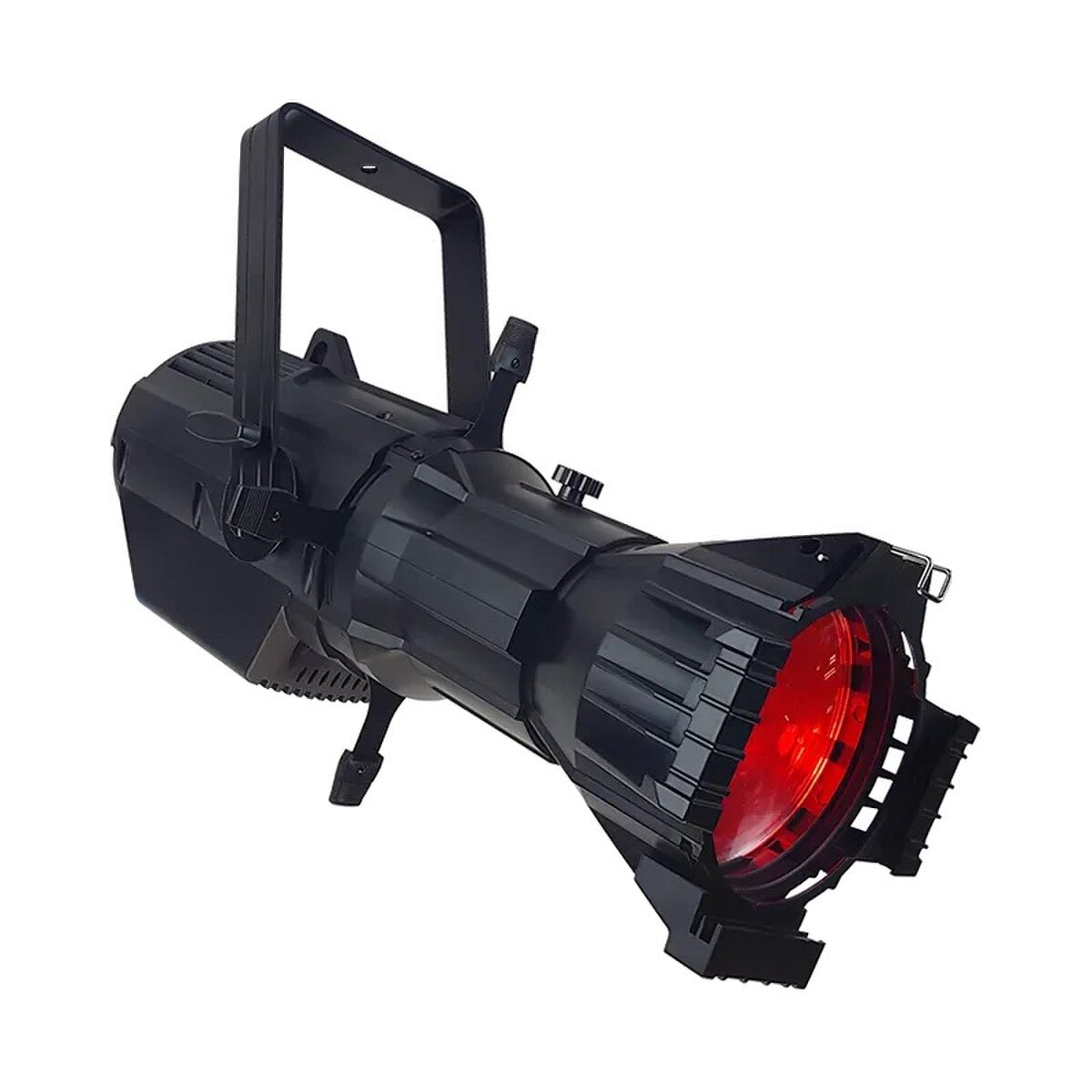

Blizzard Prima Profile RGBW 19 Degrees

At A Glance:

• 180W RGBW 4-in-1 COB LED
• 19°, 26°, 36° & 50° lens tubes are available
• High resolution dimming (4,096 steps)

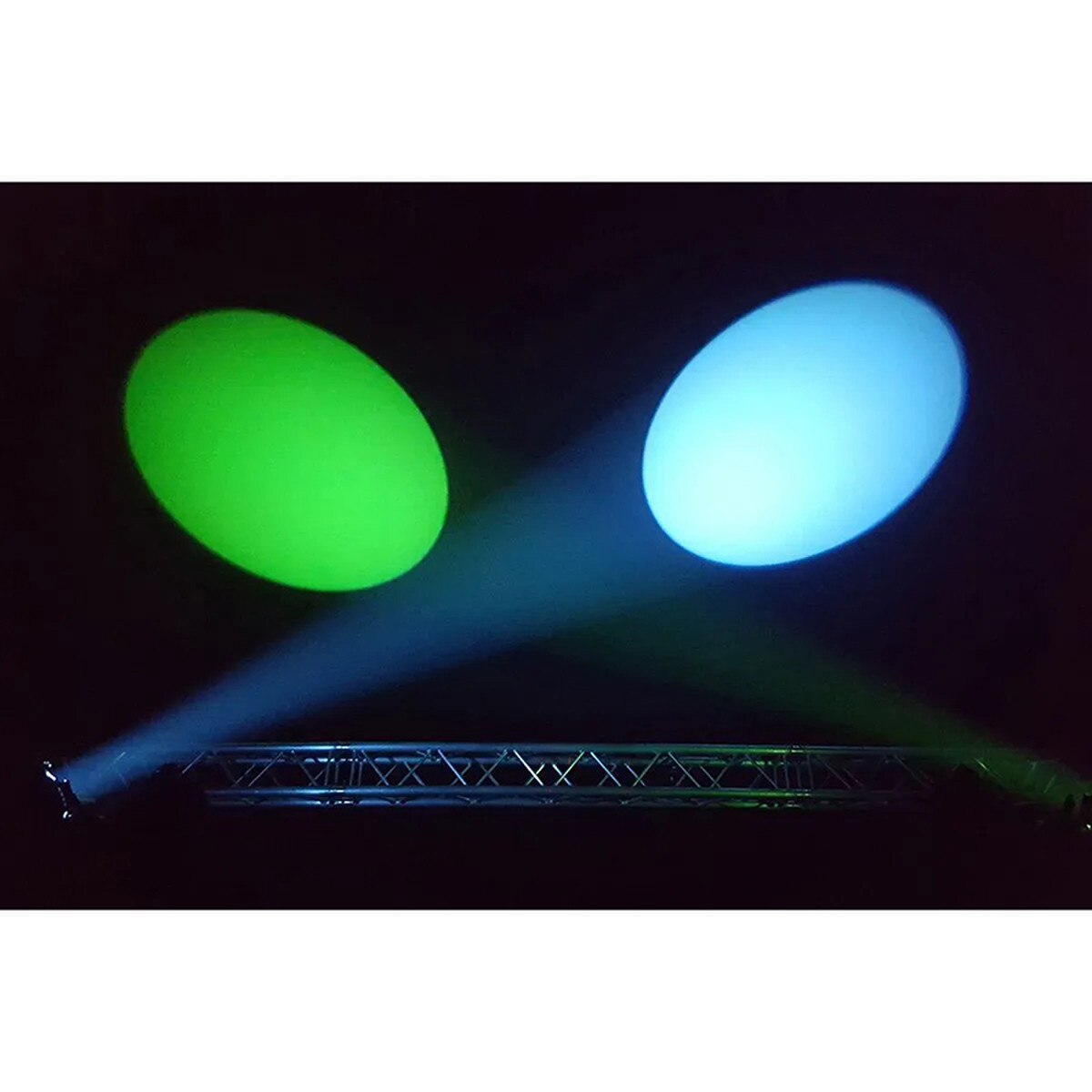

Bright Ellipsodial Spot

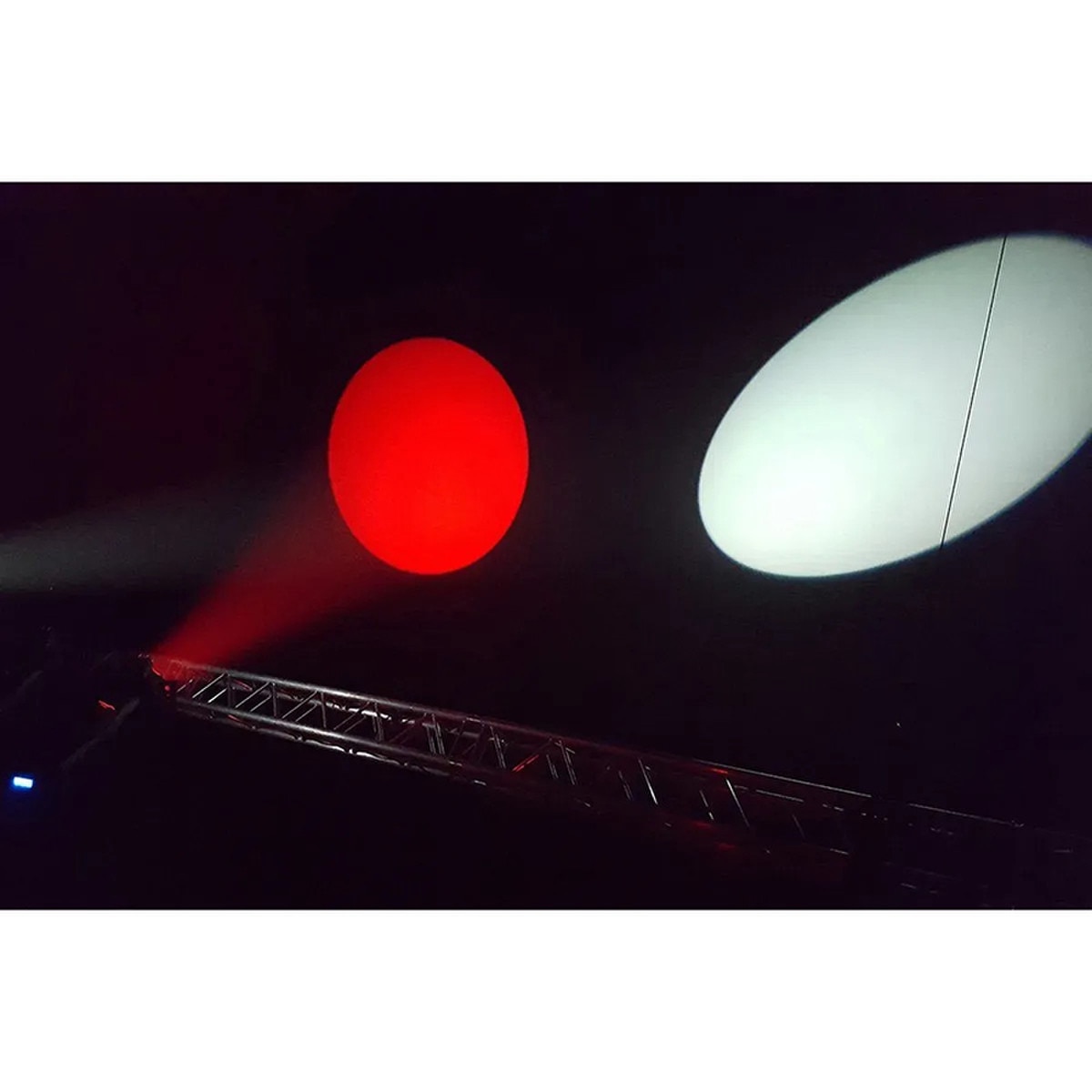

Create sharp or soft edged beams with its manual focus and take advantage of its excellent framing abilities thanks to 4 blade shutters.

Bold Color Rendering

A high-output 180W RGBW 4-in-1 COB LED is the driving force behind its bold color rendering capabilities, and it's flicker-free LED is perfect for video and film.

Tech Specs

The Rundown:

• 180W RGBW 4-in-1 COB LED
• 19°, 26°, 36° & 50° lens tubes are available
• High resolution dimming (4,096 steps)
• 4x user selectable dimming curves
• Virtual color wheel
• Auto mode, color snap, and fade
• Manual focus
• (4) blade manual framing shutters
• Gel frame & gobo holder (supports B size gobos)
• Rotating barrel ± 25°
• 1-20 fps strobe effects
• Flicker-free operation
• Low power consumption

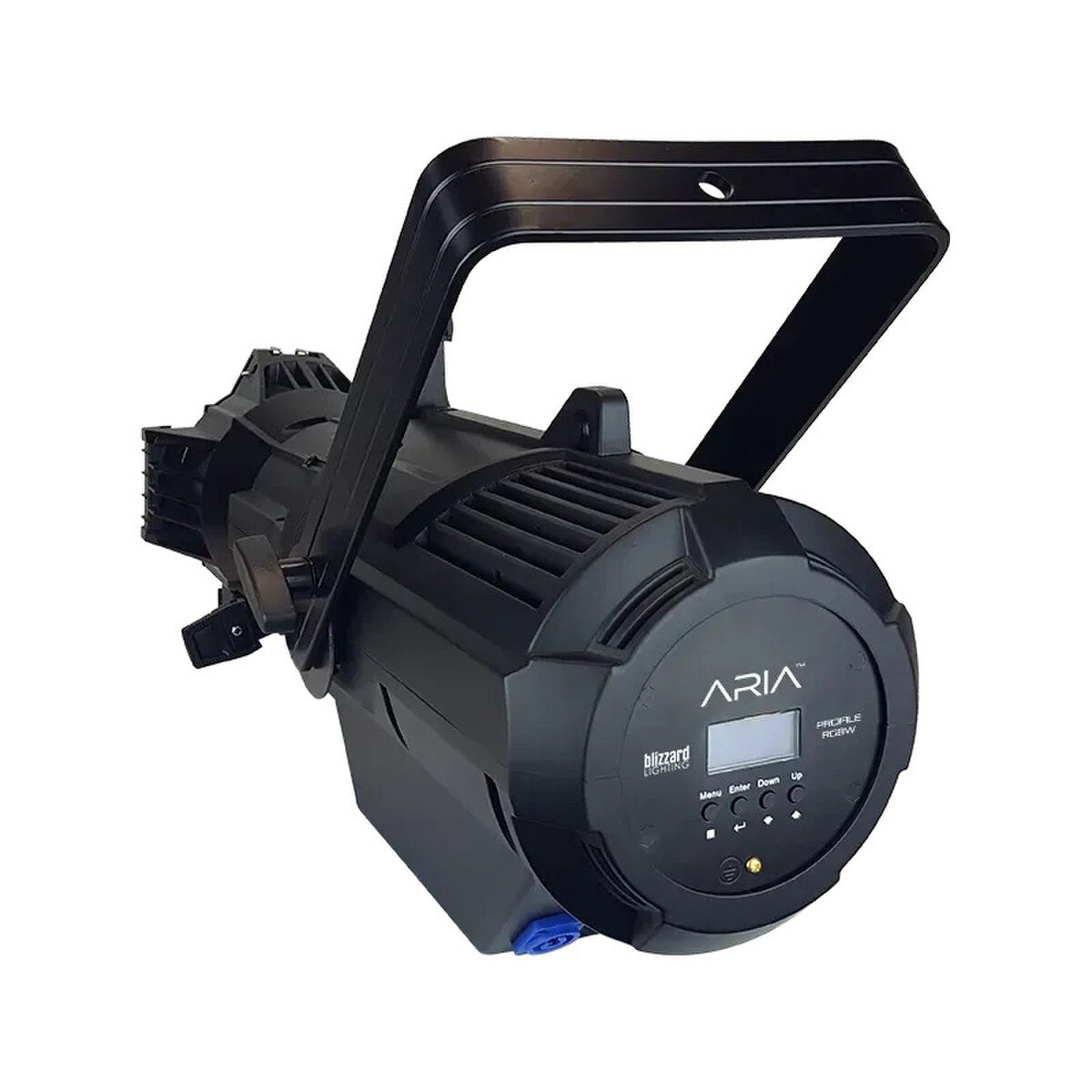

• 4-button LCD control panel menu
• PowerCON™ compatible in/out power connectors
• 3-pin DMX input/output
• cETL listed
• Durable plastic composite housing

Summary:

RGBW Color Mixing

Prima™ Profile RGBW is an LED ellipsoidal spot fixture that comes equipped with a high output 180W RGBW 4-in-1 flicker-free COB LED, which is the driving force behind its brightness and bold color rendering capabilities. It comes with your choice of 1 lens tube, and 19°, 26°, 36°, and 50° tubes are all available for purchase separately.

Tons of Features

It can create sharp or soft edged beams with manual focus, and it has excellent framing abilities with its (4) blade shutters. Ultra high resolution dimming (4,096 steps per channel) is available, and it offers built-in programs with smooth fades, vivid colors, and it has a virtual color wheel for full control and subtle color changes at your fingertips.

Warranty:

• 2 Year - Extendable

Certifications:

• ETL
• RoHS
• CE

Optical:

• 180W RGBW 4-in-1 COB LED
• Available lenses: 19°, 26°, 36°, 50°
• Gel frame holder
• Gobo holder (size B, gobos not included)

Luminous Intensity:

• (19°) 3,877 Lux @ 2.5m
• (26°) 2,654 Lux @ 2.5m
• (36°) 1,926 Lux @ 2.5m
• (50°) 1,219 Lux @ 2.5m

Control:

• Protocol: USITT DMX-512
• 6/9-channel DMX modes
• Standalone, M/S, auto mode
• 3-pin DMX In/Out
• 4-button LCD control panel

Power & Current:

• 90-260VAC, 50-60 Hz
• Power consumption: 160W, 1.35A, PF: .99

Dimensions:

• 9.7" x 25.5" x 10.2"
• 16.5lbs
