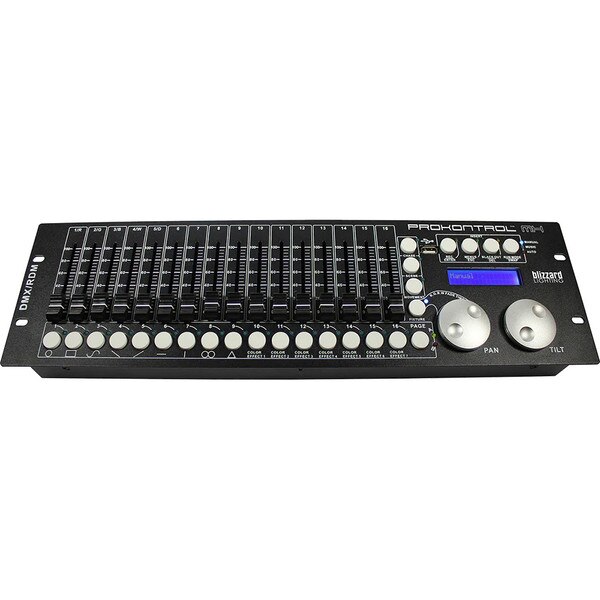

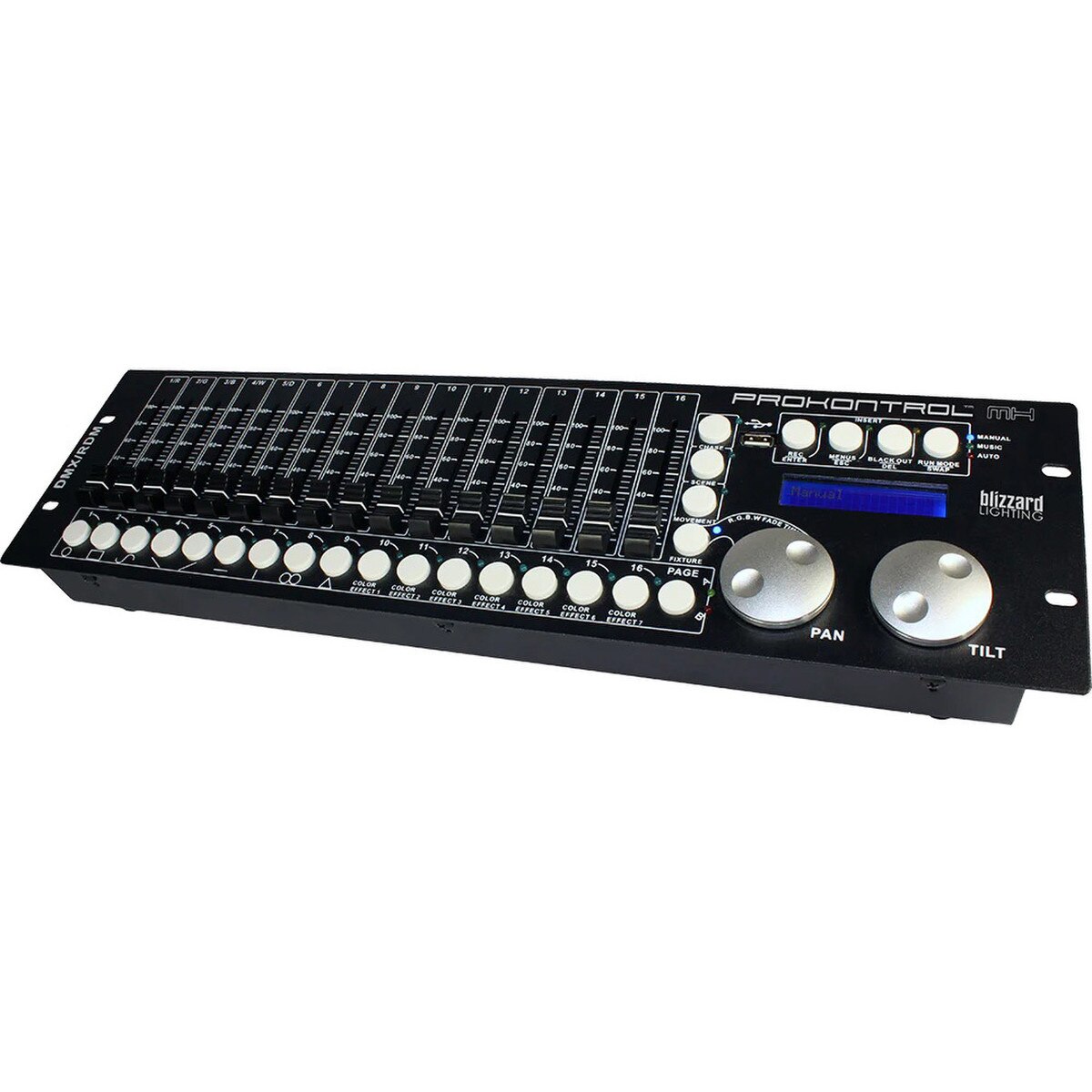

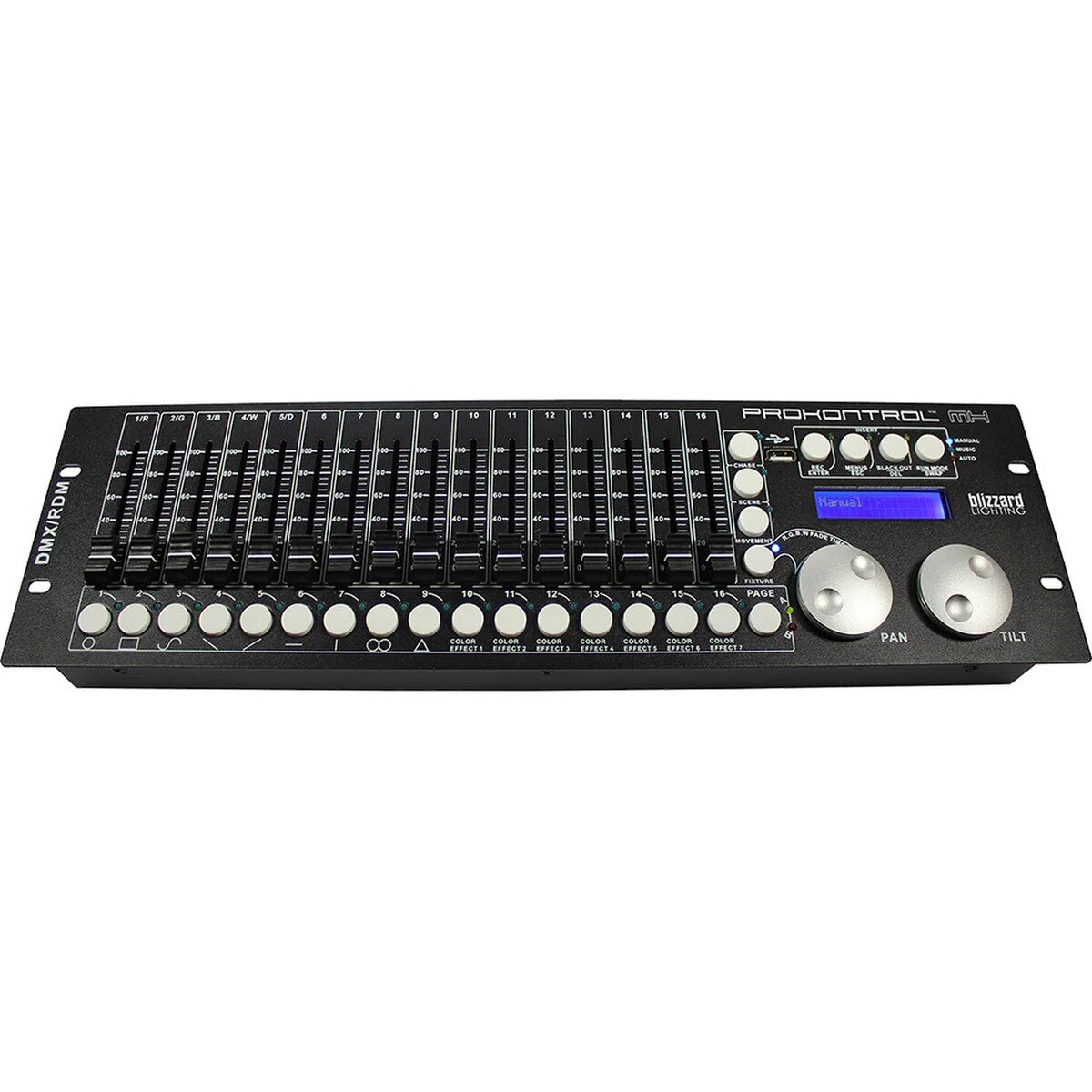

Blizzard 19in. Rack Mountable DMX Controller

At A Glance:

• DMX512 standard with RDM protocol compatibility
• 9 effect buttons for moving heads, 7 color effect buttons
• Control up to 32 fixtures with 18 DMX channels each

Universal Intelligent Controller:

ProKontrol™ MH is a professional universal lighting controller with RDM protocol compatibility. Once patched, it's the perfect controller for any moving head fixture, allowing ease of use with its dedicated PAN and TILT wheels. Users can control up to 32 fixtures composed of 18 channels each, trigger programs by music, automatically, manually, and run up to 5 chases.

Variety Of Tools:

It offers a variety of programming tools, such as 16 universal channel sliders, quick access "Movement" and built-in "Color Effect" buttons, and has an LCD display indicator for easy navigation of all the controls and menu functions. It also features an all-metal enclosure, which means this is one tough unit that will stand the test of time.

In the Box:

• 1x ProKontrol™ MH
• 1x 9V AC adaptor

Warranty:

• 2-year limited warranty

Control:

• Protocol: USITT DMX-512
• DMX channels: 512

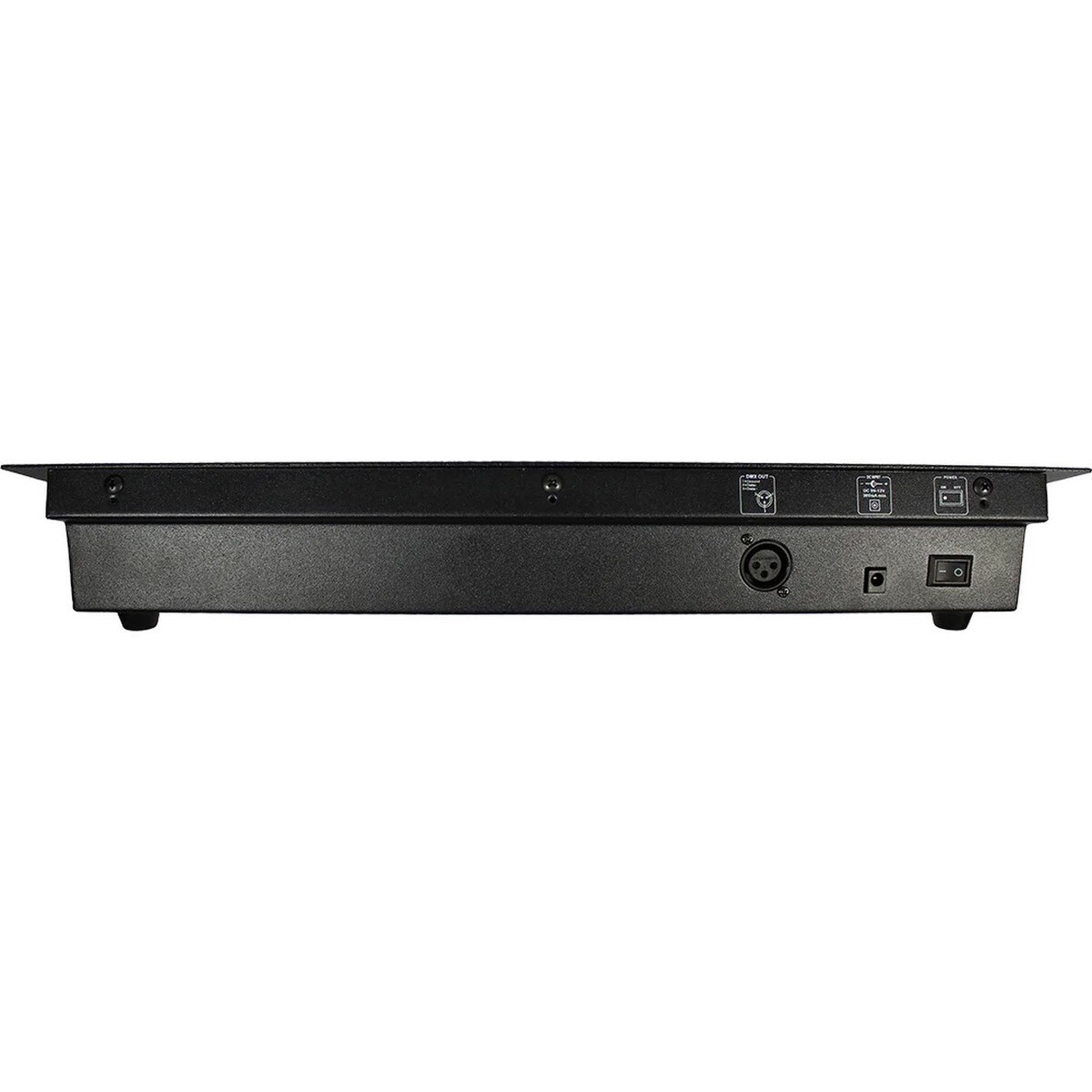

• 3-pin DMX output

Dimensions & Weight:

• 19" L x 5.1" W x 3.1" H
• 5.0 lbs

Power:

• Operating voltage: DC9V, 800mA max
