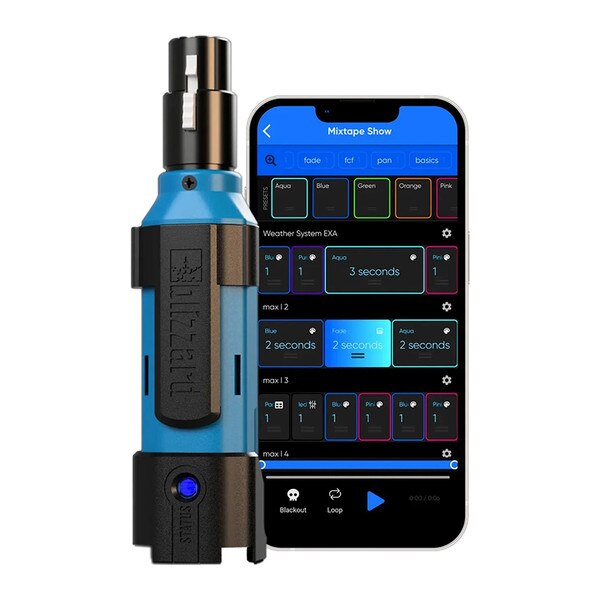

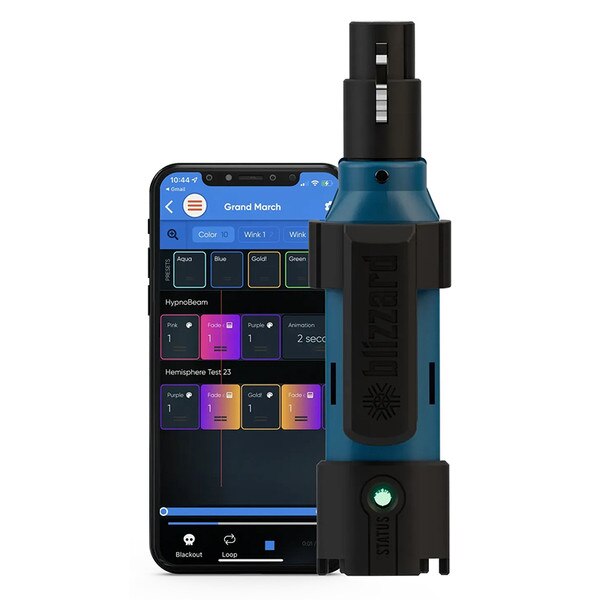

Blizzard SoC-It (3-pin)

At A Glance:

• Configure & control fixtures from any Android or Apple device using our free app At Full
• Wirelessly receive one universe of Art-Net or sACN via Wi-Fi & re-transmit through wired DMX
• Rechargeable battery offers 8+ hours of constant operation

Tech Specs

DMX Over WiFi:

SoC-It is a wireless, WiFi based sACN/Art-Net to DMX converter, and is Blizzard's first 100% developed and manufactured in-house product. Just connect it to any WiFi enabled device, or add it to an existing network for virtually unlimited range.

Control:

• 2.4GHz WiFi

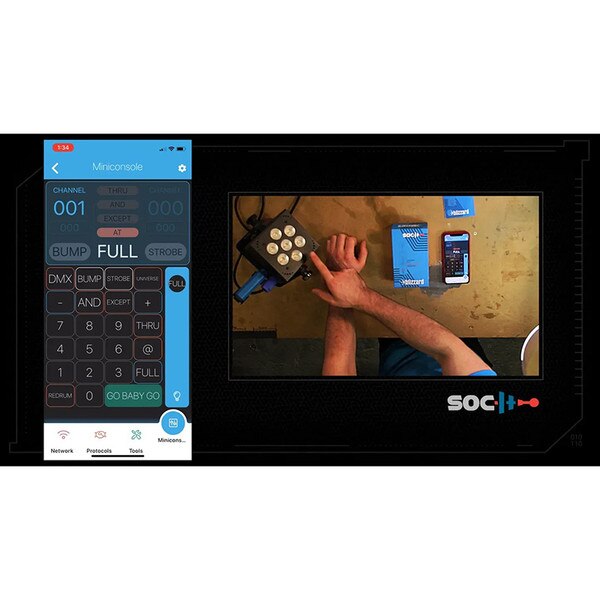

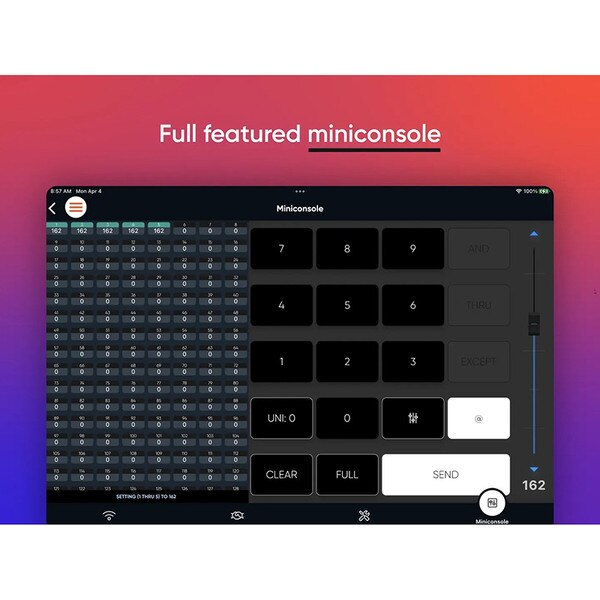

• At Full™ mobile app
• Protocol: USITT DMX-512, sACN, Art-Net 4

Power & Current:

• 18650 rechargeable lithium-ion battery
• 6.4A, 3.7V, 3200 mAh
• Input voltage: 5V (USB)
• 8+ hours runtime

Dimensions:

• 1.4" x 1.3" x 5.1"
• 0.26lbs

General Specs:

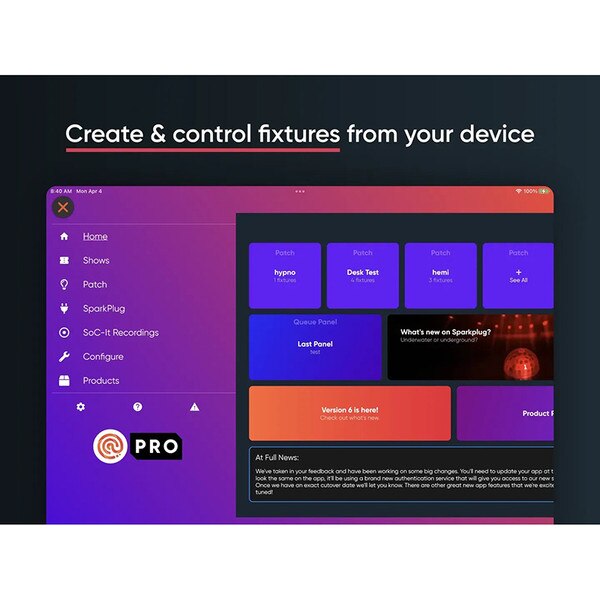

• Configure & control fixtures from any Android or Apple device
• Wirelessly receive Art-Net or sACN & re-transmit through via DMX
• XLR tab acts as the one button interface
• Connect directly or via 2.4Ghz Wi-Fi network
• Available with 3-pin or 5-pin DMX output

Warranty:

• 2 Year - Extendable

Blizzard SoC-It (3-pin) User Manual.pdf
Blizzard SoC-It (3-pin) Cutsheet.pdf
