Blizzard Squarodox 3D

At A Glance:

• 192 3-in-1 RGB 5050 LED chips
• Built-in auto & sound active modes
• 23.6" x 19.7" x 3.2" large FX panel

Tech Specs

3D Cube Effect Panel:

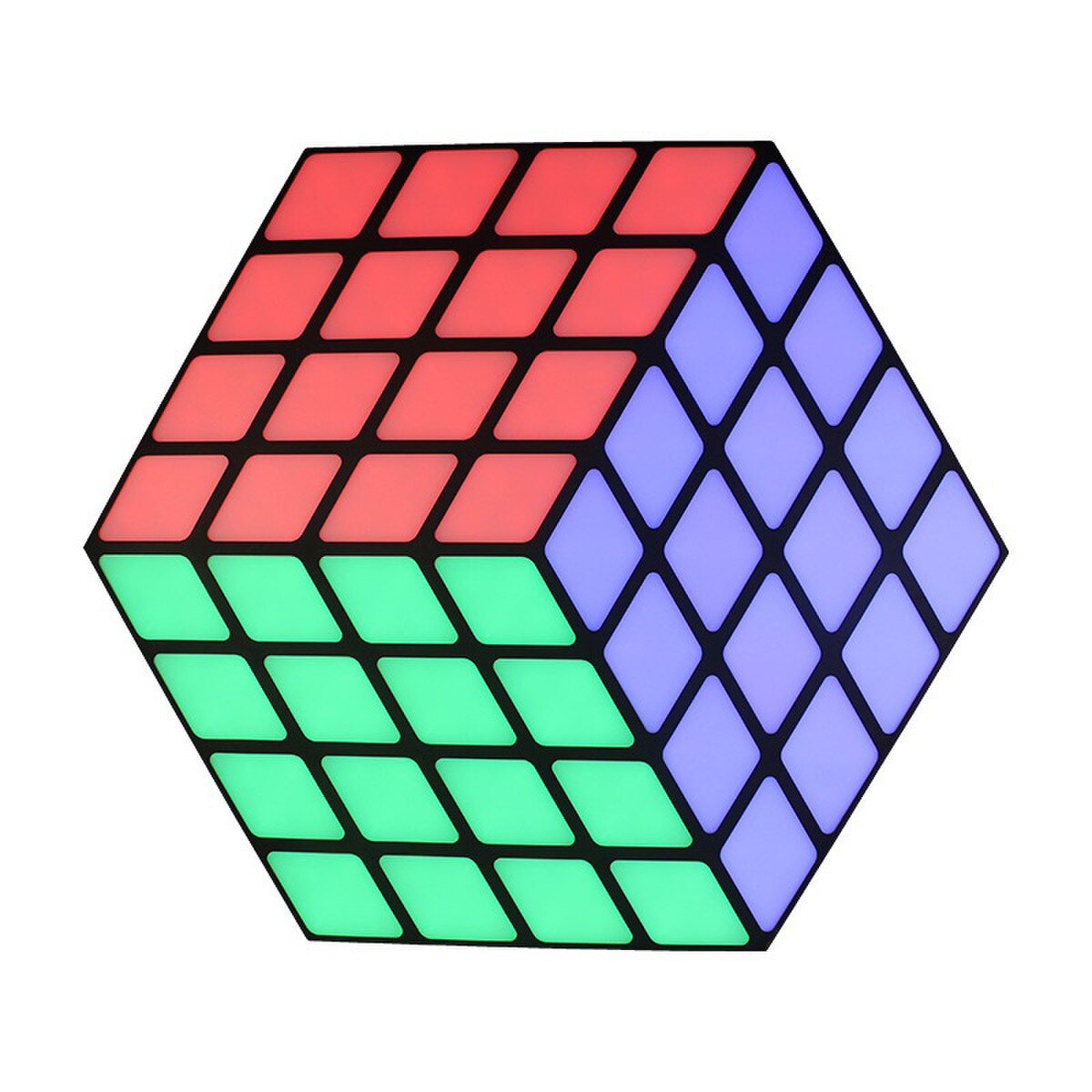

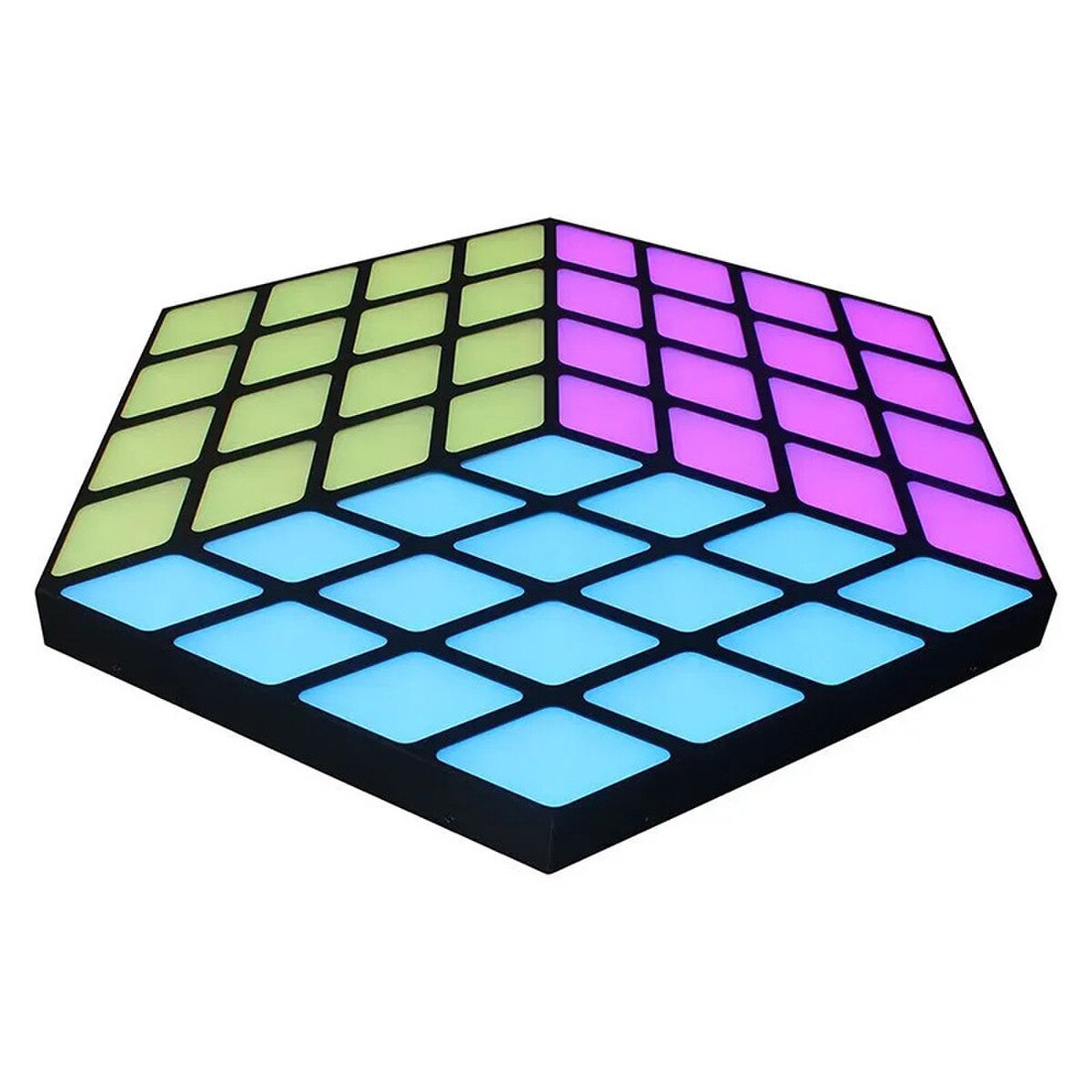

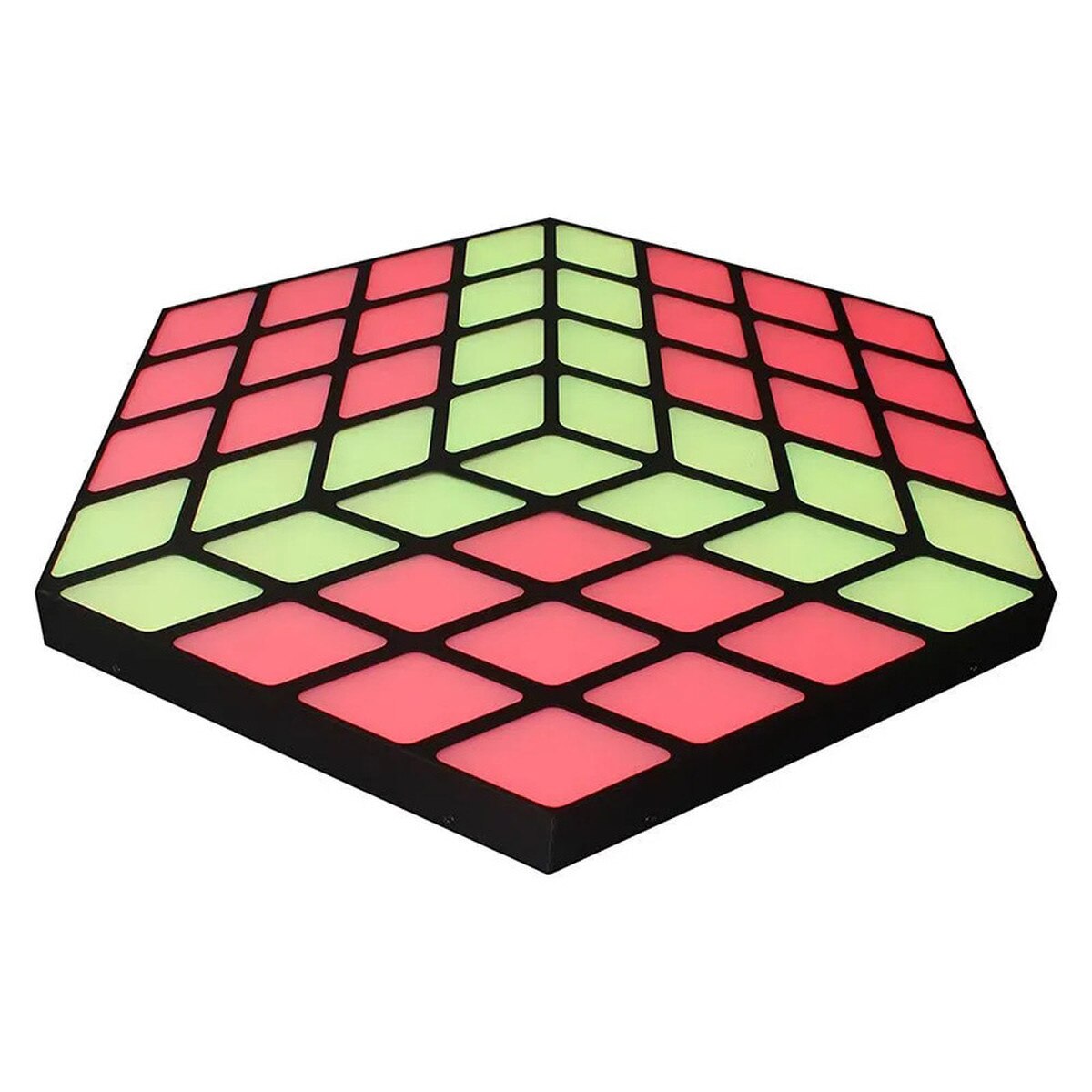

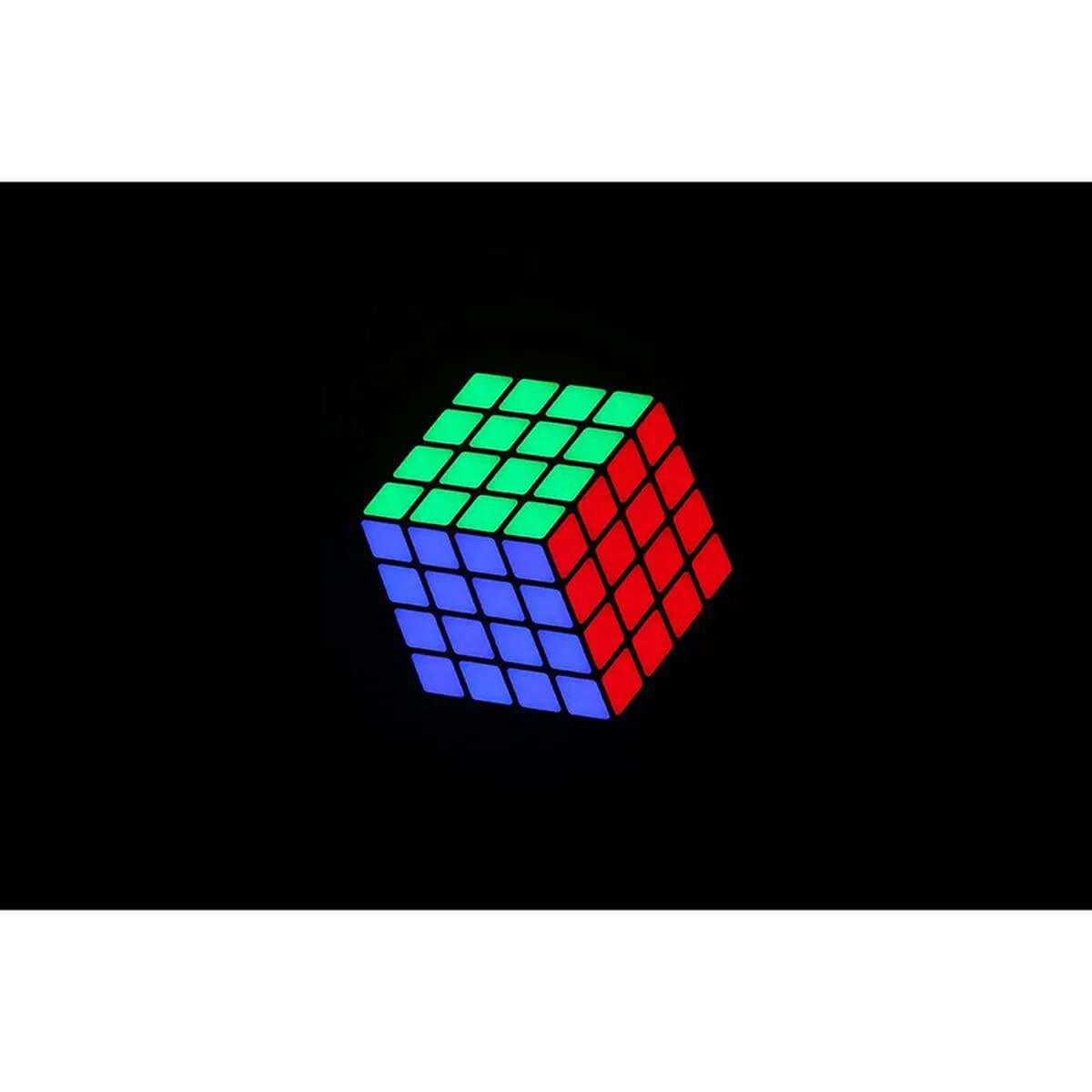

Squarodox™ 3D is a large (23.6 x 19.7 x 3.2 inch) LED effect panel that displays dazzling 3D light shows with its built-in programs, sound activated modes, or even your own pixel mapped video. It features a killer 3D cube layout with fixtures that can be linked together to create infinitely large wall.

Optical:

• 192 3-in-1 RGB 5050 LED chips

Control:

• Protocol: USITT DMX-512
• DMX Channels: 5/8/41/144/149
• 3-pin DMX In/Out
• Operating Modes: DMX512, master/slave, auto, sound active

Power & Current:

• 90-260VAC, 50-60Hz
• Power Consumption: 48W, .66A, PF: .62

Dimensions:

• 3.2" x 19.7" x 23.6"
• 12.8lbs

Warranty:

• 2 Year - Extendable

Blizzard Squarodox 3D User Manual.pdf
Blizzard Squarodox 3D Cutsheet.pdf
