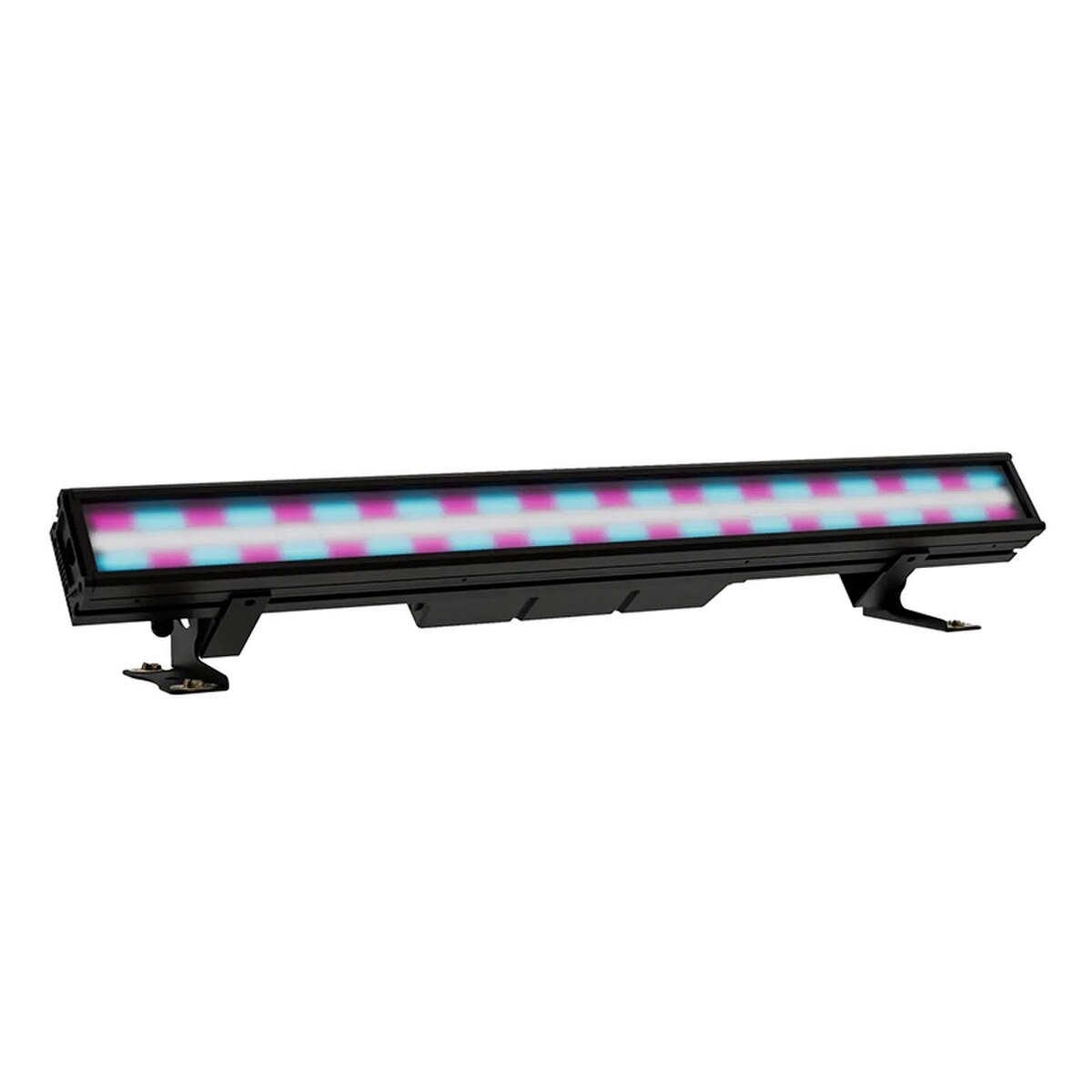

Blizzard Sticknado Great White

At A Glance:

• Outdoor Batten w/ electronically controlled clear to frosted smart lens
• 33 built-in macros and 3 customizable programs
• Interlocking housing design (works with STICKnado™ Hammerhead)

Summary:

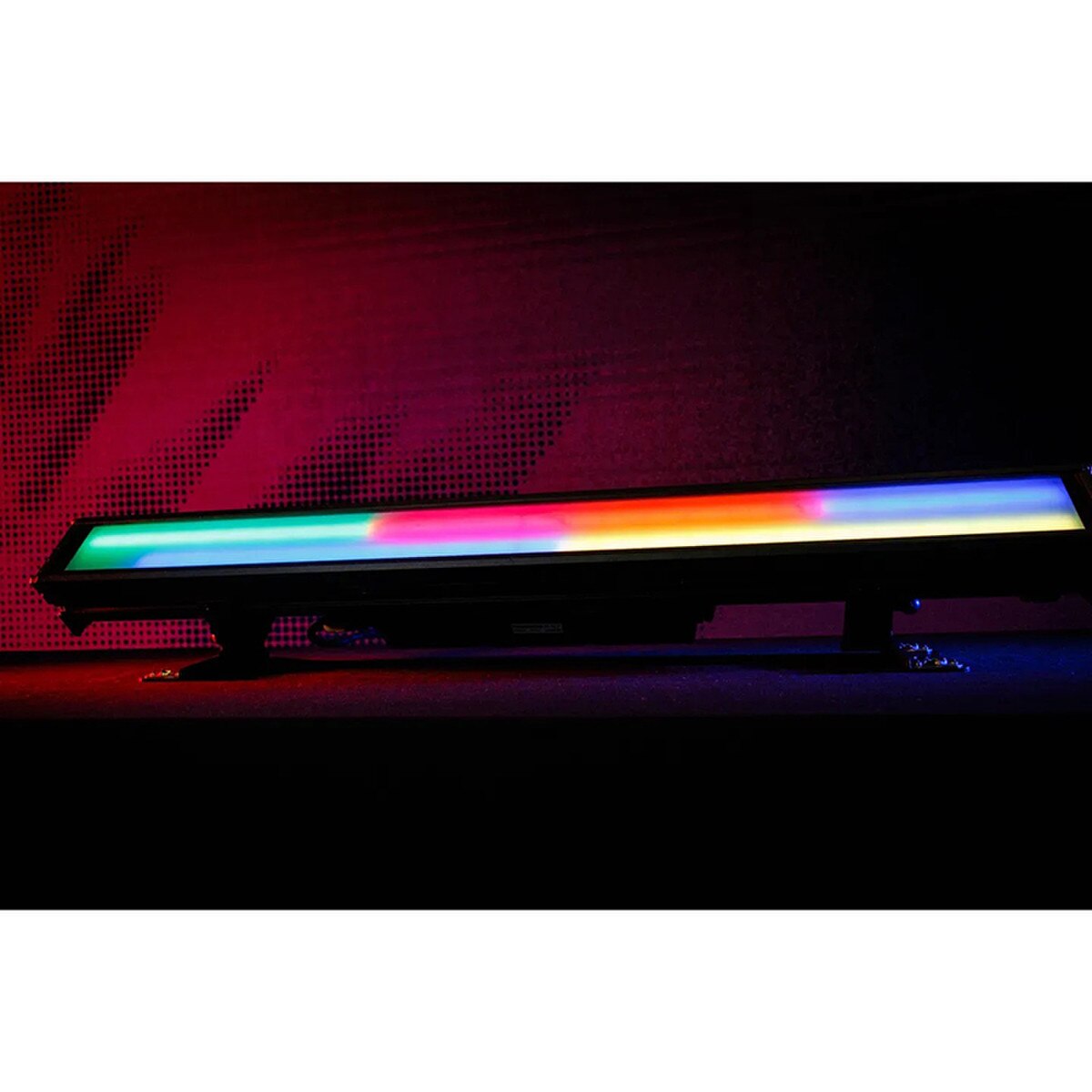

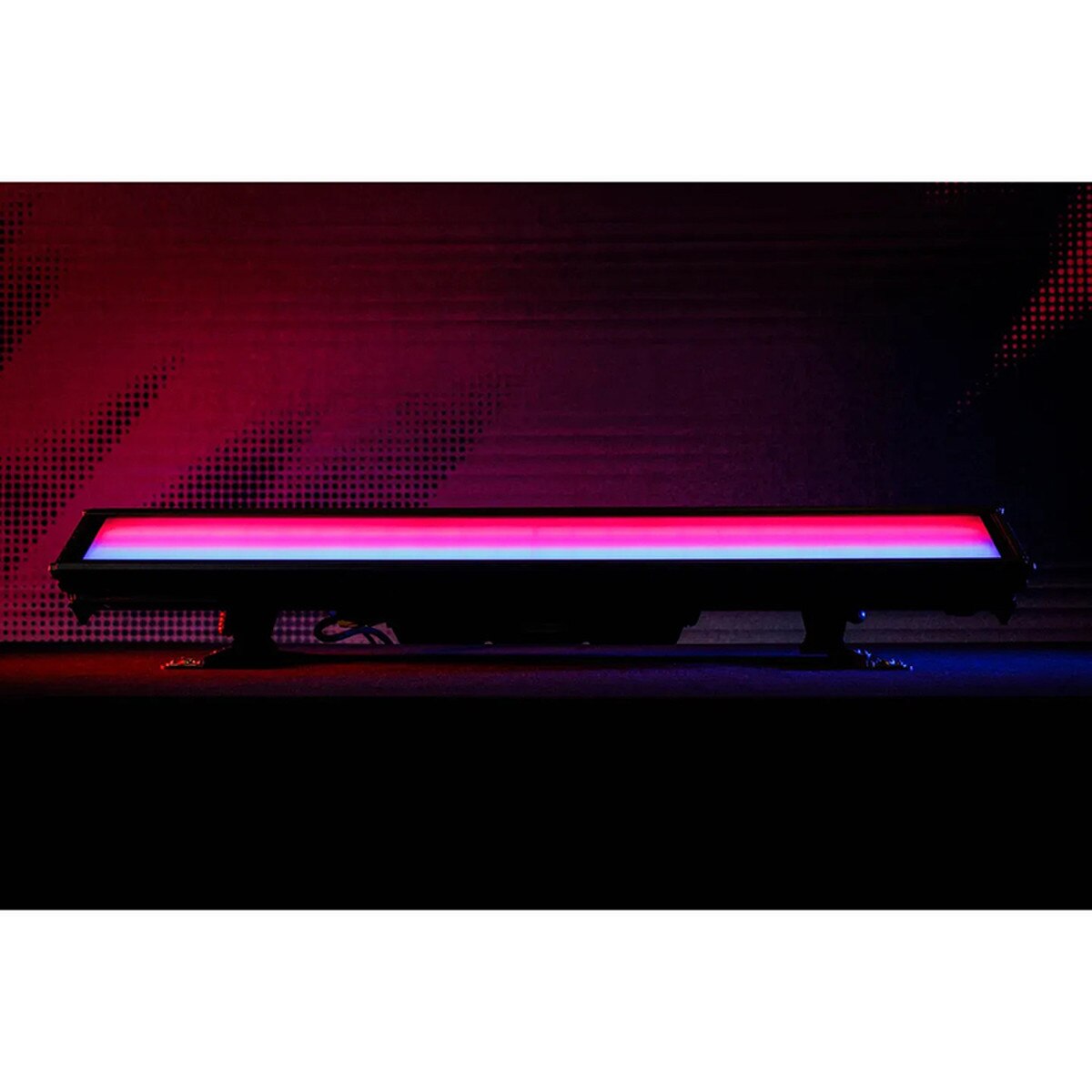

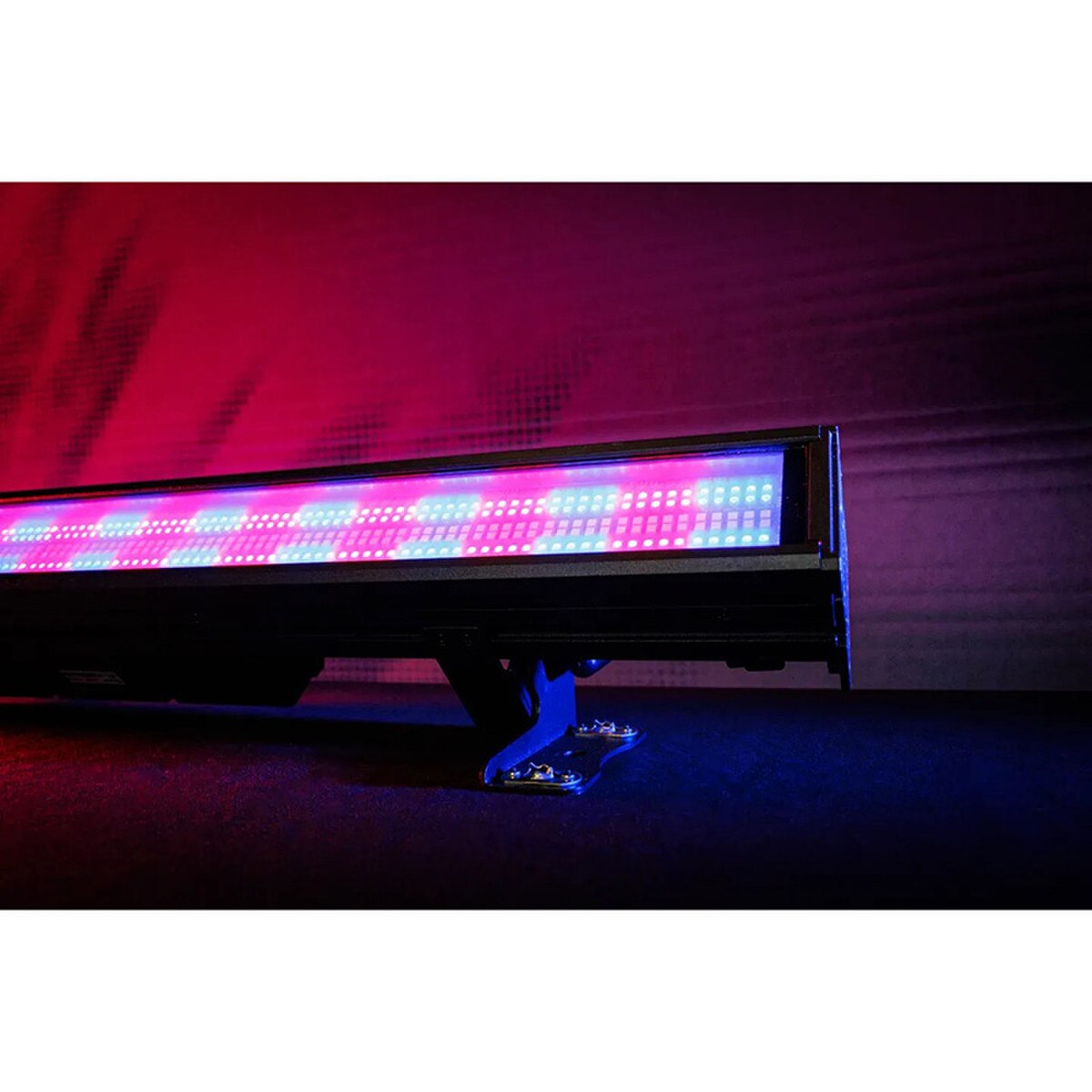

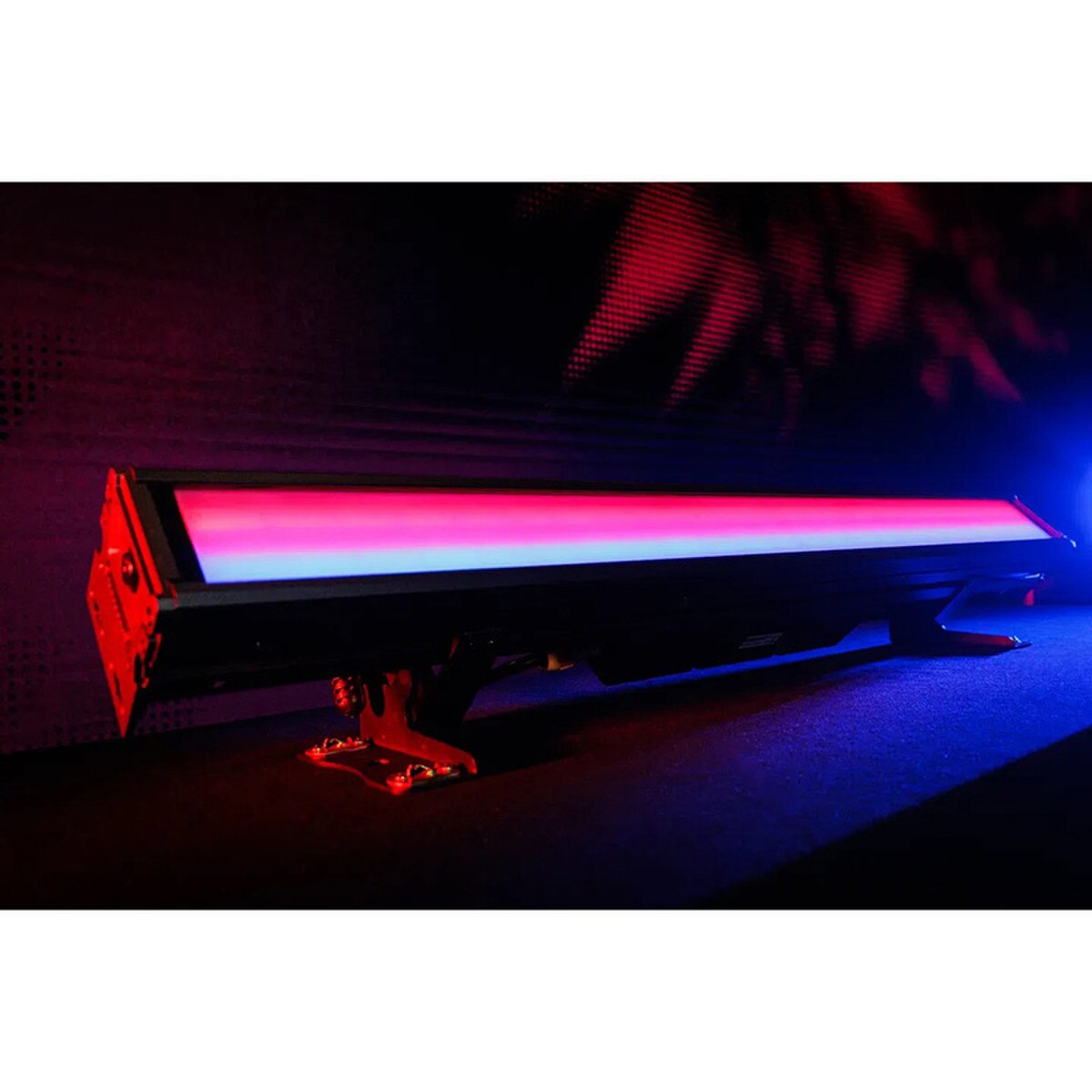

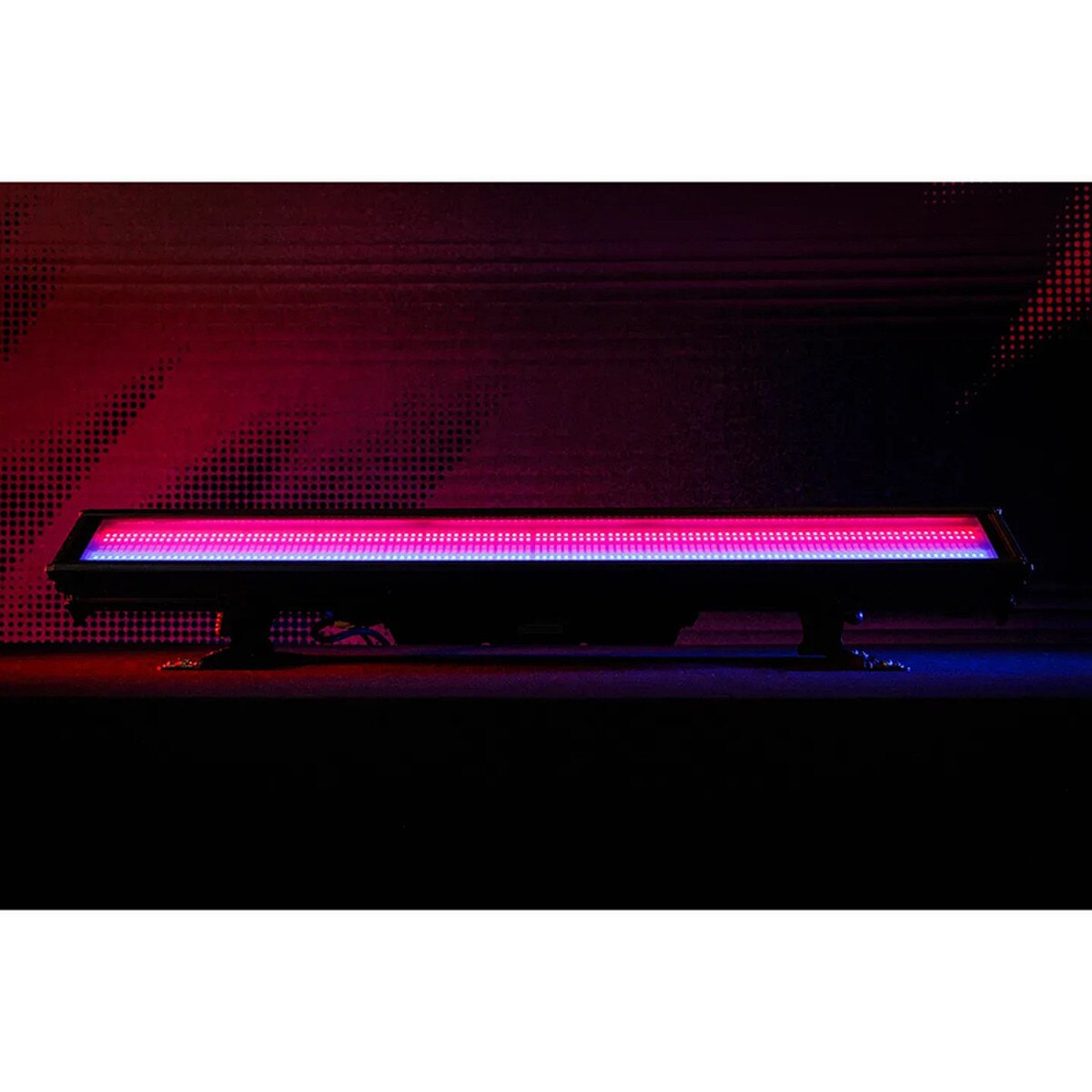

With a top and bottom row of 480x 0.5W RGB SMD 5050 LEDs and a center row of 240x 1W white SMD LEDs, the IP65-rated SticknadoTM Great White is designed to deliver an amazing display of colored pixels, strobe, and blinder effects. It also features DMX controllable electronic frost on the front lens. When applied, 0-100% diffusion of the RGB+W colors can be achieved.

It offers a variety of channel modes, allowing full fixture wash effects or individual control of grouped LED pixels (up to 24 pixels per row). Multiple units can be aligned end-to-end with the included hardware, expanding design possibilities. With 33 built-in macros, 3 customizable programs, and smooth operation, this fixture excels in both stage and outdoor environments.

Fully Loaded + Tunable Smart Frost

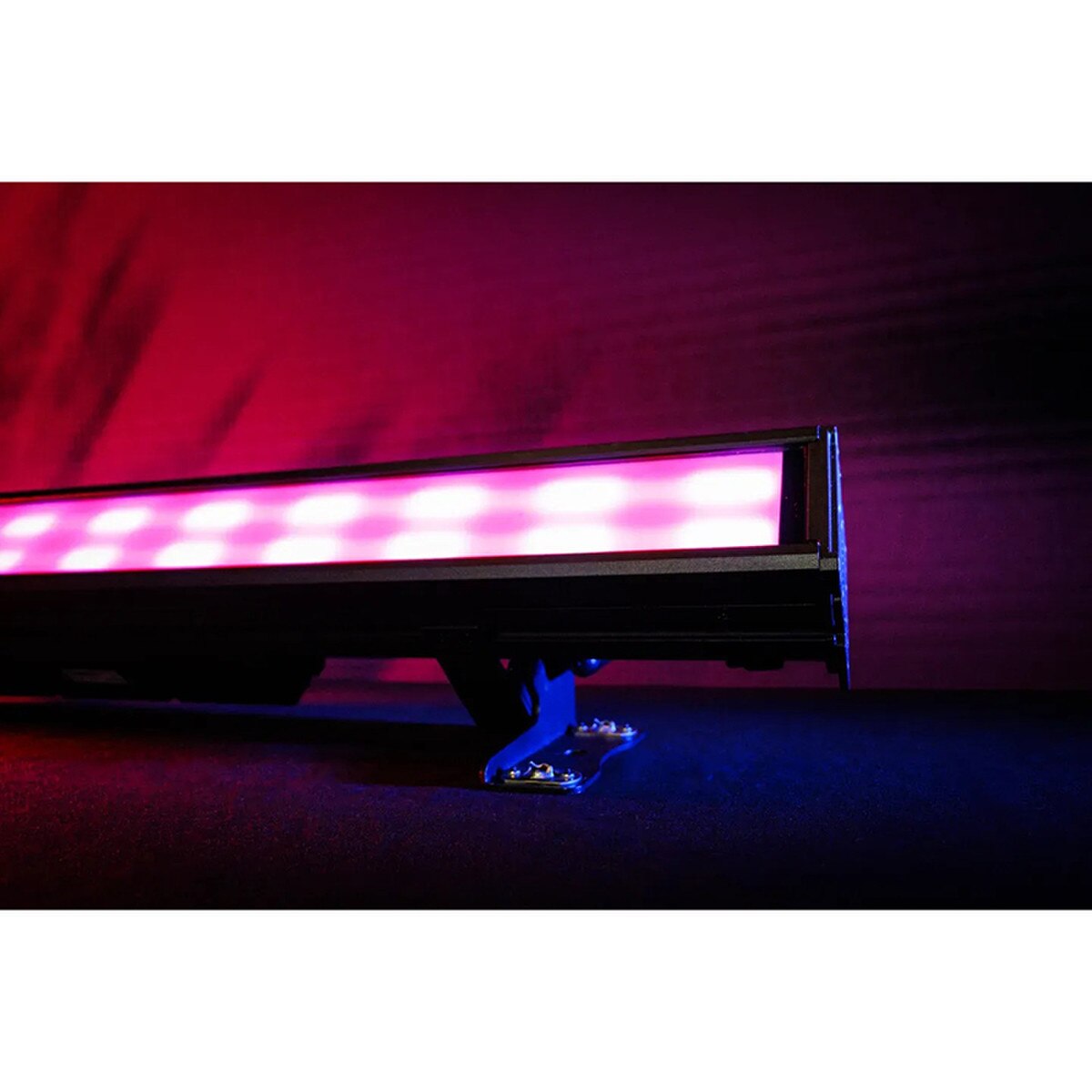

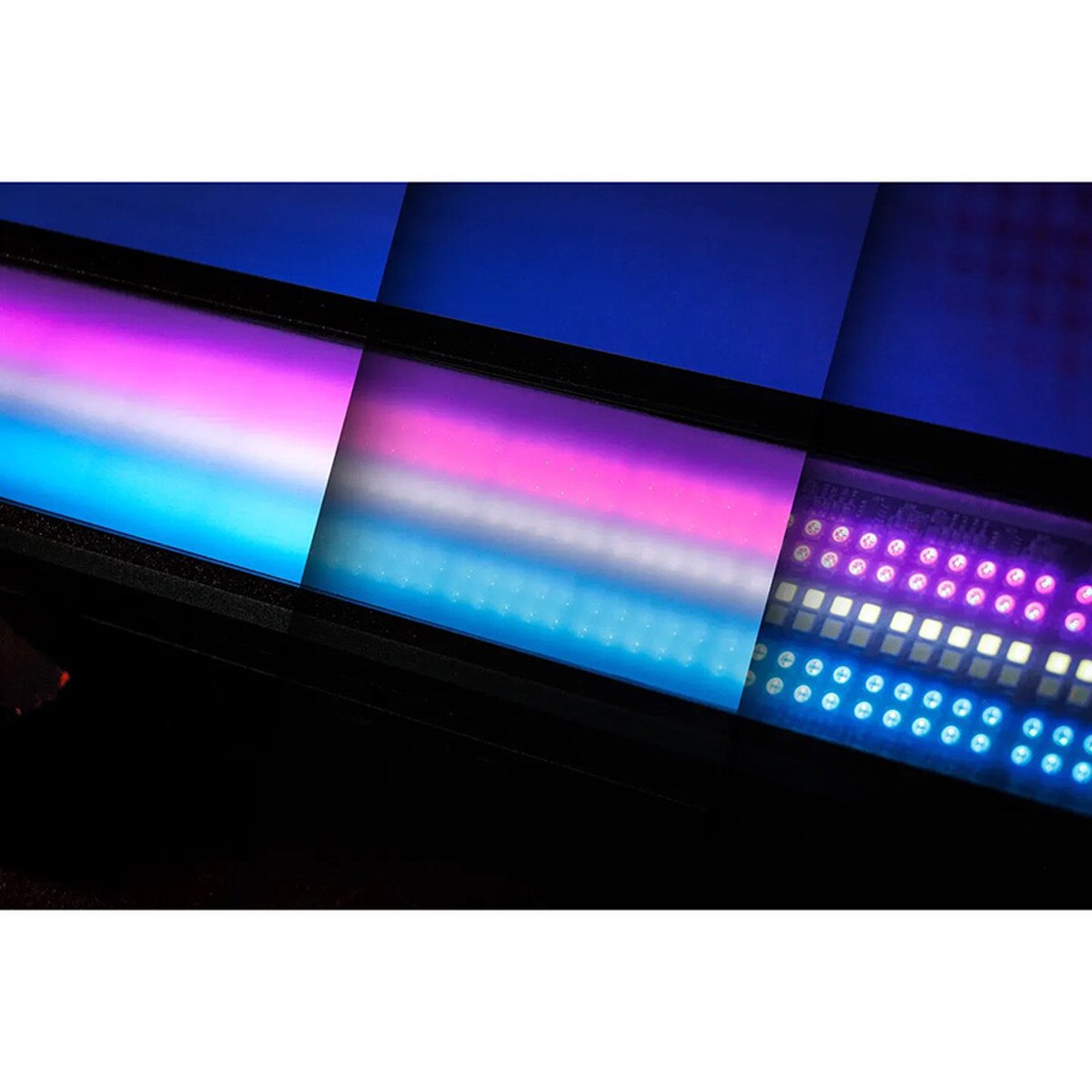

Switch from sharp beams to smooth diffusion with its tunable, electronic smart frost lens. Featuring 33 built-in macros and 3 customizable programs to deliver everything from full wash to colored pixels to strobe and blinder effects.

Durable, Buildable Design

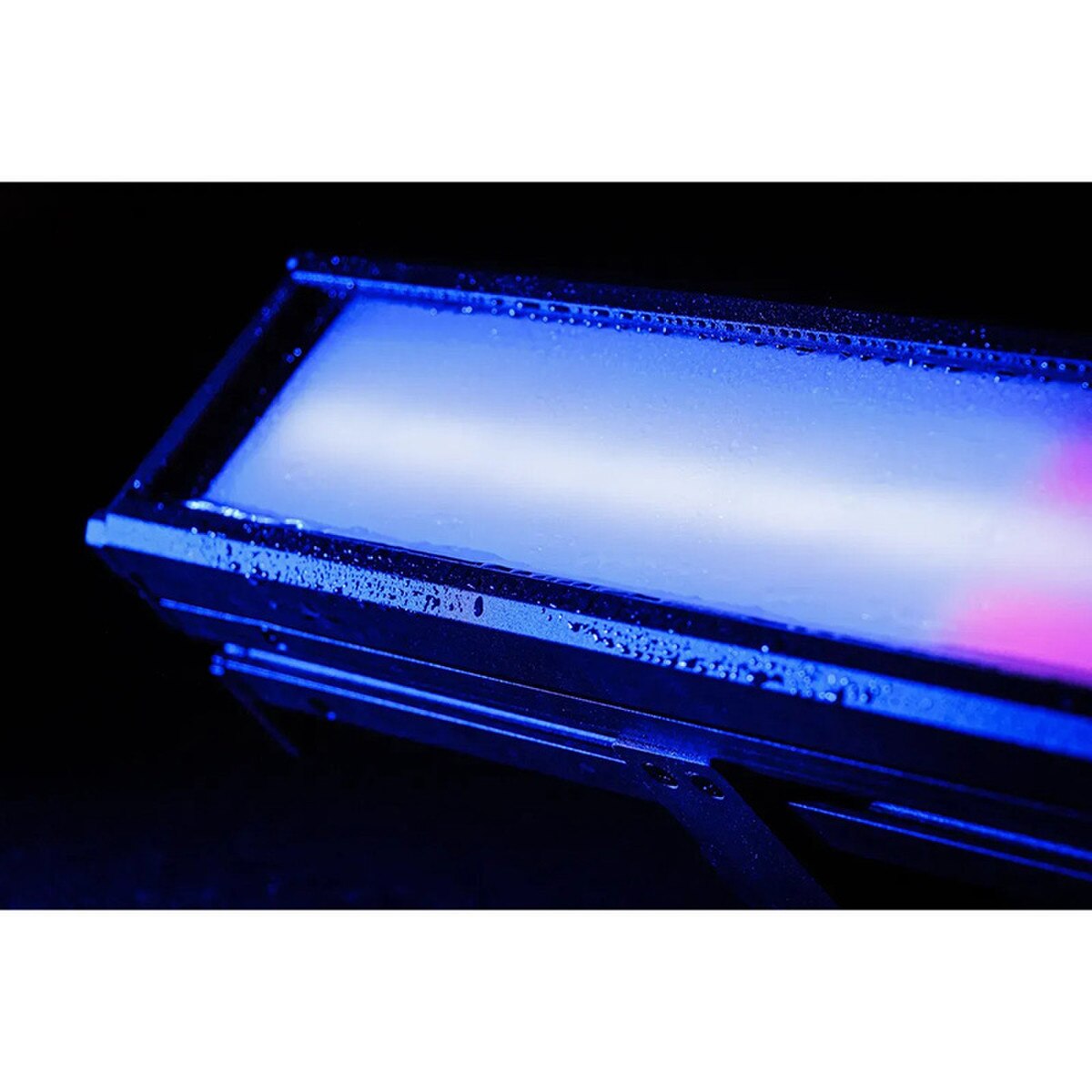

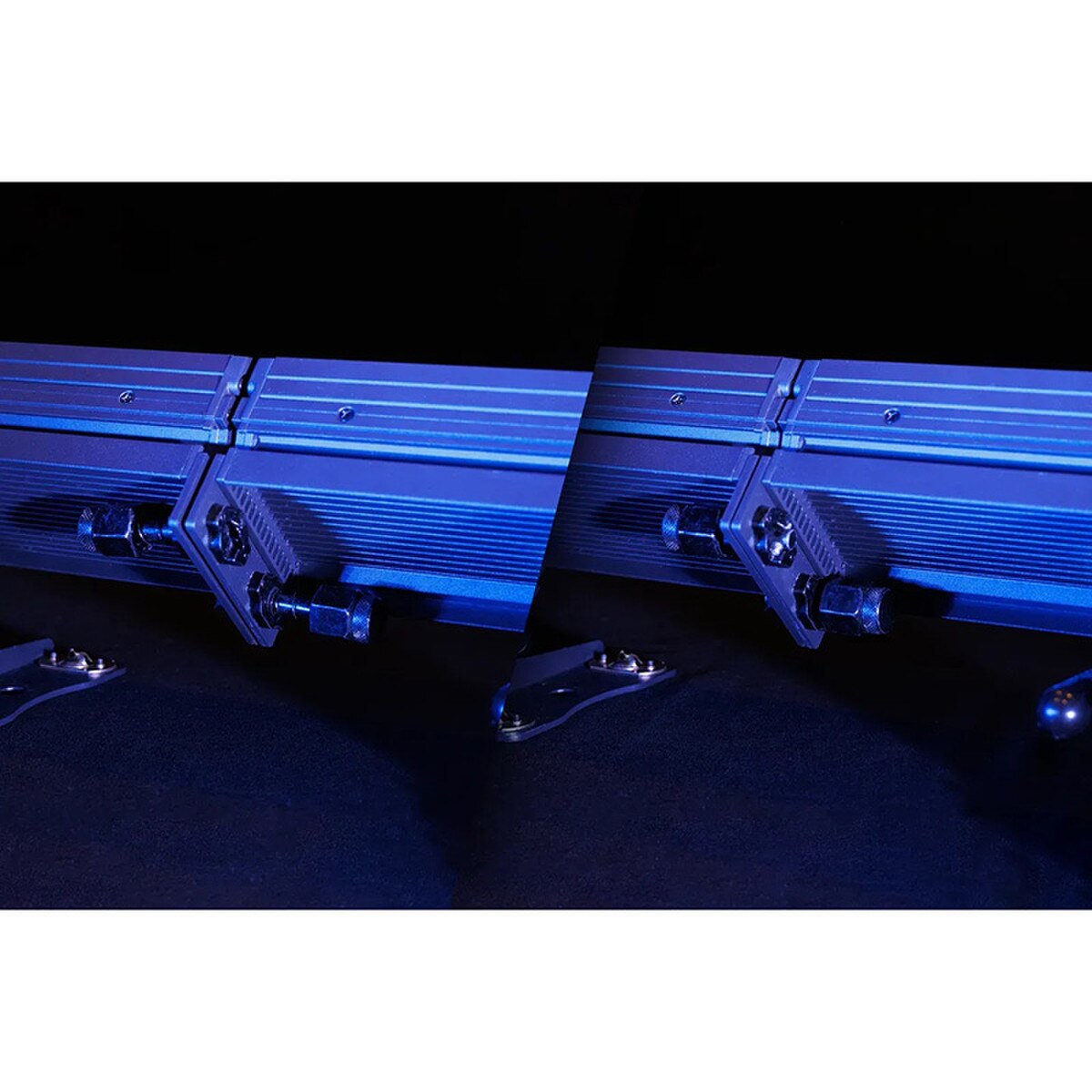

An interlocking housing design connects multiple units end-to-end and seamlessly pairs with Sticknado™ Hammerhead for extra creative potential. This IP65 outdoor-rated batten features rock-solid metal housing and efficient convection cooling for peak performance in any environment.

Tech Specs

The Rundown:

• Outdoor Batten w/ electronically controlled clear to frosted smart lens
• 33 built-in macros and 3 customizable programs
• Interlocking housing design (works with STICKnado™ Hammerhead)
• IP65 rated outdoor LED fixture
• Built-in color and pixel chase macros via DMX
• Virtual color wheel effects
• 480x 0.5W RGB SMD 5050 + 240x 1W white SMD LEDs
• Viewing angle: 104° (110° with frost)
• Efficient convection cooling
• Dual mounting brackets with locking knobs
• Interlocking housing design for connecting multiple fixtures
• 5-pin DMX in/out + powerCON-compatible AC in/out

Optical:

• 480x 0.5W RGB SMD 5050 + 240x 1W white SMD LEDs
• Viewing Angle: 104° (110° with frost)

Luminous Intensity:

• 1406 Lux @ 2.5M (no frost)
• 1209 Lux @ 2.5M (with frost)
• 347 Lux @ 5M (no frost)
• 327 Lux @ 5M (with frost)

Control:

• Protocol: USITT DMX-512, RDM
• DMX Channels: 4/5/6/11/12/17/25/33/41/57/73/105/201 + 12 dedicated RGB/RGBW pixel mapping modes
• Easy-to-use 4-button control menu with OLED display
• Operating modes: DMX512, M/S, auto

Power & Current:

• Operating voltage: 100-240VAC, 50/60 Hz
• Power Consumption: 358W, 3.15A, PF: .99

Dimensions:

• 17.9lbs

Warranty:

• 2 Year - Extendable
