Blizzard Sticknado Hammerhead

At A Glance:

• Outdoor Bar/Wash with RGBL Color Mixing + Pixel FX
• 10-45° asymmetrical beam spread
• Interlocking housing design (works with STICKnado™ Great White)

Summary:

With its 16x 20W RGBL 4-in-1 LEDs + 10-45° asymmetrical lenses, the IP65-rated SticknadoTM Hammerhead produces an impressive blend of color and striking visuals, perfect for a wide range of applications. The addition of Lime to the RGB color mixing enhances the color rendering for more natural tones, delivering consistent coverage as well as dynamic pixel effects.

It features multiple channel modes, allowing for full fixture wash effects or control over individual and grouped LED pixels. Multiple units can be aligned end-to-end with the included hardware, expanding design possibilities. With 33 built-in macros, 3 customizable programs, and smooth operation, this fixture excels in both stage and outdoor environments.

RGBL Wash + Pixel FX

Expand your light palette with the addition of lime and 10-45° asymmetrical lenses for striking visuals. Featuring 33 built-in macros and 3 customizable programs to deliver everything from consistent wash coverage to dynamic pixel effects.

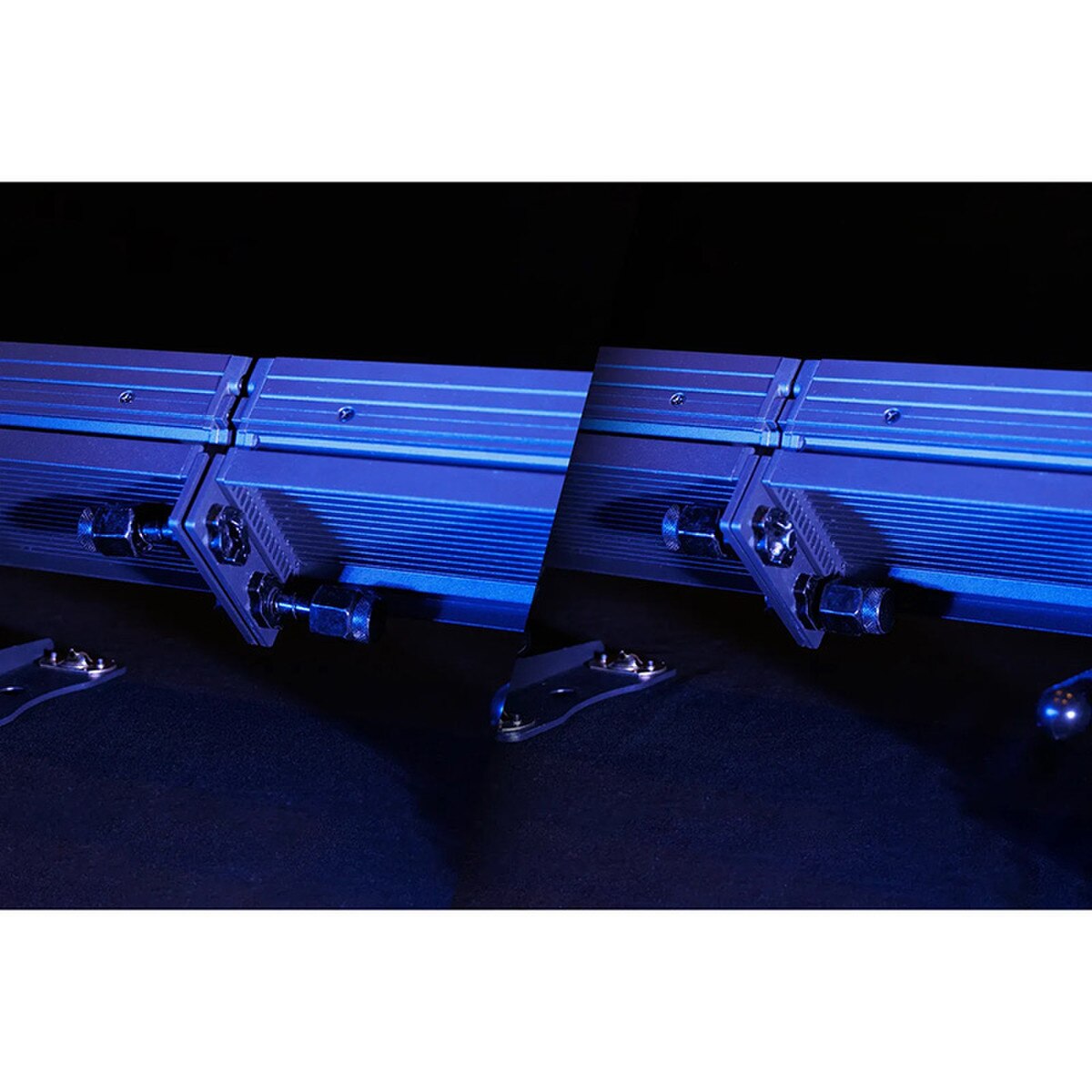

Durable, Buildable Design

An interlocking housing design connects multiple units end-to-end and seamlessly pairs with Sticknado™ Great White for extra creative potential. This IP65 outdoor-rated batten features rock-solid metal housing and efficient convection cooling for peak performance in any environment.

Tech Specs

The Rundown:

• Outdoor Bar/Wash with RGBL Color Mixing + Pixel FX
• 10-45° asymmetrical beam spread
• Interlocking housing design (works with STICKnado™ Great White)
• Flicker-free constant-current LED driver
• IP65 rated outdoor LED fixture
• Built-in color and pixel chase macros via DMX
• Virtual color wheel effects
• 33 built-in macros and 3 customizable programs
• Efficient convection cooling
• Dual mounting brackets with locking knobs
• Interlocking housing design for connecting multiple fixtures
• 5-pin DMX in/out + powerCON-compatible AC in/out

Optical:

• 16x 20W RGBL 4-in-1 LEDs
• Beam Angle: 10-45° asymmetrical beam spread

Luminous Intensity:

• 45° Beam Angle
• 4,045 Lux @ 2.5M
• 3,406 Lux @ 3M
• 1,594 Lux @ 4M
• 840 Lux @ 5M

Control:

• Protocol: USITT DMX-512, RDM
• DMX Channels: 3/4/5/10/14/22/38/48/64/70 channels
• Easy-to-use 4-button control menu with OLED display
• Operating modes: DMX512, M/S, auto

Power & Current:

• Operating voltage: 100-240VAC, 50/60 Hz
• Power Consumption: 192W, 1.66A, PF: .99
• Dimensions: 19.9lbs

Warranty:

• 2 Year - Extendable

Certifications:

• RoHS, CE

Blizzard Sticknado Hammerhead User Manual.pdf
Blizzard Sticknado Hammerhead Cutsheet.pdf
