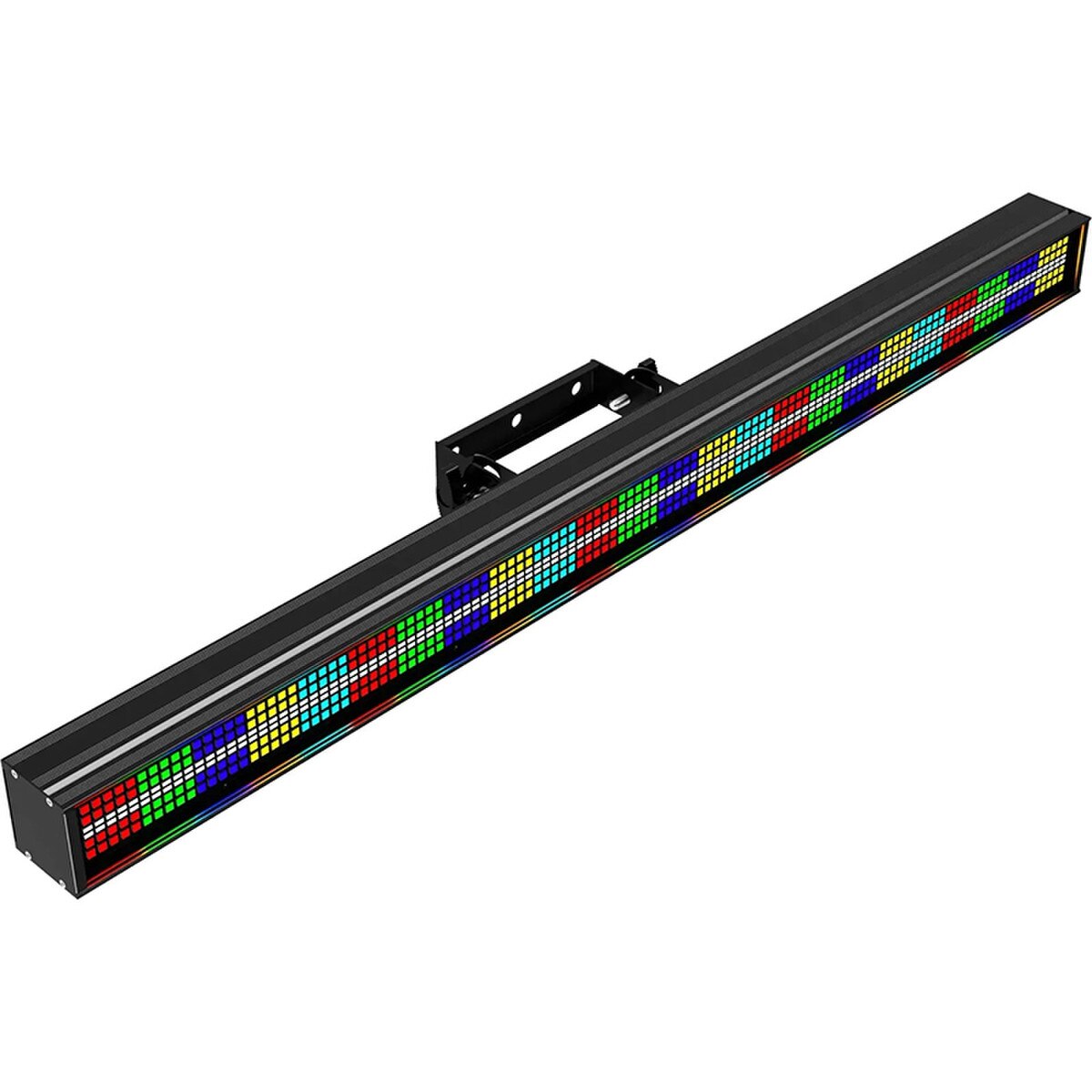

Blizzard StormChaser SuperHot

At A Glance:

• 1-meter LED bar with RGB and cool white effects
• 240 x 0.5W cool white SMD LEDs (5700K)
• 480 x 0.3W 3-in-1 RGB color-mixing SMD LEDs

Turn Up the Heat

StormChaser™ SuperHot brings serious firepower to your rig. Its RGB and Cool White LEDs throw out sharp beams and bold color that command attention from any stage or install.

Built for the Long Burn

Engineered for the road, it’s lightweight, tough, and ready for marathon gigs. From truss to wall mount, the SuperHot holds its own and keeps the energy high night after night.

Control Every Pixel

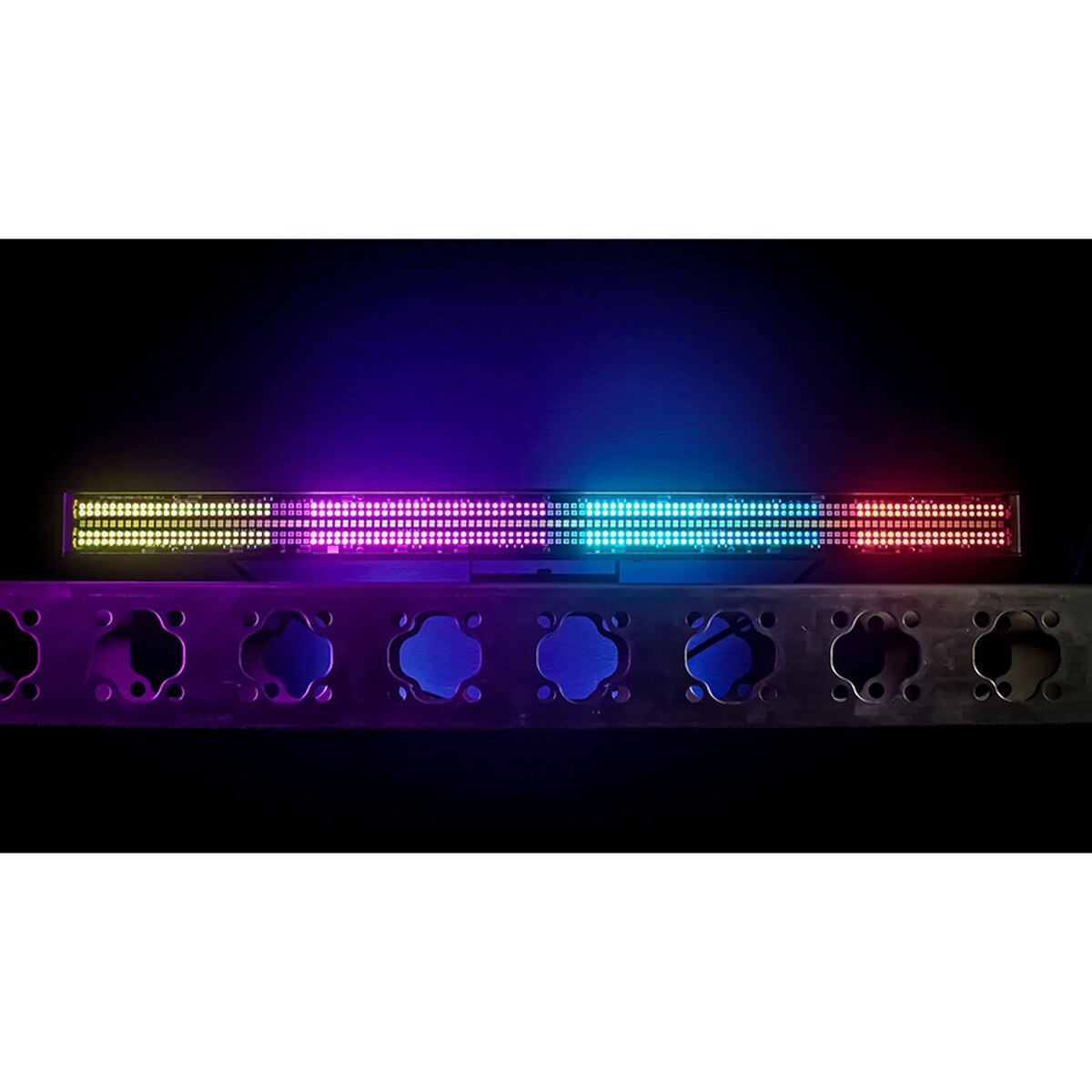

With up to 168 channels of DMX control, the SuperHot lets you shape color and intensity with pinpoint precision. Every segment becomes part of your story, animated in real time.

Tech Specs

The Rundown:

• 1-meter LED bar with RGB and cool white effects
• 240 x 0.5W cool white SMD LEDs (5700K)
• 480 x 0.3W 3-in-1 RGB color-mixing SMD LEDs
• Multiple programs with adjustable speed (RGB, CW, RGB+CW)
• Pixel mapping in 168-channel DMX mode
• 1–30Hz strobe effects
• Secure mounting bracket with locking knobs
• 5-pin DMX input and output
• PowerCON® True1-compatible power input

Summary:

The StormChaser™ SuperHot packs 720 total LEDs into a one-meter bar that delivers crisp cool white output and bold RGB color mixing. It features DMX and RDM control, multiple operating modes, and full 168-channel pixel mapping. Built for versatility, it’s ready for stages, studios, and installs that need speed, punch, and precision.

Warranty:

• 2 Year - Extendable

Optical:

• Light Source: 240 × 0.5 W Cool White SMD LEDs (5700 K) + 480 × 0.3 W RGB SMD LEDs
• Luminous Intensity: 316 lux @ 2.5 m, 83 lux @ 5 m
• Strobe Rate: 1 – 30 Hz
• Beam Configuration: Pixel-mapped zones (168 channels)

Control:

• USITT DMX-512
• RDM protocol compatible
• PowerCON® True1-compatible connectors
• Indoor use only

Power & Current:

• Operating Voltage: AC 100 – 240 V, 50/60 Hz
• Power Consumption: 110 W (1.4 A, PF 0.66)
• Max. Operating Temperature: 104 °F (40 °C) ambient

Dimensions:

• 5.9" x 3.4" x 39.4"
• 6lbs

Connectors:

• DMX In/Out: 5-pin XLR Male/Female
• Power: PowerCON® True1-compatible input/output
• Safety Cable Mount and Locking Bracket Included
