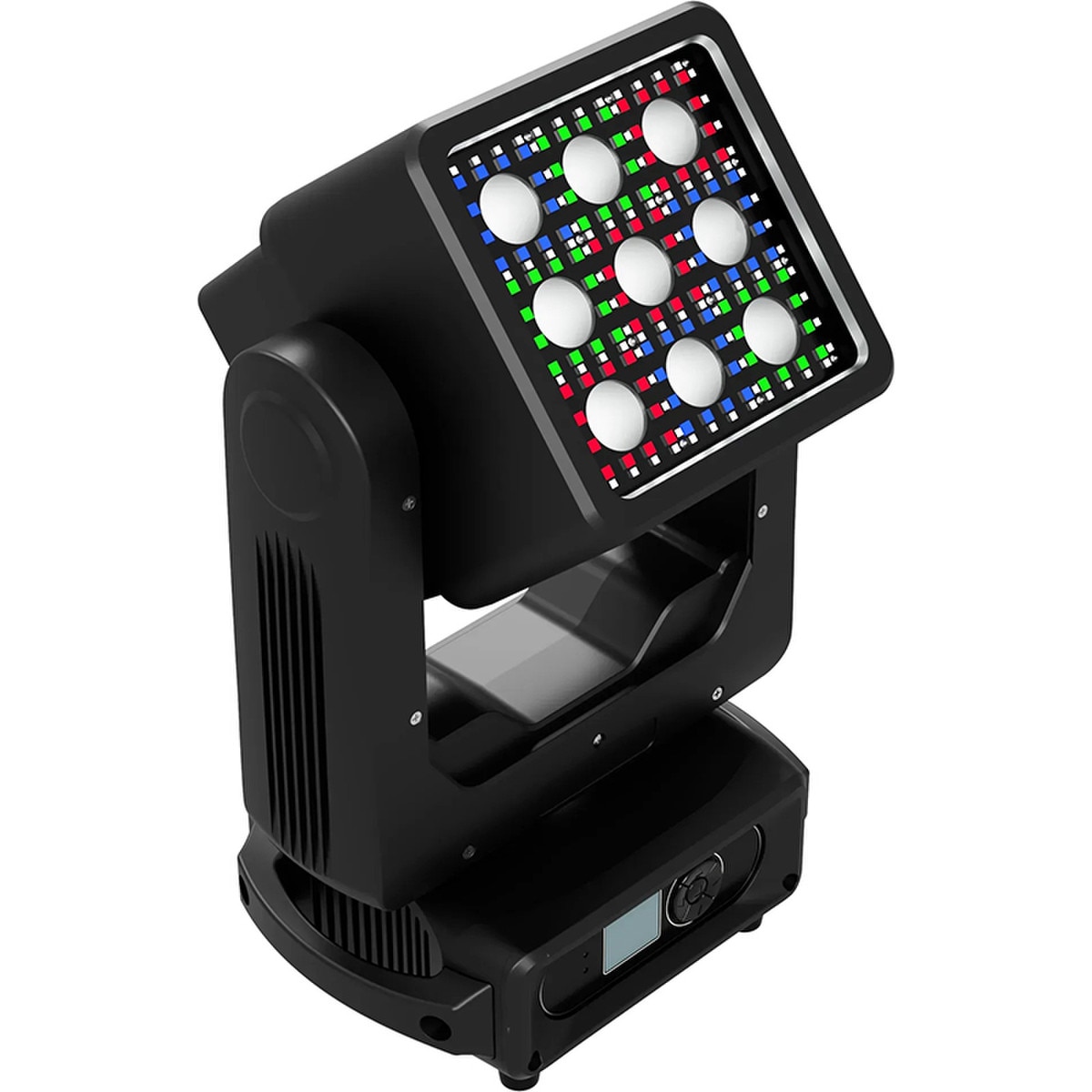

Blizzard SwitchBlade Flip

At A Glance:

• Dual-face hybrid beam / wash / pixel moving head
• 4x 60 W RGBW 4-in-1 LEDs (2.5° to 28° motorized zoom)
• 9x 10 W Cool White LEDs (3.5° beam, 10,000 K CCT)

Flip the Script

Blizzard SwitchBlade™ Flip rewrites what a moving head can do. Two faces, one fixture, beam precision on one side, pixel chaos on the other. Spin it, map it, and flip the entire room without missing a beat.

Infinite Pan and Tilt

With infinite pan and tilt, SwitchBlade™ Flip moves like no other. It cuts through haze with razor sharp RGBW beams or bathes the crowd in soft white wash, all from a fixture that never runs out of direction.

Address the Situation

Every LED is addressable, every color is yours. Design patterns, chases, and graphics that dance with the music using SwitchBlade™ Flip’s 93-channel pixel mapping mode.

Tech Specs

The Rundown:

• Dual-face hybrid beam / wash / pixel moving head

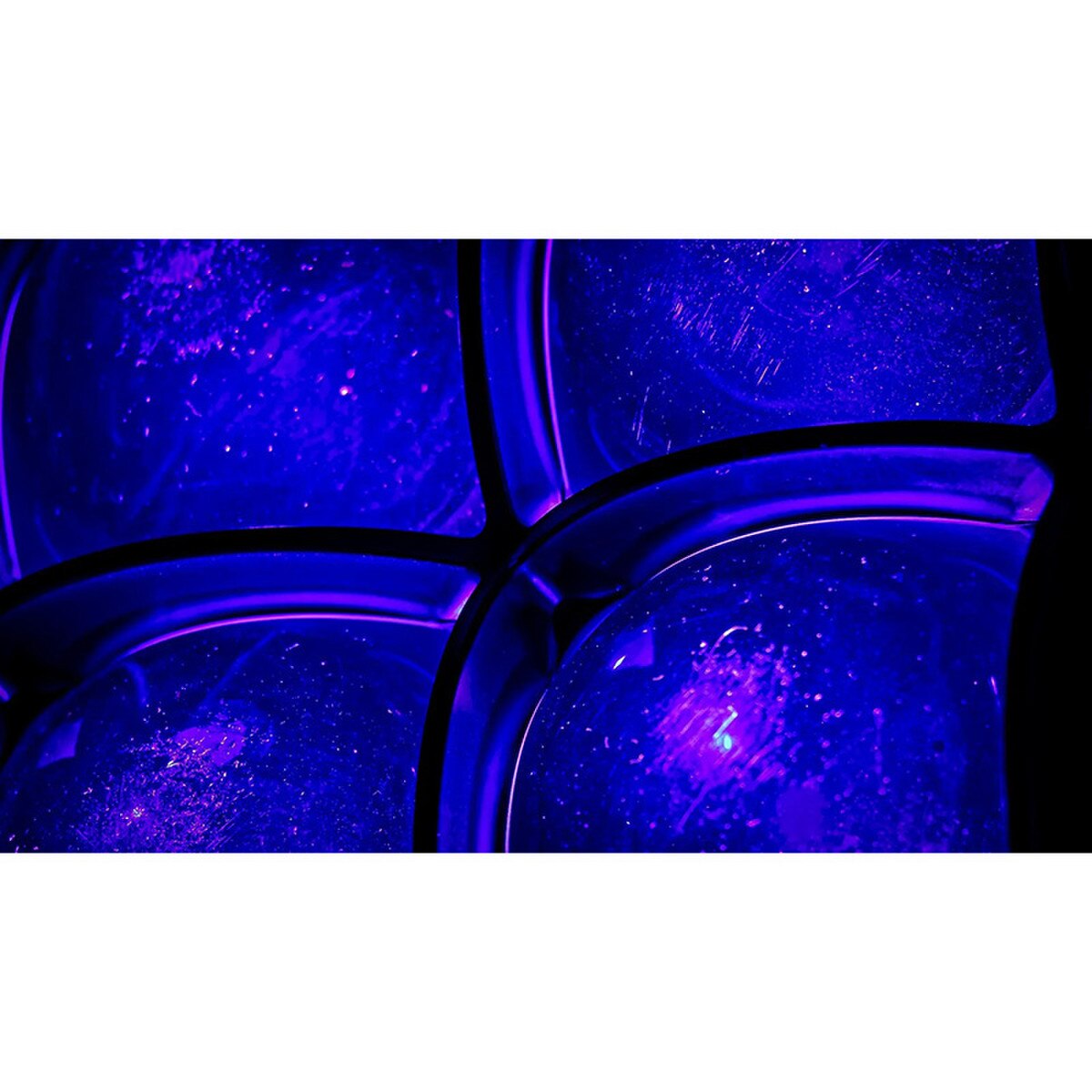

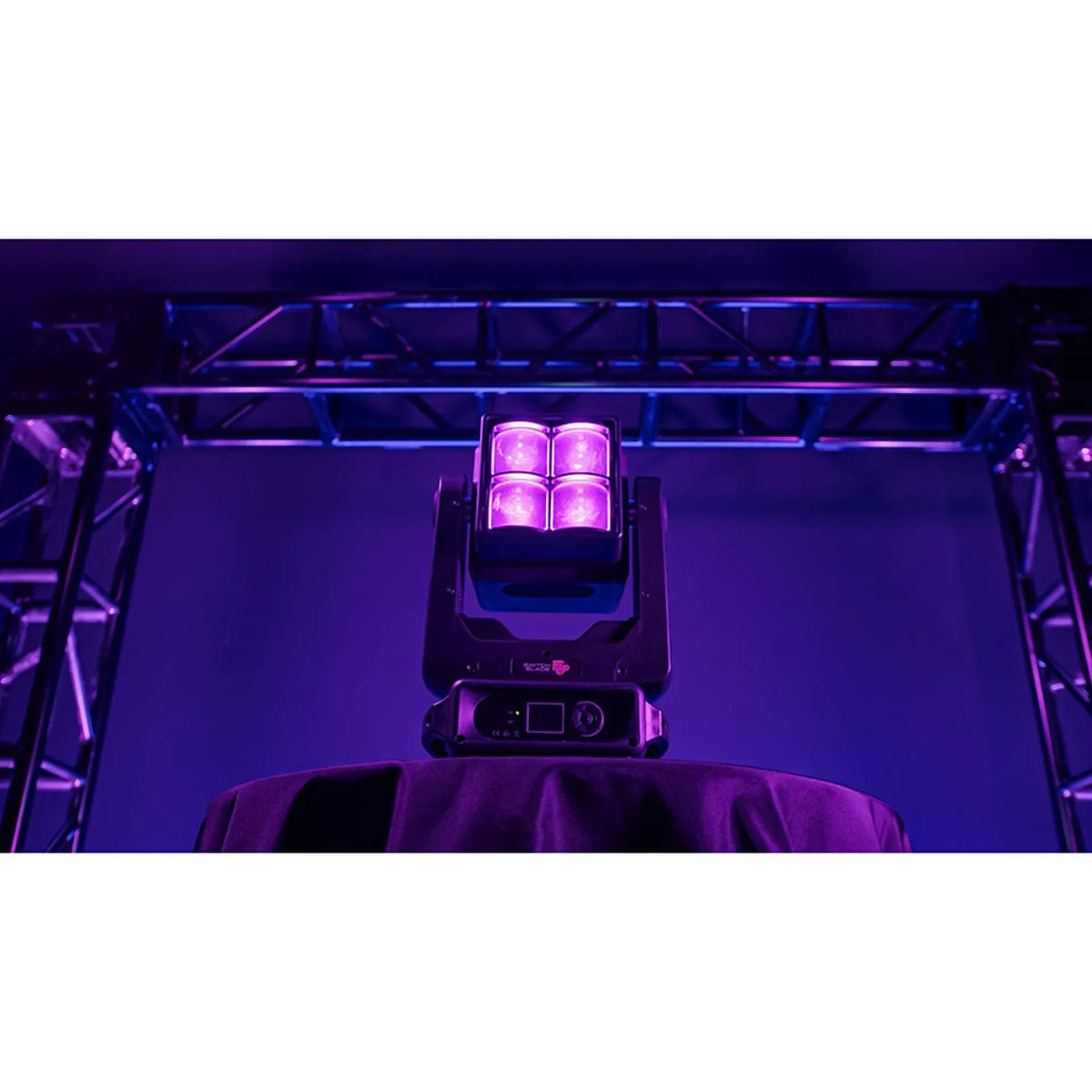

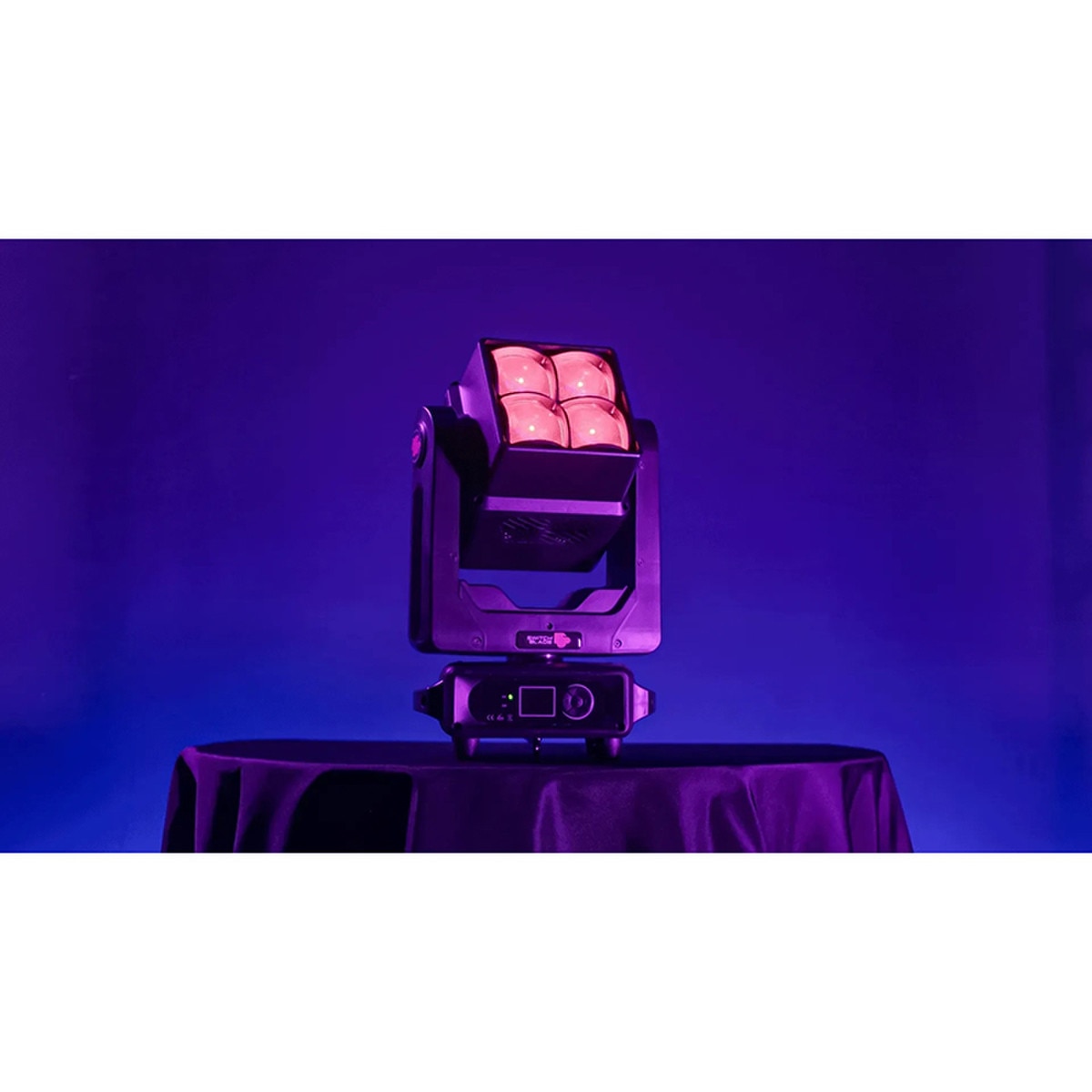

• 4 x 60 W RGBW 4-in-1 LEDs (2.5° to 28° motorized zoom)

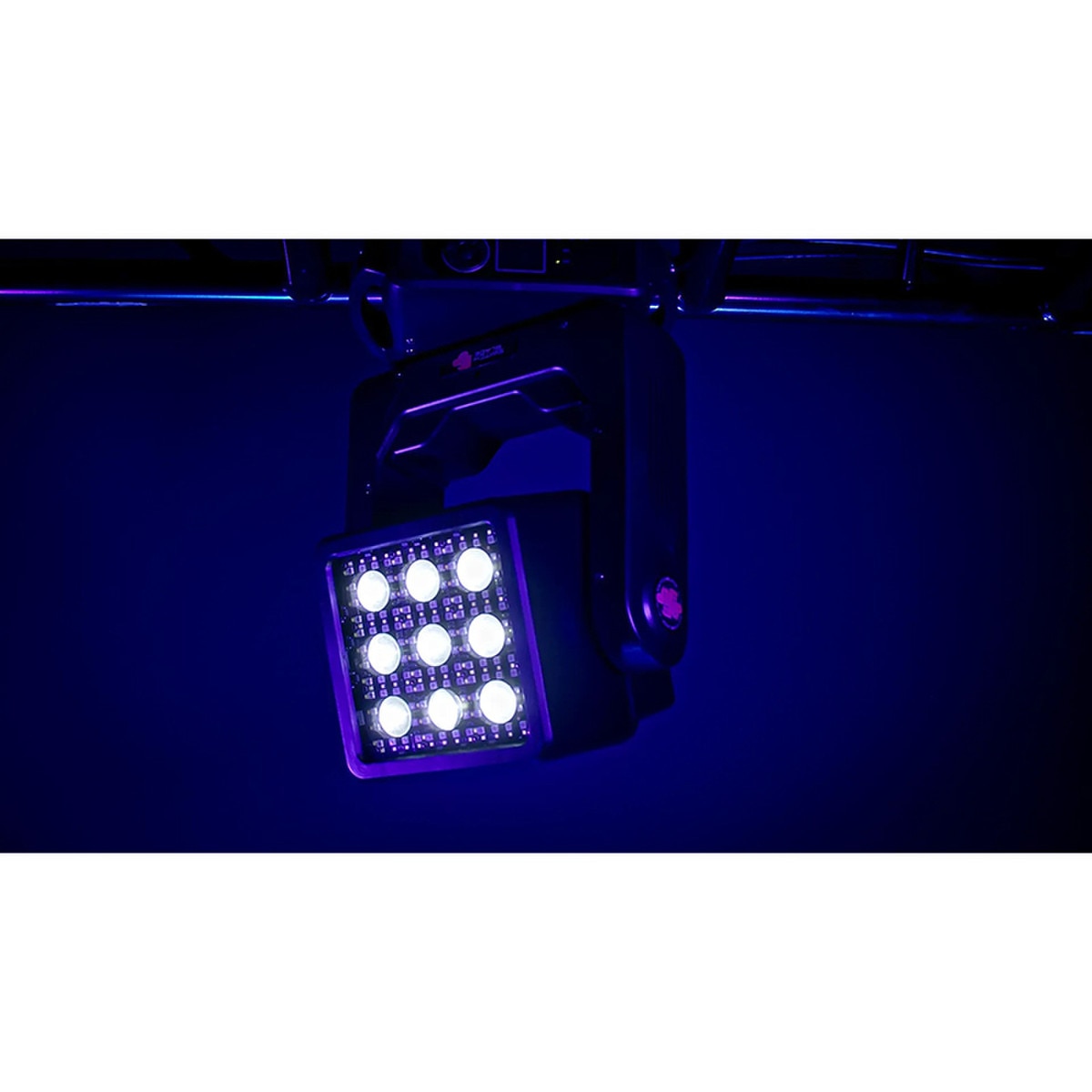

• 9 x 10 W Cool White LEDs (3.5° beam, 10,000 K CCT)

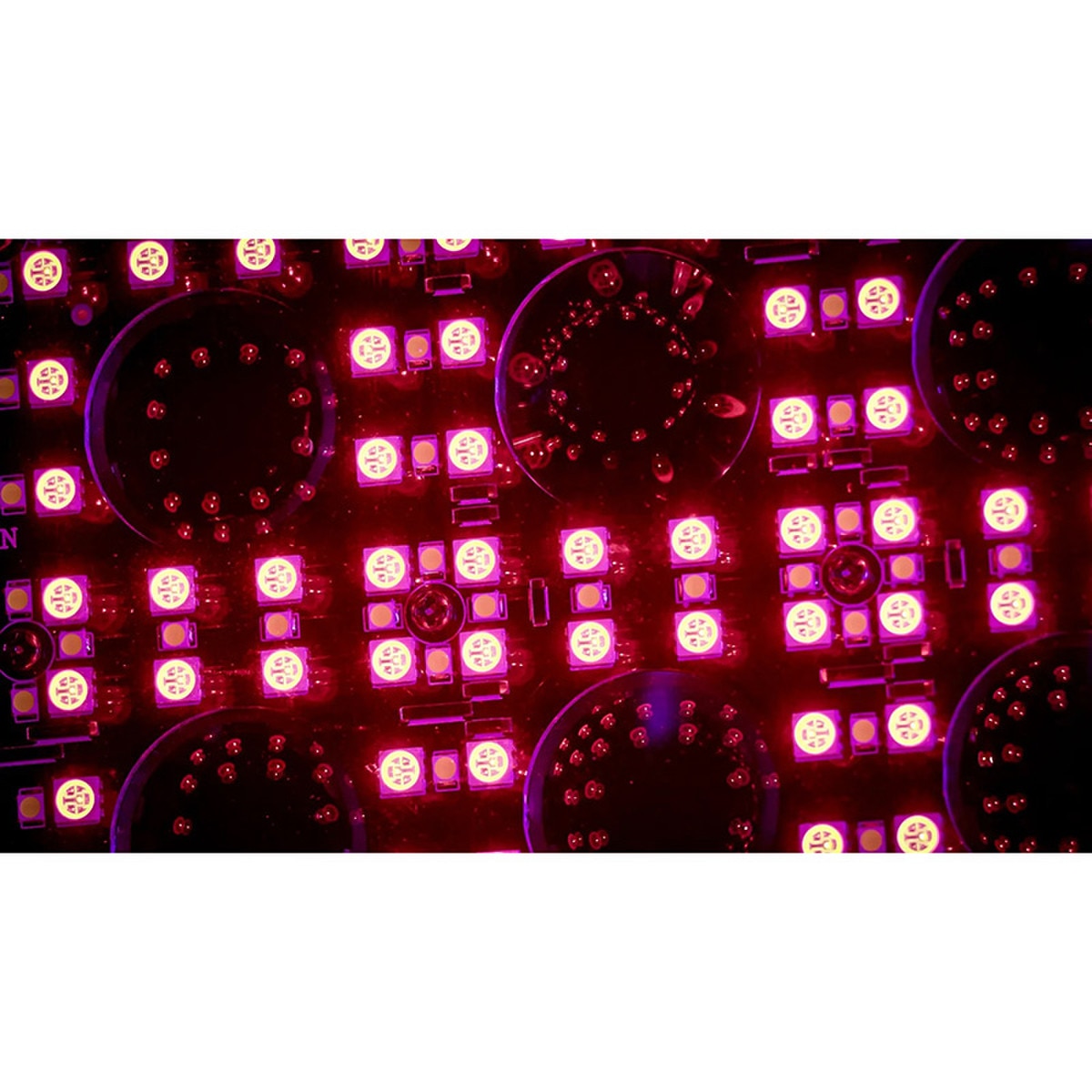

• 108 x 0.5 W RGB 5050 SMD LEDs
• 96 x 3 W Cool White SMD LEDs (10,000 K CCT)
• Infinite pan (540°) and tilt (270°) with 8–16 bit resolution

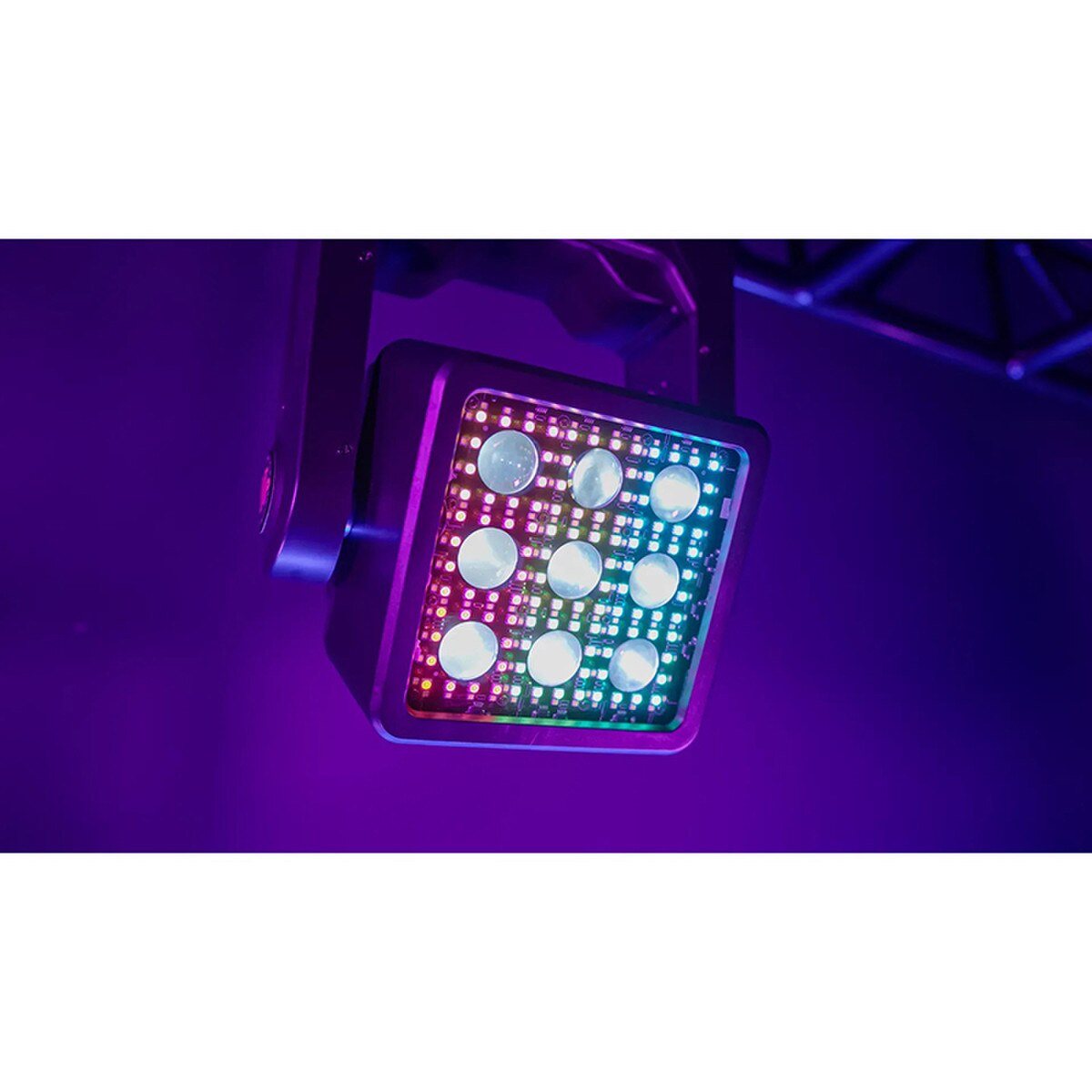

• Pixel-mappable front and rear LED zones
• 0–30 Hz strobe effects with speed and background control
• DMX channel modes: 20 / 34 / 93
• DMX512, Master / Slave, Auto, and Sound Active modes
• PowerCON© TRUE1 power input
• 5-pin DMX in / out connectors
• 5-button LCD menu with intuitive navigation
• 2-year limited warranty

Summary:

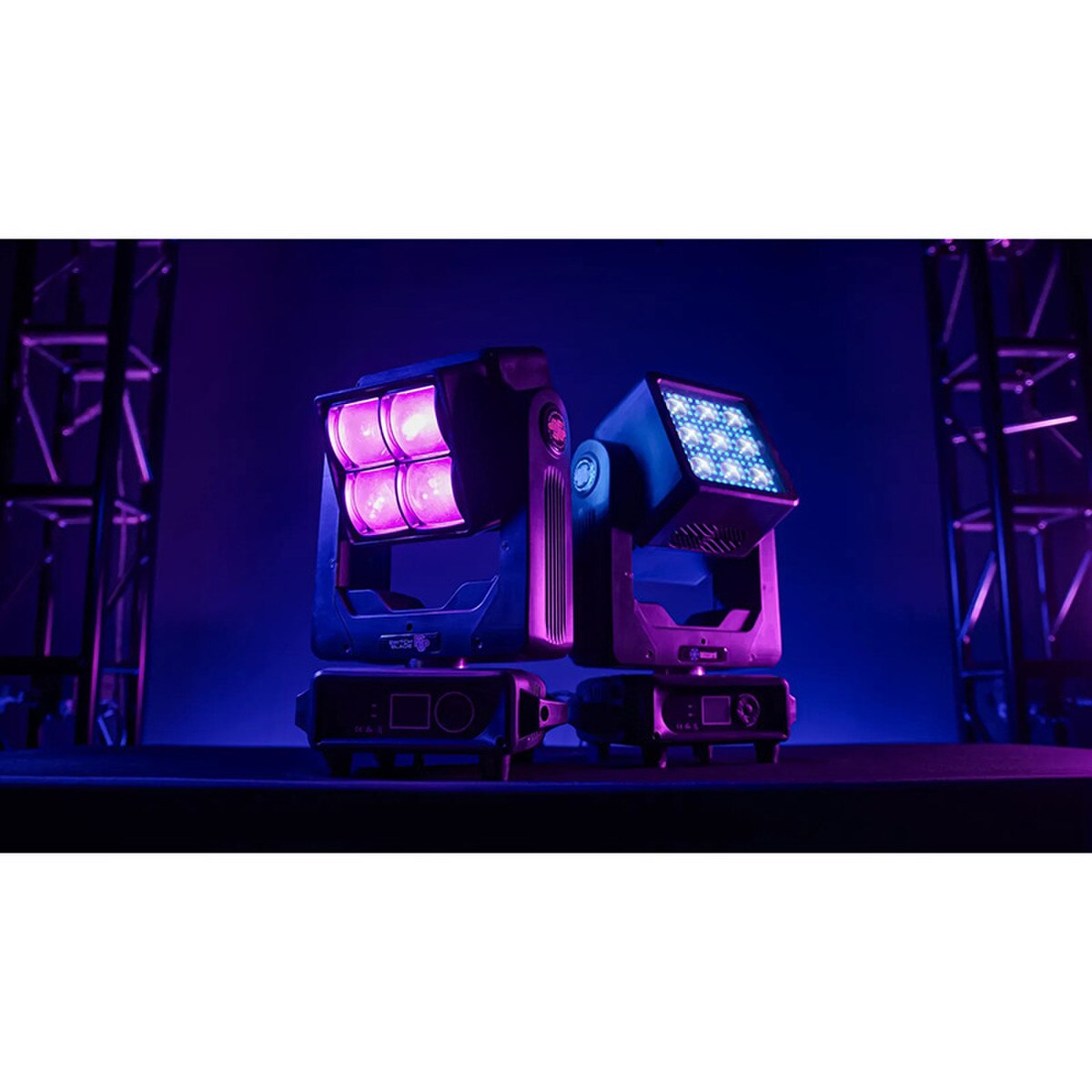

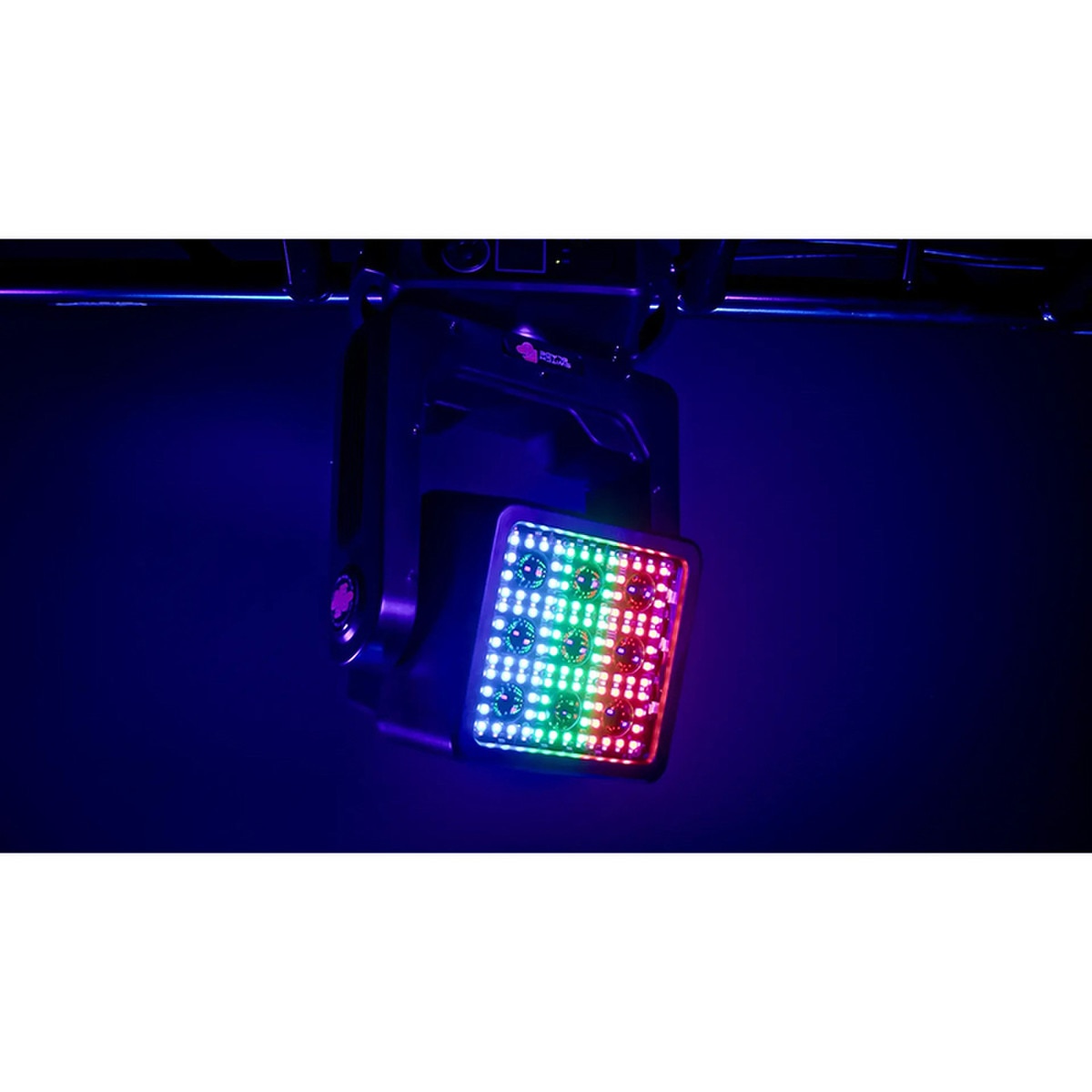

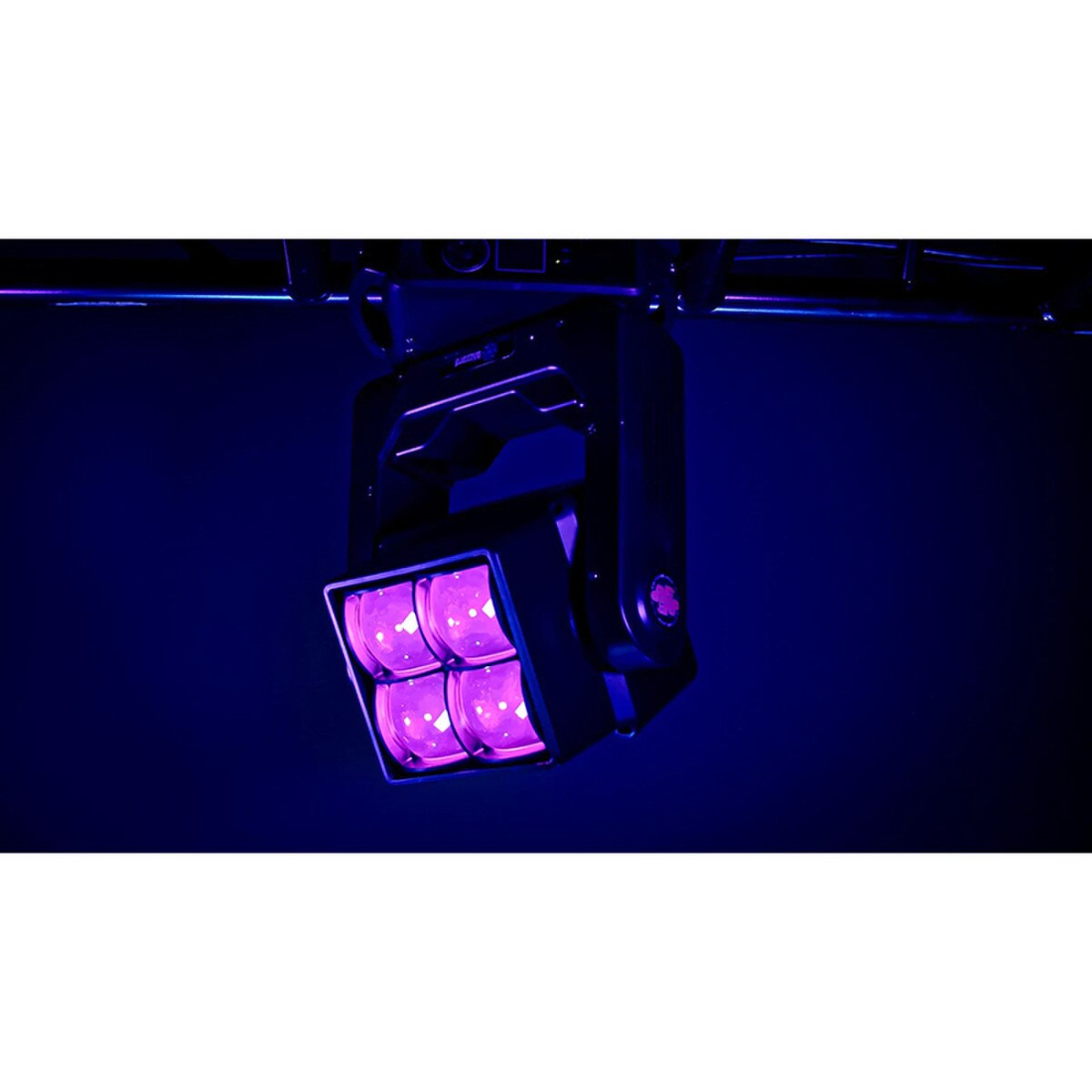

SwitchBlade™ Flip brings dual-sided creativity to your rig. One side delivers tight RGBW beams with motorized zoom, while the other side fires cool-white pixels for crisp eye-candy effects. Combined with infinite pan / tilt, multi-zone pixel mapping, and high-speed movement, it’s built for designers who want their looks to move, shift, and evolve mid-show without swapping fixtures.

Warranty:

• 2 Year - Extendable

Optical:

• 4x 60W RGBW 4-in-1 LEDs (3.9° – 28° zoom)
• 9x 10W Cool White LEDs (3.5° beam, 10,000 K CCT)
• 108x 0.5W RGB 5050 SMD LEDs
• 96x 3W Cool White SMD LEDs (10,000 K CCT)

Control:

• Protocol: USITT DMX-512 / RDM
• DMX Channels: 20 / 34 / 93
• Interface: 5-Button LCD Menu
• Modes: DMX, Master / Slave, Auto, Sound Active
• Power & Current:
• Voltage: AC 100 – 240 V, 50 / 60 Hz
• Power: 370 W (3.26 A, PF 0.99)
• Fuse: 10 A, 250 V
• Max Ambient Temp: 104 °F

Dimensions:

• 19.4" x 7.8" x 11.4"
• 22.8lbs

Connectors:

• DMX In / Out: 5-Pin XLR Male / Female
• Power: PowerCON© TRUE1 In / Out
• Mount: Dual Omega Brackets + Safety Cable Rigging Point
