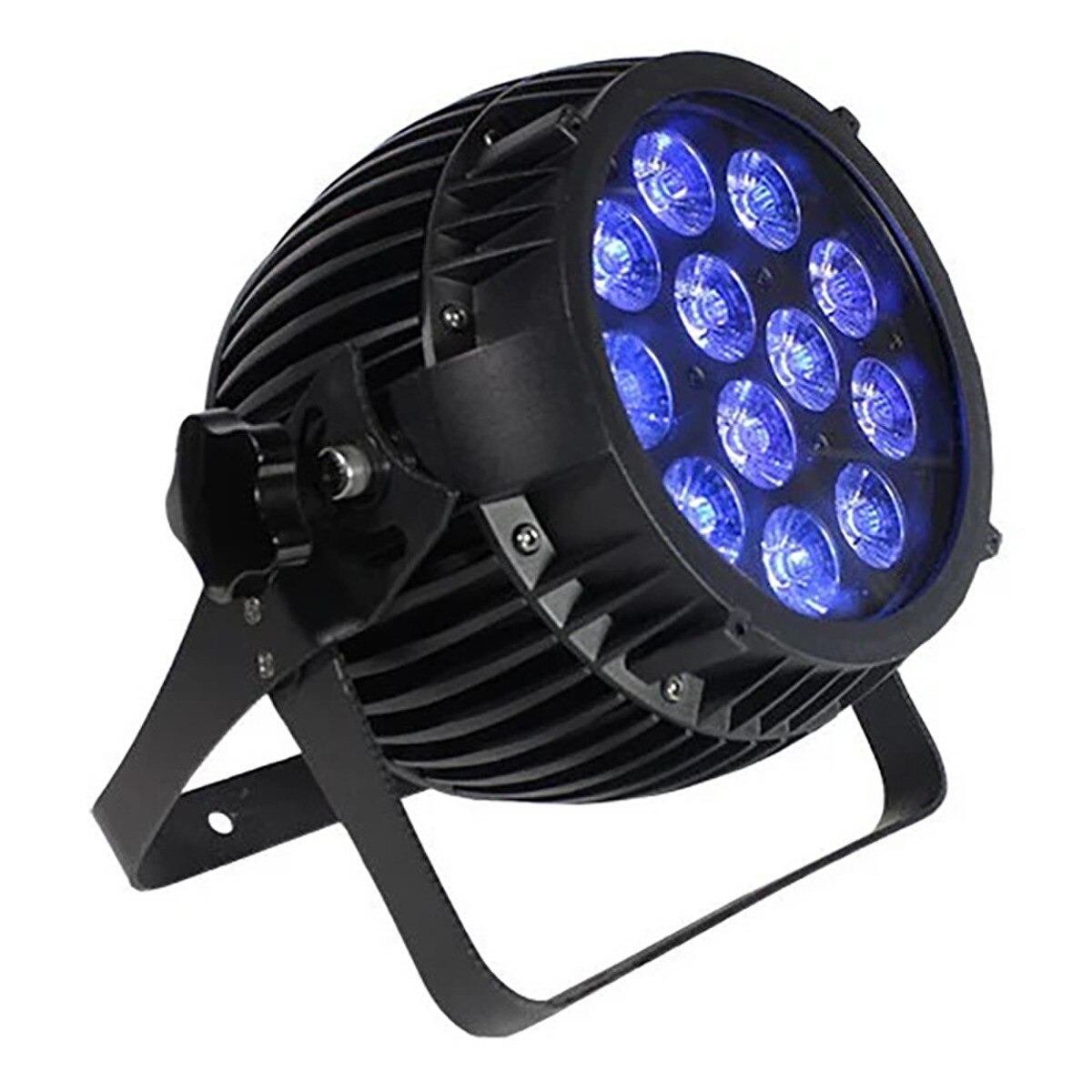

Blizzard TOURnado IP EXA

Blizzard's TOURnado IP EXA Key Features:

• RGBAW+UV color mixing via 12x 15W RGBAW+UV 6-in-1 LEDs
• LED control panel with 4 touch sensitive electronic buttons
• 25° beam angle

RGBAW+UV Color Mixing:

Shadow artifacts and unevenness within the field are a thing of the past thanks to its super bright RGBAW+UV color mixing and advanced 25° optics.

Outdoor-Rated & Tested:

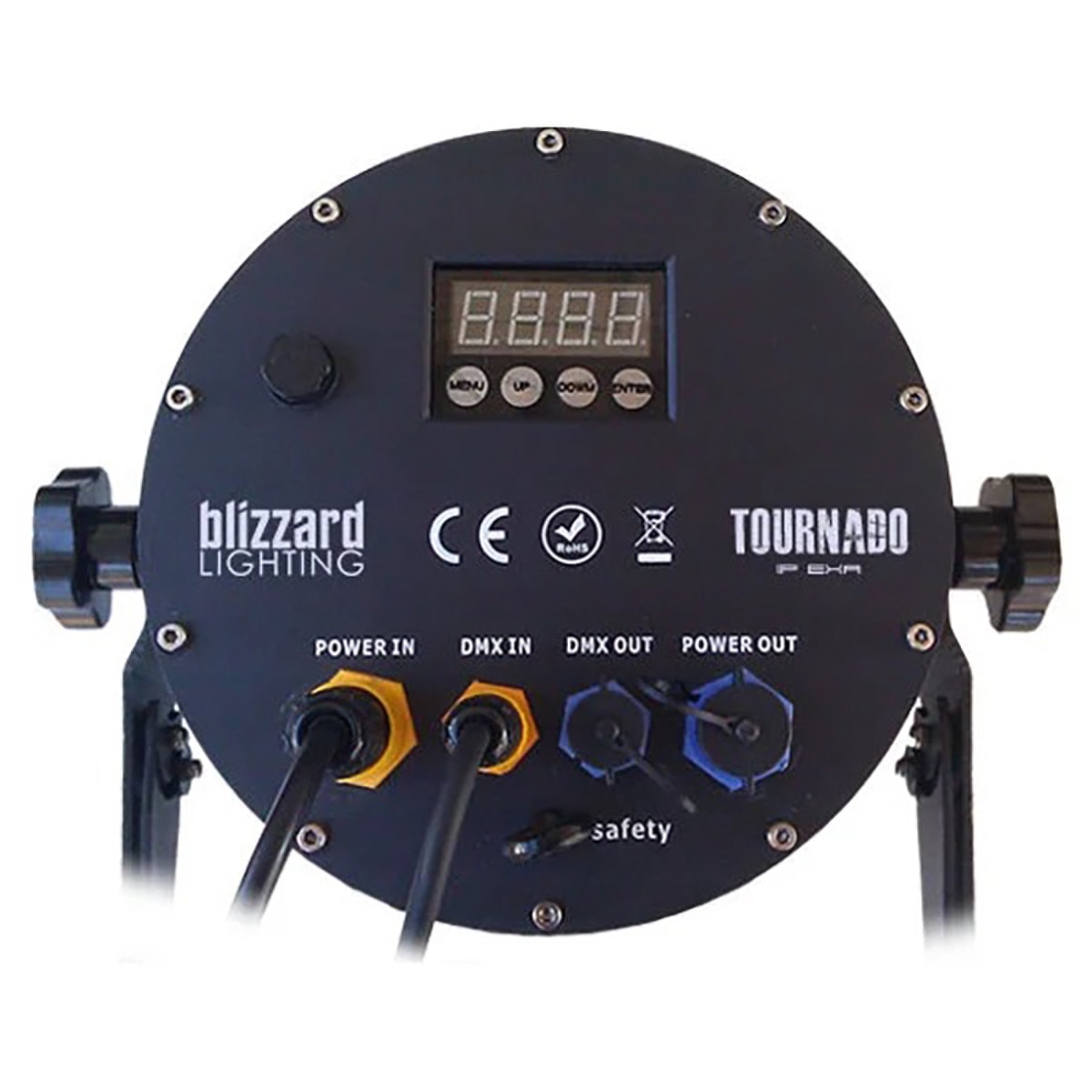

Featuring a convection cooled cast aluminum housing with a tempered glass lens, watertight internal gaskets, and weatherproof power and data cable in/out connections.

RGBAW+UV Color Mixing:

The Tournado™ IP EXA is one tough fixture featuring super bright RGBAW+UV color mixing thanks to its installed 12x 15W 6-in-1 LEDs with advanced 25° optics. Since each individual LED incorporates a red, green, blue, amber, white, and UV chip behind a single lens, shadow artifacts and unevenness within the field are things of the past!

Like its TOURnado™ brothers, the TOURnado™ IP EXA sports a convection cooled cast aluminum housing with a tempered glass lens, watertight internal gaskets, and weatherproof power and data cable in/out connections. Users can run any of its impressive built-in programs individually or all together in auto run mode with speed control, fade, and flash settings, then even perform full RGBAW+UV color mixing either with or without DMX control.

Tech Specs:
Warranty:

• 2 Year - Extendable

Optical:

• Light source: 12x 15W 6-in-1 LEDs 100,000 hours
• 25° beam angle
• Luminous Intensity: 13,700 Lux @ 1m, 3,900 Lux @ 2m

Control:

• Protocol: USITT DMX-512
• DMX Channels: 4/5/6/7/9/12
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Color Preset

Power & Current:

• Operating Voltage: 100V-264V/47-63HZ
• Power Consumption: 100W, 1.35A, PF: .6

Dimensions:

• 12.5" x 10.25" x 10.25"
• 14.5lbs

Tournado IP EXA User Manual Rev D - Software v2.pdf
TOURnado IP EXA Drawing.pdf
