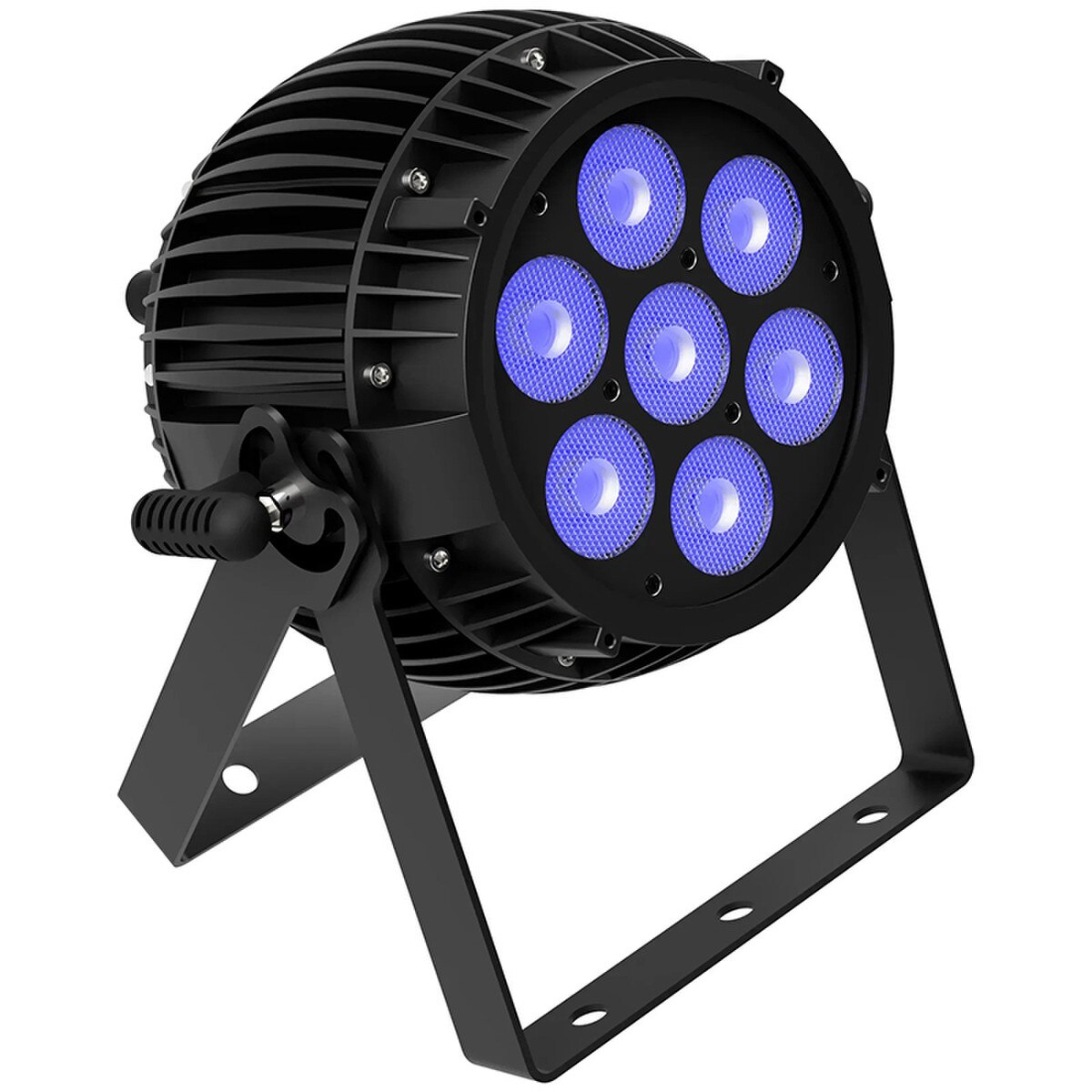

Blizzard TOURnado Ranger RGBALC

At A Glance:

• 7 x 20W RGBALC 6-in-1 LEDs
• 25-degree beam angle
• Flicker-free constant-current LED driver

Take It Outside, Guys

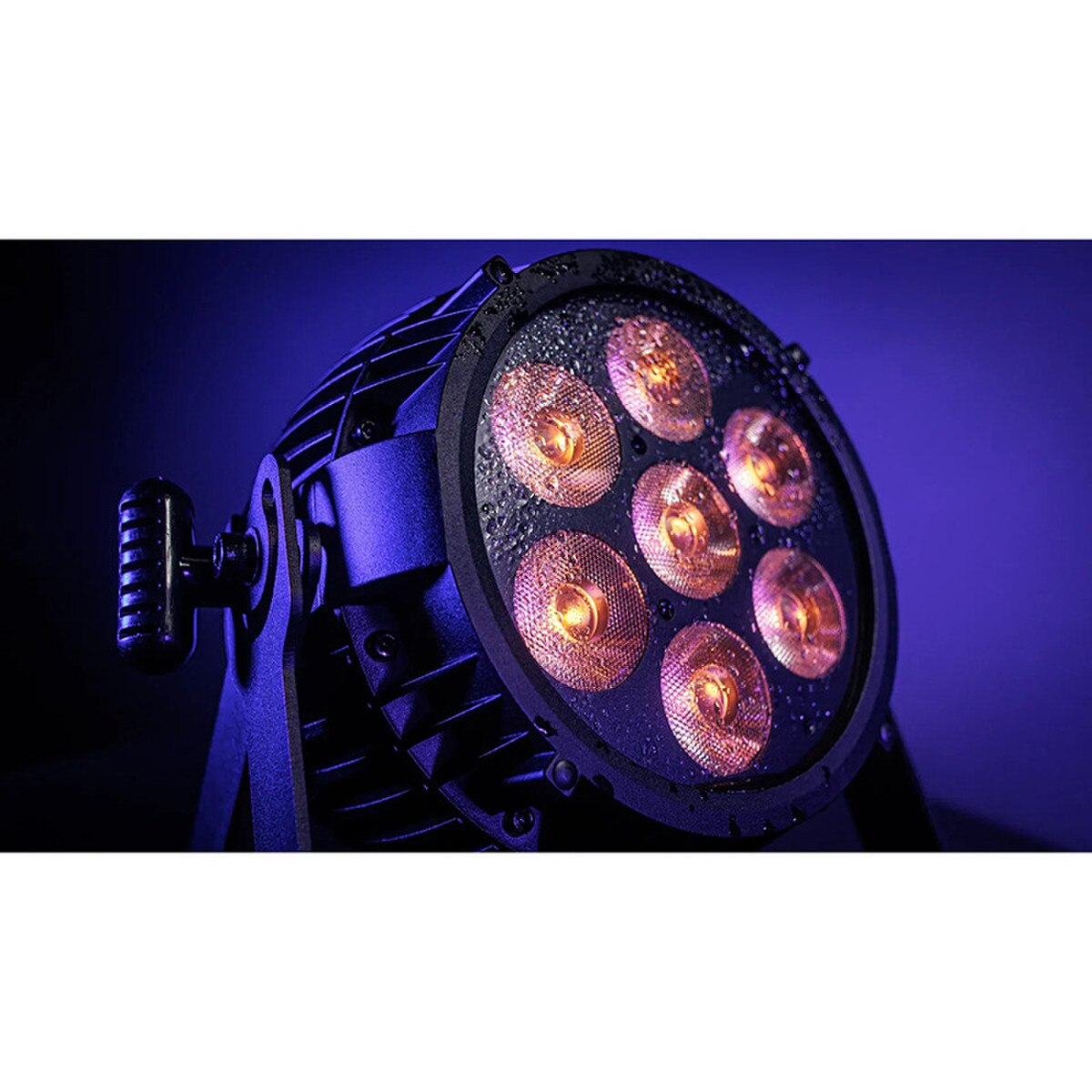

IP65 rated for outdoor use and built with a tough metal housing, the TOURnado™ Ranger is perfect for outdoor events, regardless of the weather. The built-in battery and included IR remote make quick wireless setups a breeze.

Take Control, Wirelessly

Control + power the TOURnado™ Ranger without a single cable, thanks to its built-in CRMX, RDM, and rechargeable lithium-ion battery. Adjust DMX values, change fixture settings, and check the battery life - all remotely.

Tech Specs

The Rundown:

• 7 x 20W RGBALC 6-in-1 LEDs
• 25-degree beam angle
• Flicker-free constant-current LED driver
• Built-in 2.4Ghz CRMX wireless DMX receiver
• Intelion™ lithium-ion battery system
• Built-in auto programs + virtual color wheel
• 6/8/12-channel DMX profiles with 32-bit dimming
• IP65-rated outdoor LED fixture

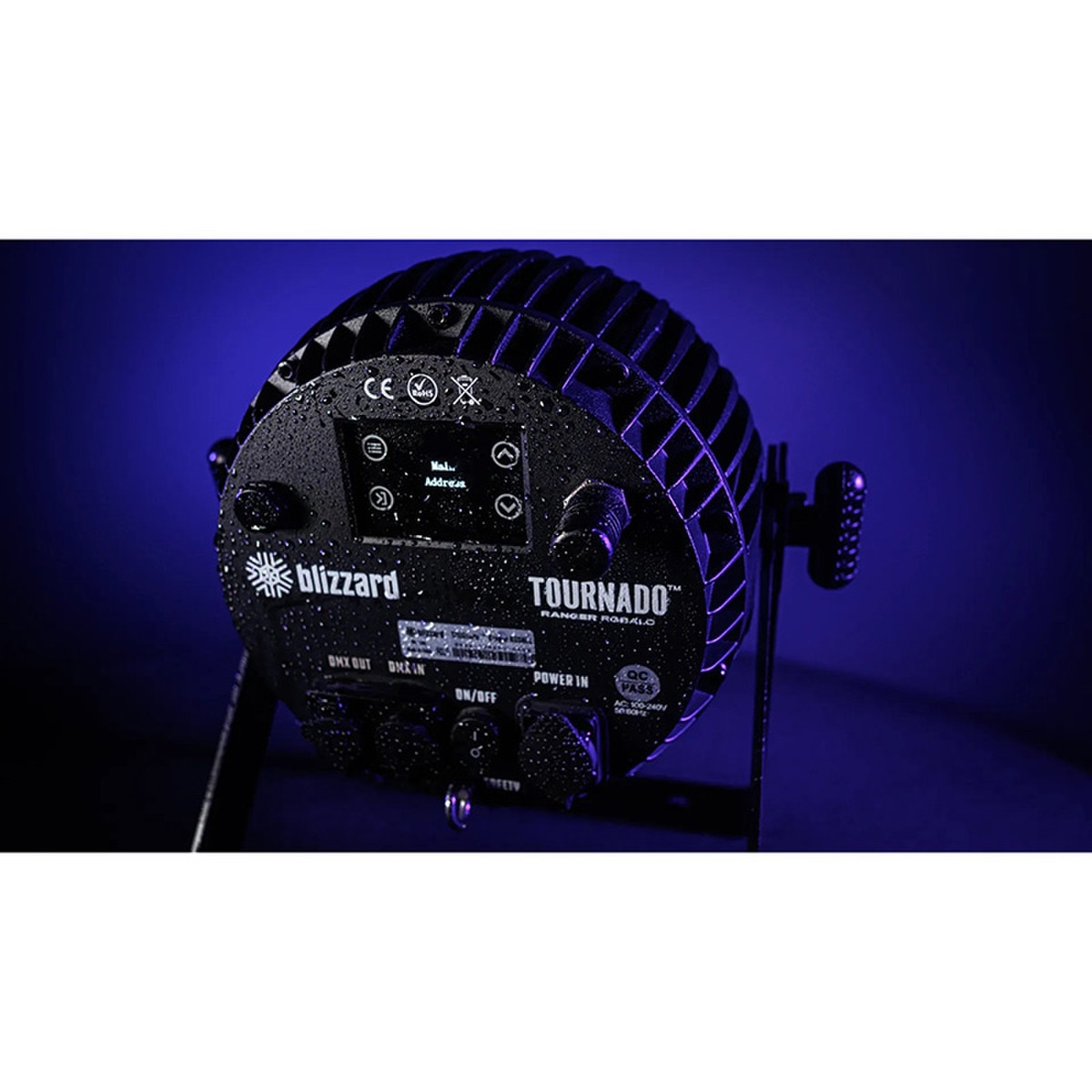

• 4-button control menu with OLED display
• IR remote controllability (remote included)
• Dual brackets for rigging or freestanding
• 5-pin DMX input & output connections
• powerCON® TRUE1™ compatible power input

Summary:

Just like Blizzard’s TOURnado™ RGBALC fixtures, the ‘Ranger’ variation is powered by 7x 20W RGBALC 6-in-1 LEDs, delivering bright and vibrant color mixing. While retaining its fanless, convection-cooled housing for indoor and outdoor use, it adds a rechargeable lithium-ion battery and a built-in wireless CRMX receiver, offering unmatched flexibility and performance.

These fixtures offer 6/8/12-channel DMX modes and an intuitive 4-button OLED control menu with built-in programs, color presets, 8 dimming modes, and a virtual color wheel. They feature 5-pin DMX input/output, a powerCON® TRUE1™ compatible input, and dual brackets for versatile rigging or freestanding. An easy-to-use IR remote is also included as an additional control option.

Warranty:

• 2 Year - Extendable

Certifications:

• CE
• RoHS

Optical:

• Light Source: 7x 20W RGBALC 6-in-1 LEDs, 100,000 hours
• Beam Angle: 25°
• Luminous Intensity: 5,577 Lux @ 2.5M, 1,304 Lux @ 5M

Control:

• Protocol: USITT DMX-512
• DMX Channels: 6/8/12-channel DMX modes
• Input/Output: 5-pin DMX in/out
• Operating Modes: M/S, Auto
• Easy to-use 4-button control menu with OLED display

Power & Current:

• Operating Voltage: 100-240VAC, 50-60 Hz
• Power Consumption: 93W, 1.31A, PF: .61
• Input/Output: powerCON® TRUE1-compatible power input
• Battery: 18650 capacity Intelion™ lithium-ion battery system

Dimensions:

• 13.3lbs
