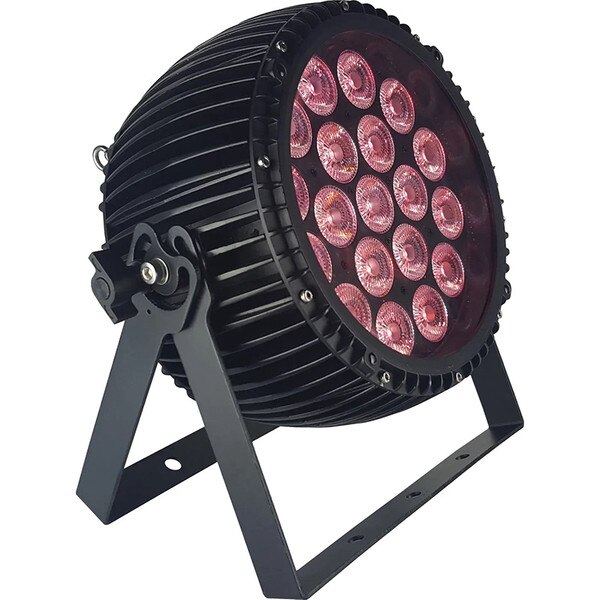

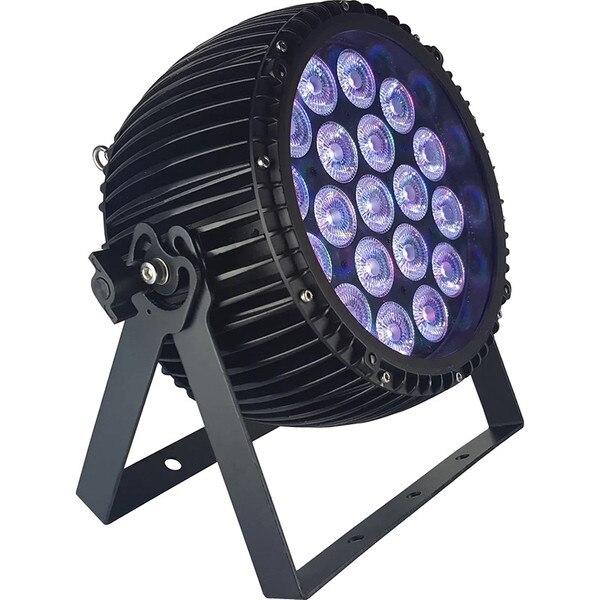

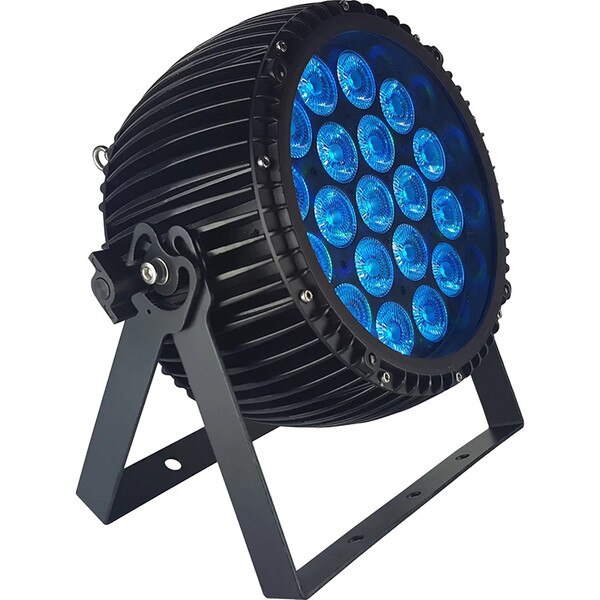

Blizzard TOURnado WiMAX Quadra

Blizzard's TOURnado WiMAX Quadra Key Features:

• Color mixing via 19x 15W RGBW 4-in-1 LEDs
• IP65 rated outdoor LED fixture
• OLED control menu with 4x touch sensitive buttons

More Lightning for your Thunder:

The TOURnado™ WIMAX Quadra offers super bright RGBW color mixing from 19x 15W 4-in-1 LEDs with advanced 25° optics. It is also IP65 outdoor rated, and sports a larger natural convection cooled cast aluminum housing than previous models. Its tempered glass lens is watertight, and the back has outdoor rated 3-pin XLR data and AC power input/output connectors with rubber seals.

Unleash the Storm:

All TOURnado™ WIMAX fixtures come equipped with a built-in W-DMX™ receiver for ultra-stable wireless capability (500+ meters), plus an easy-to-use 4-button OLED control panel which gives users total control of master/slave settings, 5 auto modes, custom programs (up to 3* 20 scene programs), fade, strobe, manual color adjustments, multiple user-selectable 32-bit dimming modes and more.

Tech Specs:
Warranty:

• 2 Year - Extendable

Certifications:

• IP65, ETL, RoHS, CE

Optical:

• Light Source: 19* high output 15-watt RGBW LEDs
• Beam Angle: 25°
• Flicker-free LEDs
• Luminous Intensity: 12,344 Lux (1,146.8 fc) @ 2.5m | 3,415 Lux (317.3 fc) @ 5m

Control:

• Protocol: USITT DMX-512
• 4/6/10-channel DMX modes
• Standalone, master/slave, DMX modes
• IP65 Seetronic 3-pin DMX input/output
• 4-button OLED control menu display

Power & Current:

• 100-264VAC, 47-63 Hz
• Power Consumption: 180W, 1.54A, PF: .99

Dimensions:

• 13.3" x 6.7" x 14"
• 17lbs

TOURnado WiMAX Quadra Cutsheet.pdf
TOURnado WiMAX Quadra User Manual - Rev A.pdf
TOURnado WiMAX Quadra - IES Testing Report.pdf
