Blizzard Typhon IP Wash

(0)No Reviews yet
$5,000.00
SKU: Blizzard Typhon IP Wash

Details

At A Glance:

  • 19* 40W ultra-bright 4-in-1 OSRAM RGBW LEDs
  • Pan: 360/540°, Tilt: 230° (8-16 bit resolution)
  • Adjustable pan/tilt speed

Tech Specs

Outdoor Wash W/Zoom:

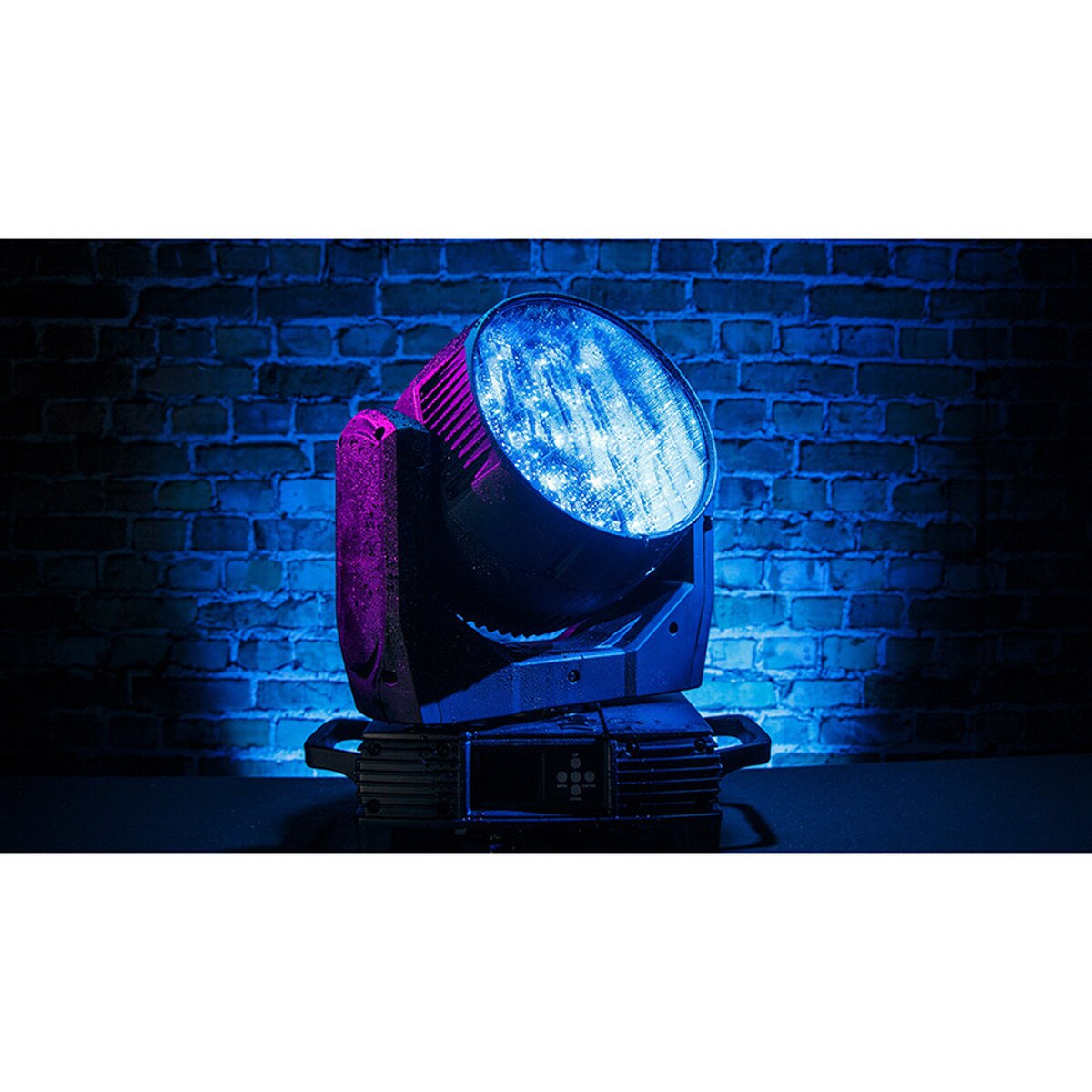

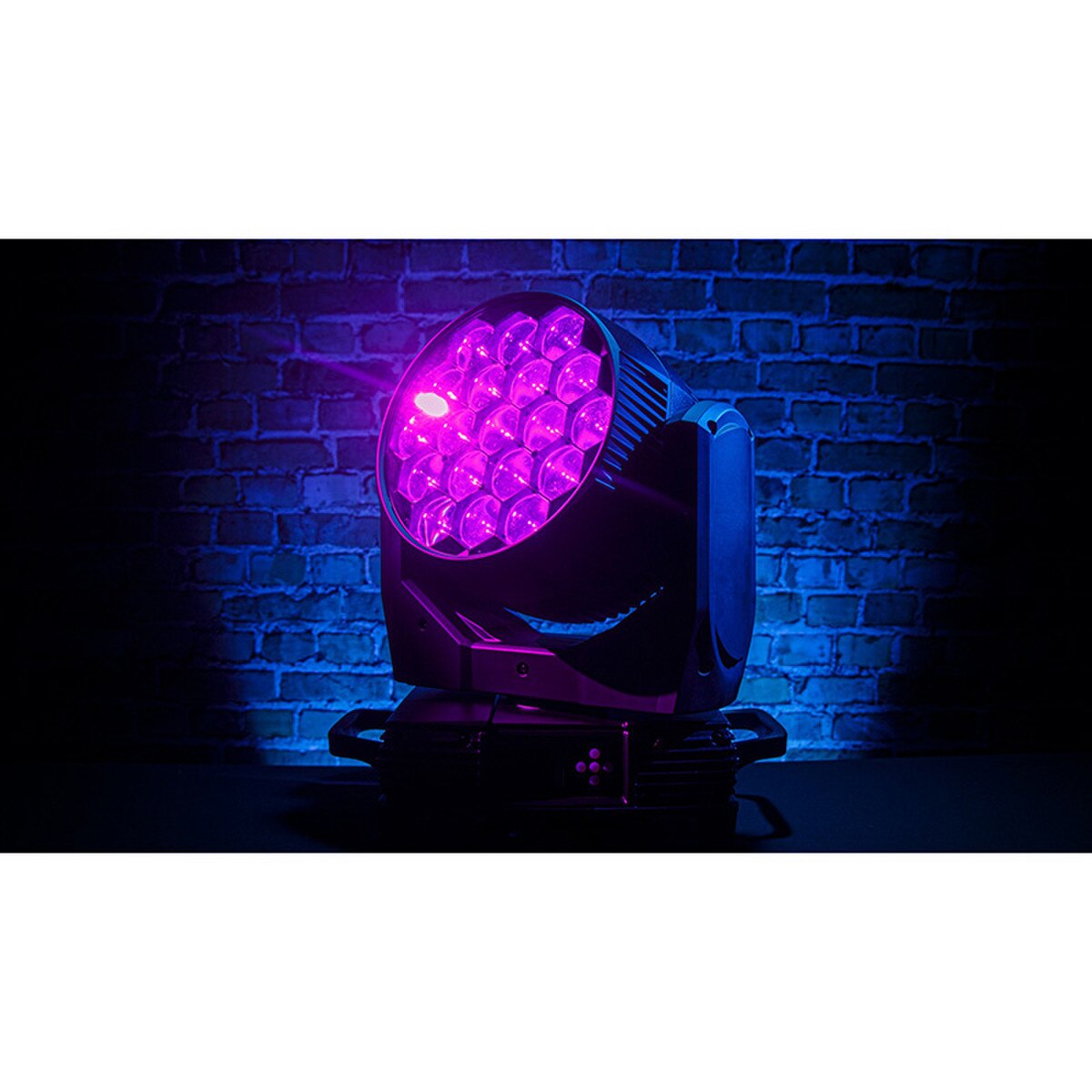

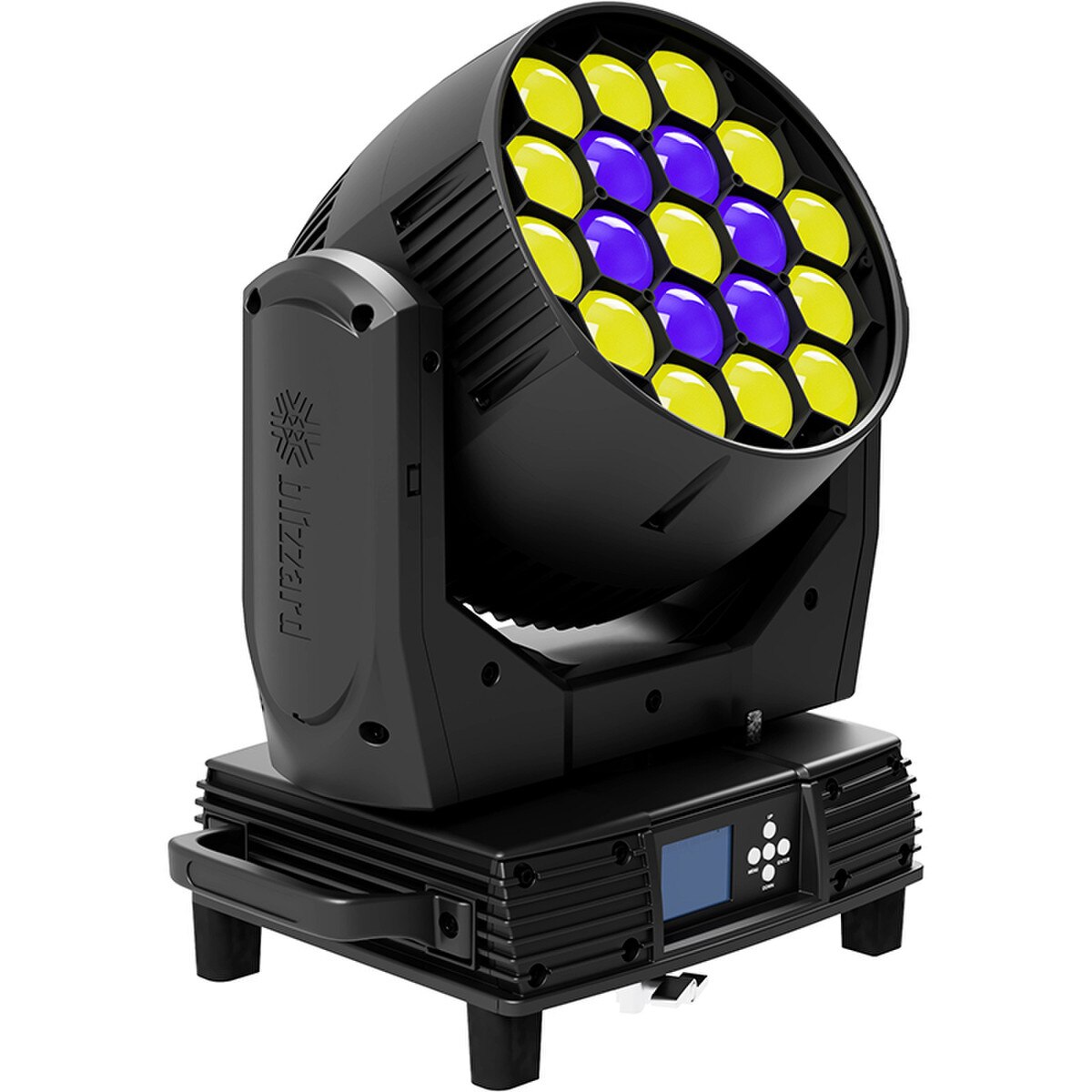

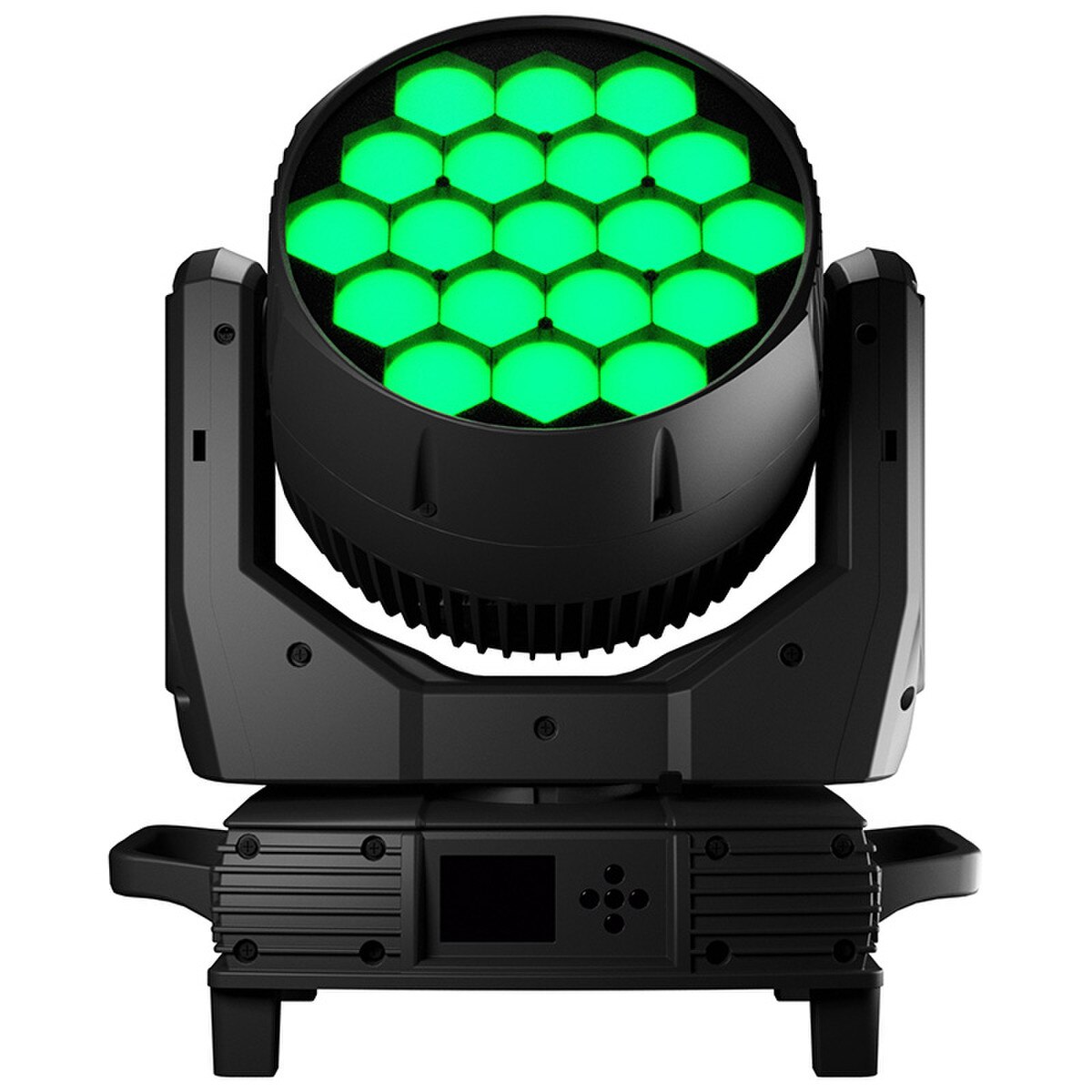

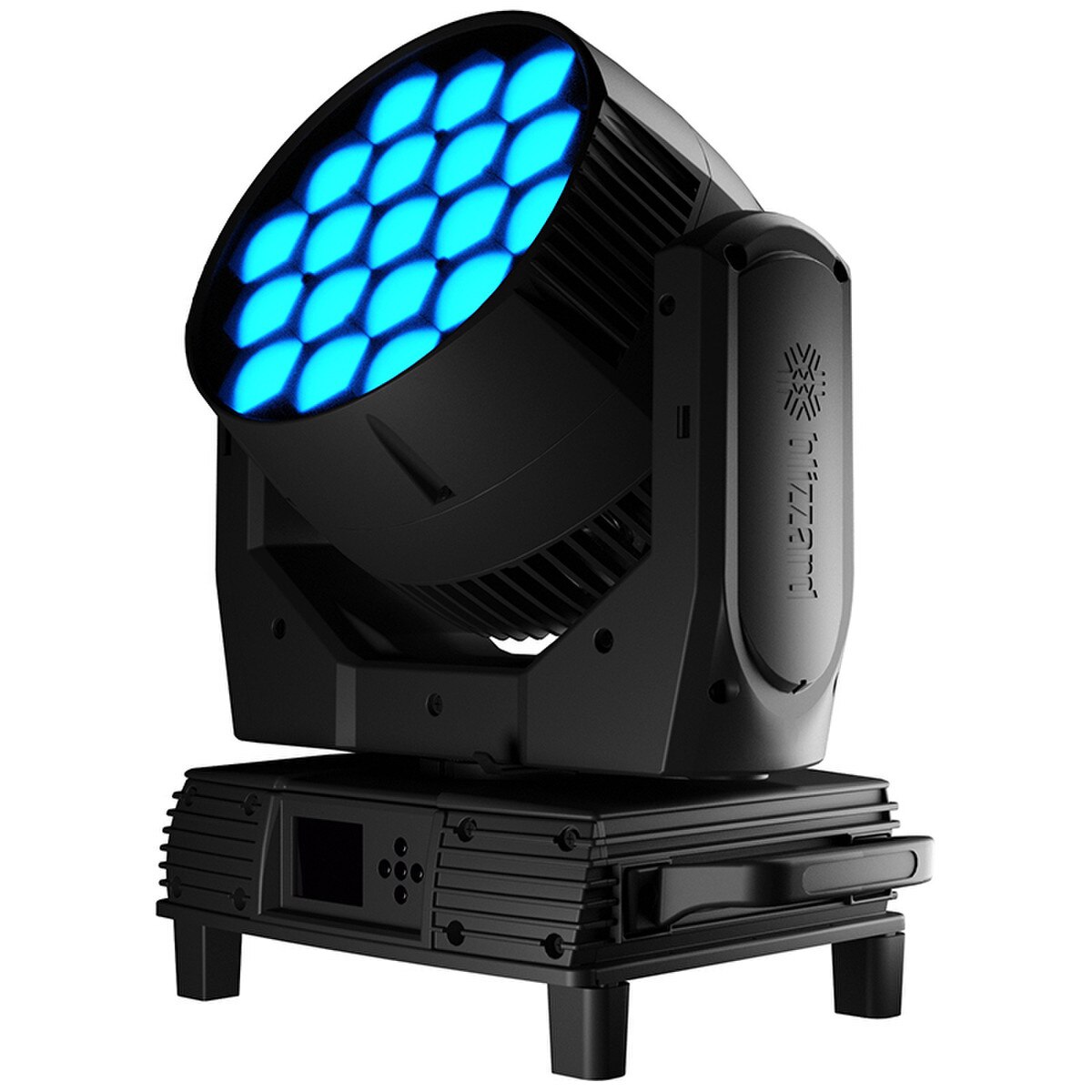

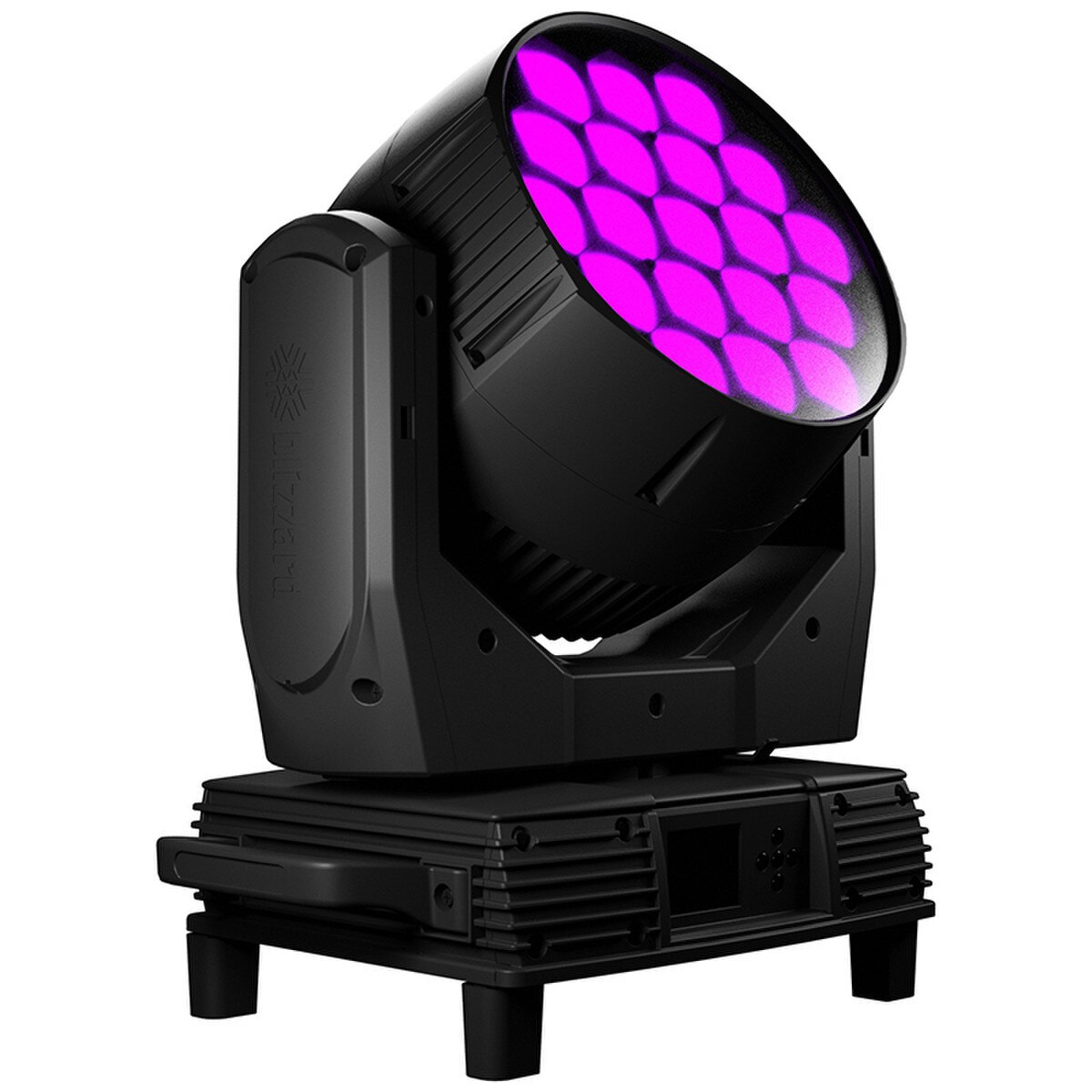

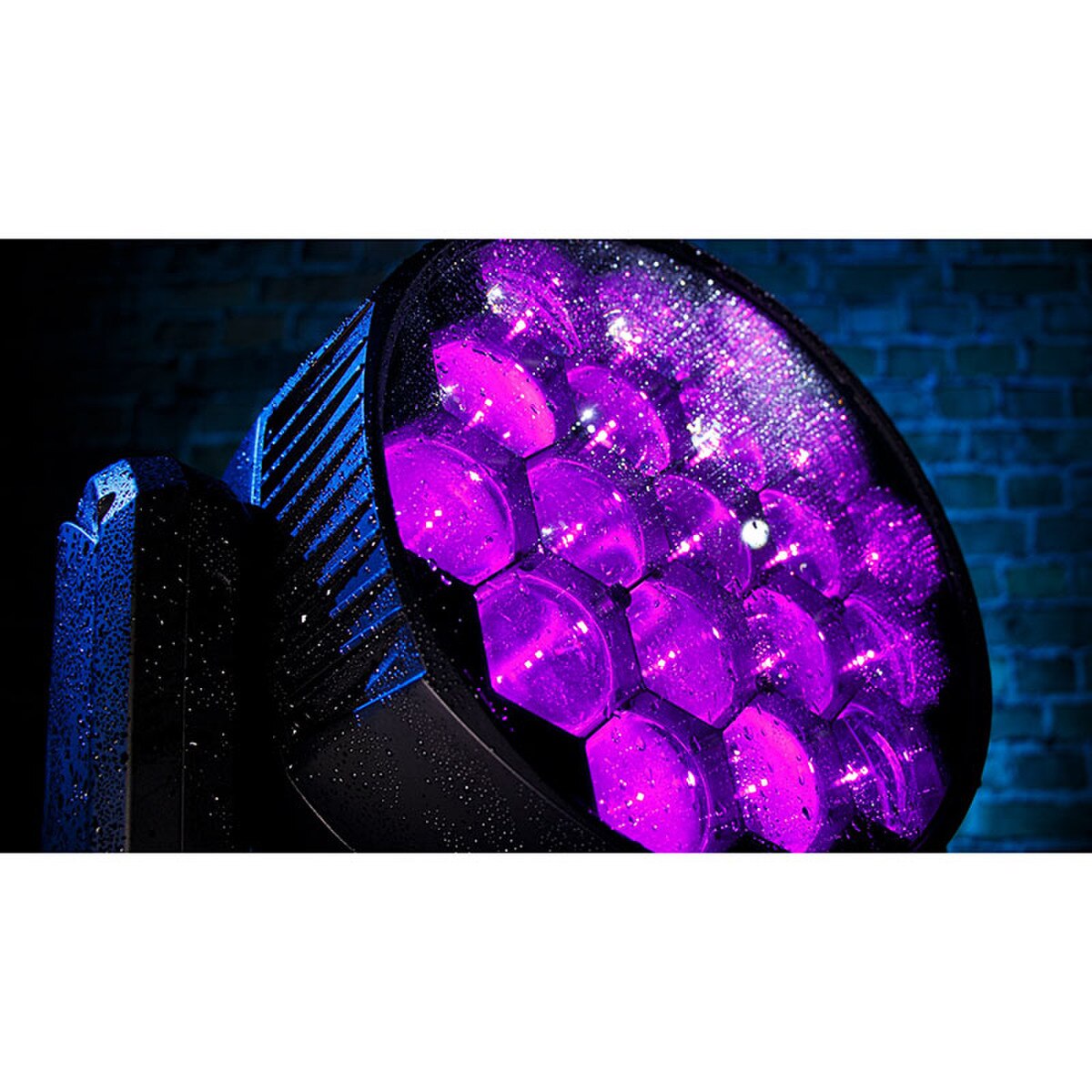

Typhon™ IP Wash is a professional IP66-rated LED moving wash fixture, designed to deliver ultra-bright, vibrant colors in outdoor environments. Equipped with 19x 40W 4-in-1 RGBW LEDs, it offers a broad spectrum of colors and effects. The fixture features a motorized zoom from a focused 6° beam to a wide 55° field angle. Its speed-controllable pan (360/540°) and tilt (230°) movements are precise and fluid. Enhanced with both 8-bit and fine 16-bit resolution, the Typhon™ IP Wash ensures smooth dimming, color mixing, and control of individual effects.

Loaded With Features:

This fixture offers both full color and 3-zone LED ring effects, and it comes loaded with 16 color/pattern presets, 10 chase macros, and 21 built-in CCT color presets that range from a 3200K warm white to a cool 7200K. Other features include 1-25Hz strobe with synchronized and pulse effects, and 4 user-selectable dimming curves for customized lighting control. Additionally, the fixture has integrated dual mounting clamps for easy rigging, and for reliable power and data connectivity, it has powerCON® TRUE1-compatible power input and 5-pin DMX in/out connections.

Optical:

  • 19x 40W high output 4-in-1 OSRAM RGBW LEDs
  • 6°-33° beam angle, 9°-55° field angle

Luminous Intensity:

  • 12,500 Lux @ 7.5M (6°)
  • 563 Lux @ 7.5M (33°)
  • 7,070 Lux @ 10M (6°)
  • 320 Lux @ 10M (33°)

Control:

  • Protocol: USITT DMX-512, RDM
  • 5-pin DMX in/out
  • 23/15/39-channel DMX
  • 5-button menu with LCD display
  • DMX512, M/S, auto mode

Power & Current:

  • 100-240VAC, 50-60 Hz
  • Consumption: 965W, 10A, PF.: .96
  • Fuse: 15A/250V
  • PowerCON® TRUE1-compatible input

Dimensions:

  • 20.9" x 11" x 18.6"
  • 50.7lbs

Warranty:

  • 2 Year - Extendable

Certifications:

  • IP66-rated


Blizzard Typhon IP Wash User Manual.pdf
Blizzard Typhon IP Wash Cutsheet.pdf
Blizzard Typhon IP Wash Dimensions.pdf
