Blizzard UVonix Blackstar

At A Glance:

• 12x 10W UV LEDs, 50,000+ hour lifetime
• UV-pass lens filters for pure 365nm wavelength
• Adjustable LED refresh rates (900Hz-25KHz)

Tech Specs

True 365NM UV Light:

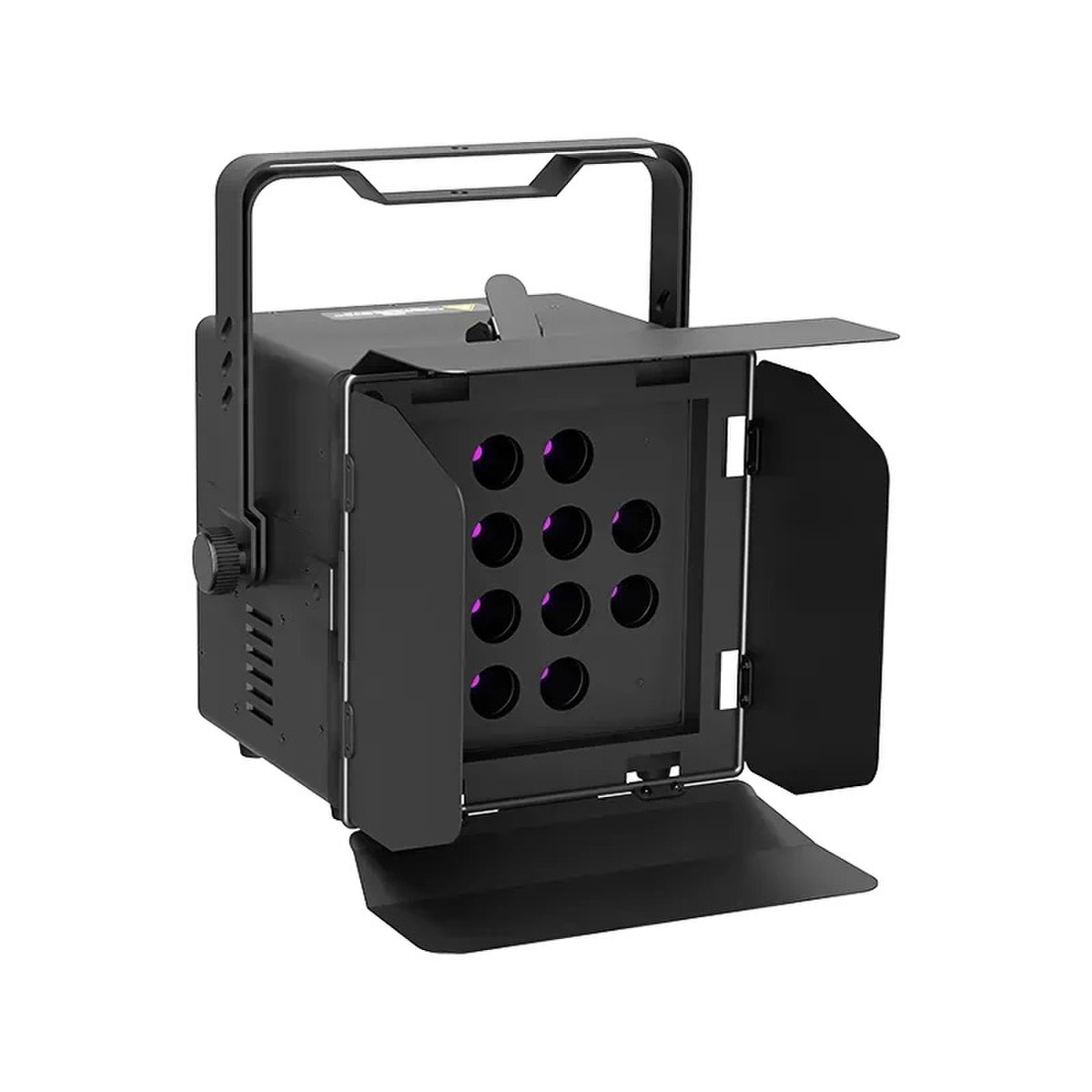

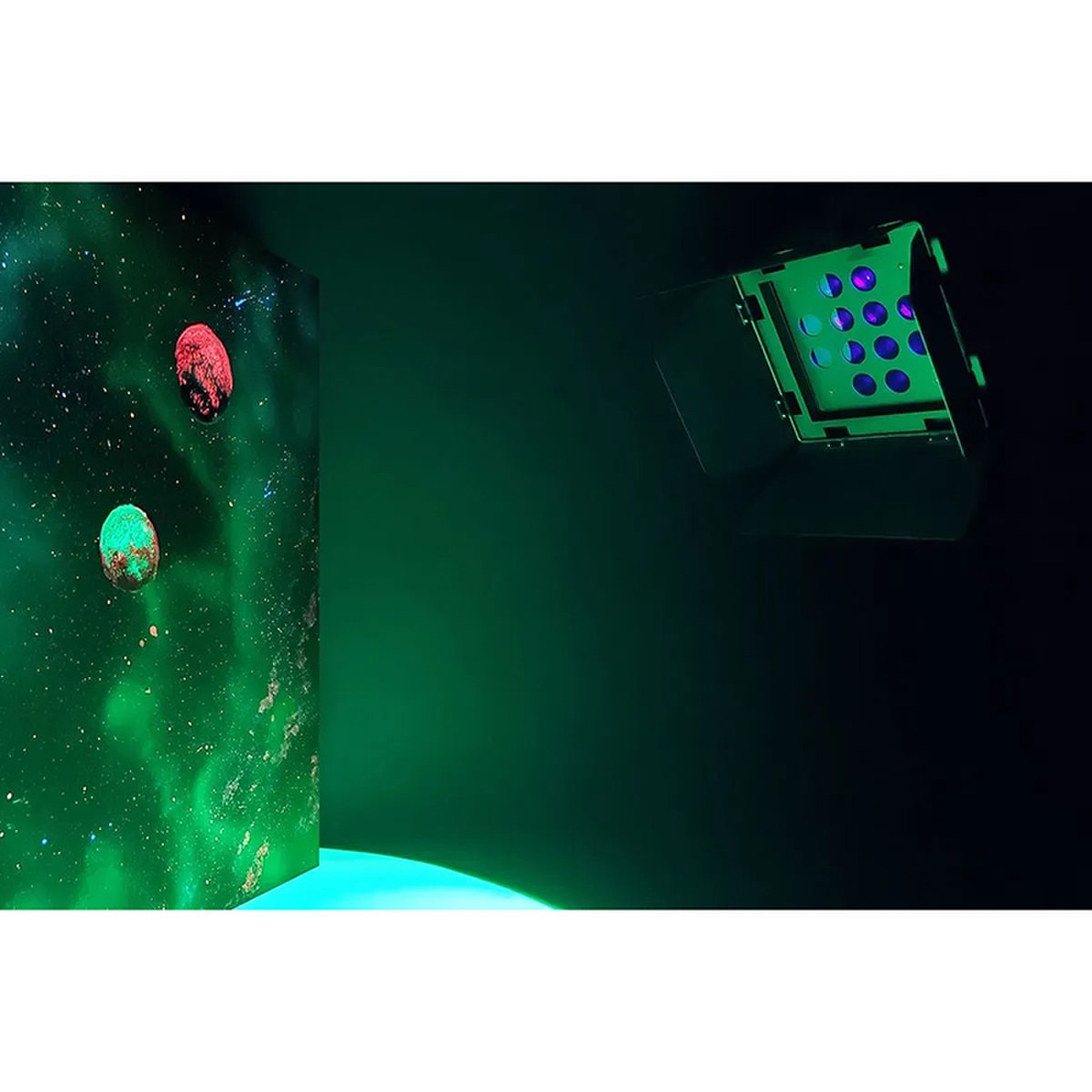

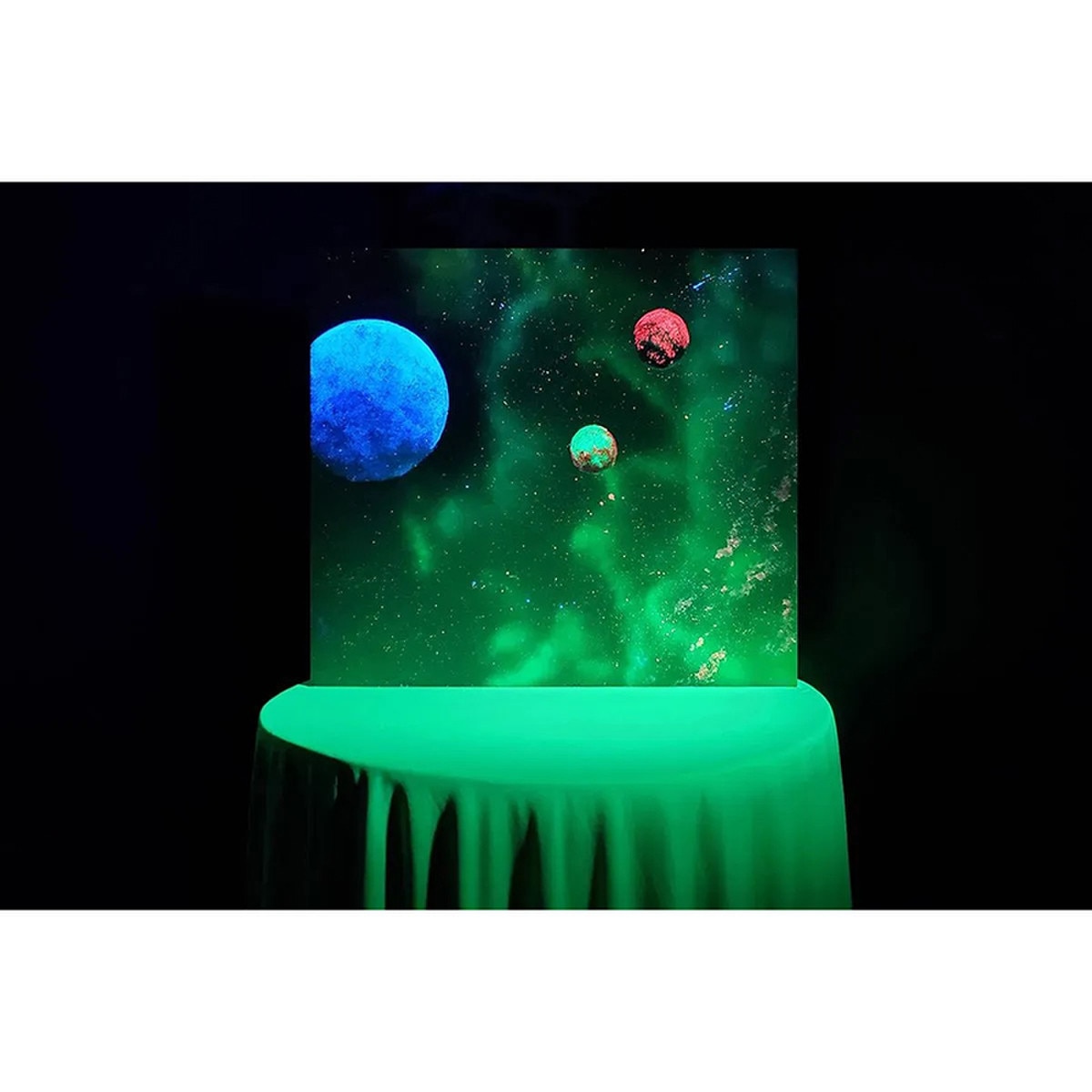

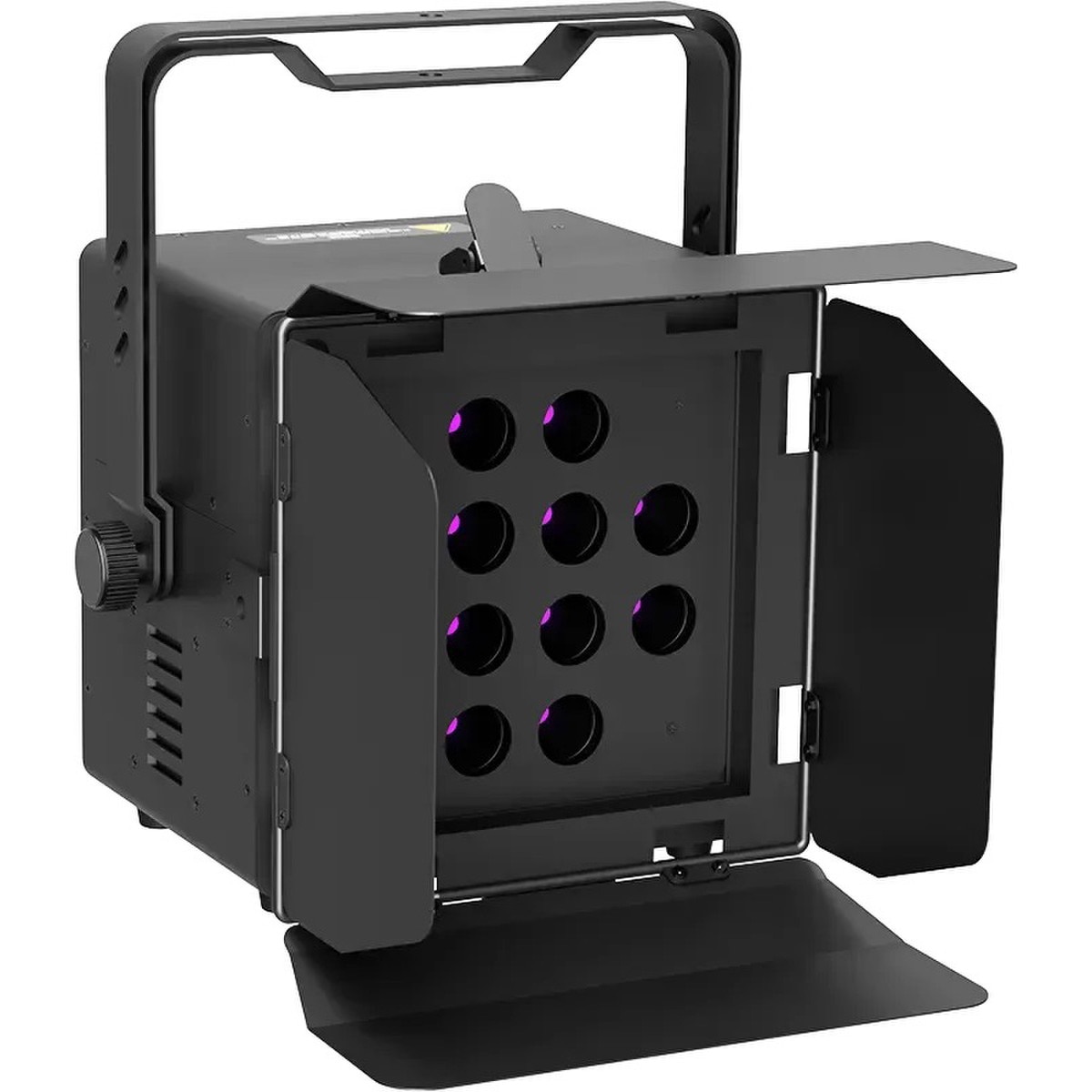

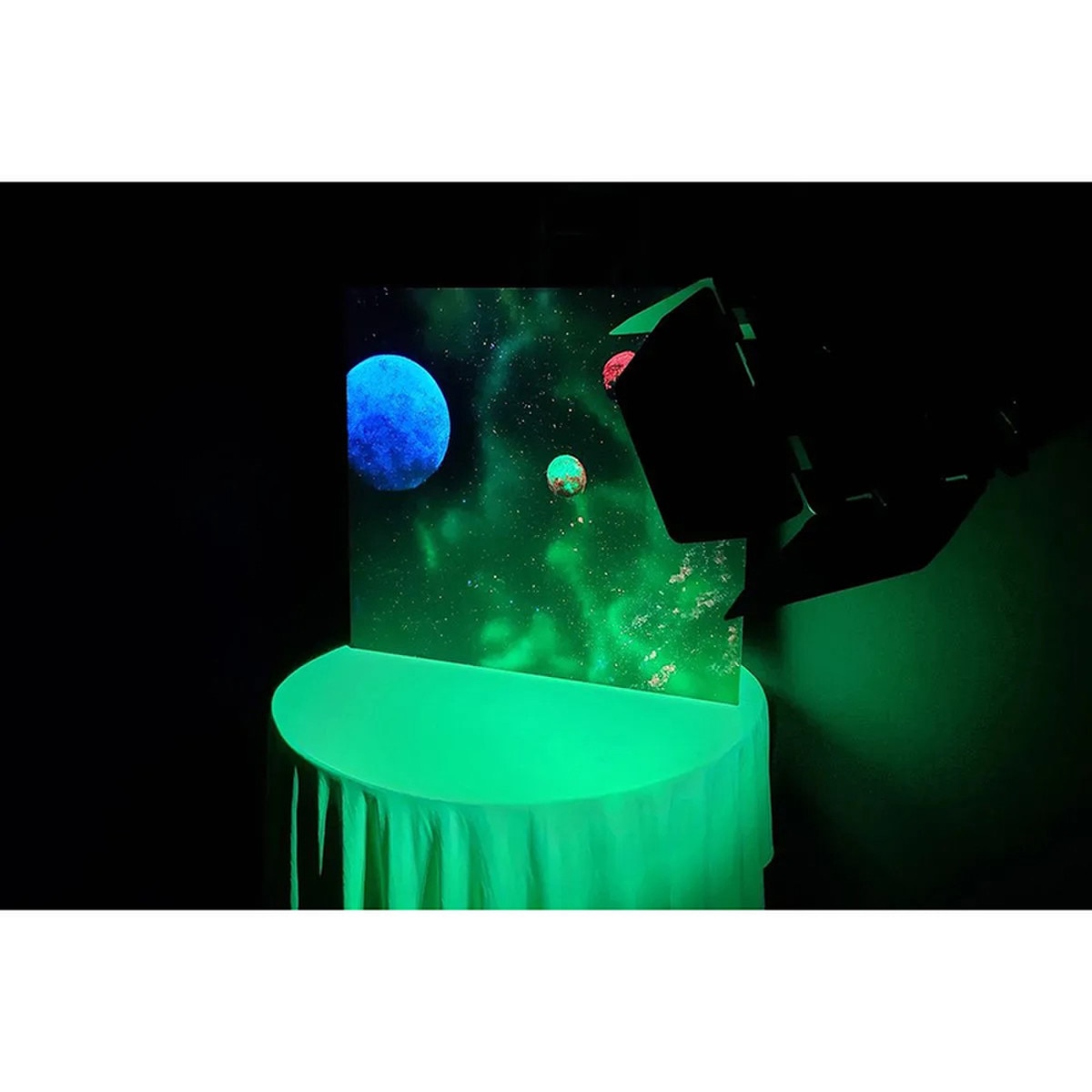

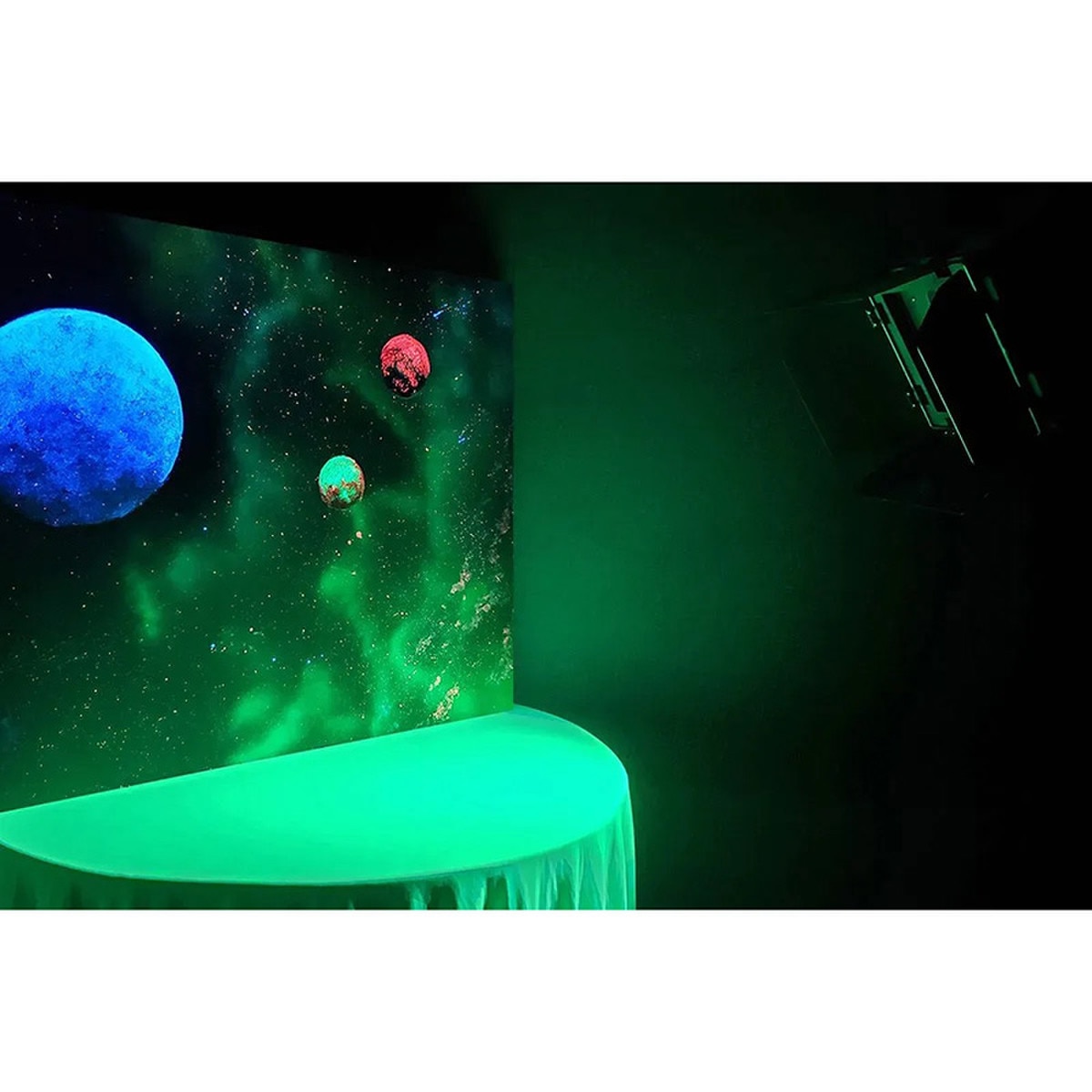

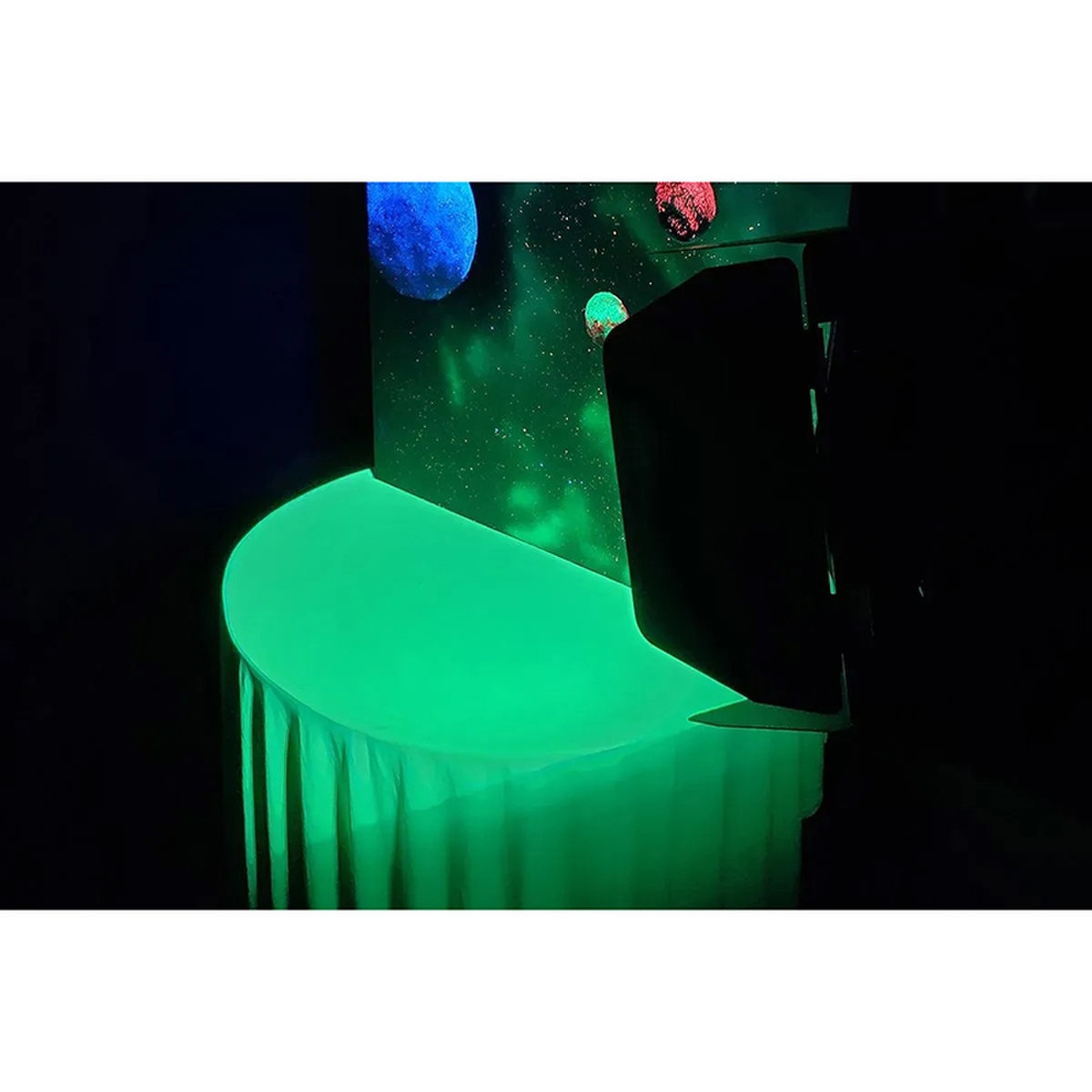

UVonix™ Blackstar is designed to maximize UV output, while filtering out all non-365nm wavelengths. It features 12x 10W UV LEDs with ZWB2 longwave UV bandpass filters, a modern advancement on the Woods' glass filter. ZWB2 filters permit 23% more UV light to pass while blocking unnecessary visible light, making luminescent objects & paints glow more vibrantly.

Packed With Features:

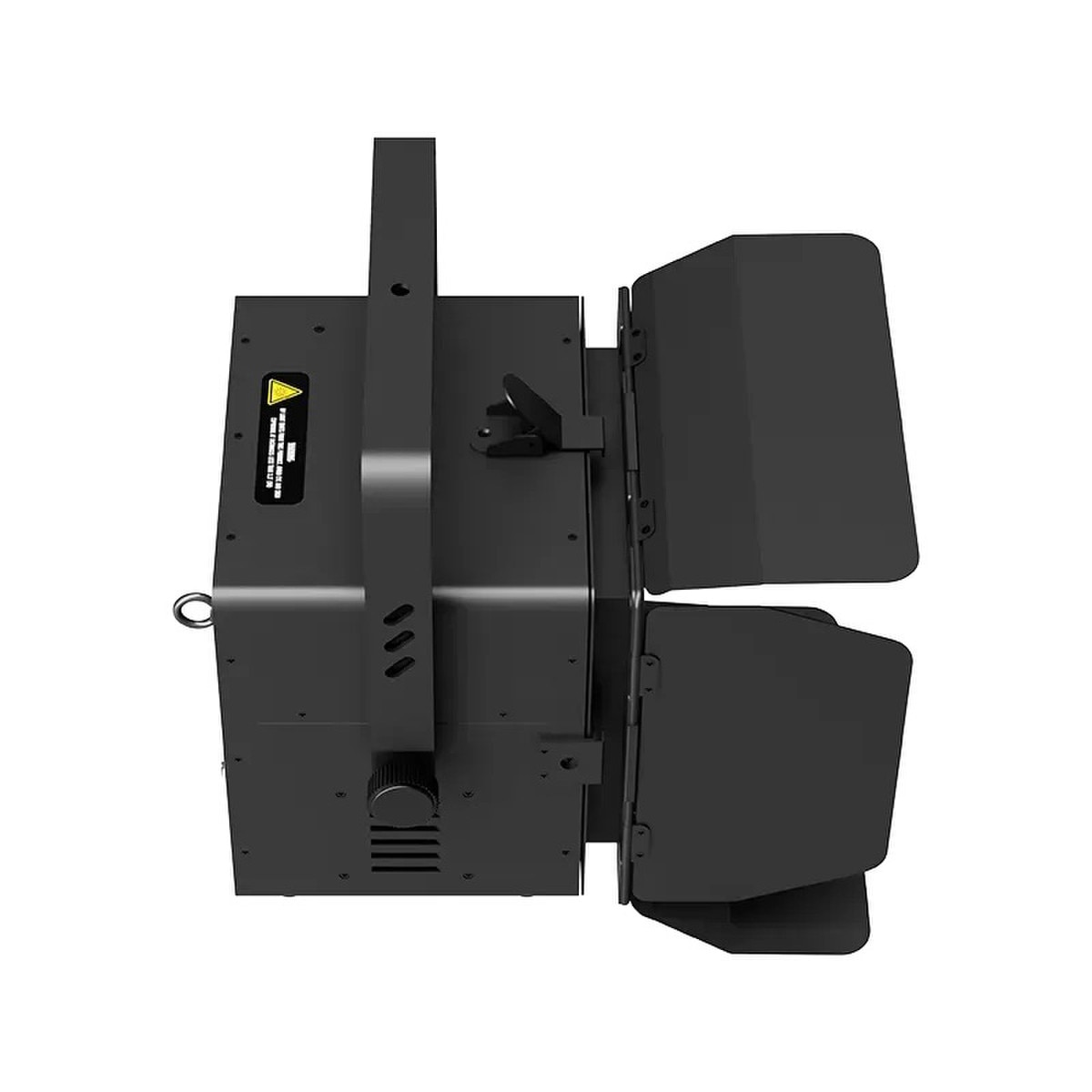

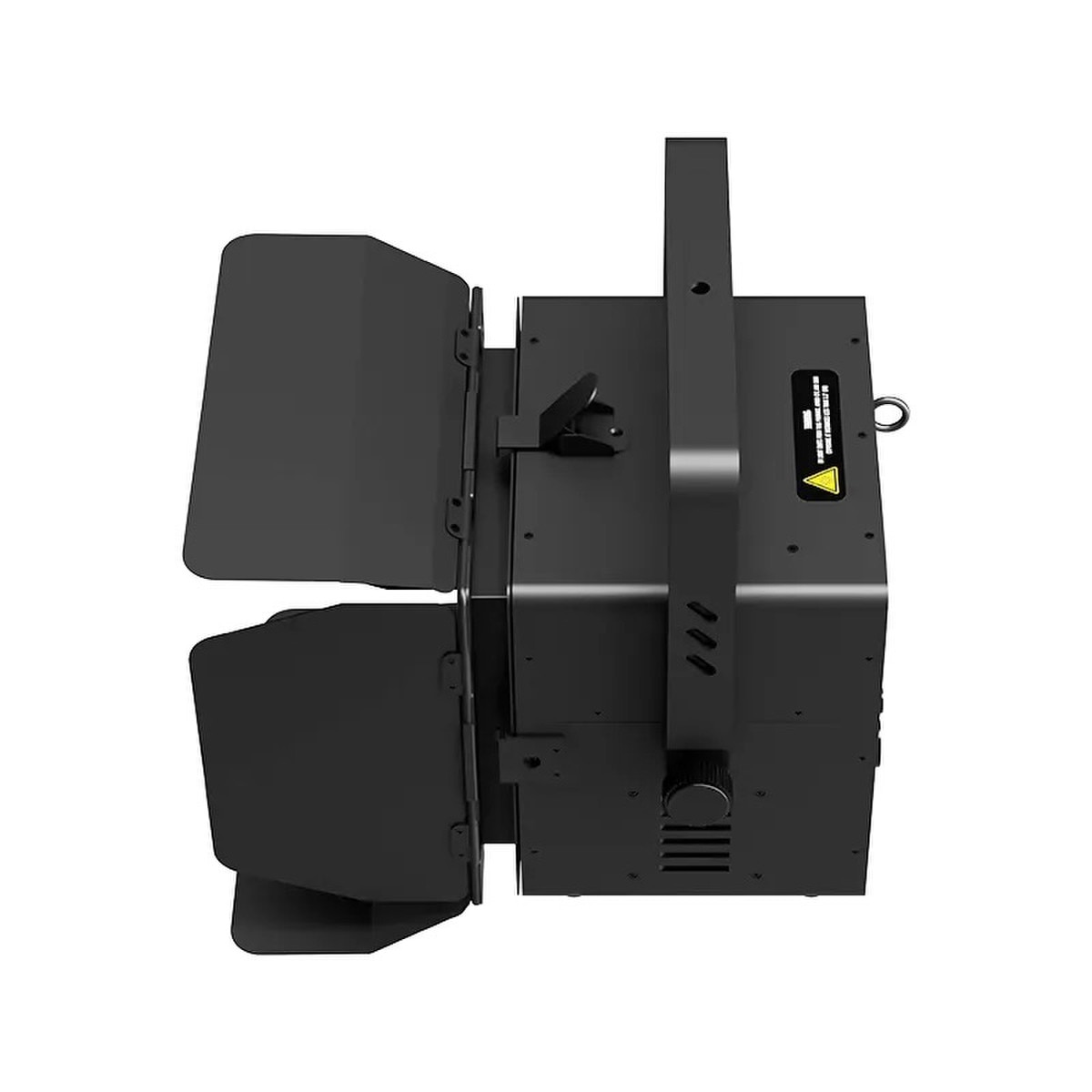

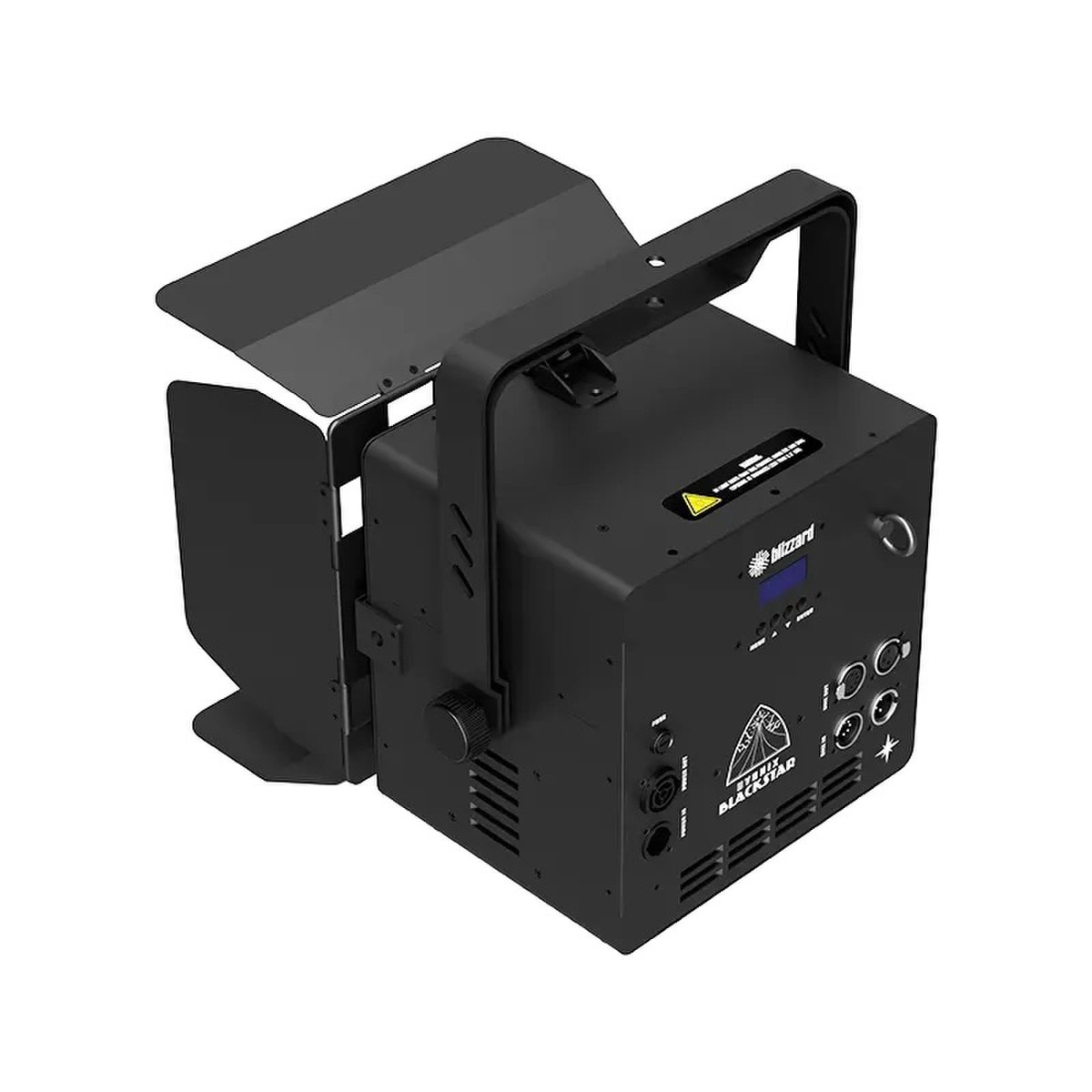

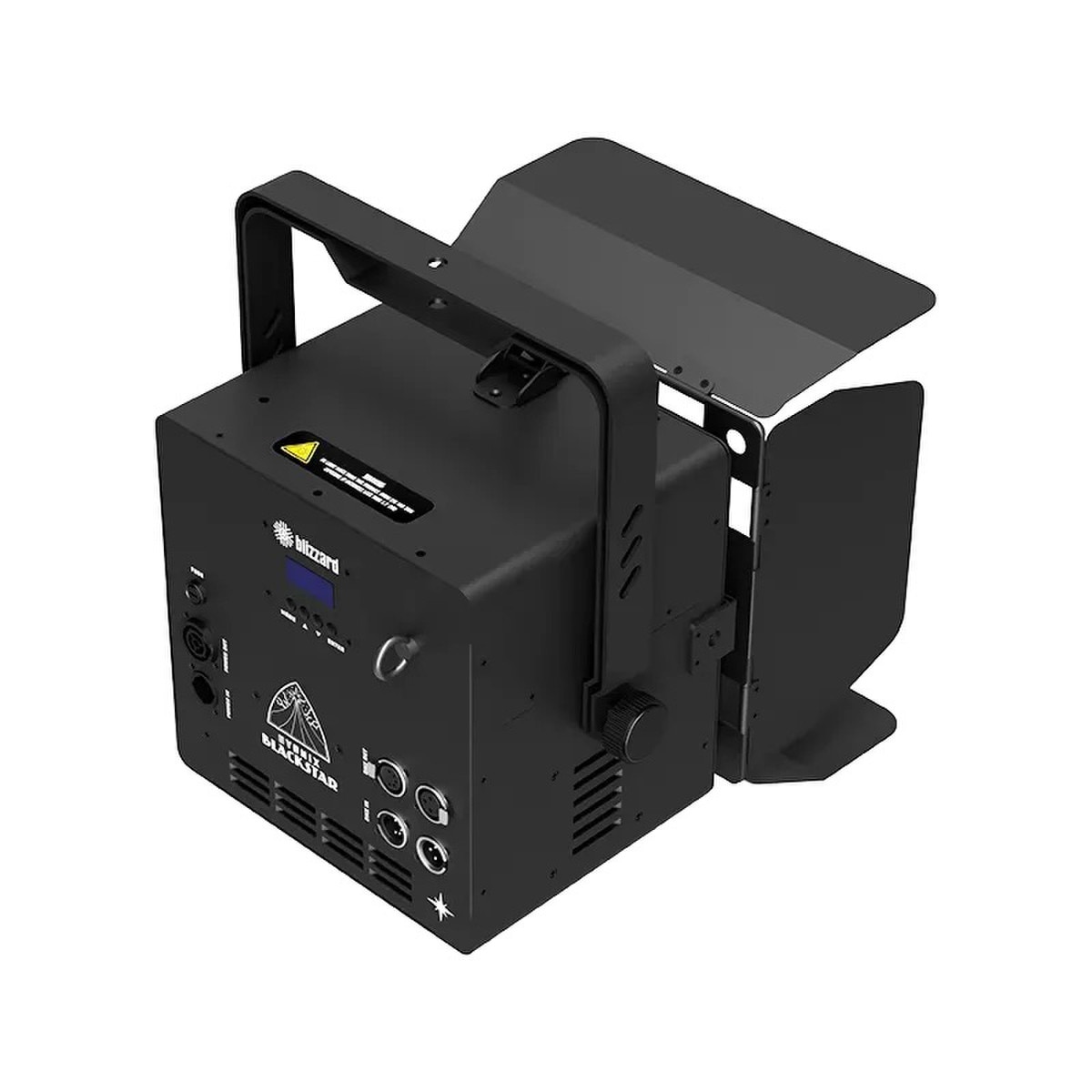

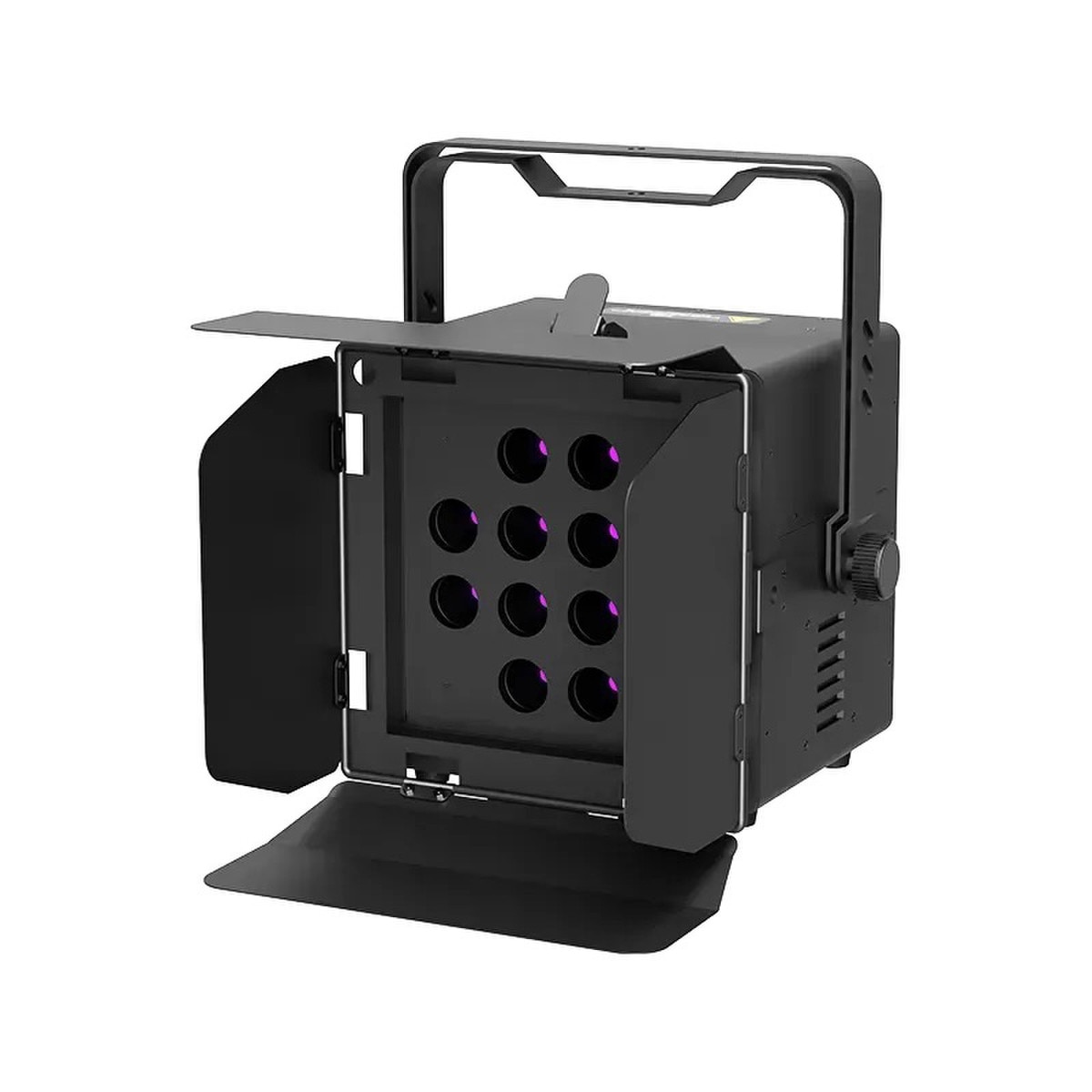

Features include a 30° beam angle, adjustable LED refresh rates (900Hz - 25KHz), 4 dimming curves, flicker-free resolution, and a variety of strobe effects. It also offers light shaping capabilities with its 4-leaf barndoor attachment, flexible positioning with dual mounting brackets, 4-button control panel, 3/5-pin XLR in/out, and powerCON TRUE1-compatible in/out connections.

Optical:

• 12x 10WUV LEDs + UV pass lens filters
• Wavelength: 365nm
• 30° beam angle
• Flicker-free LEDs

Control:

• Protocol: USITT DMX-512
• 1/2/4-channel DMX

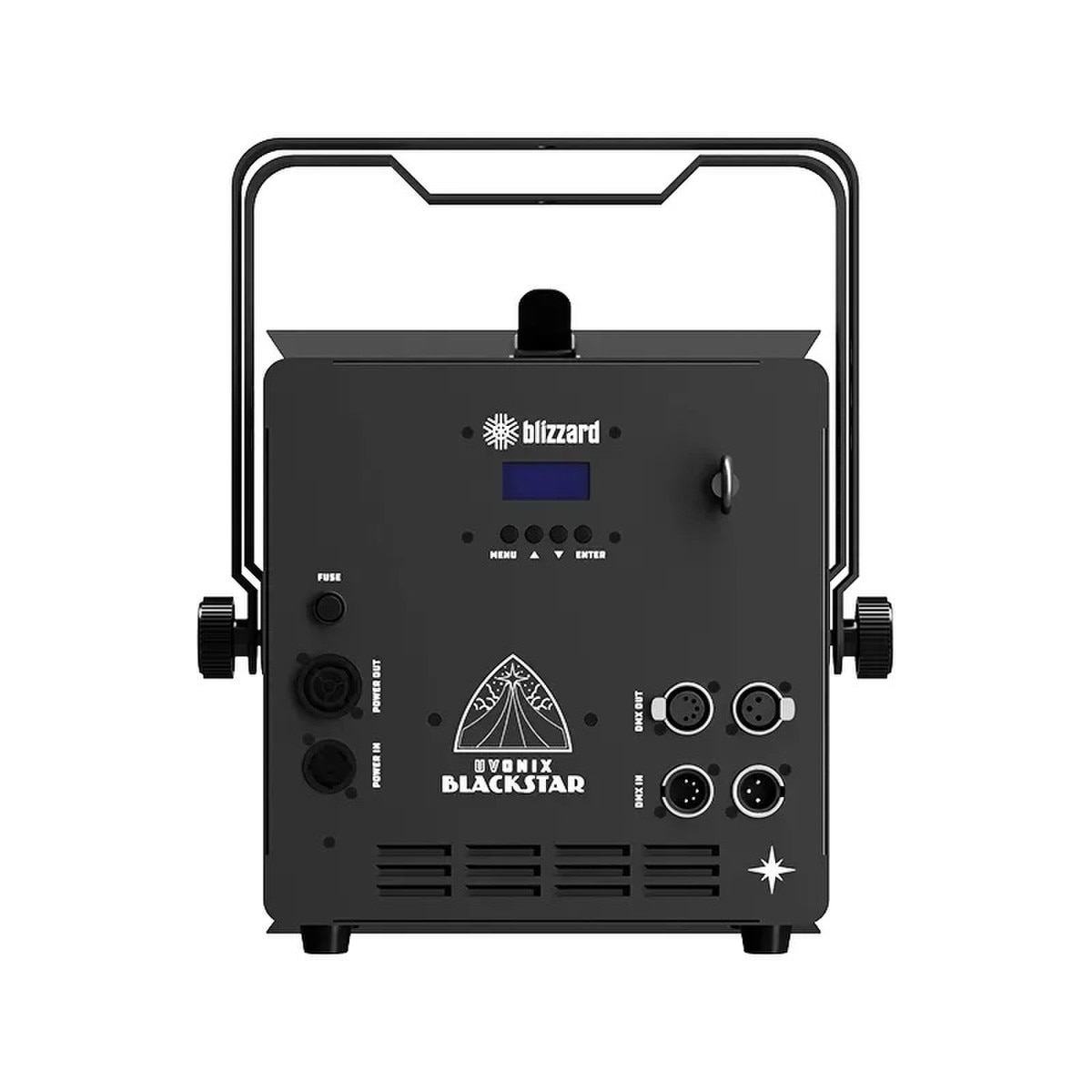

• 4-button control menu with LCD display
• DMX-512, M/S, and standalone
• 3/5-pin DMX in/out

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 155W, 1.42A, PF: .99
• Fuse: 3.15A 250V
• PowerCON TRUE1-compatible input/output

Dimensions:

• 9.4" x 14.8" x 12.8"
• 20.7lbs

General Specs:

• 12x 10W UV LEDs
• 365nm UV-pass lens filters
• 900Hz-25KHz refresh rates
• 4 dimming curve settings
• 6 dimming delay settings
• Strobe effects
• Barndoor attachment
• Dual mounting brackets

Warranty:

• 2 Year - Extendable
