Blizzard WiCICLE Skywire Receiver
Details
At a Glance:
- Frequency-Agile 2.4Ghz Wireless DMX system with 512 channels and 7 groups
- Ultra-compact form factor - no extra boxes, just plug and play!
- Easy to use
Tiny Powerhouse

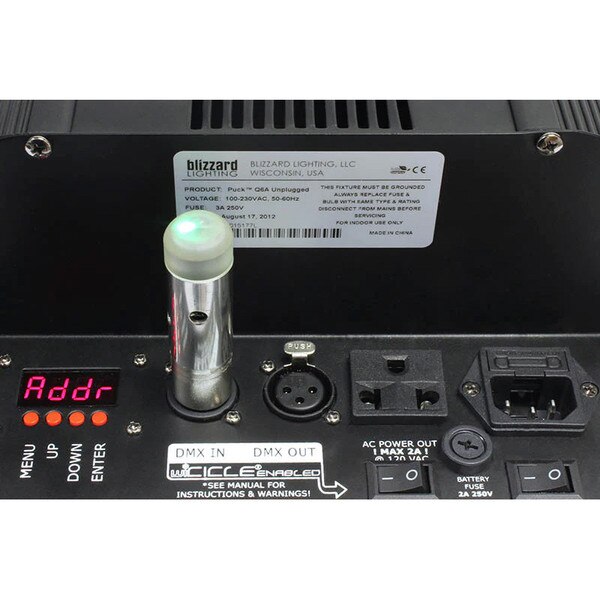

The Blizzard Lighting wiCICLE® wireless DMX system is a powerhouse in a tiny package! Not much bigger than a standard XLR connector, the wiCICLE® will release you from the crushing chains of cable-fed DMX lighting. The wiCICLE® Skywire features an even smaller casing than the original wiCICLE® receiver, plus, it now has an internal antenna and a frosted semi-transparent end cap which illuminates in a different color per each of its 7 frequency groups.Despite their small size, the wiCICLE® Skywire and wiCICLE® XMIT make one powerful system, capable of reliable wireless communication for over 1000 feet, line-of-sight. And rest assured, Blizzard's wiCICLE® products work flawlessly with any of our other wireless DMX products such as the LightCaster™ wireless DMX transceiver, and all Blizzard Skywire™ wireless controllers.
Overview:
- Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)
- Channels: 512
- Frequency Groups: 7
- Transmitter power: 20dBm
- Receiver sensitivity: -94dBm

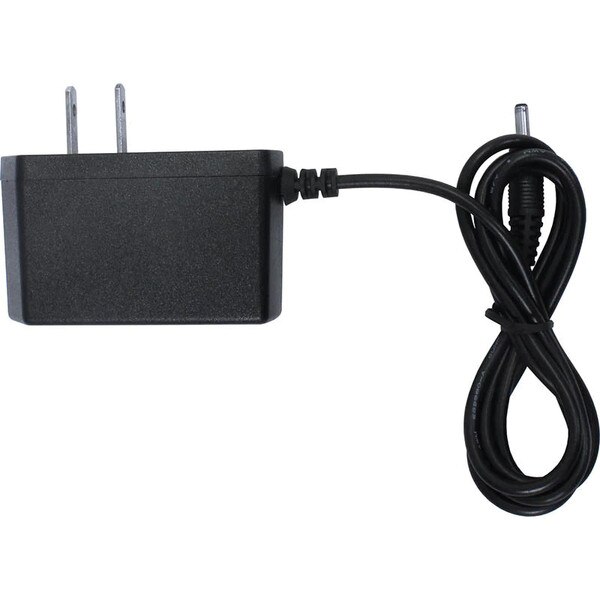

- Power Supply: 5VDC, 500mA (adaptor included)
Dims & Weight:
- 3.35" L x 0.78" W x 1.78" H
- 0.1 lbs
wicicle-skywire_manual_rev_a.pdf
