Blizzard node:b RGBAL
Details
Blizzard's node:b RGBAL Key Features:
- Light source: 200W RGBAL COB LED
- Engine accommodates profile or fresnel lens barrels (sold separately)
- Small in size, 10cm fixture diameter
Full Color Mixing:
Bring art to light with RGBAL color mixing, featuring a high CRI of 90 for more natural, rich colors. Adapt to changing collections or seasons with three interchangeable Fresnel and ellipsoidal lens options.
Compact, Gobo Pro:
Lightweight and airy at only 5.3lbs with quiet fan cooling, node:b™ seamlessly blends into the background. Design custom gobos and pair it with a signature hue to act as an extension of your brand.
Compact, Full Color Lighting System:
The ETL-listed node:b™ RGBAL pairs a high-output 200W LED light engine with a variety of replaceable lens types to fit many applications ranging from gobo projection, to typical hard-edged profile use or even a smooth, vibrantly colored wash. This fixture is ideal for those in need of flexibility in their lighting.
Modular & Flexible Design:
There are 3x lenses available for node:b™ fixtures with the choices of 15-30° or 25-50° profile zoom lenses with 4-blade manual shutters and focus, or a 16-65° Fresnel zoom lens. User-selectable dimming curves, dimming speed, and frequency mode settings are also accessible from its 4-button OLED control menu.
Tech Specs:
Warranty:
- 2 Year - Extendable
Certifications:
- ETL, CE, RoHS
Optical:
- 200W RGBAL LED
- Glass optical lens
- CRI: 90
- Flicker-free resolution
- Gobo holder: 68.6mm outer, 24mm inner, 0.4mm thickness
- Luminous Intensity: RGBAL Engine + 15-30° Profile Zoom Lens
- (15° Narrow) 4,542 Lux @ 2.5m / 1,225 Lux @ 5m
- (30° Wide) 1,549 Lux @ 2.5m / 397 Lux @ 5m RGBAL Engine + 25-50° Profile Zoom Lens
- (25° Narrow) 1,813 Lux @ 2.5m / 427 Lux @ 5m
- (50° Wide) 1,090 Lux @ 2.5m / 288 Lux @ 5m RGBAL Engine + 16-65° Fresnel Zoom Lens
- (16° Narrow) 1,386 Lux @ 2.5m / 365 Lux @ 5m
- (65° Wide) 576 Lux @ 2.5m / 148 Lux @ 5m
Control:
- Protocol: DMX, RDM
- 5-pin DMX in/out
- 6/9-channels

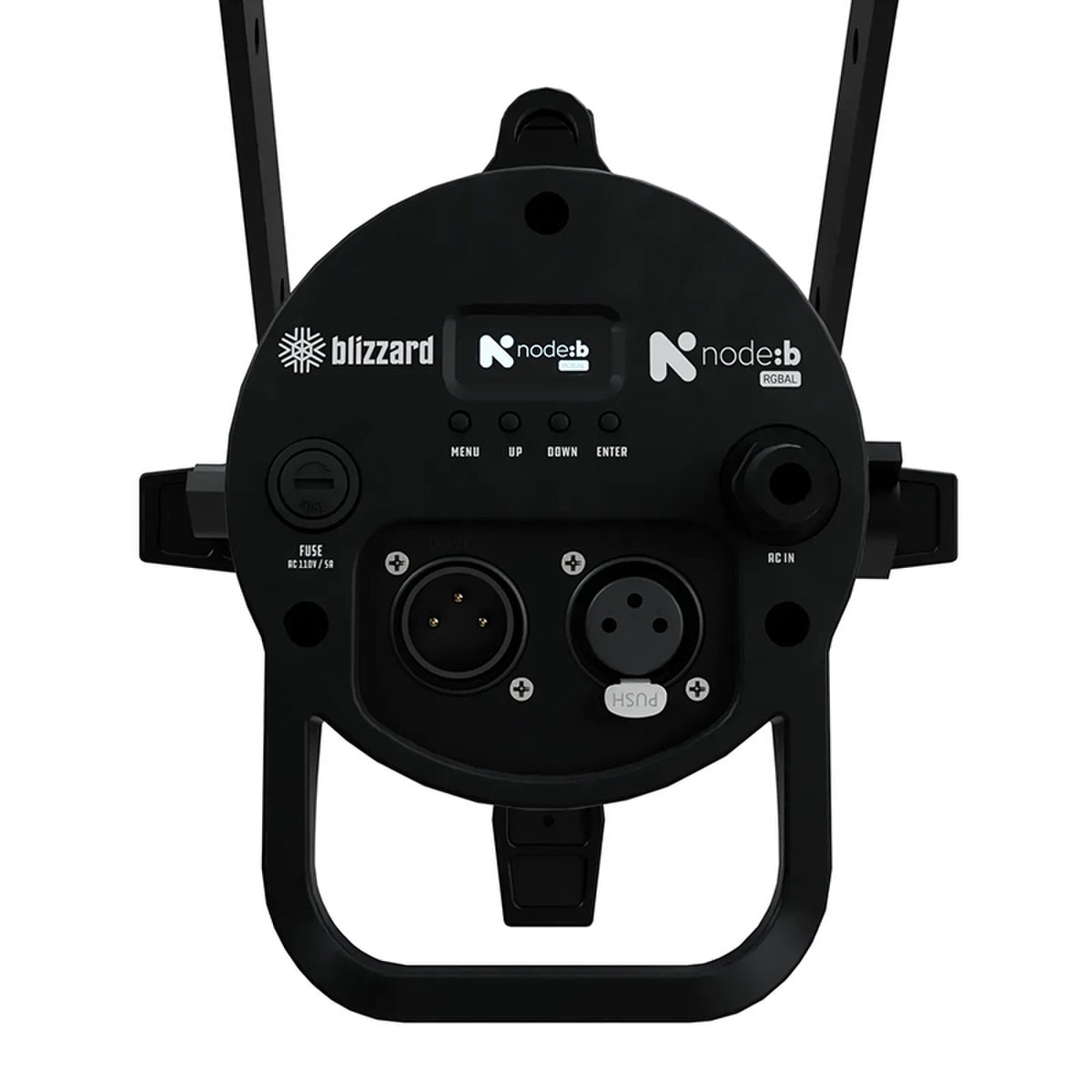

- 4-button menu with OLED display
- DMX512, master/slave, standalone
Power & Current:
- 100-240VAC, 50-60 Hz
- Consumption: 156W 2.03A, PF: .95
- Heavy-duty, fixed power cord
Dimensions:
- 7" x 17.5" x 19"
- 5.3lbs
node-b RGBAL Cutsheet.pdf
node-b RGBAL User Manual - Rev B.pdf
