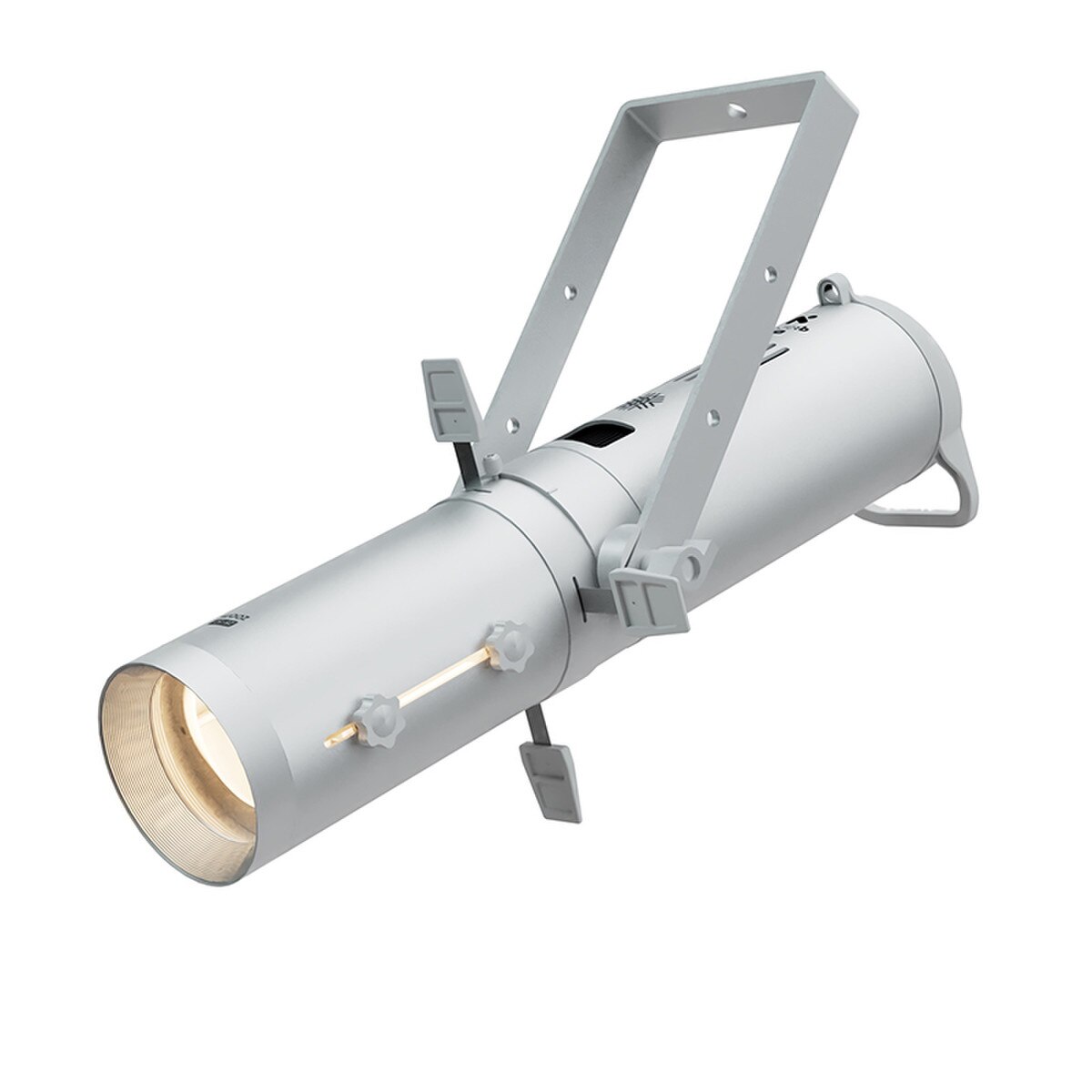

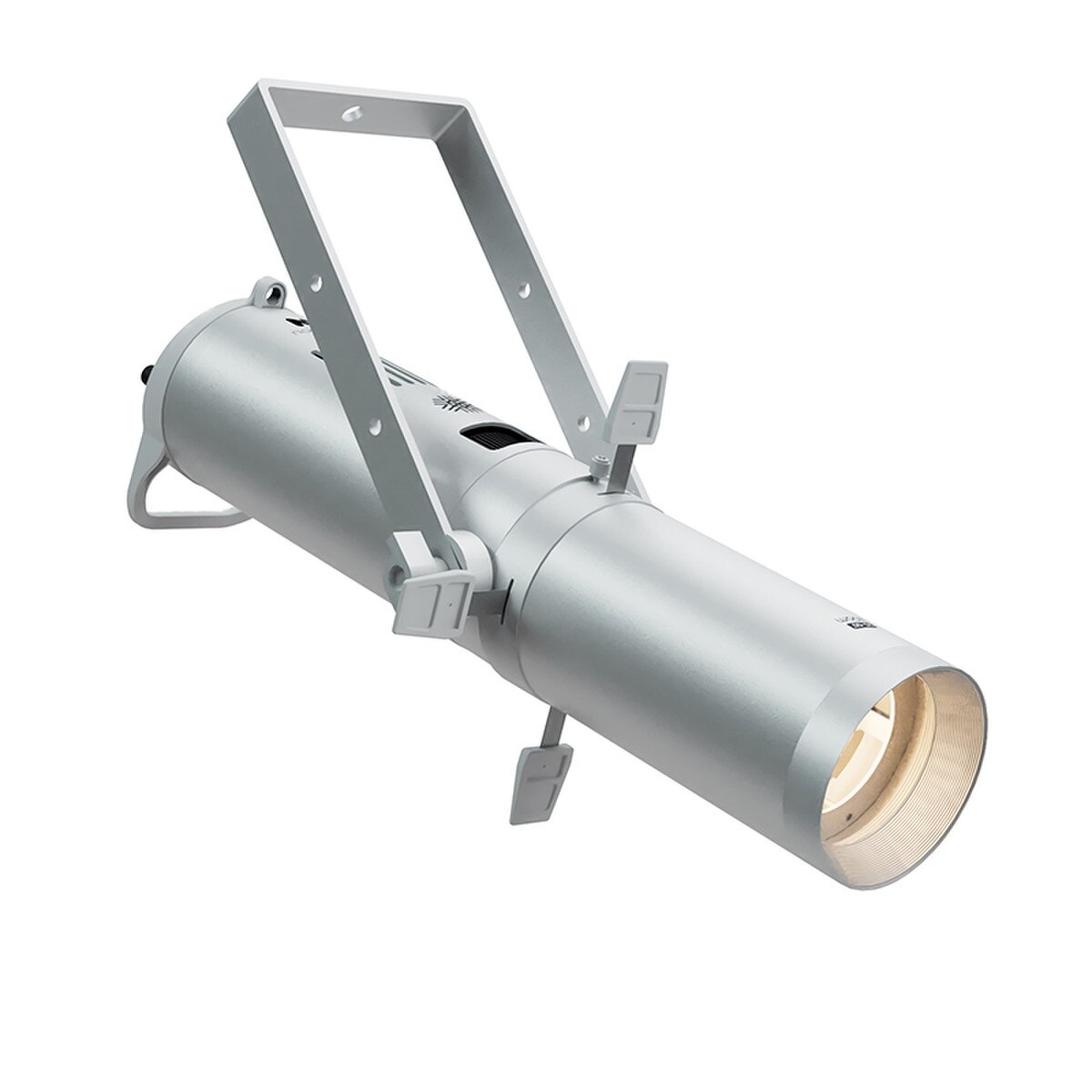

Blizzard node:b WW (W)

At A Glance:

• 150W, WW (2800K) LED light source
• Small in size, 10cm fixture diameter
• Glass optical lens

Tech Specs

Compact, 2800K WW Lighting System:

The ETL-listed node:b™ WW pairs a high-output 150W LED light engine with a variety of replaceable lens types to fit many applications ranging from gobo projection, to typical hard-edged profile use or even a smooth, vibrantly colored wash. This fixture is ideal for those in need of flexibility in their lighting.

Modular & Flexible Design:

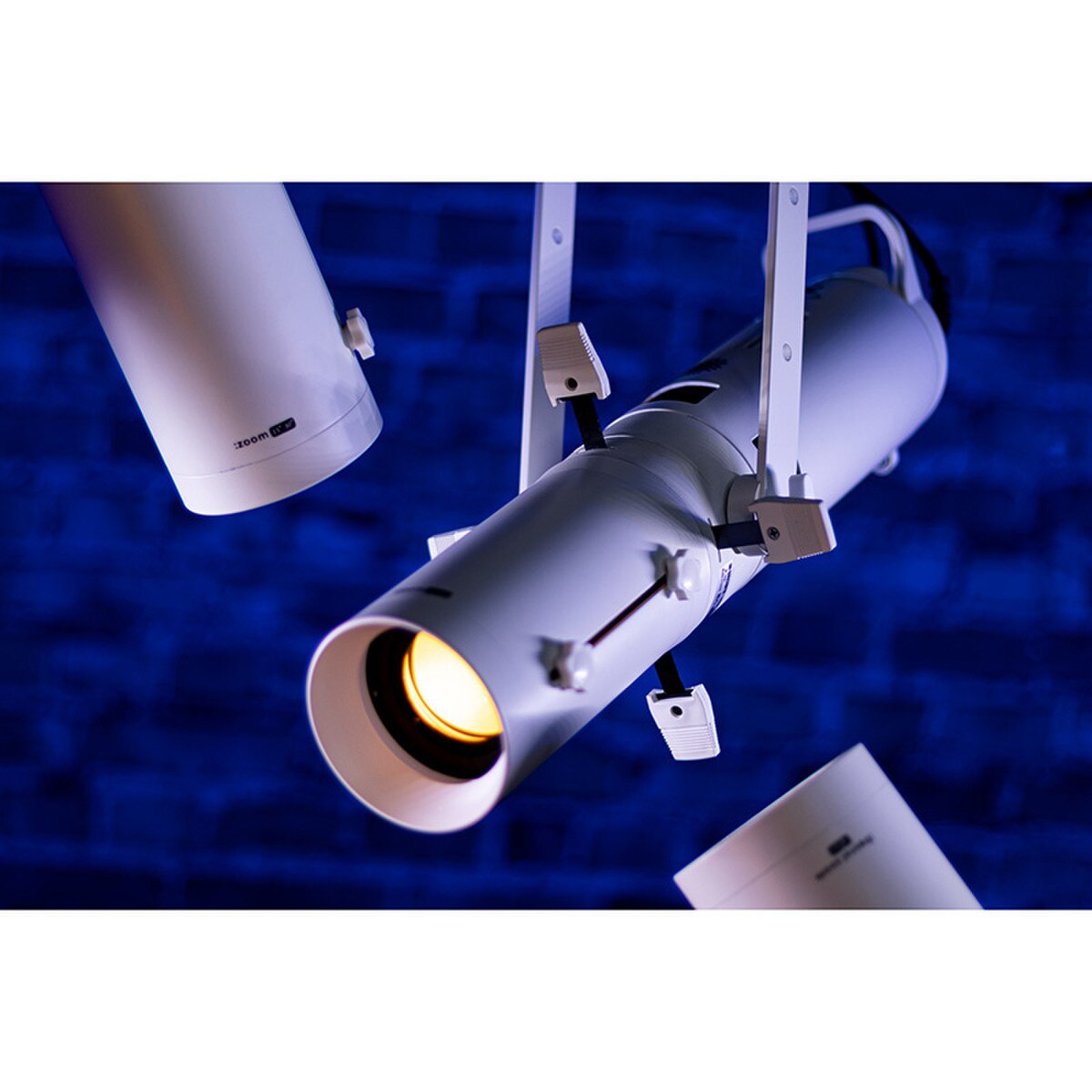

There are 3x lenses available for node:b™ fixtures with the choices of 15-30° or 25-50° profile zoom lenses with 4-blade manual shutters and focus, or a 16-65° Fresnel zoom lens. User-selectable dimming curves, dimming speed, and frequency mode settings are also accessible from its 4-button OLED control menu.

Optical:

• 150W WW LED
• Glass optical lens
• CRI: 97
• Flicker-free resolution
• Gobo holder: 68.6mm outer, 24mm inner, 0.4mm thickness
• Luminous Intensity: WW Engine + 15-30° Profile Zoom Lens
• (15° Narrow) 5,739 Lux @ 2.5m / 1,542 Lux @ 5m
• (30° Wide) 1,257 Lux @ 2.5m / 632 Lux @ 5m WW Engine + 25-50° Profile Zoom Lens
• (25° Narrow) 2,223 Lux @ 2.5m / 550 Lux @ 5m
• (50° Wide) 1,257 Lux @ 2.5m / 138 Lux @ 5m WW Engine + 16-65° Fresnel Zoom Lens
• (16° Narrow) 1,598 Lux @ 2.5m / 433 Lux @ 5m
• (65° Wide) 519 Lux @ 2.5m / 138 Lux @ 5m

Control:

• Protocol: DMX, RDM
• 3-pin DMX in/out
• 1/2/3/4 -channels
• 4-button menu with OLED display
• DMX512, master/slave, standalone

Power & Current:

• 100-240VAC, 50-60 Hz
• Consumption: 130W 1.42A, PF: .95
• Heavy-duty, fixed power cord

Dimensions:

• 17.5" x 7" x 19"
• 5.3lbs

Warranty:

• 2 Year - Extendable
