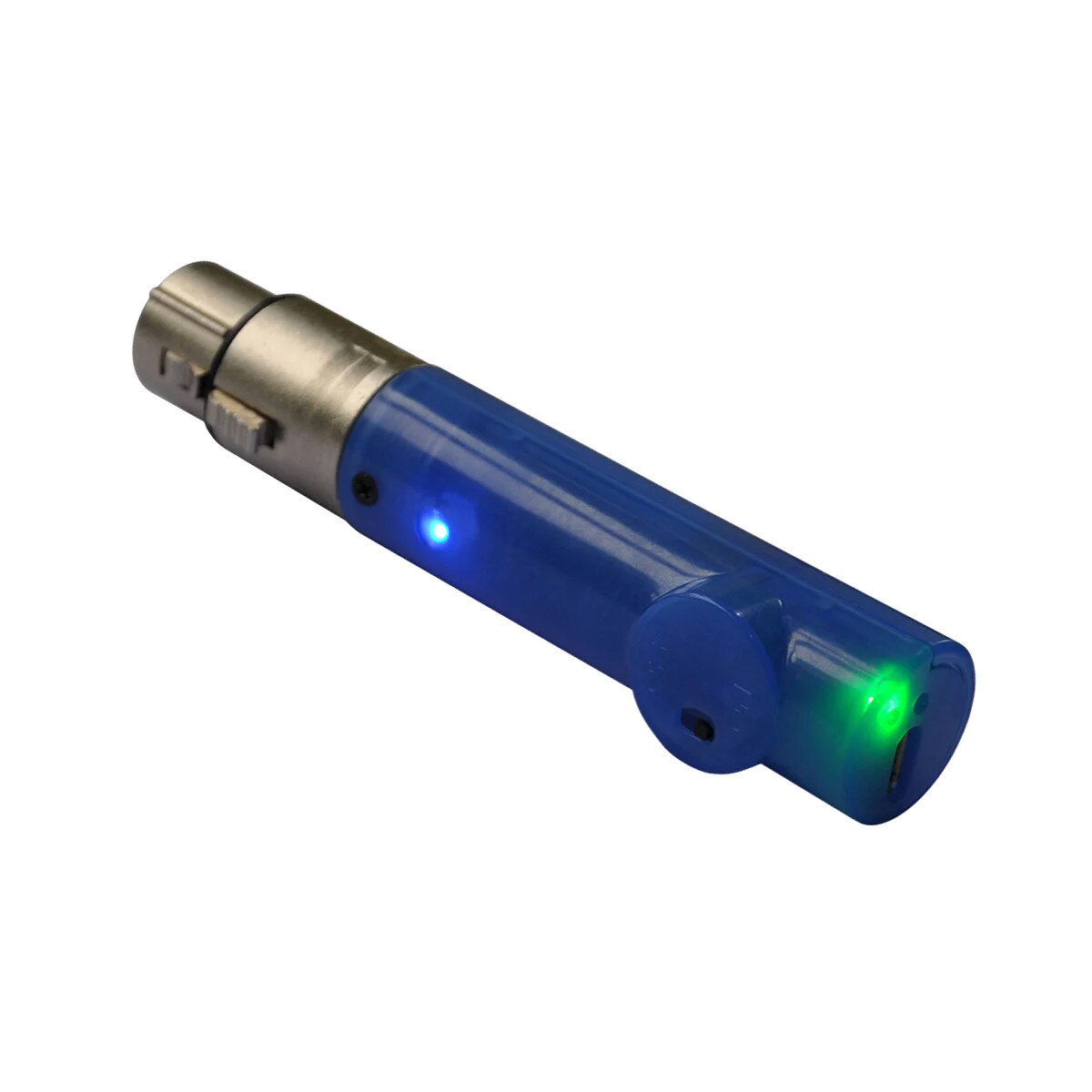

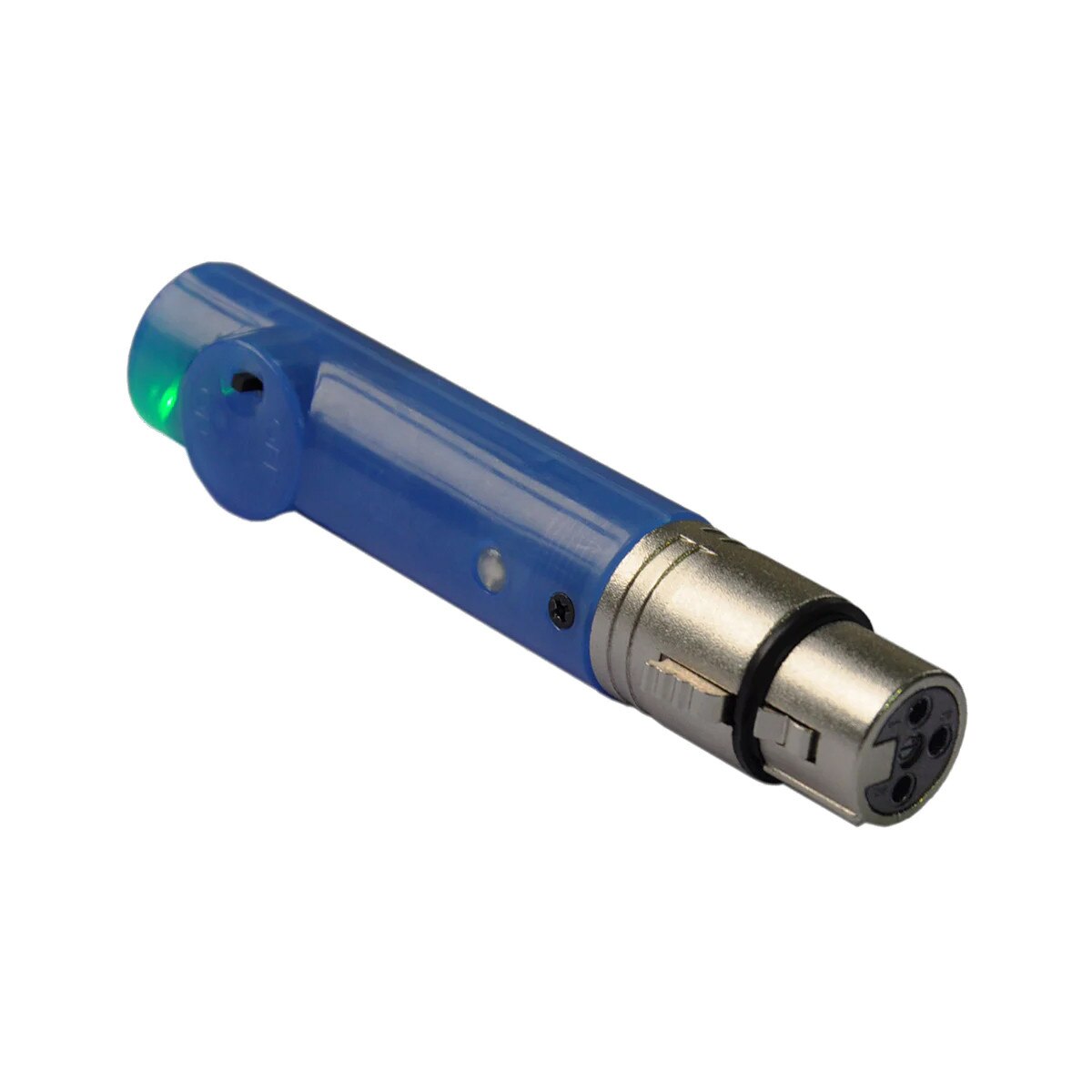

Blizzard wiCICLE Ion

At a Glance:

• Battery powered wireless DMX receiver
• Wireless Solution® W-DMX™ compatible receiver
• Built-in Skywire™ 6/7-channel wireless receiver

Lose the Cables & Cords

wiCICLE® Ion™ gives you all of the outstanding features found in Blizzard's wiCICLE® AnyFi™ wireless DMX receiver, with the addition of a long-life, built-in rechargeable lithium battery! The built-in rechargeable lithium battery is capable of receiving a full charge in less than 1 hour, and it can sustain a working time of 6+ straight hours.

It can receive standard W-DMX wireless signals or Skywire™ 6/7-channel wireless 2.4 GHz band frequencies for up to 1,000 FT (line-of-sight), and its frequencies will match up perfectly with any Blizzard wiCICLE™, and/or Skywire™ enabled product. It is a perfect solution for situations where it is just not easy or convenient to run power and data cables to your fixtures!

Overview:

• 6/7 systems may operate simultaneously
• 2.4GHz ISM operation + frequency hopping W-DMX™
• Battery powered wireless DMX receiver
• Wireless Solution® W-DMX™ compatible receiver
• Built-in Skywire™ 6/7-channel wireless receiver
• Outstanding range of over 1000 ft. (line-of-sight)
• Easy to use, powerful and small in size
• Zero Lag Time
• Automatic channel selection
• Really, extremely simple operation.
• FCC Compliant
• Operates seamlessly with all Blizzard wireless products

Power:

• DC 5V, ±5%
• 100~240V, 50/60Hz AC
• Adaptor or powered directly by wiCICLE® ENABLED Fixtures
• Lithium Battery: 3.7V / 300mAh (47 x 14 x 6mm)
• Input: 1A MK5P Micro USB Female Plug

Warranty:

• 2-year limited warranty

Dims & Weight:

• 3.98" L x 0.87" W x 0.77" H
• 0.24 lbs
