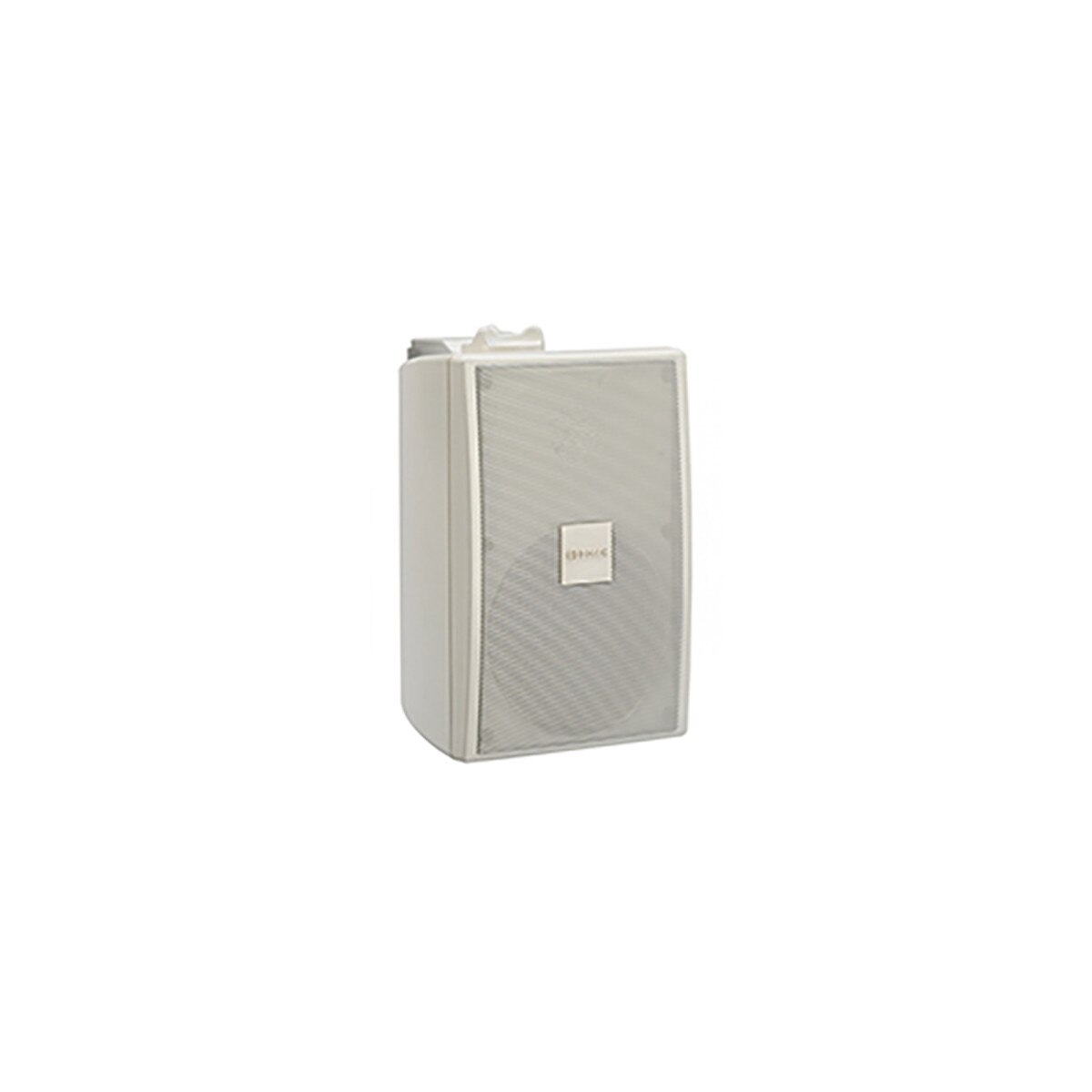

Bosch 15-Watt Premium-Sound Cabinet ABS Loudspeaker - White

(0)No Reviews yet
$100.00
SKU: Bosch LB2-UC15-L1

Details

Features:

  • High-fidelity music and speech reproduction
  • Selectable 8 ohm, 70 V and 100 V inputs
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Complies with international installation and safety regulations

Key Specifications:

  • Color: White
  • Coverage angle HxV (-6 dB, 1 kHz) (°): 184 x 170 °
  • Coverage angle HxV (-6 dB, 4 kHz) (°): 112 x 35 °
  • Dimensions (H x W x D) (mm): 205 x 136 x 117 mm
  • Frequency range (-10 dB) (Hz): 95 – 20000 Hz
  • Operating temperature (°C): -25 – 55 °C
  • Rated input voltage (V): 70 V; 100 V
  • Sensitivity (1 W, 1 m, 1 kHz octave) (dB): 87 dB
  • Storage temperature (°C): -40 – 70 °C
  • Weight (kg): 1.90 kg

Parts Included With This Product:

  • 1x LB2-UC15-L1
  • 1x Mounting bracket
  • 1x Installation instructions

Bosch LB2-UC15-L1 Datasheet.pdf
Bosch LB2-UCxx-x1 Quick Installation Guide.pdf
