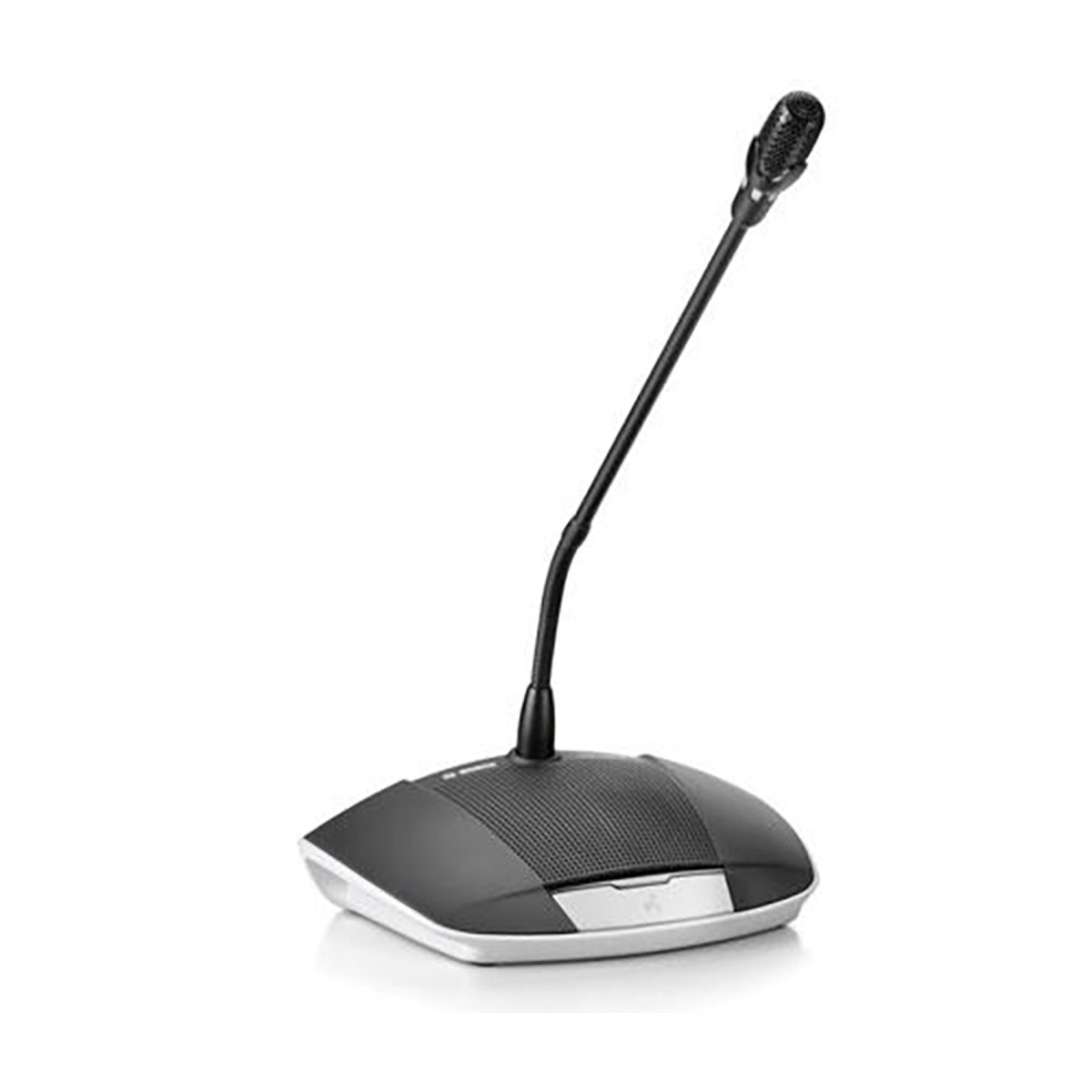

Bosch CCS 1000 D Discussion Device - Long Microphone

Discussion Device for the CCS 1000 DDigital Discussion System, supplied with long‑stem fixed microphone, configurable as a participant’s or chairperson’s discussion device.

Features:

• Unique patent-pending possible-to-speak indicator
• Plug and play functionality for ensuring fast installation and reconfiguration times
• Compact, attractive ergonomic design
• Easily configured as a participant device or chairperson's device
• Immunity to mobile phone interference

Specifications:

• Power consumption: 1.3W
• Frequency response: 30 Hz to 20 kHz (System electrical)
• THD: <0.5 %
• S/N: >93 dBA
• Sampling rate: 44.1 kHz
• Headphones load impedance: > 32 ohms < 1k ohm
• Loudspeaker max. peak output power: 4W
• Loudspeaker nominal output: 72 dB SPL
• Participants loudspeaker frequency response: 200 Hz to 16 kHz (acoustical)
• Microphone polar pattern: Cardoid
• Participants microphone frequency response: 125 Hz to 15 kHz
• Microphone nominal input: 85 dB SPL

Dimensions:

• Device without microphone (H x W x D): 2.5" x 8.0" x 5.7" (64mm x 203mm x 146mm)
• Height with microphone in horizontal position: 5.1" (130mm)
• Length of microphone from mounting surface: CCSD‑DS: 12.2" (310mm) CCSD‑DL: 18.9" (480mm)
• Weight: Approx. 2.2 lbs (1kg)
• Mounting: Tabletop (portable or fixed)
• Material (top): Plastic ABS+PC
• Material (base): Metal ZnAl4
• Color (top): Traffic black (RAL 9017) matt-gloss
• Color (base): Pearl light grey (RAL 9022) matt-gloss
• Operating temperature: 0 ºC to +35 ºC (+32 ºF to +95 ºF)
• Storage and transport temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Relative humidity: 5% to 98% non-condensing
• Air pressure: 600 to 1100 hPa

Possible-to-speak indication

A possible-to-speak indicator above the microphone button indicates when the microphone can be activated.

Short or long microphone with flexible stem

The fixed microphone with flexible stem can be easily adjusted to suit the user.

Built-in loudspeaker with volume control

To ensure for optimal intelligibility, the loudspeaker volume is centrally controlled from the control unit.

Face-to-face meeting feeling

An authentic face-to-face meeting feeling is achieved by allowing the loudspeaker and microphone to be on at the same time.
