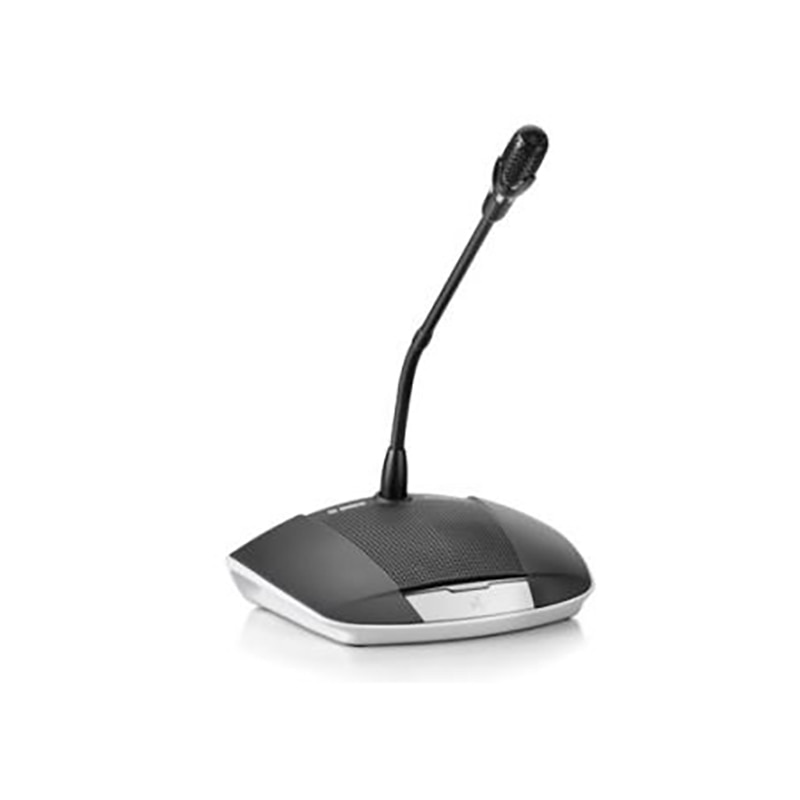

Bosch CCS 1000 D Discussion Device - Short Microphone
Details
Discussion Device for the CCS 1000 DDigital Discussion System, supplied with short‑stem fixed microphone, configurable as a participant's or chairperson's discussion device.
Product_Brochure_96978_File_1.pdf
Flyer_96978_File_5.pdf
Data_Sheet_96980_File_4.pdf
Features:
- Unique patent pending possible-to-speak indicator
- Plug and play functionality for ensuring fast installation and reconfiguration times
- Compact, attractive ergonomic design
- Easily configured as a participant device or chairperson's device
- Immunity to mobile phone interference
- Power consumption: 1.3W
- Frequency response: 30 Hz to 20 kHz (system electrical)
- THD: <0.5 %
- S/N: >93 dBA
- Sampling rate: 44.1 kHz
- Headphones load impedance: > 32 ohms < 1k ohm
- Loudspeaker max. peak output power: 4W
- Loudspeaker nominal output: 72 dB SPL
- Participant's loudspeaker frequency response: 200 Hz to 16 kHz (acoustical)
- Microphone polar pattern: Cardoid
- Participants microphone frequency response: 125 Hz to 15 kHz
- Microphone nominal input: 85 dB SPL
- Dimensions:
- Device without microphone (H x W x D): 2.5" x 8.0" x 5.7" (64mm x 203mm x 146mm)
- Height with microphone in horizontal position: 5.1" (130mm)
- Length of microphone from mounting surface: CCSD‑DS: 12.2" (310mm) CCSD‑DL: 18.9" (480mm)
- Weight: approx. 2.2 lbs (1kg)
- Mounting: Tabletop (portable or fixed)
- Material:
- Top: Plastic ABS+PC
- Base: Metal ZnAl4
- Color:
- Top: Traffic black (RAL 9017) matt-gloss
- Base: Pearl light grey (RAL 9022) matt-gloss
- Operating temperature: 0 ºC to +35 ºC (+32 ºF to +95 ºF)
- Storage and transport temperature: -40 ºC to +70 ºC(-40 ºF to +158 ºF)
- Relative humidity: 5% to 98% non-condensing
- Air pressure: 600 to 1100 hPa
