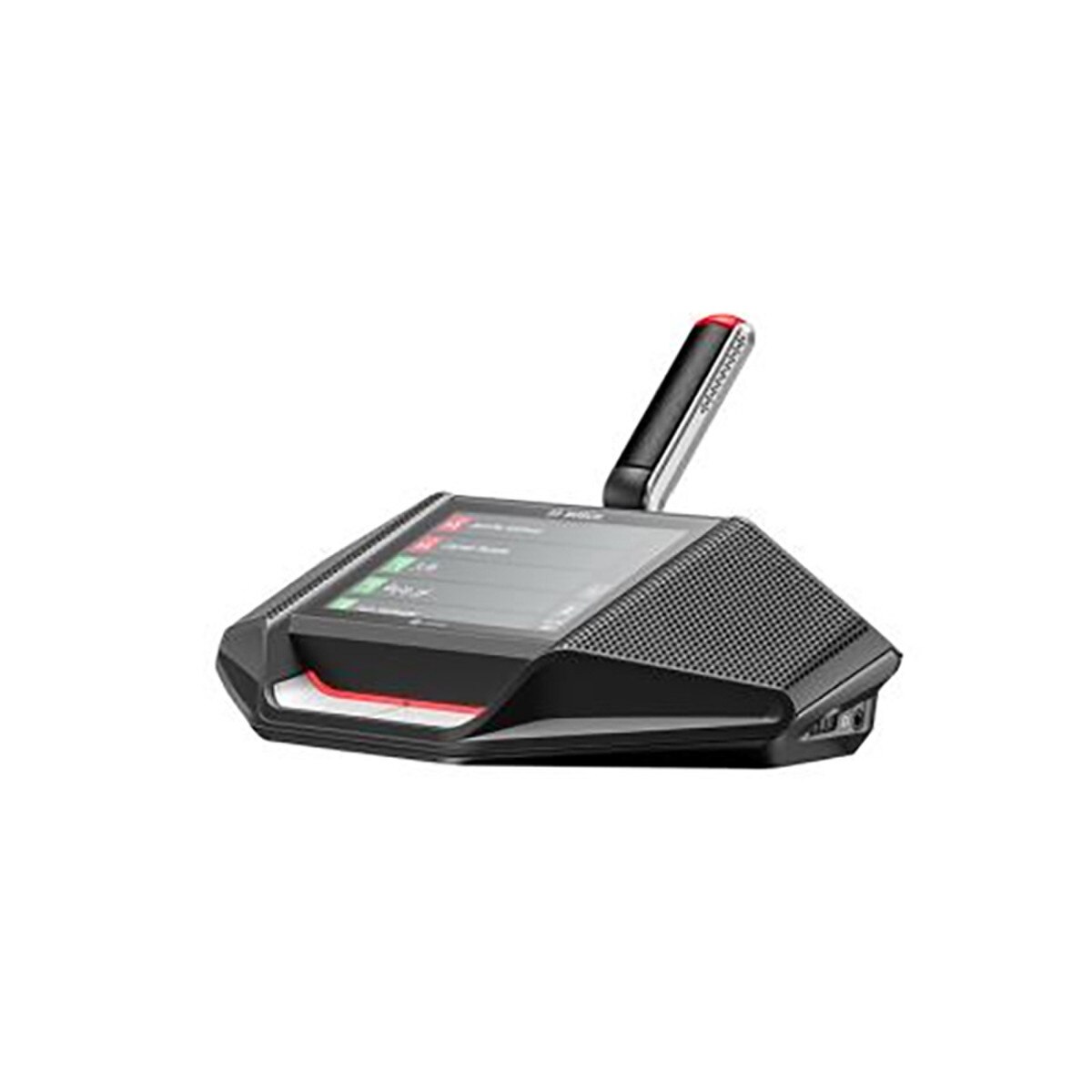

Bosch DCNM-DE Discussion Device With Touchscreen - No Microphone

Features:

• 4.3 inch capacitive touch screen and built‑in NFC reader for fast recognition of participants
• Configurable as a single participant, dual‑use, or chairperson’s device
• Functionality can be conveniently expanded with software modules

Key Specifications:

• Color: Black
• Dimensions (H x W x D) (cm): 7.20 x 25.90 x 13.90 cm
• Dimensions (H x W x D) (in): 2.80 x 10.20 x 5.50 in
• Dimensions (H x W x D) (mm): 72 x 259 x 139 mm
• Frequency response (-3 dB) (Hz): 100 – 20000 Hz
• Minimum signal-to-noise ratio (dB): 90 dB
• Mounting type: Tabletop
• Nominal acoustic input level (dB SPL): 80 dB SPL
• Nominal acoustic output level (dB SPL): 72 dB SPL
• Operating relative humidity, non-condensing (%): 5 – 90 %
• Operating temperature (°C): 5 – 45 °C
• Operating temperature (°F): 41 – 113 °F
• Power consumption (W): 5 W
• Storage temperature (°C): -30 – 70 °C
• Storage temperature (°F): -22 – 158 °F
• Weight (g): 1035 g
• Weight (lb): 2.30 lb

Bosch DICENTIS Configuration Manual.pdf
Bosch DCNM-DE Datasheet.pdf
Bosch DICENTIS Installation Manual.pdf
Bosch DICENTIS Quick Installation Guide.pdf
Bosch DICENTIS System Manual.pdf
