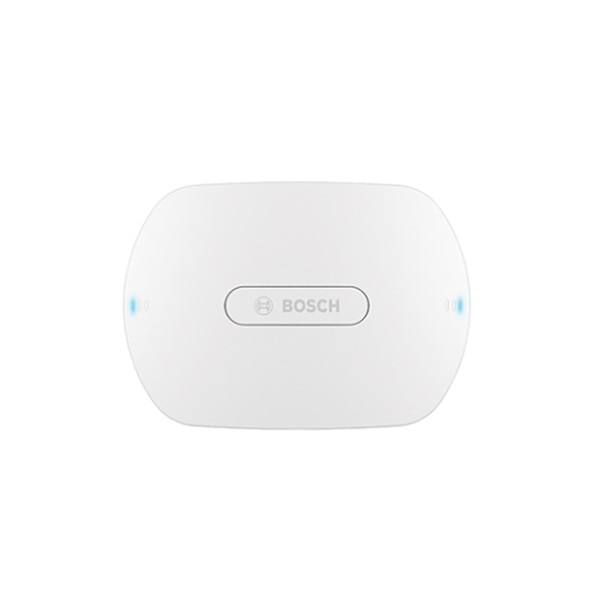

Bosch DICENTIS Wireless Access Point

The Wireless Access Point (DCNM-WAP) is the central device of the DICENTIS Wireless Conference System. It links the Wireless Devices (DCNM-WD and DCNM-WDE) by means of a secure wireless WPA2 communication. Only a DCNM-WAP with built‑in web interface is needed to setup, configure, and control the DICENTIS Wireless Conference System.

The Wireless Access Point's attractive design enables it to be placed unobtrusively on a wall, ceiling, or tripod floor stand by using the included universal mounting bracket.

Specifications:

• Electrical:
  • Supply Voltage (PSU): 100‑240 VAC 50‑60 Hz in, 48 VDC out
  • PoE: 802.3af, 802.3at - type 1 mode A (endspan), mode B (midspan)
  • DCNM System Supply: 48 Vdc
  • Power Consumption: 10W
  • Frequency Response: 80 Hz - 20 kHz
  • THD at nominal level: <0.1 %
  • Dynamic Range: >98 dBA
  • Signal‑to‑Noise Ratio: >96 dBA
  • Ethernet: 1000Base‑T IEEE 802.3ab
• Audio Inputs:
  • Jack Nominal: -18 dBV
  • Jack Maximum: +18 dBV
• Audio Outputs:
  • Jack Nominal: -18 dBV
  • Jack Maximum: +20 dBV
• Radio:
  • WIFI Standard: IEEE 802.11n
  • Frequency Range: 2.4 GHz and 5 GHz (ISM license free)
• Mechanical:
  • Mounting: Ceiling, Wall, or Tripod floor stand (using included bracket)
  • Dimensions with Bracket (H x W x D): 11.2" x 8.0" x 2.6" (285 x 202 x 65mm)
  • Weight:
  • with Bracket: 2.11 lbs (958g)
  • without Bracket: 1.60 lbs (725g)
  • Color: Light grey (RAL 000 7500)
• Environmental:
  • Operating Temperature: 41 ºF to +113 ºF (5 ºC to +45 ºC)
  • Storage Temperature: -4 ºF to +158 ºF (-20 ºC to +70 ºC)
  • Relative Humidity: < 95%, > 5%
