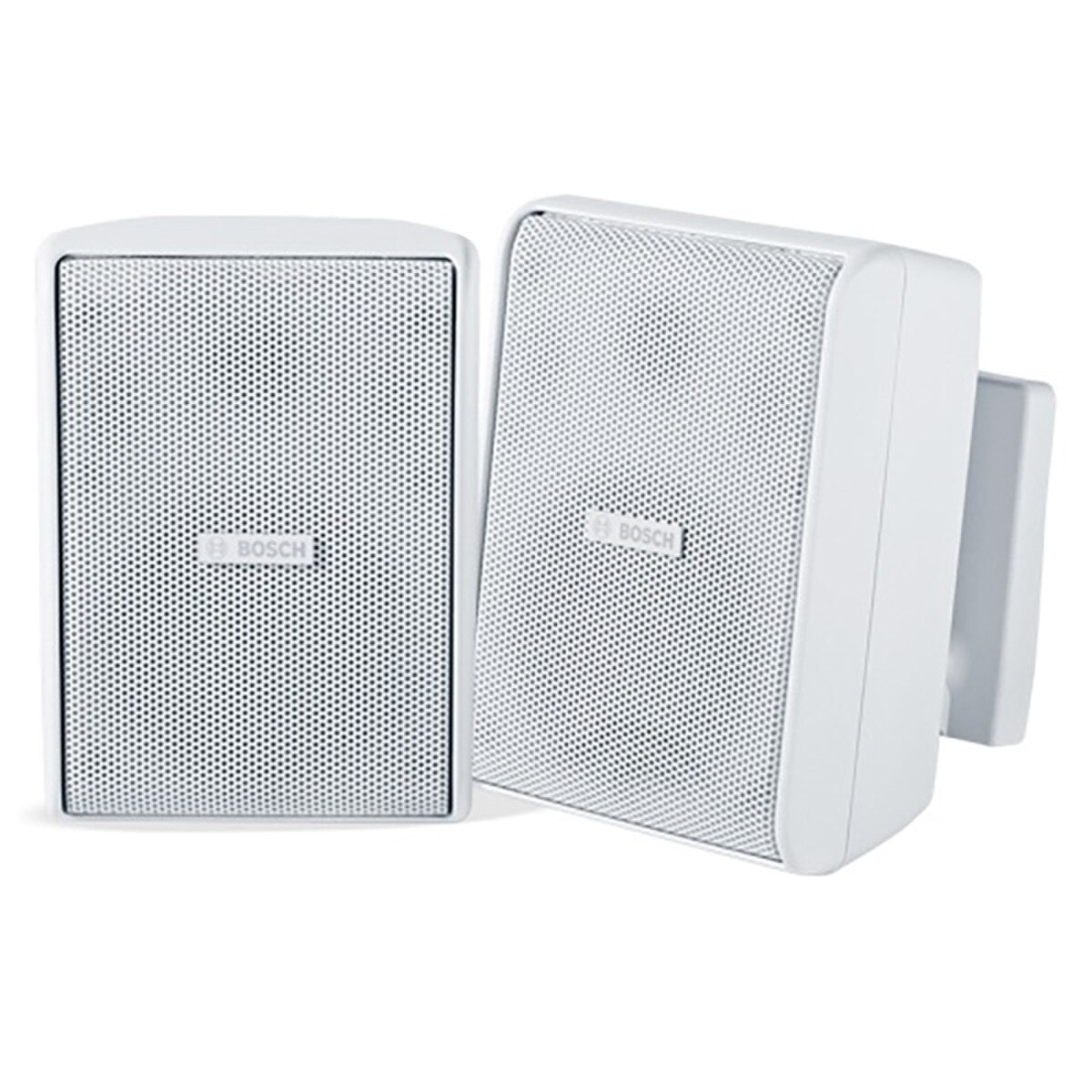

Bosch LB20-PC40 4in 8Ohm Cabinet Speakers (Pair) - White Finish

Features:

• Innovative mount system is included for quick, simple, and reliable installations
• Carefully engineered for outdoor environments (IP54), without compromising performance
• Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz
• 40 W power handling provides for 103 dB maximum SPL (109 dB peak)
• 70/100 V transformer version (LB20-PC15-4) available for constant voltage systems

Key Specifications:

• Color: White
• Dimensions (H x W x D) (mm): 193 x 140 x 120 mm
• Frequency range (-10 dB) (Hz): 75 – 20000 Hz
• IP rating: IP54
• Sensitivity (1 W, 1 m, 1 kHz octave) (dB): 87 dB
• Weight (kg): 1.50 kg

Parts Included With This Product:

• 2x Speakers with speaker brackets attached
• 2x Wall mount brackets
• 2x Dust covers
• 1x Allen wrench
• 2x Grille logos (spare)
• 2x Safety screws for the mounting brackets
• 2x Safety screw caps for the mounting brackets
• 2x Covers for the locking bolt
• 1x Installation manual

Bosch LB20-PC40-4L Datasheet.pdf
Bosch LB20 Premium Cabinet Loudspeakers Installation Manual.pdf
