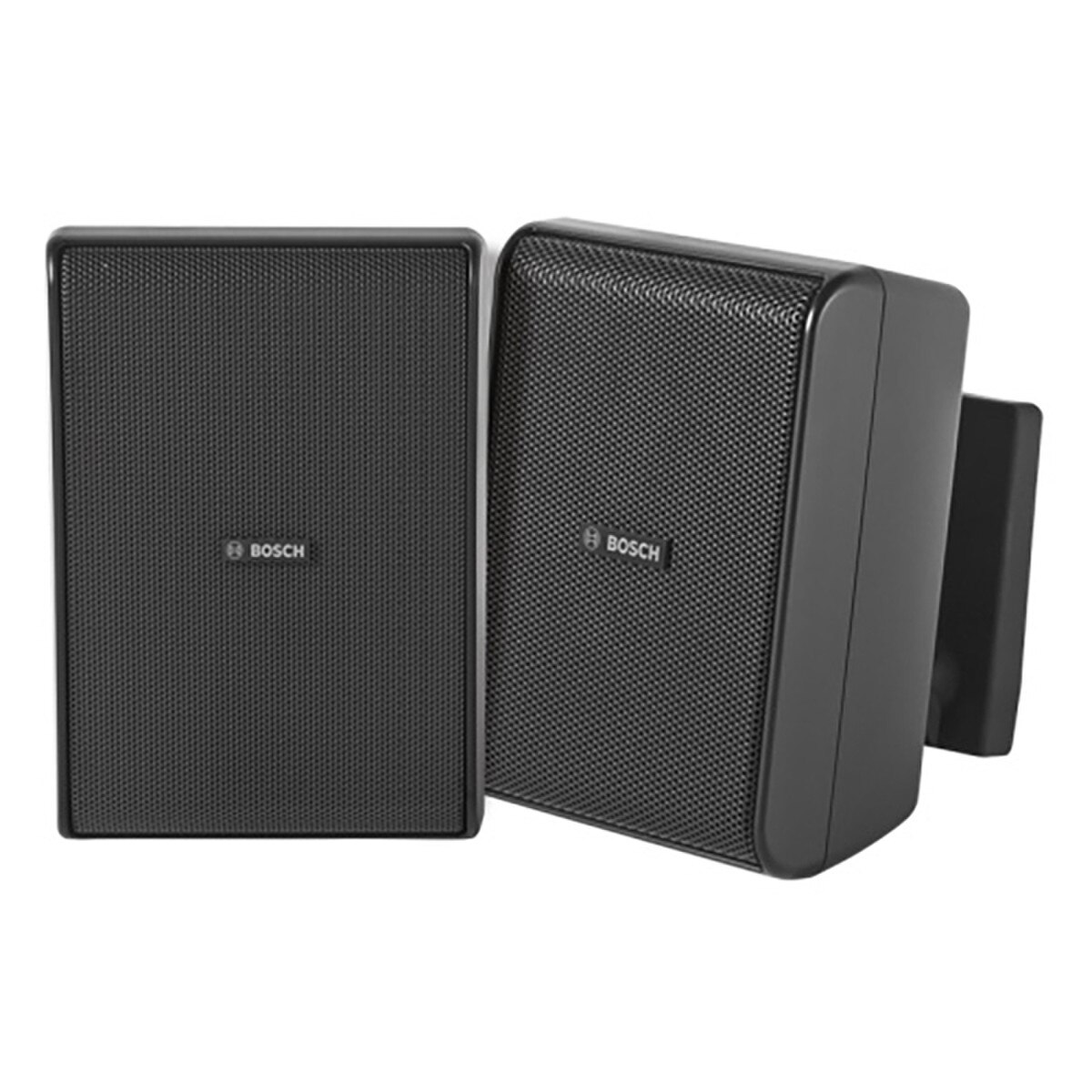

Bosch Quick Install Speaker 5in Cabinet 8Ohm IP54 (Pairs) - Black Finish

Features:

• Innovative mount system is included for quick, simple, and reliable installations
• Carefully engineered for outdoor environments (IP54), without compromising performance
• Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60 Hz
• 75 W power handling provides for 109 dB maximum SPL (115 dB peak)
• 70/100 V transformer version (LB20-PC30-5) available for constant voltage systems

Key Specifications:

• Color: Black
• Dimensions (H x W x D) (mm): 255 x 180 x 154 mm
• Frequency range (-10 dB) (Hz): 60 – 20000 Hz
• IP rating: IP54
• Sensitivity (1 W, 1 m, 1 kHz octave) (dB): 90 dB
• Weight (kg): 2.70 kg

Parts Included With This Product:

• 2x Speakers with speaker brackets attached
• 2x Wall mount brackets
• 2x Dust covers
• 1x Allen wrench
• 2x Grille logos (spare)
• 2x Safety screws for the mounting brackets
• 2x Safety screw caps for the mounting brackets
• 2x Covers for the locking bolt
• 1x Installation manual
