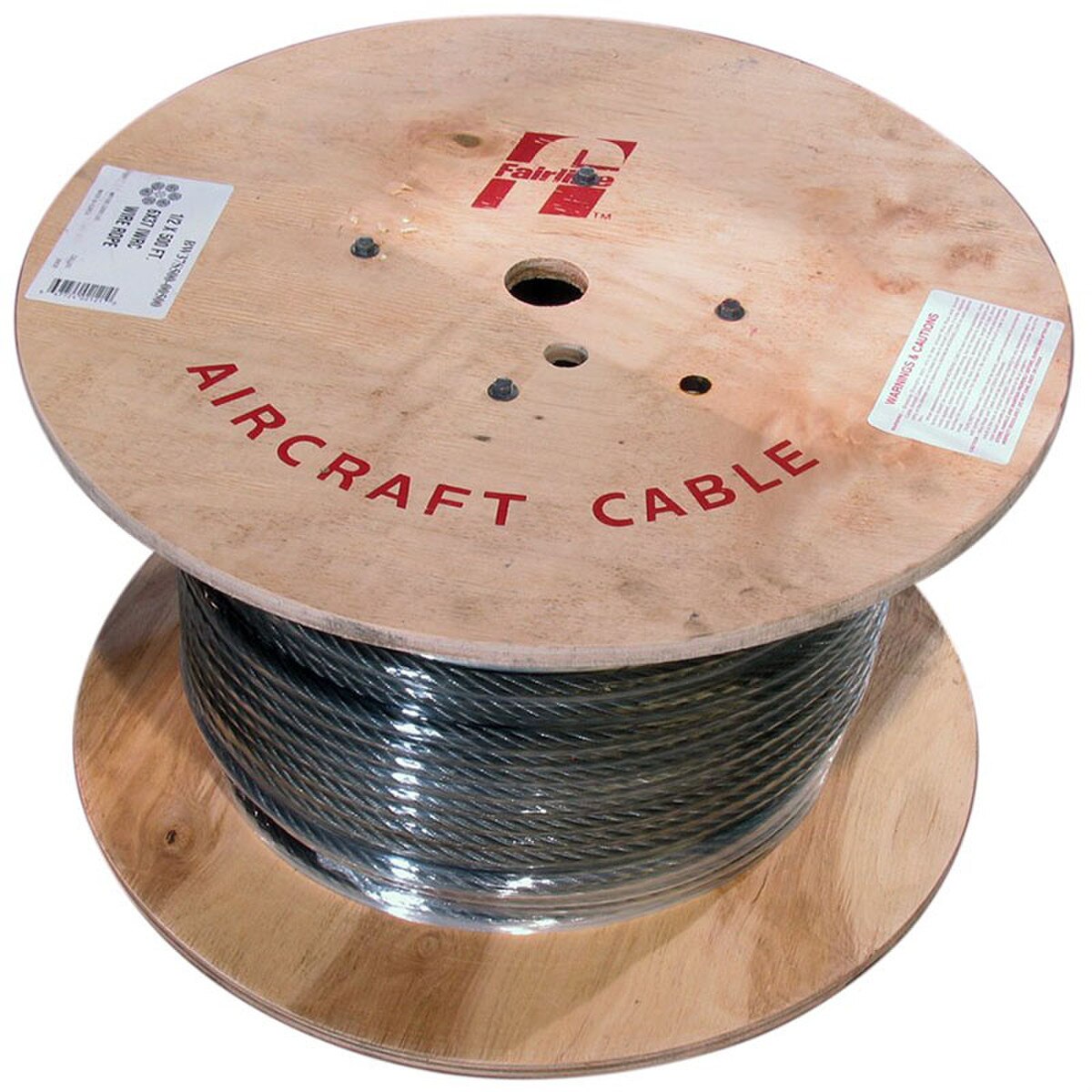

Bright Fiber Core Wire Rope - 3/16 in X 6x19 - 5000ft

The 6x19 class wire rope is known for flexibility as well as durability against abrasion. The fiber core center is made of either natural fibers or polypropylene and offers superior flexibility. The 6x19 Classification of wire rope is the most widely used for applications which demand a robust and abrasion resistant wire rope such a winch lines, slings, suspension cables, boom pendants, drill lines and chokers.

At A Glance:

• Product #: BW19F187-05000
• Finish: Bright
• Size: 3/16 in
• Length: 5000 ft
• Weight: 295 lbs
• Minimum Breaking Strength: 3100 lbs
• FC IPS RRL

Product Specifications:

• Finish: Bright
• Construction: 6X19
• Size: 3/16 in
• Min Breaking Strength: 3100 lbs
• Wire Rope Type: Fiber Core

Additional Product Info:

6×19 (often referred to as 6×25) rope has six strands with 16 to 26 wires per strand. Wire ropes with a greater number of individual wires (6×37) provide more flexibility and fatigue resistance while ropes with fewer wires (6×19) provide greater abrasion resistance, less flexibility, and more “stiffness”. Independent wire rope core (IWRC) ropes have superior crush resistance and strength over fiber core wire ropes, but offer less flexibility.

Safety Notice:

• Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicksor abrasion, which may cause failure or reduce the strength of the Wire Rope
• Wire Rope and Steel Cable must be stored, used, lubricated and maintained in accordance with the normal safety standards
• Verify that replacement Wire Ropes are correct for your application and meet your specifications
• Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application

Federal Specification Wire Rope and Strand.pdf
Wire-Rope-Deterioration-Guide.pdf
