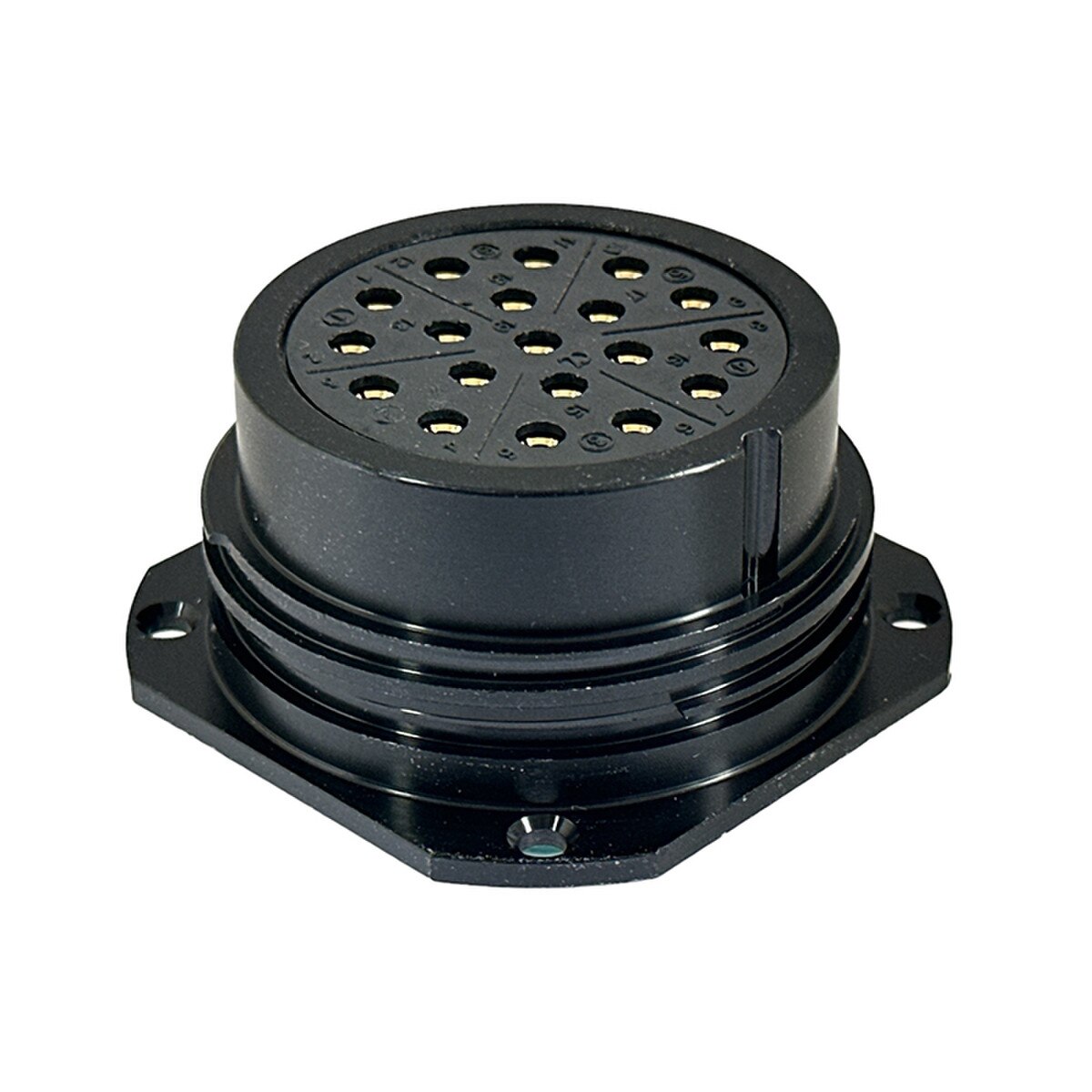

CEEP 19-Pin Panel Mount Female Receptacle Socket

(0)No Reviews yet
$66.53
SKU: 9202419AR0S020

If you add this item, you're only $182 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

Specifications:

  • Series: 92
  • Gender: Socket/Female
  • Format: Receptacle
  • Connector size: T40
  • Number of contacts: 19
  • Shell: Aluminium alloy
  • Connector plating: Black (2)
  • Coupling Screwlock
  • Insulator: Thermo-hard
  • Mating cycles: 500+
  • Adjustable cable gland: n/a
  • Ingress protection: IP67 when mated
  • Resistant to saline atmosphere 600h ASTM B-117
  • Contacts: Copper alloy
  • Contact plating: Gold over nickel
  • Termination method: Solder
  • Max wire section: 5.1mm²
  • Max contact resistance: 0.005Ω
  • Working voltage: 400V ac
  • Test voltage: 1.750V ac
  • Working current: 19 x 25A


9202419AR0S020 Data Sheet.pdf
