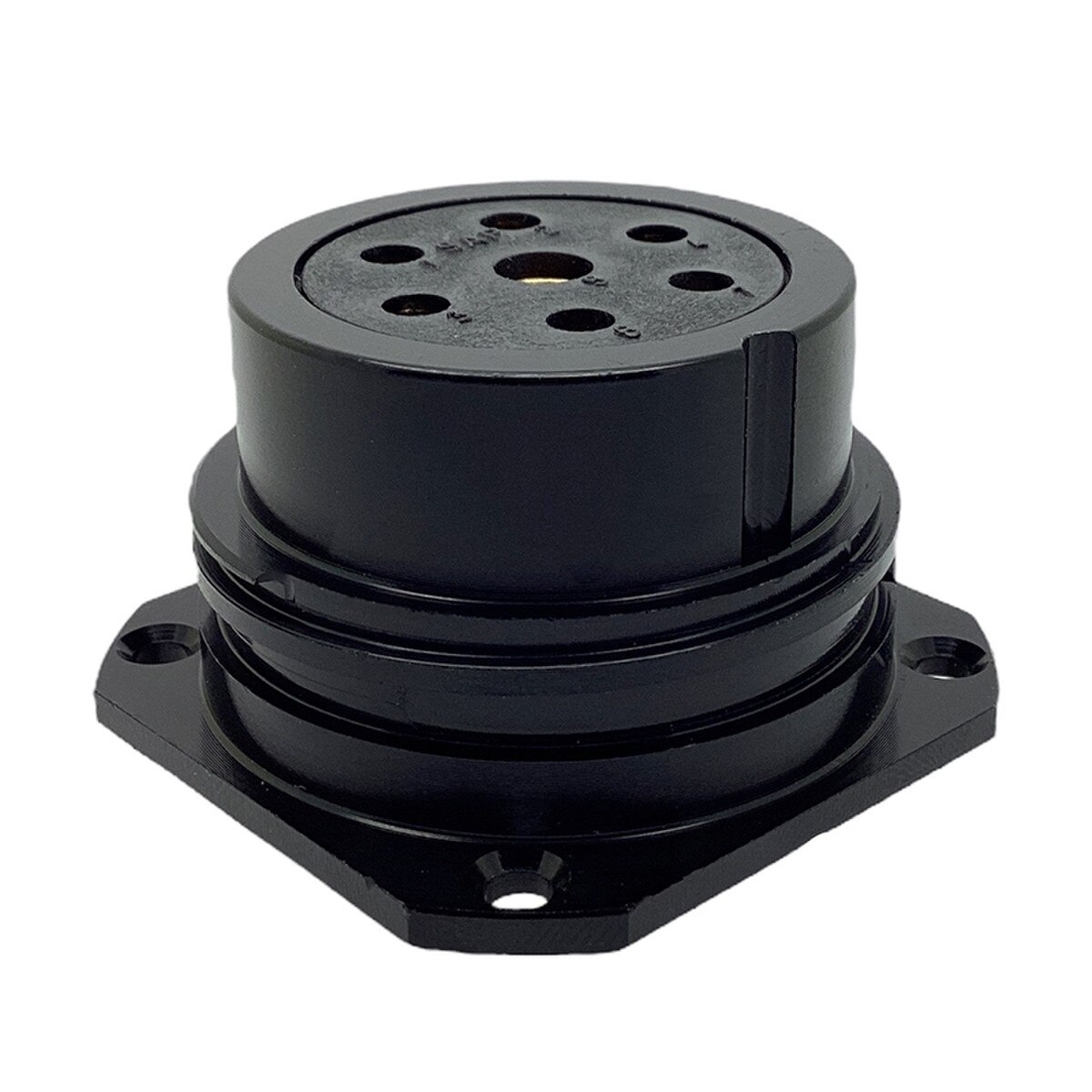

CEEP Socapex 7-Pin Panel Mount Female Socket

(0)No Reviews yet
$51.28
SKU: 920237Y000S020

If you add this item, you're only $198 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

Specifications:

  • Series: 92
  • Application: Hoist Control
  • Connector Type: Circular
  • Plan-form: 37Y, 7 Pin
  • Gender: Female Socket
  • Termination Method: Solder
  • Contact Material: Copper Alloy
  • Contact Plating: Gold over Nickel
  • Shell Material: Aluminum Alloy
  • Shell Plating: Black Anodised (non-conductive)
  • Insulator Material: PPS
  • Current Rating: 6 x 25A & 1 x 50A
  • Voltage Rating: 470V
  • Peak Voltage: 1,750
  • Max Wire Area Size: 6 x 5.1mm² & 1 x 13mm²
  • Contact Resistance: 5mΩ
  • IP Rating: IP67
  • Min Operating Temperature: -40°C
  • Max Operating Temperature: +85°C


920237Y000S020 Data Sheet.pdf
