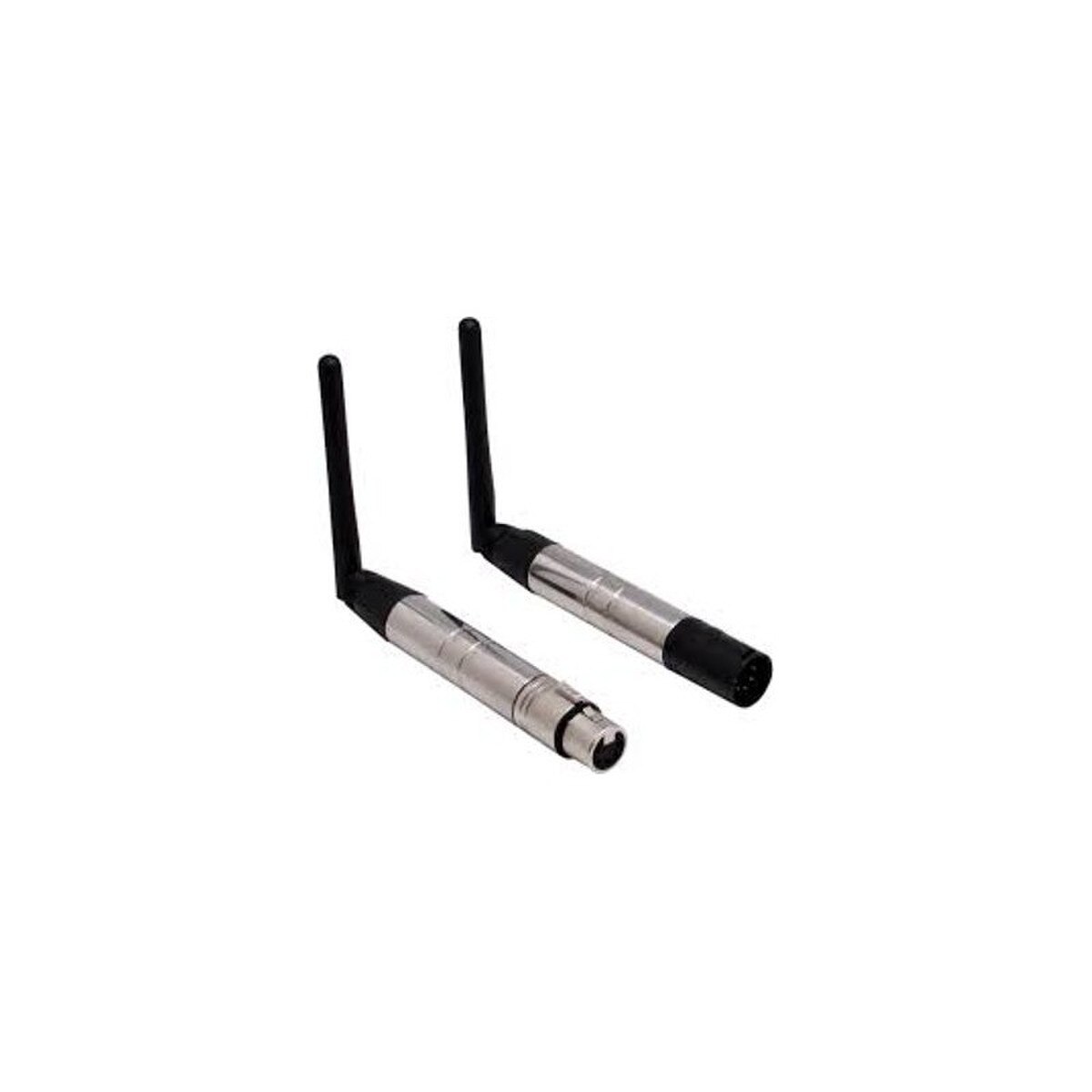

CITC DMXtra Wireless Transceiver with 5-Pin DMX Male Connector

CITC DMXTRA! Wireless DMX Transceiver


Specifications:

• Go cord-free with wireless transmission of your DMX
• signal!
• Full 512 DMX channel coverage
• Wireless transceiver with technology ensures interference is kept to a minimum
• Transmits or receives automatically
• 2.4G global open ISM band with license-exempt use
• 126 band frequency hopping to automatically select the band with least interference
• LED displays working status
• Rotating antenna elbows
• Single interface protocol (no crossovers)
• Able to communicate with multiple receivers
• Dimensions: 6”x 4”x 3” (15.25cm x 10.15cm x 7.65cm)
• Weight: 17.5 oz. (210g)
• CPU: 32-bit ARM Core
• Power switch: 2 Prong UL plug, 100-240vac-5vdc1a
• Communication Distance: 1800ft. (600m) in an open environment
• Frequency: 2.400 - 2.4835GHz, ISM, 126 RF channels
• Modulation: GFSK
• Maximum Transmit Power: 23dBm
• Receiver Sensitivity: -94dBm
