CITC Haze Max Dream Team

CITC´s Haze-Max with DMX is a professional, easy to use, reliable haze machine that produces a long-lasting, 30-minute, even haze from a water-based fluid without using any glycols or oils. Boasting no condensation or residue, this show-tuff haze machine
works on professional stages around the world without ever clogging. No programming or special care required. Only a 5 minute warm-up, and you never need to change the heads. The Haze-Max comes with a 25' remote control cycle-timer, and has a one channel, 5 pin XLR on board with volume control. One year limited warranty when using CITC´s Water-Vapor Haze or Organic fluids. This wonderful workhorse continues to do its job for 10 years and keeps on working. Manufactured by CITC in the
USA.

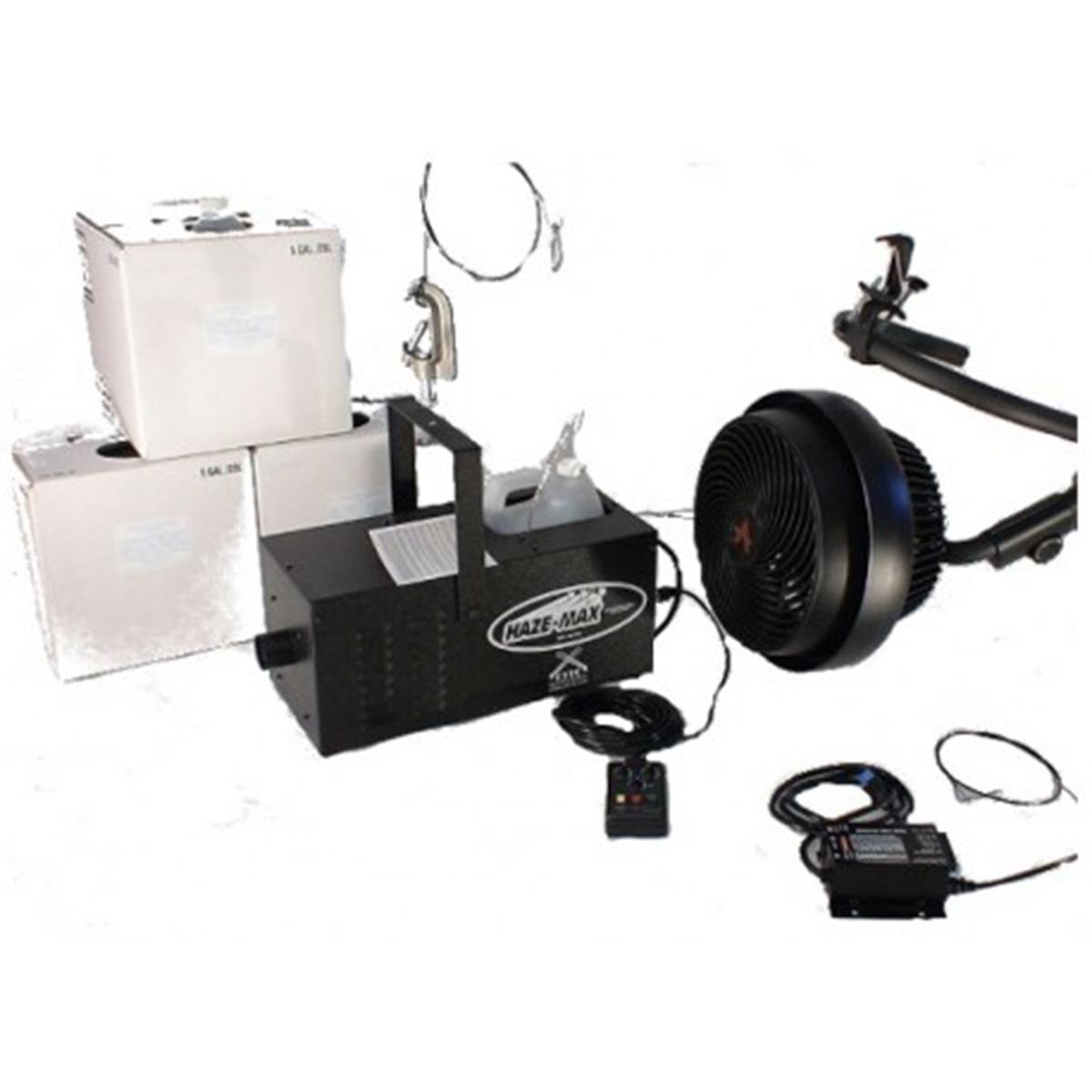

The HazeMax Dream Team includes:

• HazeMax
• 3-speed Director Fan
• Universal DMX
• Remote Cycle Timer
• Three 5-Gallon (19 L) Cubitaners of Water Haze Fluid (or 16 gallons (60.5 L))
• Safety Cable, 2x
• C-Clamp
• Double C-Clamp

HazeMax Specifications:

• Dimensions: 22" x 9" x 11" (56cm x 23cm x 28cm)
• Weight: 27 lbs (13 kg)
• Shipping Weight: 32 lbs (14.5 kg)
• Shipping Dimensions: 26 x 16 x 13 (66cm x 40.6cm x 33cm)
• Electrical Requirements: 120VAC, 15A or 230VAC, 8A
• Fluid Consumption @ 50 - 100% output: 30 - 51 oz(1 - 1.5 liters) per hour
• Fluid Type: Water Vapor HazeTM (Regular only)
• DMX: 1 channel
• Remote Timer Included: 0-100% output control for continuous; 0-100% output on cycle-timer; 100% output on manual momentary button; Cycle-timer = 1-11 seconds. "on", 0.2 - 5 minutes. "off"
• Breaker: 120VAC - 15A; 230VAC - 7A
• Limited Warranty: One Year

Director Fan Specifications:

• Machine Dimensions: 16" x 15" x 11.5" (40cm x 38cm x 42cm)
• Machine Weight: 11 lbs. (5kg)
• Head Tilt: 100 (degrees)
• Blade Size: 11" (28cm)
• Color: Black
• Wind Speed: 6, 9 or 12 mph
• Distance: 15' - 70' (220vac - 25', 50', 75')
• CFM: 345/475/615
• RPM: 650/950/1250
• Voltage: 120vac, 1.2a, 60 hz (220v, .75a, 50/60 hz w/transformer)
• Warranty: 1 year parts

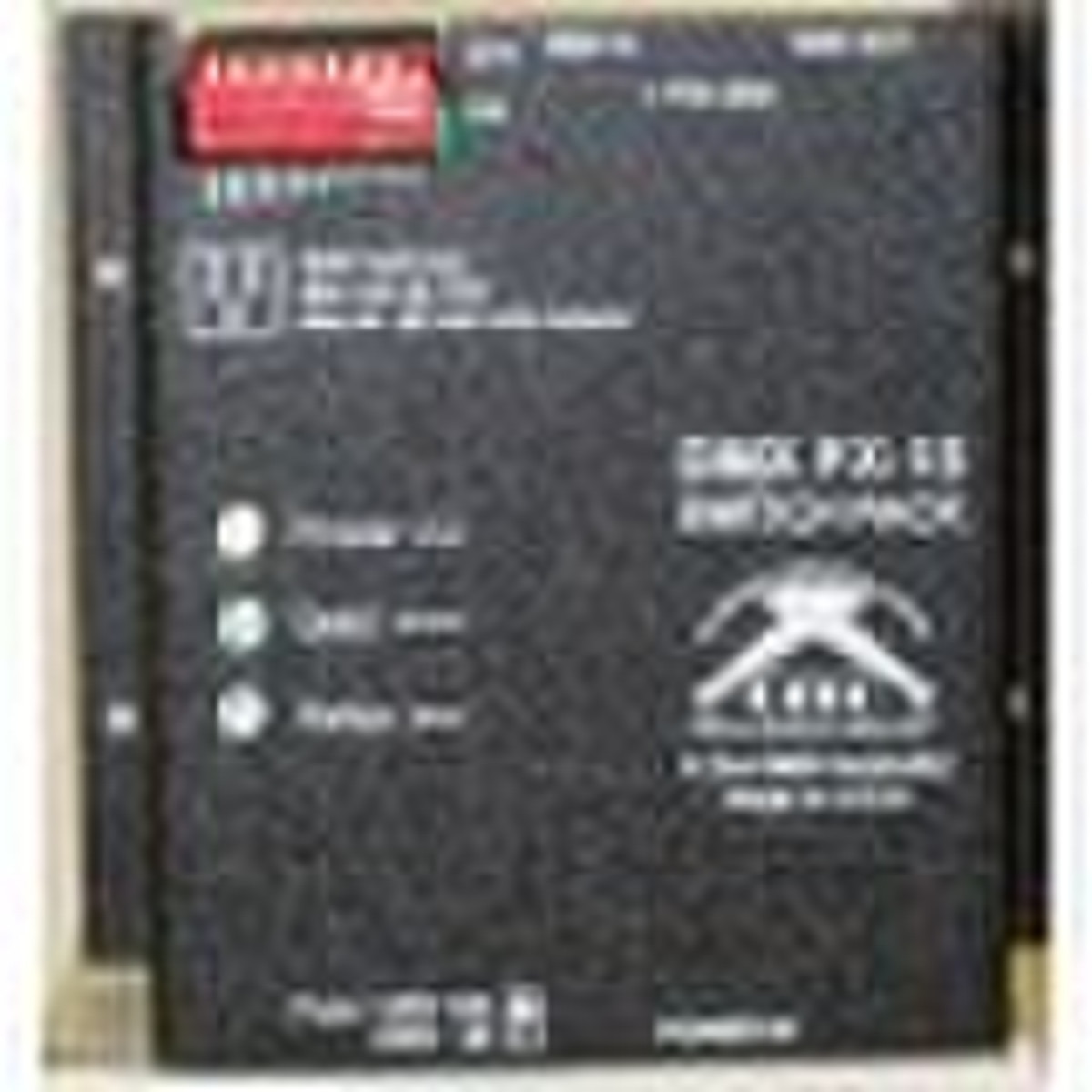

DMX Switchpack Specifications:

• 120 vac
• Unit Dimensions: 4.25" X 4.5" X 2" (10.8cm X 11.3cm X 5.1cm)
• Unit Weight: 2 lbs. (0.907 kg)
• Color: Black
• Operating temp: 32F (0C - 50C)
• DMX Connectors: 5 pin XLR
• Assignable DMX Address 1-511
• DMX Channels Used: 1
• Electrical Supply: 120VAC, 15A, 50/60Hz 230VAC, 8A, 50/60Hz
• Fuse: 15A - 125 VAC, 5mm X 20mm, 8A - 250 VAC, 5mm X 20mm
• Accessory (included): Power Cord (Universal Plug Adapter 230V Only)
• One Year Limited Warranty
