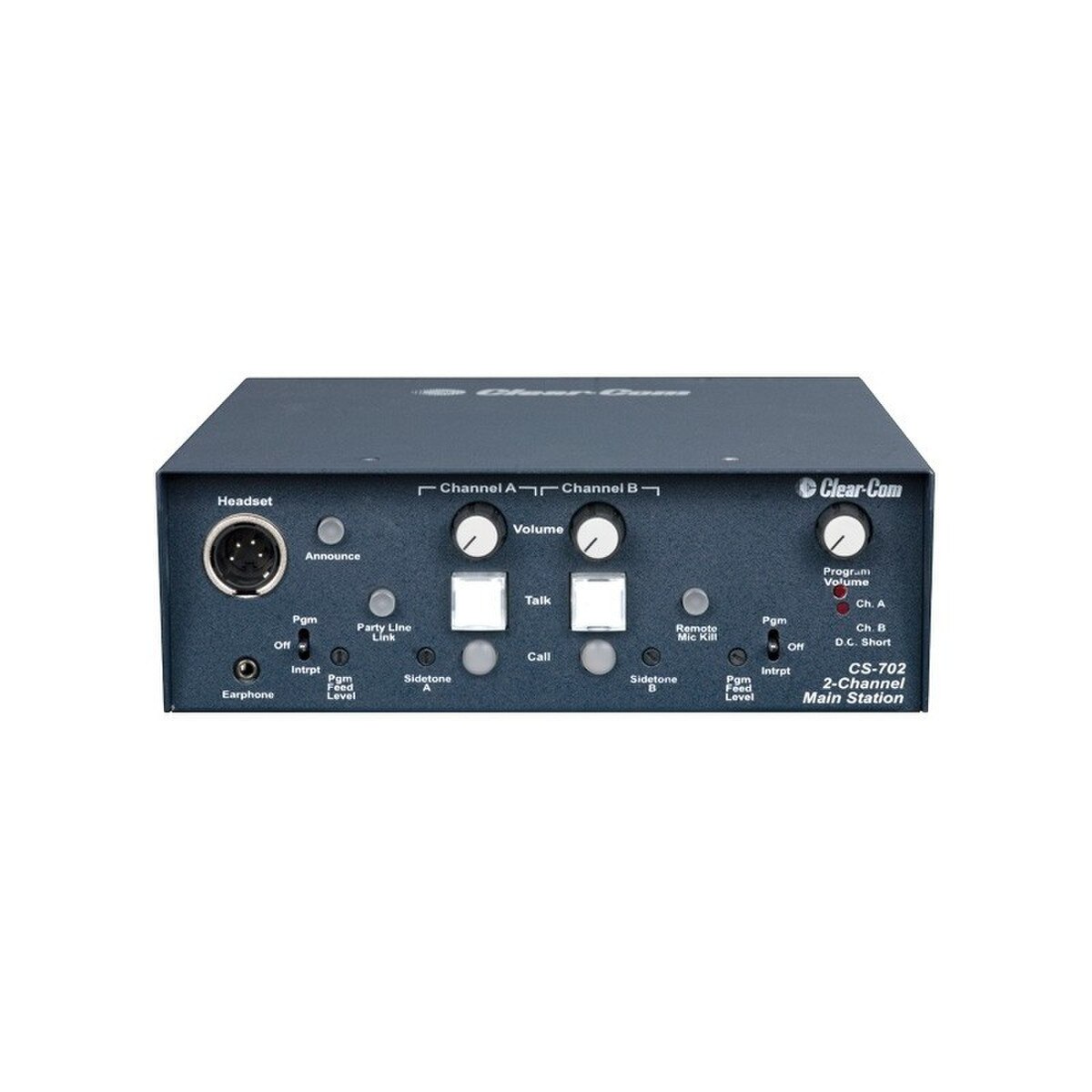

CS-702 Portable Main Station 2 Channel Clear Com

Encore two-channel portable headset main station. Built-in 1-amp (2-amp peak) power supply. Three XLR-3 Male connectors for each partyline A and B, one XLR-3 female for Program Audio in and one XLR-3 Male for Stage Announce out on the rear panel.

Features:

• Supports up to 55 beltpacks or 7 speaker stations on 2 channels
• Automatic short-circuit protection and reset with LED indicators
• Individual volume controls for each channel
• Mic-or line-level program with selectable Program Interrupt
• Remote Mic Kill
• Stage Announce with relay
• Channel A & B Link switch to operate as a one-channel system
• Built-in 1-amp power supply - CE approved, UL Listed

Specifications:

Headset Microphone:

• Input Type: Dynamic
• Input Impedance: >= 1K
• Mic Limiter Threshold: 0dBu ± 3dB
• Mic Limiter Range: >= 15dB

Program Line Input:

• Maximum Level before Clipping: >= 20dBu
• Input Impedance: >= 5K

Program Mic Input:

• Maximum Level before Clipping: >= -35dB
• Input Impedance: >= 1K

Headset Output:

• Load Impedance: >= 8
• Output Impedance: <= 25
• Output Limiter Threshold: +5dBu ± 3dB
• Maximum Output Level before Distortion: >= 17dBu

Partyline Output:

• O Noise: < -74dBu
• Output Impedance: >10K

Partyline Input:

• Crosstalk: <-60dB
• Max level before Clipping: >= 12dBu
• Sidetone Null Capability: > 25dB

Stage Announce/Balanced Line Out:

• Type: Balanced Output Impedance: >= 200
• Load Impedance: >= 600

Frequency Response:

• Headset Mic - Partyline: 200 - 18KHz ± 3dB
• Headset Mic - Line Out: 200 - 18KHz ± 3dB
• Program Input - Partyline: 200 - 20KHz ± 3dB
• Program Input - Headset Out: 200 - 18KHz ± 3dB
• Partyline - Headset Out: 200 - 18KHz ± 3dB

Max Distortion:

• Headset Mic - Partyline: <= 0.5%
• Headset Mic - Line Out: <= 0.5%
• Program Input - Partyline: <= 0.2%
• Program Input - Headset Out: <= 0.2%
• Partyline - Headset Out: <= 0.2%

Noise:

• Headset Mic - Partyline: < -70dBu
• Program Input - Partyline: < -85dBu
• Program Mic - Partyline: < -70dBu
• Program Input - Headset Out: < -60dBu
• Program Mic - Headset Out: < -40dBu
• Partyline - Headset Out: < -50dBu

Max Gain:

• Headset Mic - Partyline: 41dB ± 2dB
• Headset Mic - Announce Out: 55dB ± 3dB
• Program Input - Partyline: >= -16dB
• Program Mic - Partyline: 41dB ± 2dB
• Program Input - Headset Out: >= 18dB
• Program Mic - Headset Out: >= 70dB
• Partyline - Headset Out: >= 34dB

Mains Power:

• Input Voltage Range: 100 - 240V AC
• Input Frequency Range: 50 - 60Hz
• Input Power: <= 60V AC
• Output Voltage: 30VDC ± 0.5V
• Output Current per Channel (Continuous): 1.2A

Output Current per Channel:

• (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
• Short Circuit Recovery Time (1st short):<= 0.5 sec
• Short Circuit Recovery Time >= 20 shorts in 20sec):<= 20 sec

Environmental:

• 32 - 122°F (0 - 50°C)

Dimensions:

• 3 x 8.5 x 10in (HxWxD)
• (76 x 216 x 254mm)

Weight:

• 5.0lbs (2.3kg)
