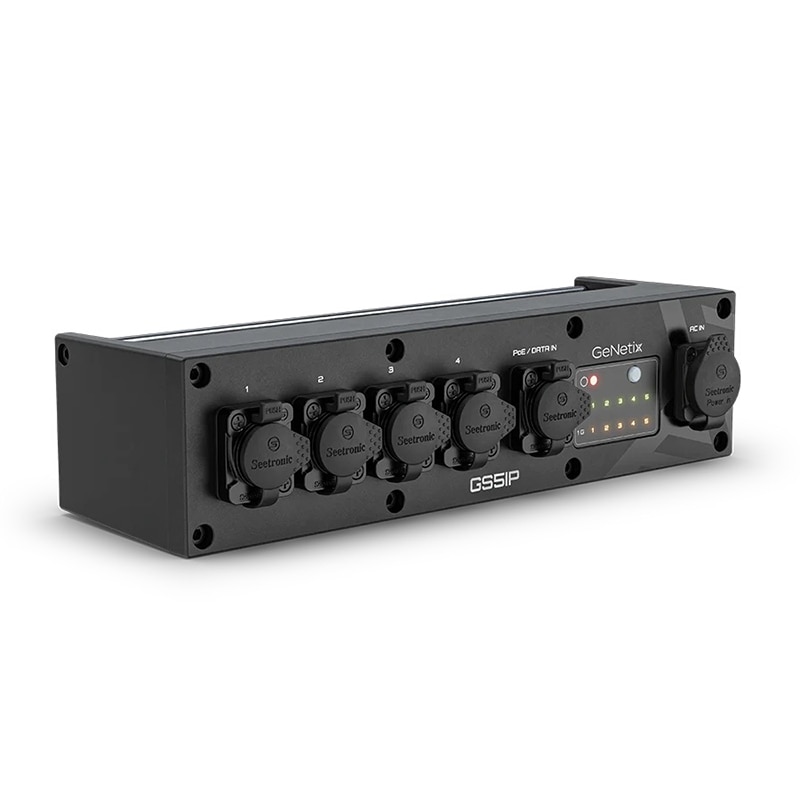

ChamSys GeNetix GS5IP 5 Port Unmanaged Network Switch

At A Glance:

• 5 port Unmanaged Gigabit Network Switch
• IP65 Rated
• Locking Ethernet Connectors
• Can be mains or PoE Powered
• PowerCon True1 Top Mains Input
• M12 Threaded Insert for Clamp Mounting
• Built in Rail for secondary Safety bond when rigged

GeNetix Switch 5IP is a five-port IP65-rated unmanaged Gigabit network switch that can be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This compact and rugged all-weather device comes with multiple rigging options for easily mounting in your rig. Port Status LEDs provide visual indication to know if ports are connected/active and if running at Gigabit speed.

Hardware Specifications:

• Network Ports: 5
• Mains Input: PowerCon True1 Top
• Can be PoE Powered: Yes
• Port Status LEDs: Yes
• M12 Clamp Fixing: Yes
• Safety Bond Fixing Rail: Yes

Software Specifications:

• Gigabit Ethernet: Yes
• Unmanaged Network Switch: Yes

Included Accessories:

• Neutrik powerCON TRUE1 Power Cable: 1

Node Weights and Dimensions:

• Width: 274mm (10.81 inches)
• Depth: 76mm (3,0 inches)
• Height: 68mm (2.68 inches)
• Weight: 1.40 KG (3.09 lb)

ChamSys GENETIXGS5IP Cutsheet.pdf
