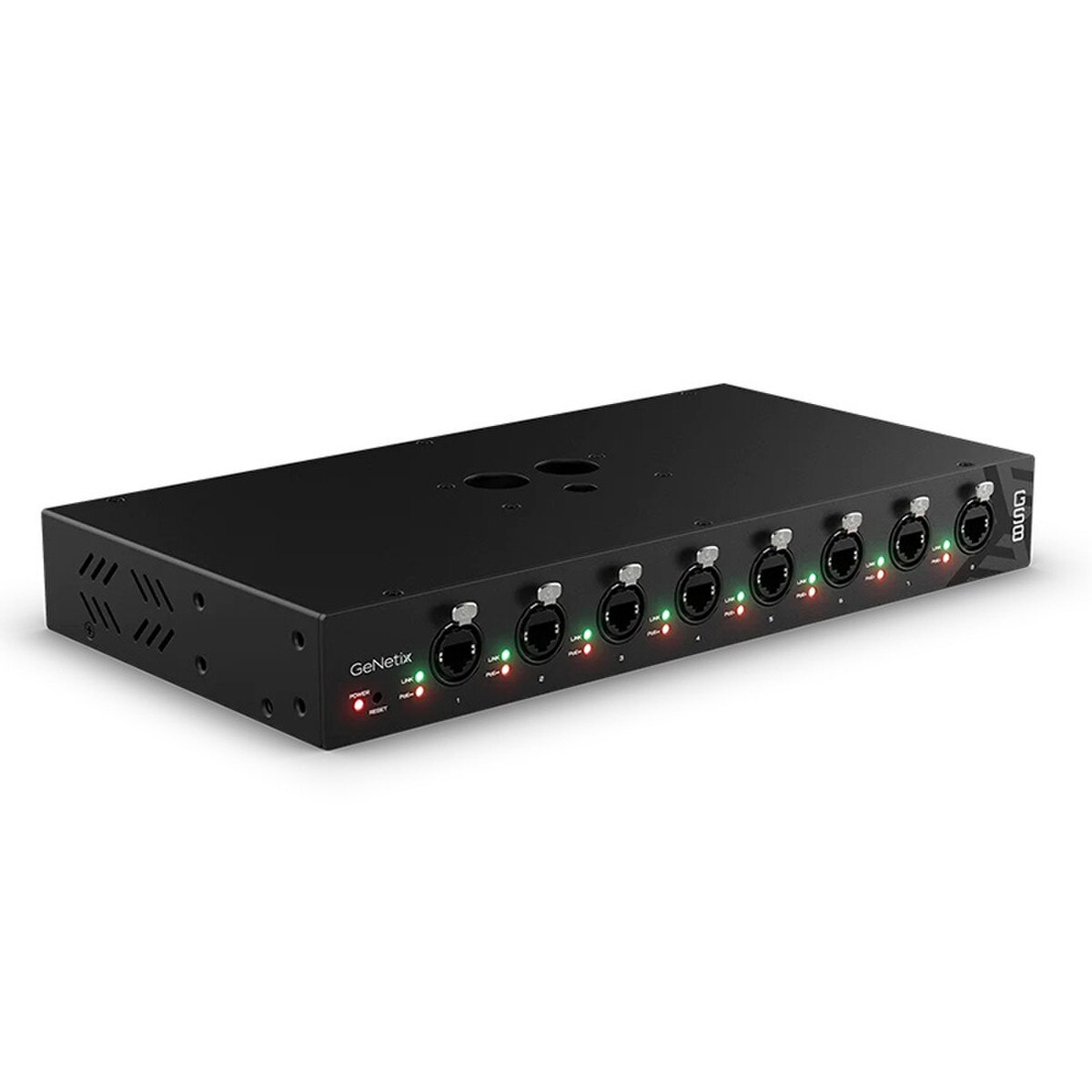

ChamSys GeNetix GS8 8 Port PoE Unmanaged Network Switch
Details
At A Glance:
- 200w 8 port Unmanaged Gigabit PoE Network Switch
- Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
- Ports 1-4 Support PoE++ (up to 100w per port), Ports 5-8 PoE+ (up to 30w per port) up to 200w switch limit
- Locking Ethernet Connectors
- PowerCon True1 Top Mains Input
- Desktop or 19” Rack Mountable (1U)
- M12 Threaded Insert for Clamp Mounting
GeNetix Switch 8 is an eight-port unmanaged Gigabit PoE network switch that provides a total output of up to 200W of Power over Ethernet across its 8 ports. Ports 1-4 support IEEE 802.3bt up to 100W per port. In modes A & B, all ports support 802.3af and 802.3at standards. This rack mountable switch features a rear PowerCon True1 Mains input connector and is also truss mountable via its M12 threaded insert.
Hardware Specifications:
- Network Ports: 8
- Mains Input: PowerCon True1 Top
- Port Status LEDs: Yes
- 802.3af and 802.3at in Modes A & B: Yes
- 802.3bt up to 100W per Port: Ports 1-4
- Removable Rack Ears: Yes
Software Specifications:
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
Included Accessories:
- Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:
- Width (No Rack Ears): 330mm (12.99 inches)
- Width (With Ears): 482mm (18.98 inches)
- Depth: 172mm (6.77 inches)
- Height: 43mm (1.69 inches)
- Weight: 2.05 KG (4.52 lb)
