ChamSys SnakeSys 10Scene Gateway

The 10Scene Gateway is the interface for connecting 10Scene Wall Plates to MagicQ and QuickQ systems. It converts from the 10Scene to ChamSys remote protocol allowing the 10Scene Wall Plates to integrate with MagicQ and QuickQ consoles. It’s the perfect solution for adding simple, user-friendly remote control to installations.

The Gateway provides two 10Scene ports enabling up to 20 10Scene Wall Plates to connect to it and is powered by an external power supply or via PoE.


Includes:

• CHAMSS10SCGATEWAY SnakeSys 10Scene Gateway

Features:

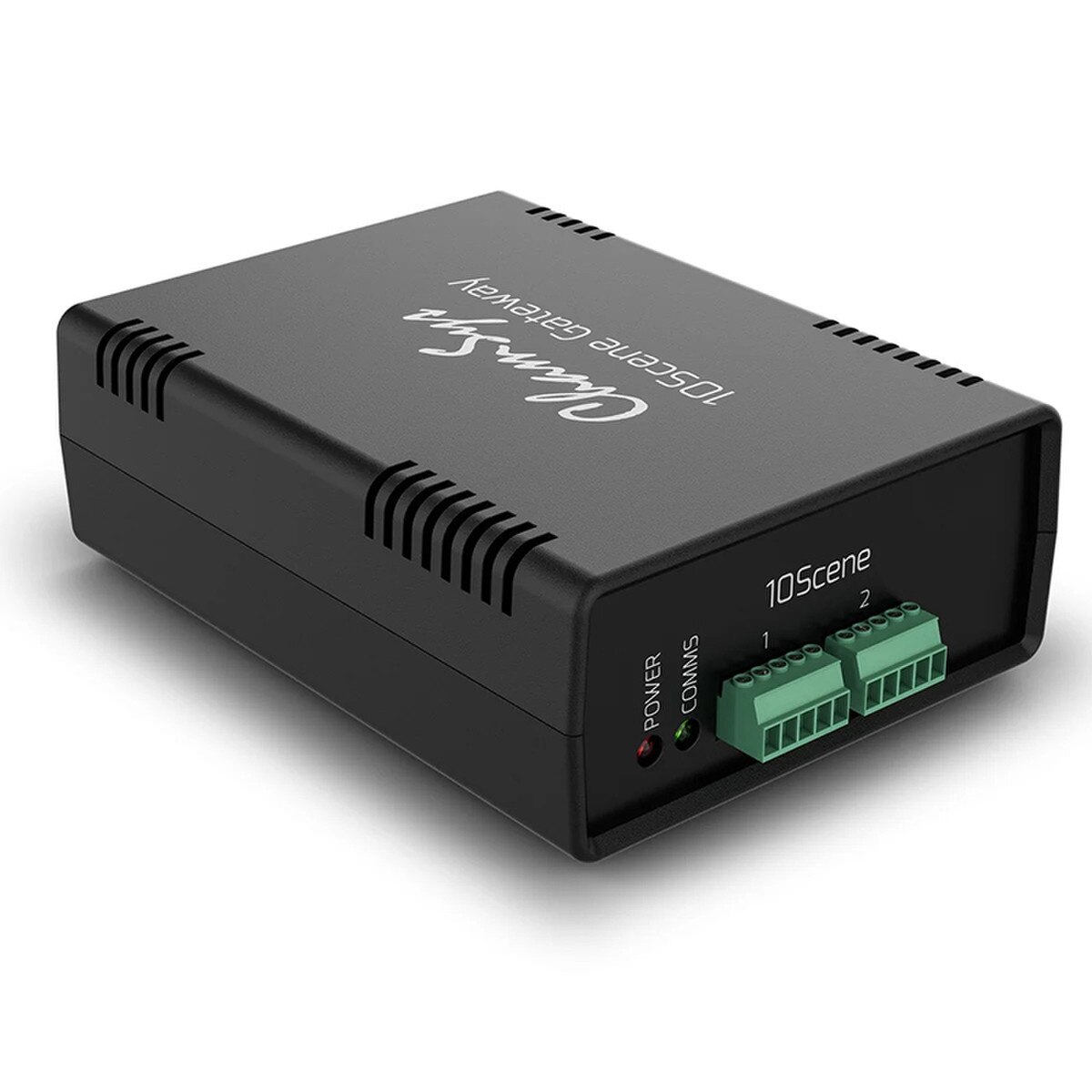

• Two 10Scene ports

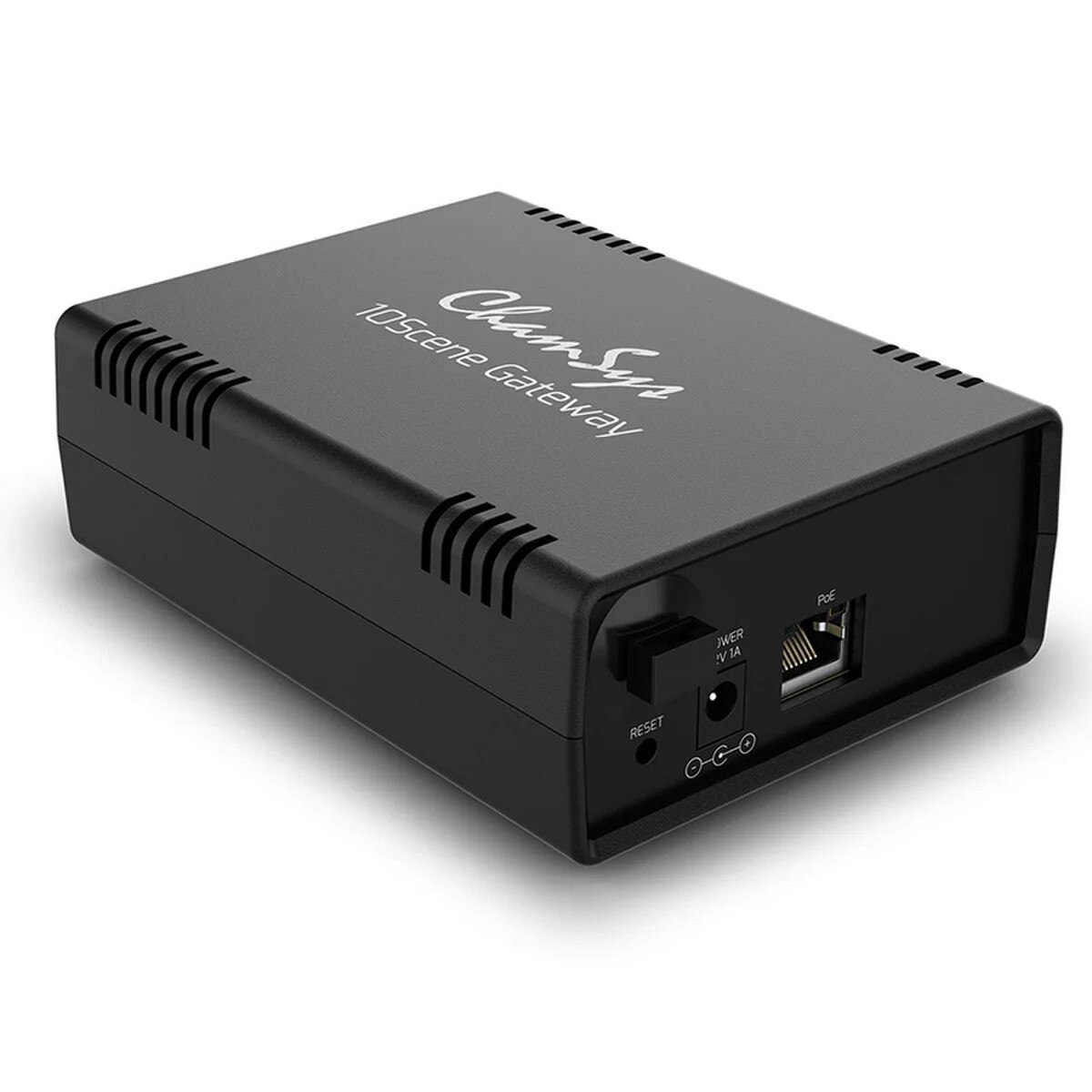

• One Network port
• Provides connection for up to 20 wall plates
• Compatible with MagicQ and QuickQ systems
• Powered via external power supply or via PoE (external 12V power supply included)

Specifications:

• Contact Trigger Inputs: 2
• Network Port: 1
• 10Scene Ports: 2
• Max Number of Wall Plates Supported: 20
• Unlocks MagicQ PC from “Demo Mode”: No
• PoE Voltage Supported: 37 – 57V
• PoE Supported Types: 802.3af Type 1, 802.3at Type 2, 802.3bt Type 3 and 4
• Dimensions: 5.3” wide x 3.4” deep x 1.7” high (133 x 88 x 45 mm)
• Weight: 0.3 lb. (0.175 kg)
