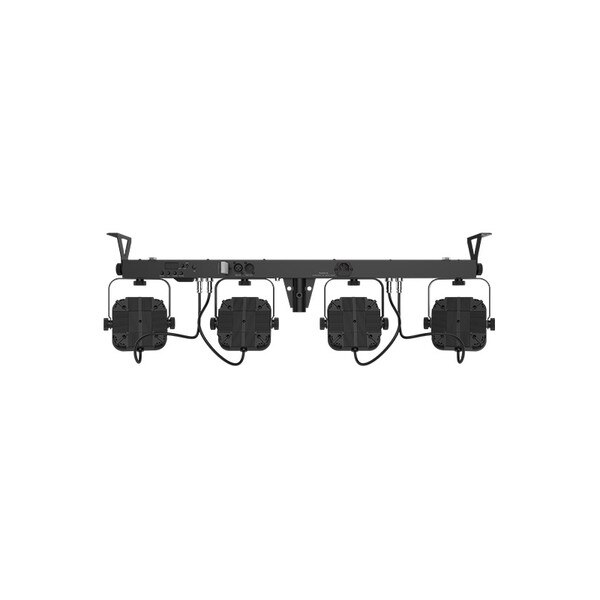

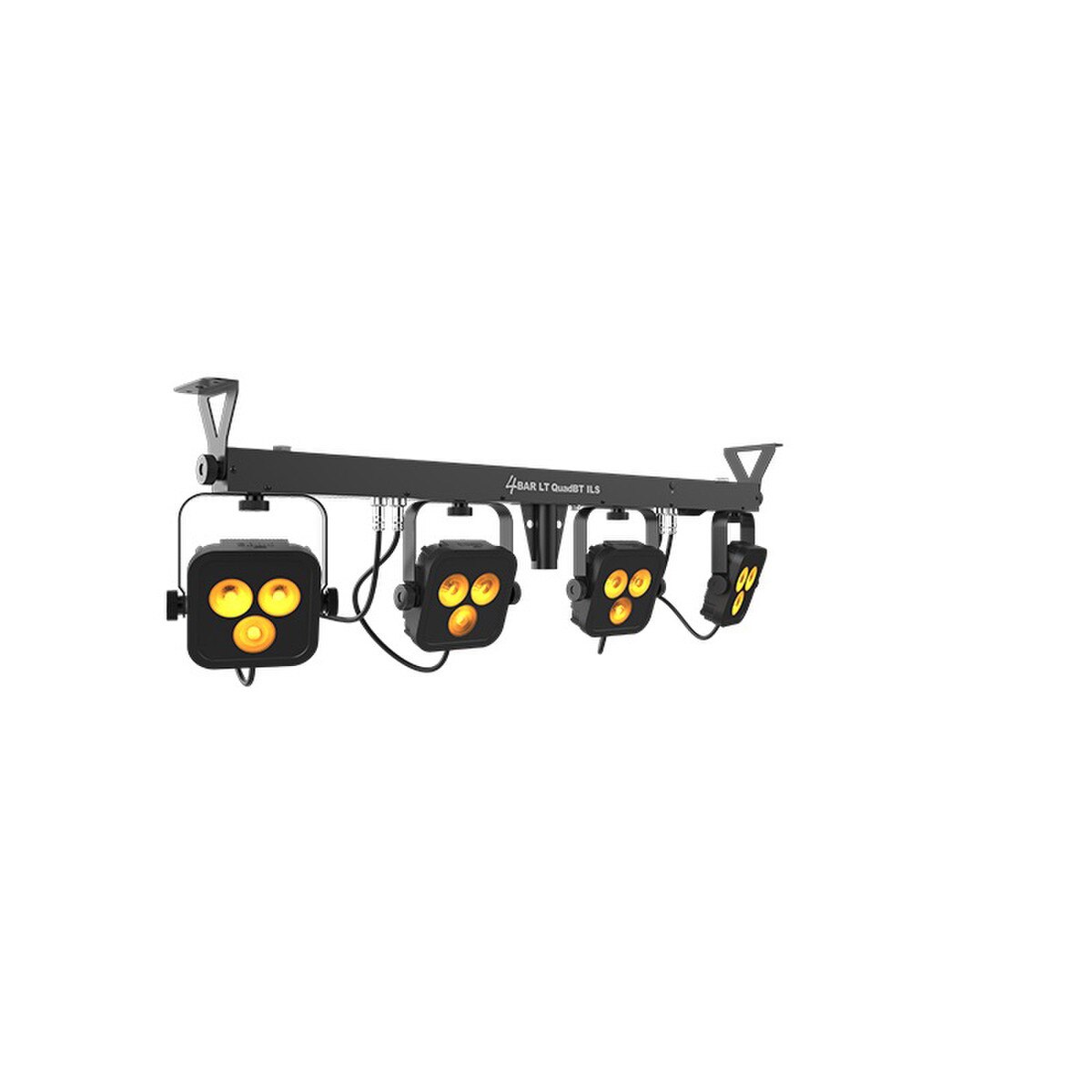

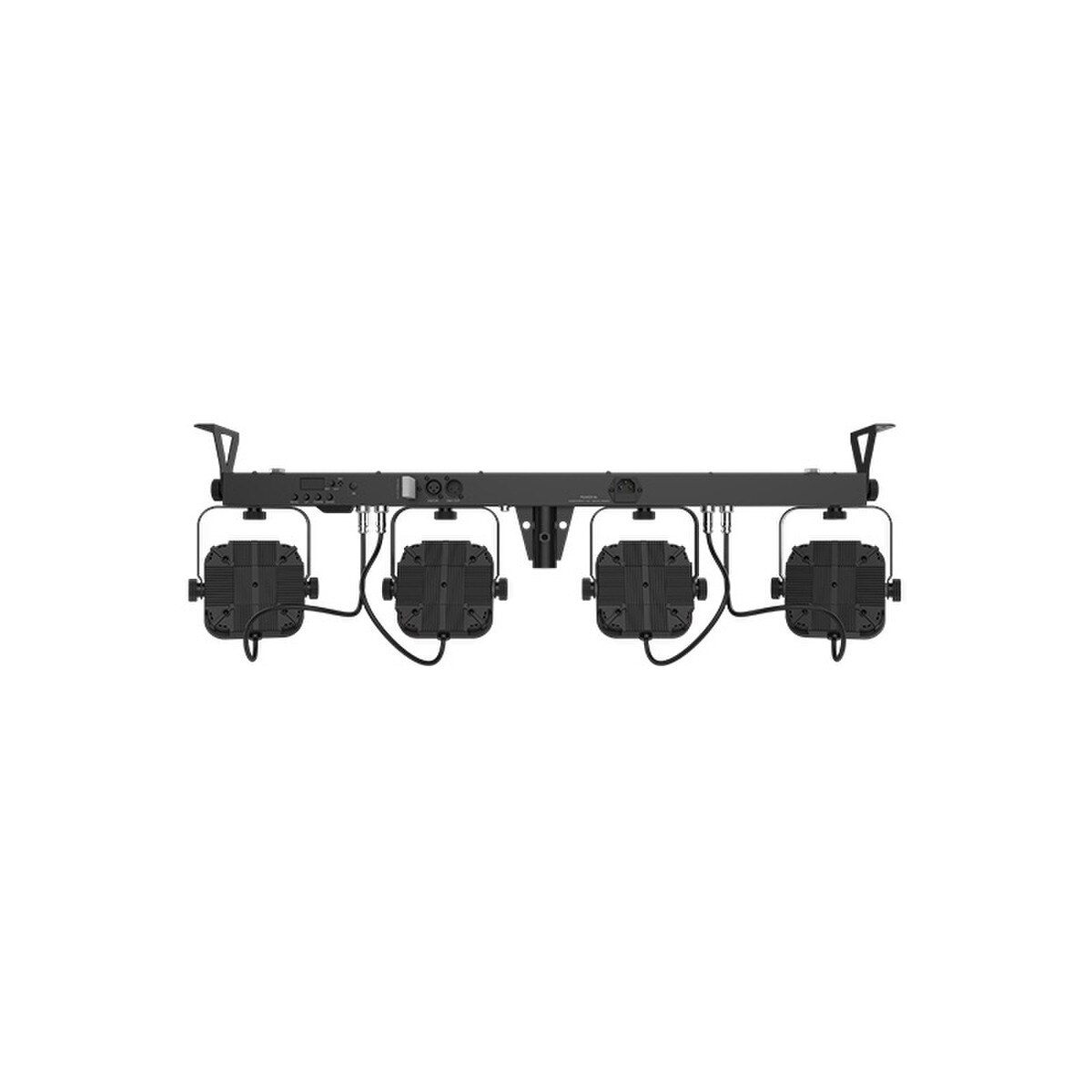

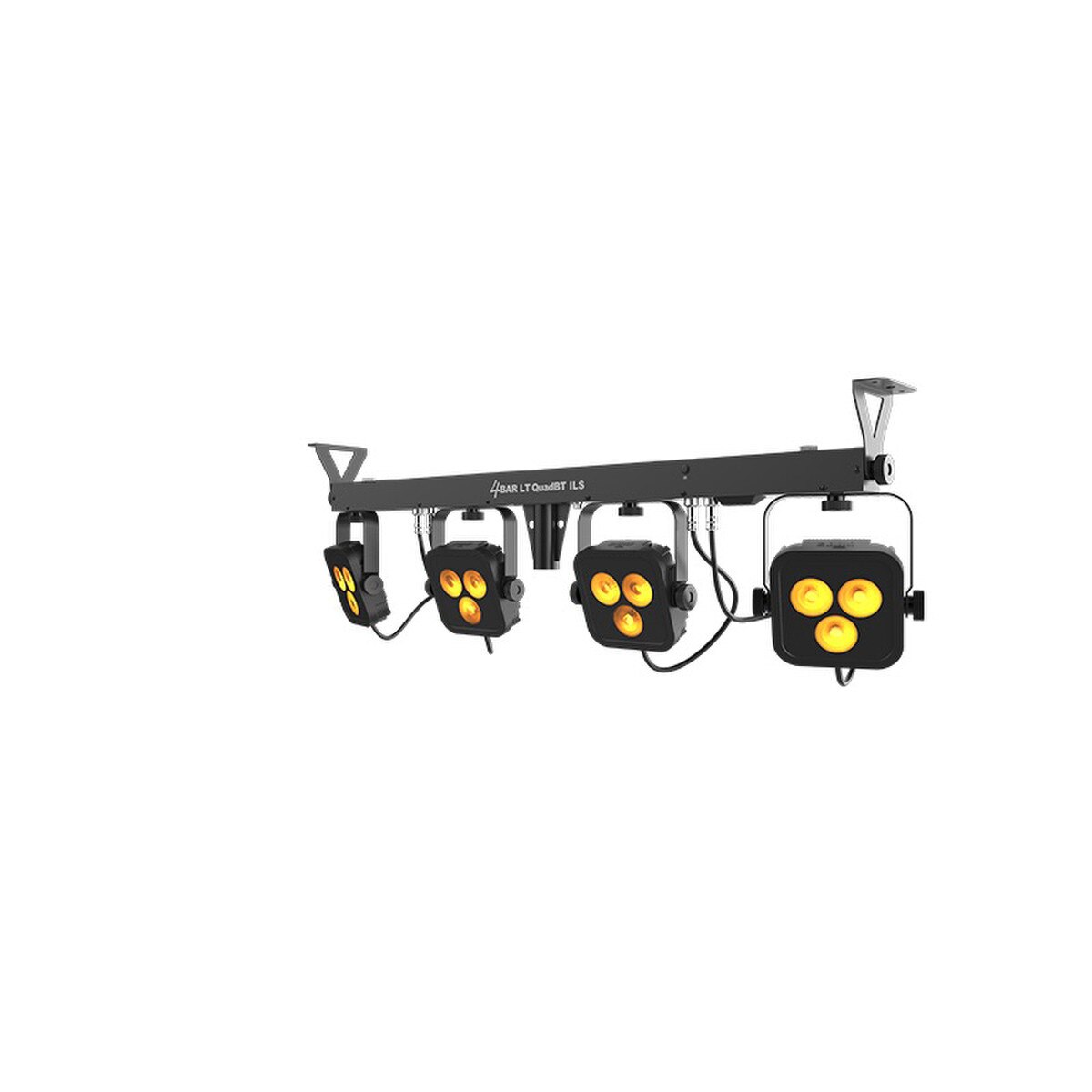

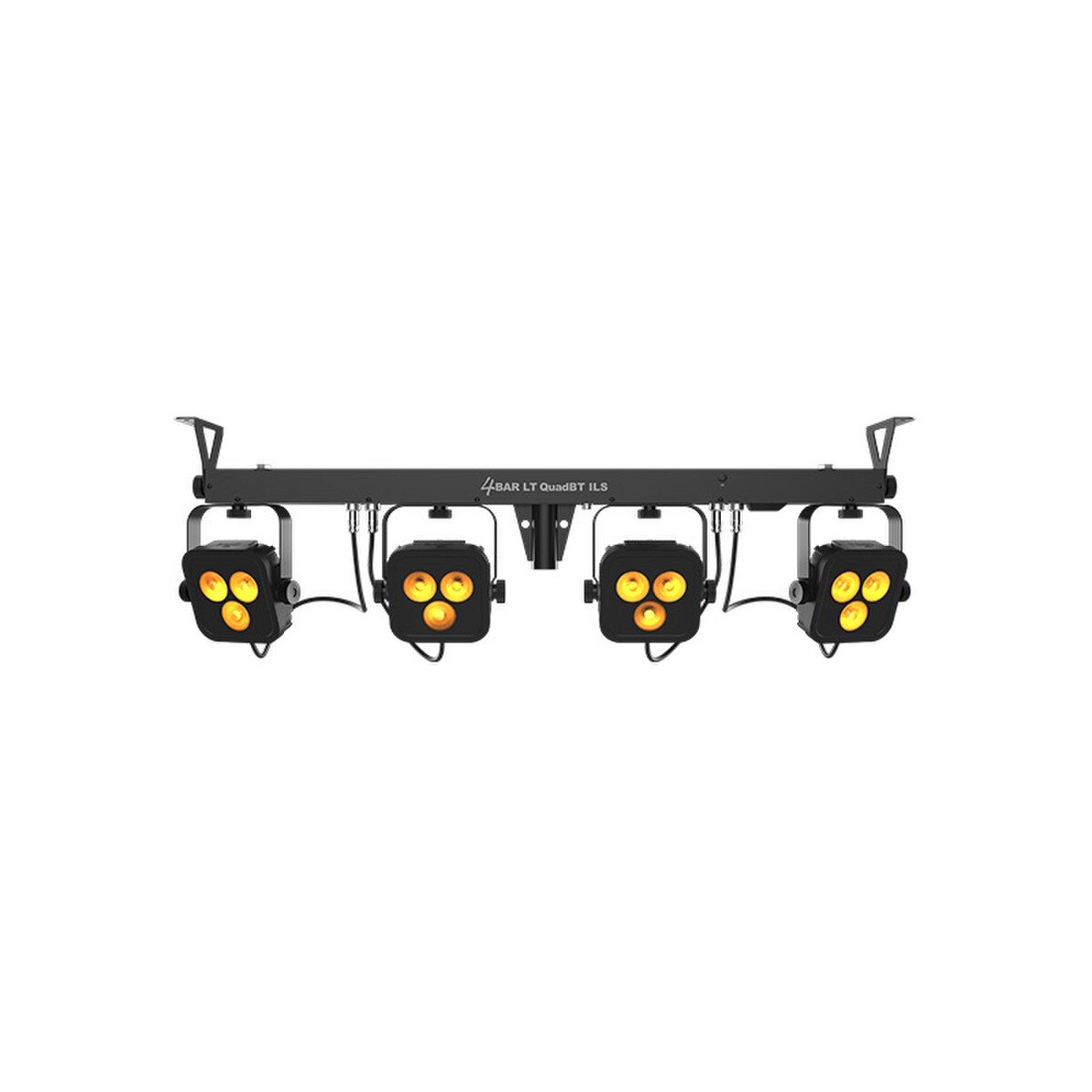

Chauvet DJ 4BAR LT QuadBT ILS

The ILS ecosystem grows with the addition of the 4BAR LT QuadBT ILS, a complete, pack-n-go wash lighting solution with built-in Bluetooth® wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. 4BAR LT QuadBT ILS is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. 4BAR LT QuadBT ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

Highlights:

• Complete wash lighting solution with built-in Bluetooth® wireless technology
• Control directly from a smart phone or tablet without any additional hardware
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless master/slave or DMX control
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

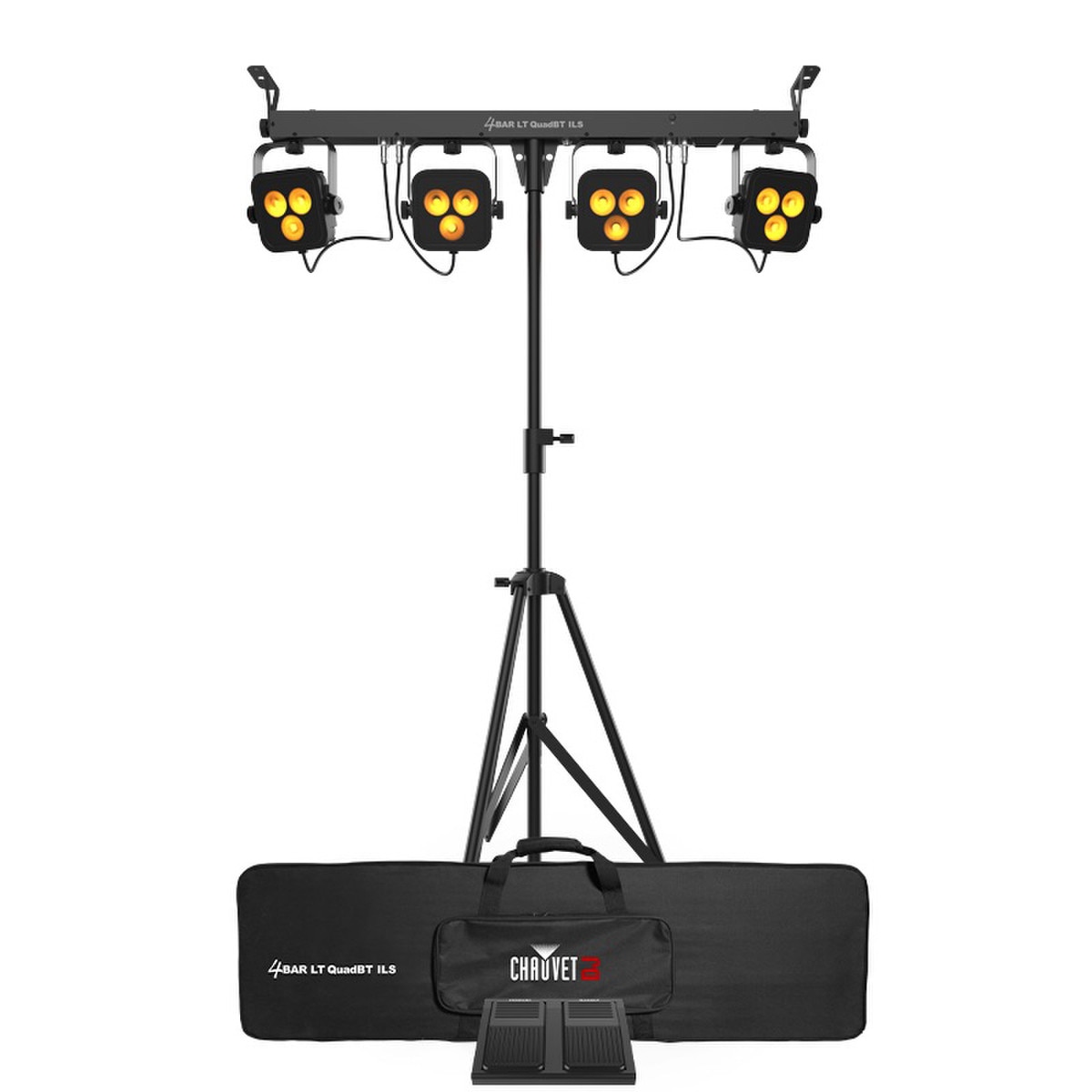

• Easily set up and tear down in seconds with the included tripod, carry bags and footswitch
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Achieve total room or stage coverage with 4 individually adjustable heads
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Sound-activated programs dance to the beat of the music

Specifications:

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: 150 ft (25.7 m)
• Light Source: 12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
• Beam Angle: 12°
• Field Angle: 21°
• Operating Frequency: 2.4 GHz
• Illuminance: 2,162 lux @ 2 m (per pod)
• Power and Current: 46 W, 0.6 A @ 120 V, 60 Hz
• 44 W, 0.3 A @ 230 V, 50 Hz
• Weight: 7.2 lb (3.3 kg)
• Size: 36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
• Approvals: CE, FCC, RoHS, UKCA
• Stand Height: 50-83 in (127-211 cm)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Fits Tripod Sizes: 1 in (25.4 mm)
• Optional Controllers: IRC-6, BTAir
• Bluetooth Version: 4.2

What's Included:

• 4BAR LT QuadBT ILS
• Power cord
• Carrying bag
• Tripod
• Footswitch
• L- bracket
• Quick Reference Guide
