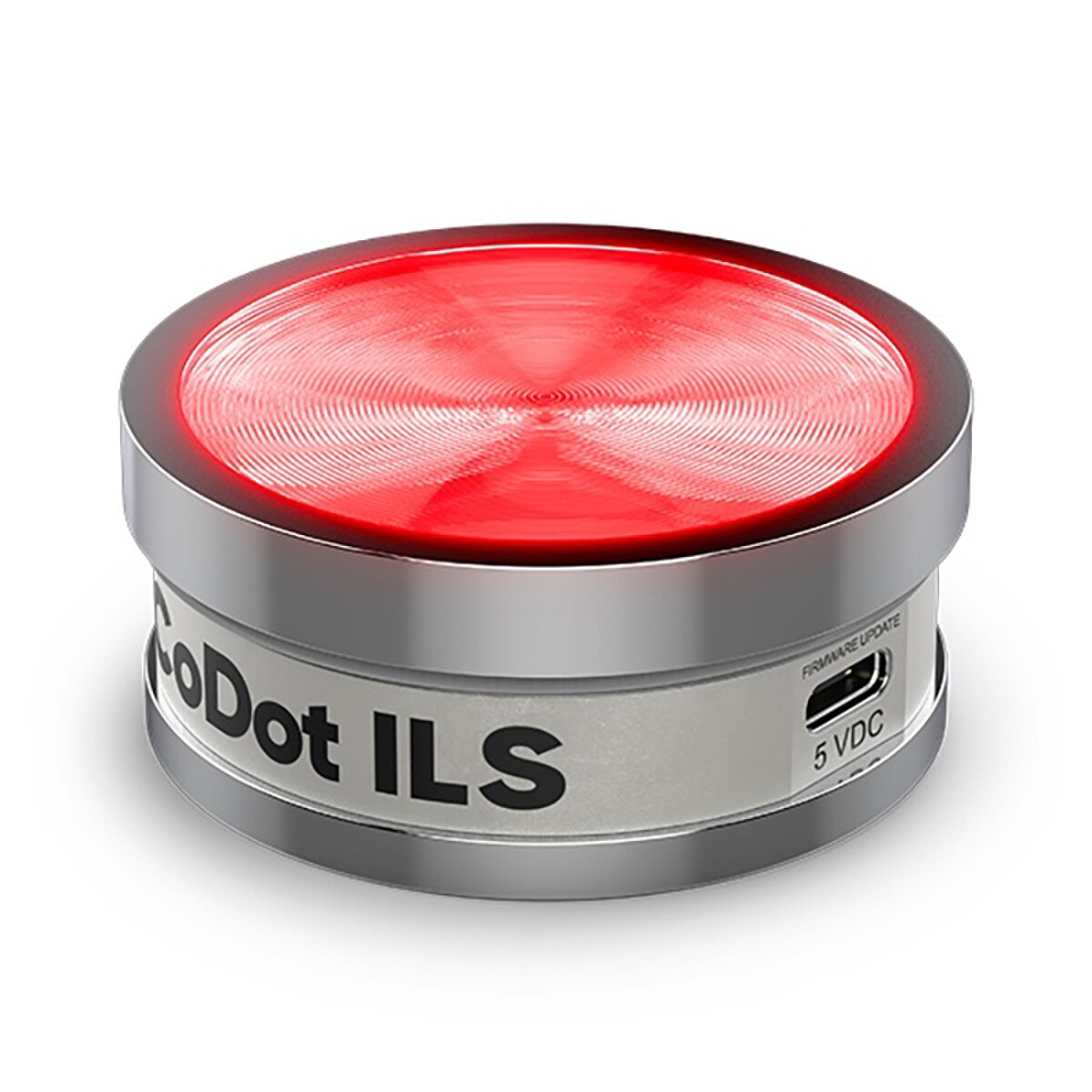

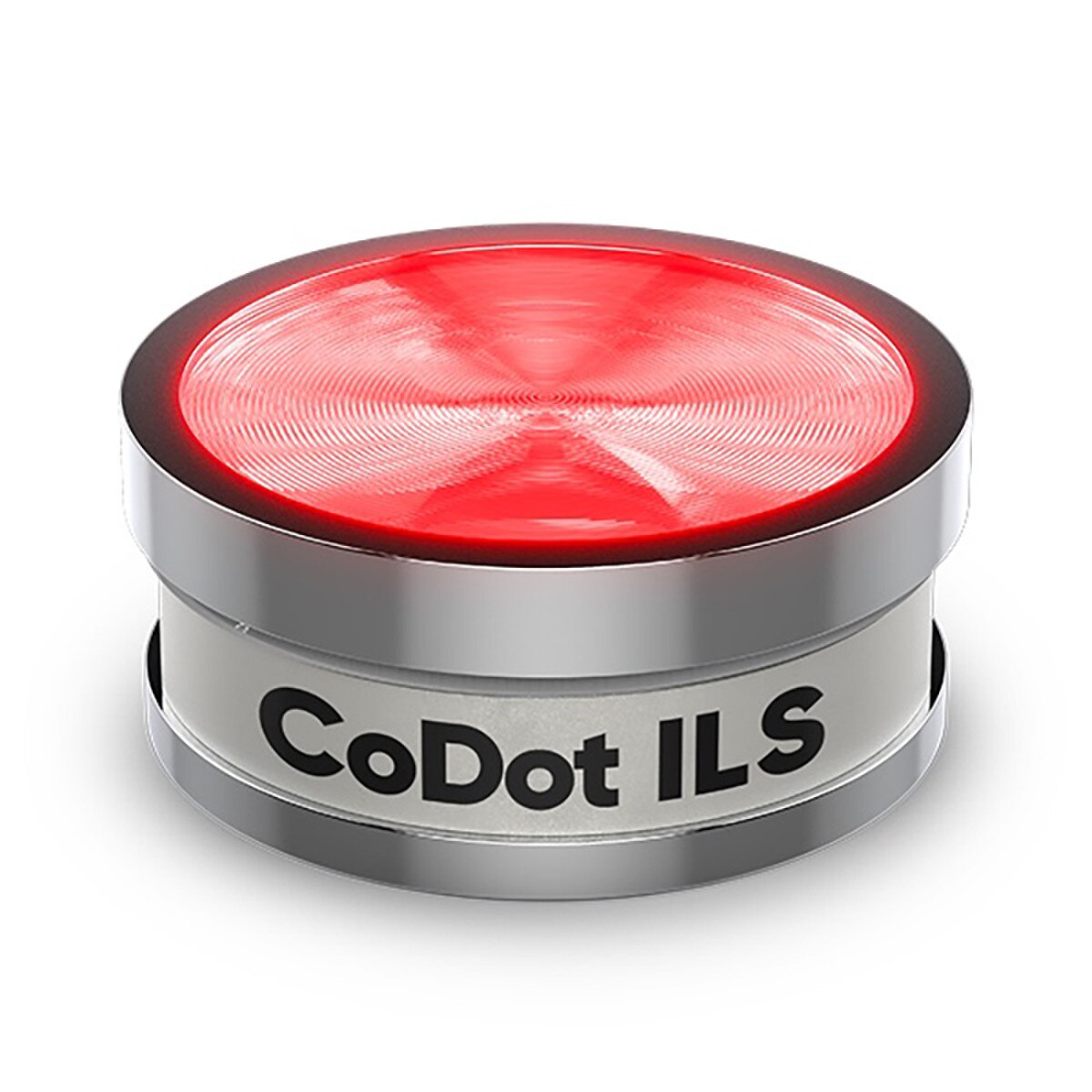

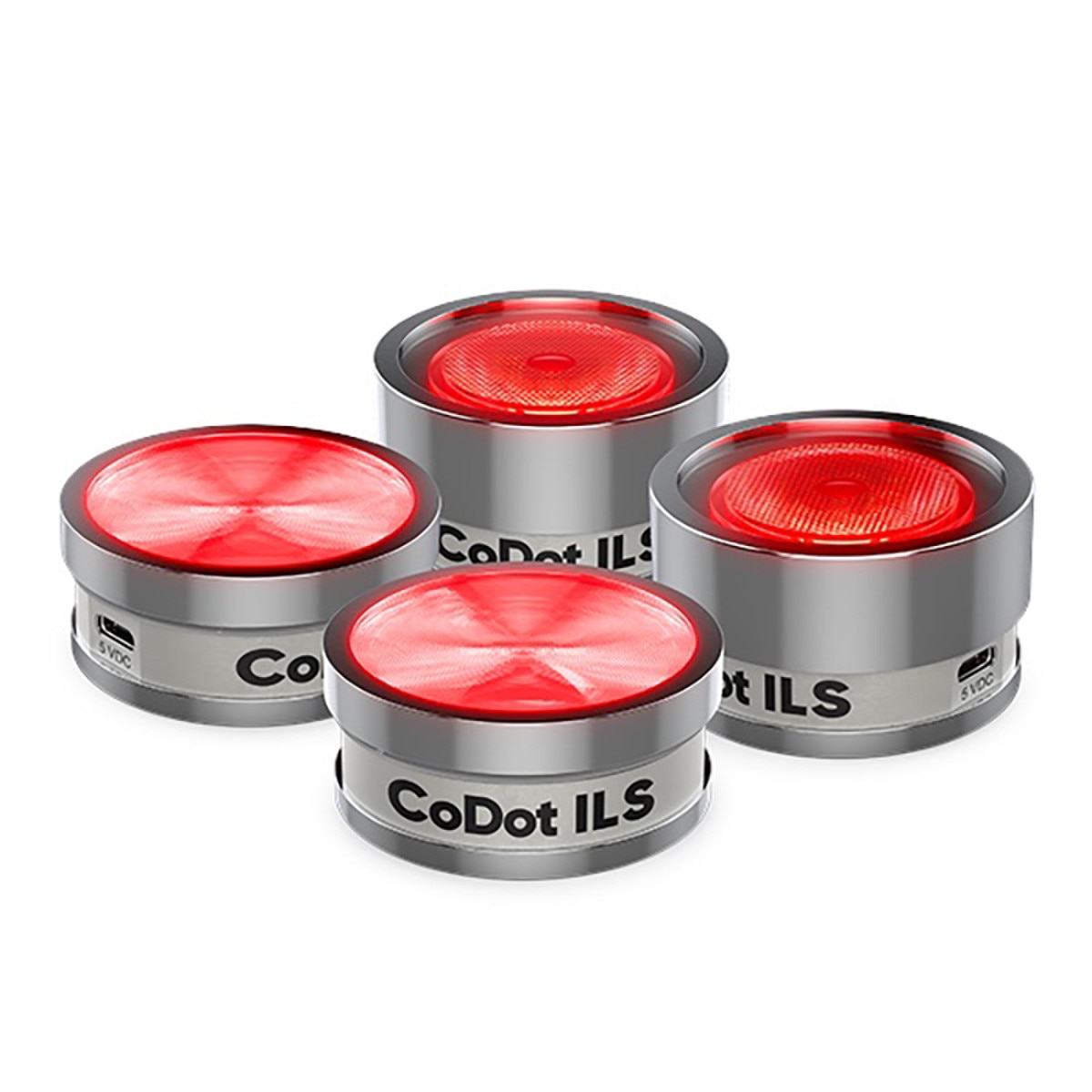

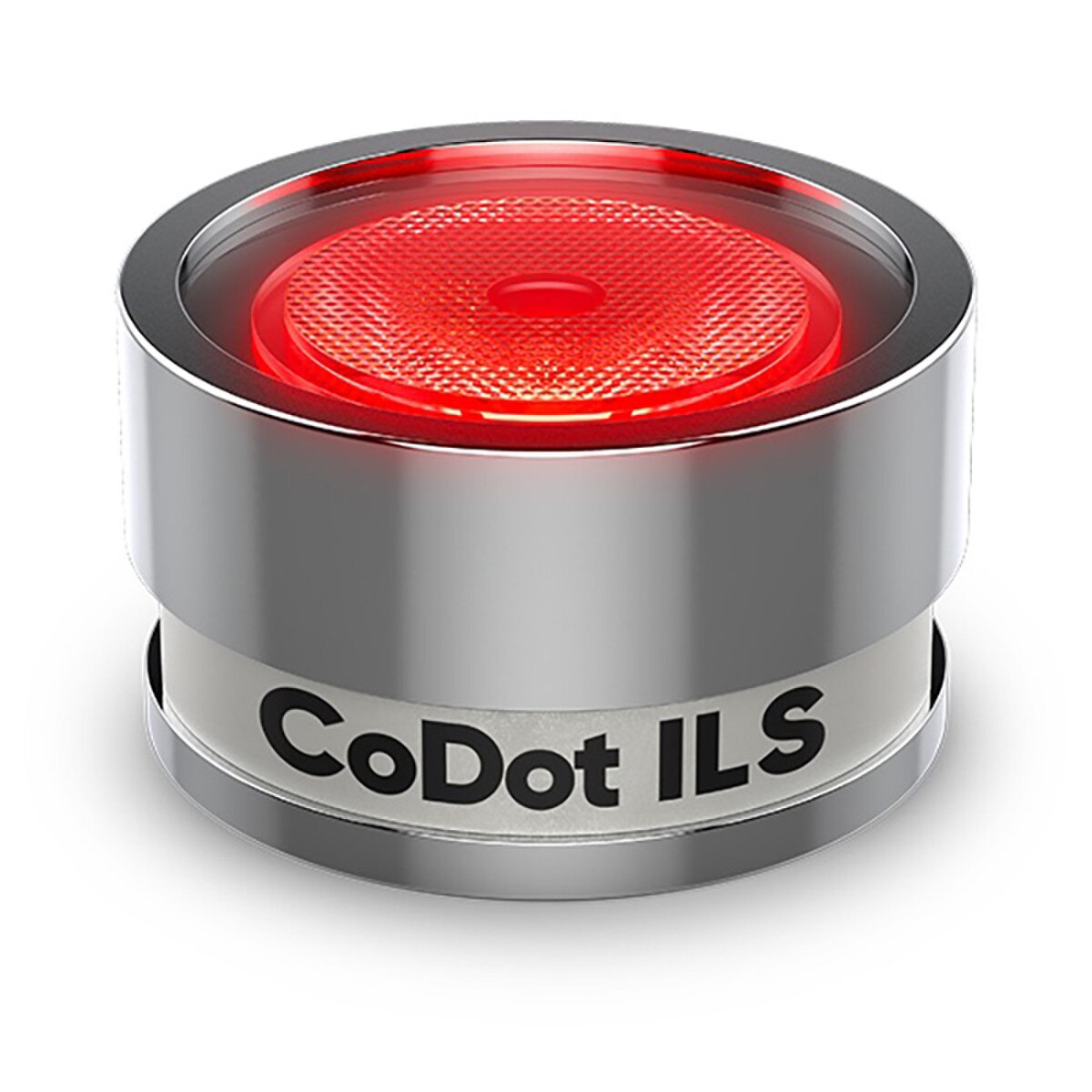

Chauvet DJ CoDot ILS

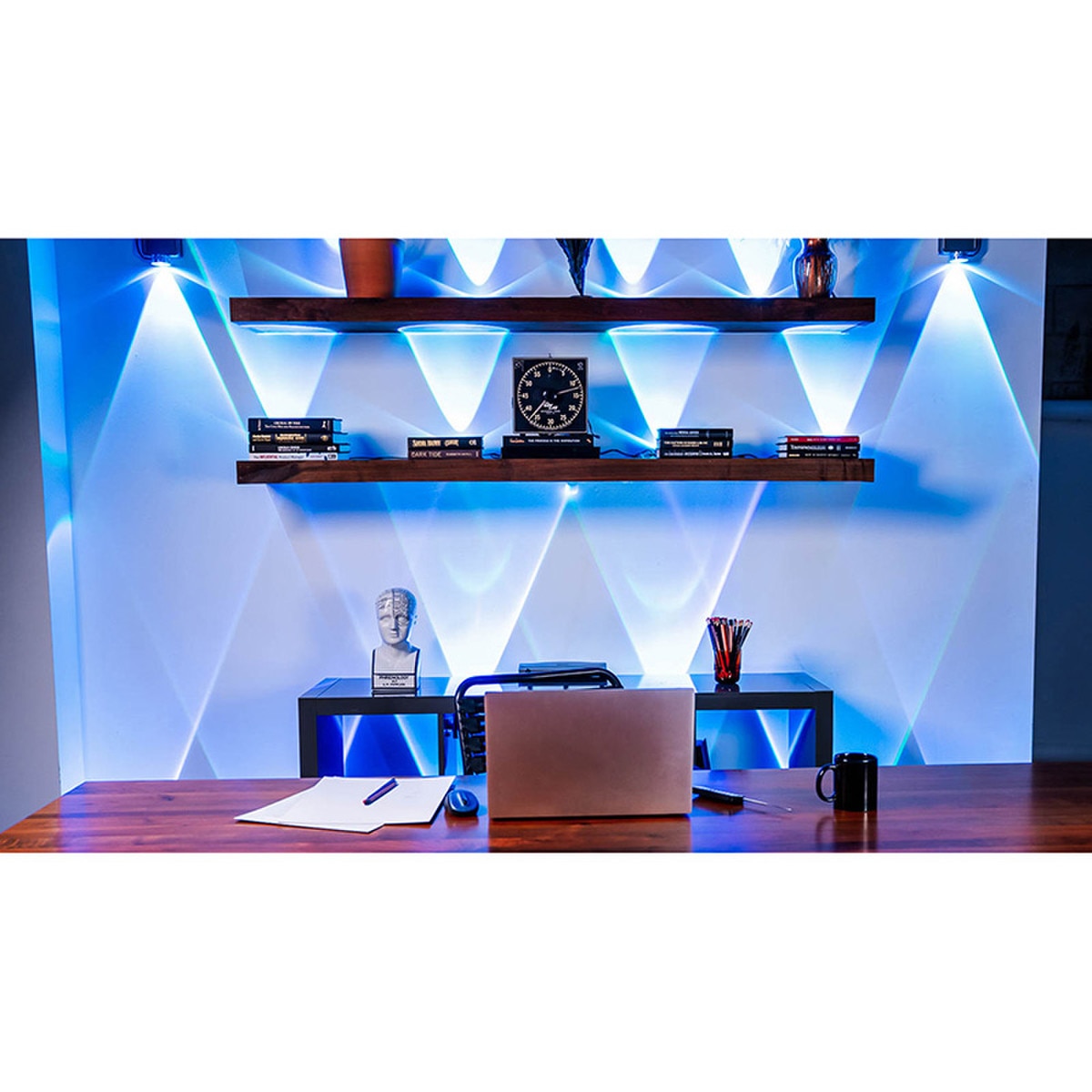

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

Highlights:

• Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit

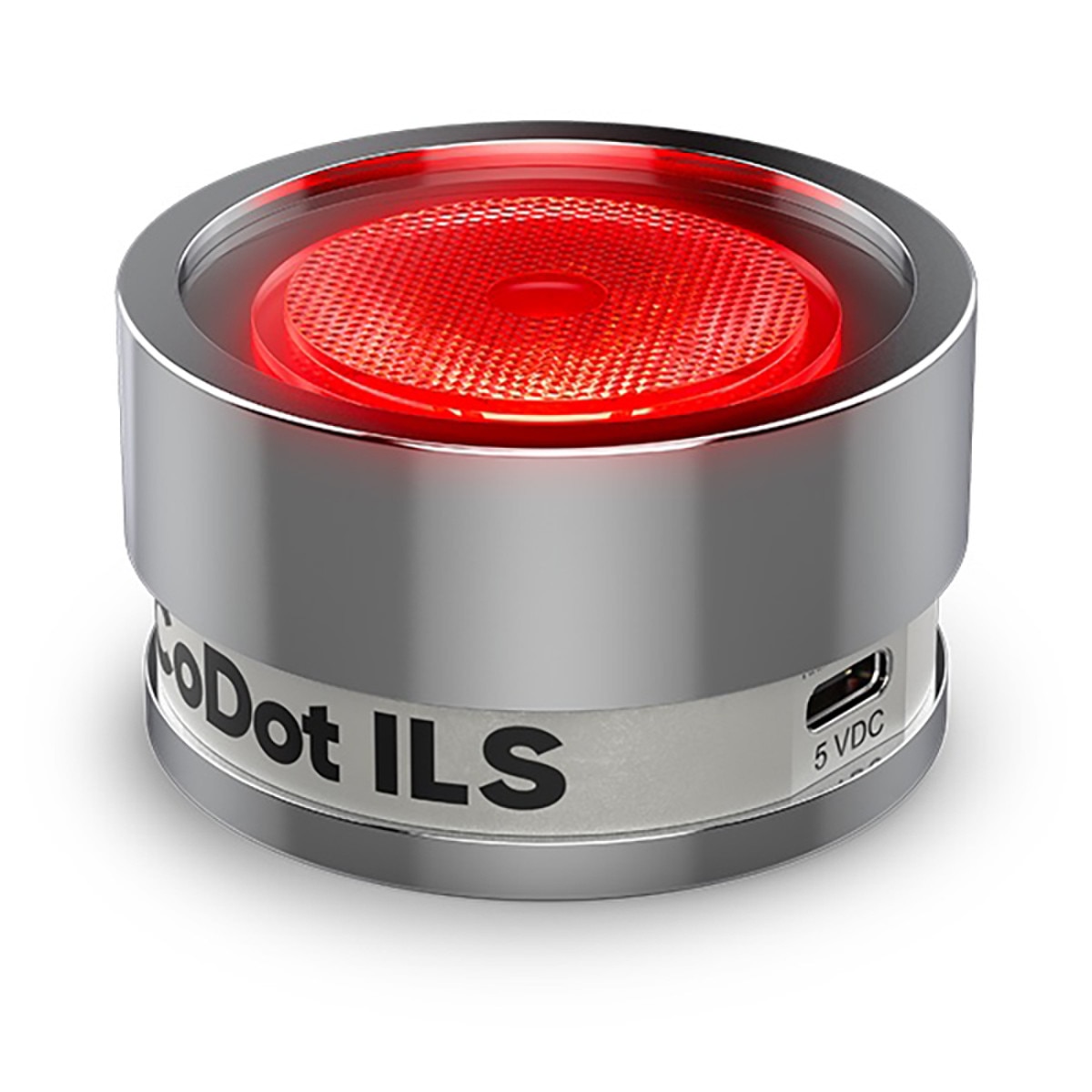

• Includes two lens options to meet different application criteria
• Magnetic base easily mounts to metal surfaces
• Threaded insert is compatible with camera tripods and accessories
• ILS compatibility for use in the ILS ecosystem
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

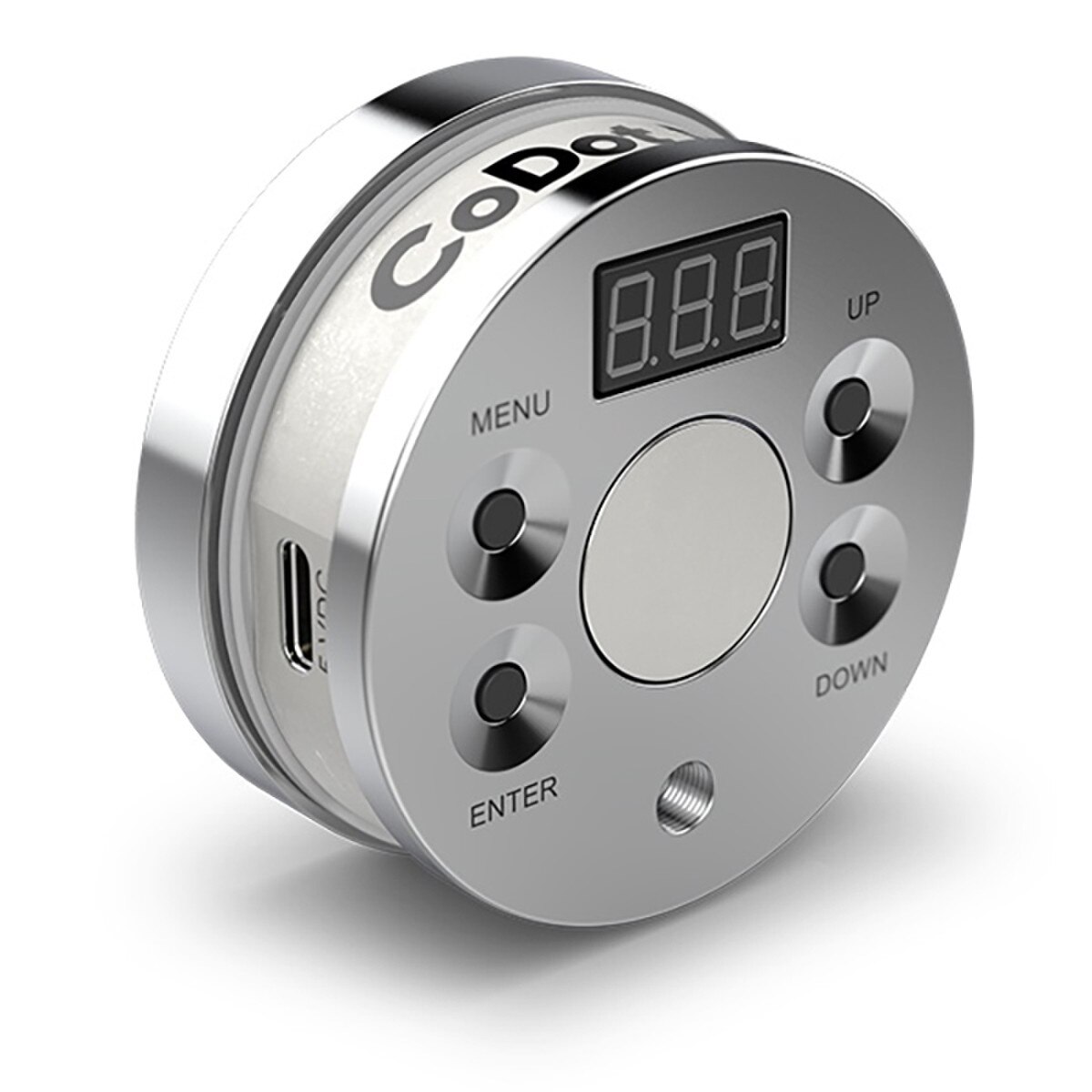

• Easy navigation and access all functions directly from the LED display
• Power linking multiple units from the USB type-C in and out

Specifications:

• DMX Channels: 4 or 6
• Max Unobstructed Distance: 600 ft (183 m)
• Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Operating Frequency: 2.4 GHz
• Power Linking: 4 units @ 120 V; 4 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight: 0.2 lb (.1 kg)
• Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
• Approvals: CE, ROHS, UKCA, FCC
• Beam Angle (installed lens): 19°
• Beam Angle (included lens): 14°
• Illuminance (installed lens): 256 lux @ 2 m
• Illuminance (included Lens): 442 lux @ 2 m
• Operating Frequency: 2.4 GHz
• Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz
• Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
• Optional Controllers: ILS Command, RFC, RFC-XL
• Threaded Insert: M6 thread

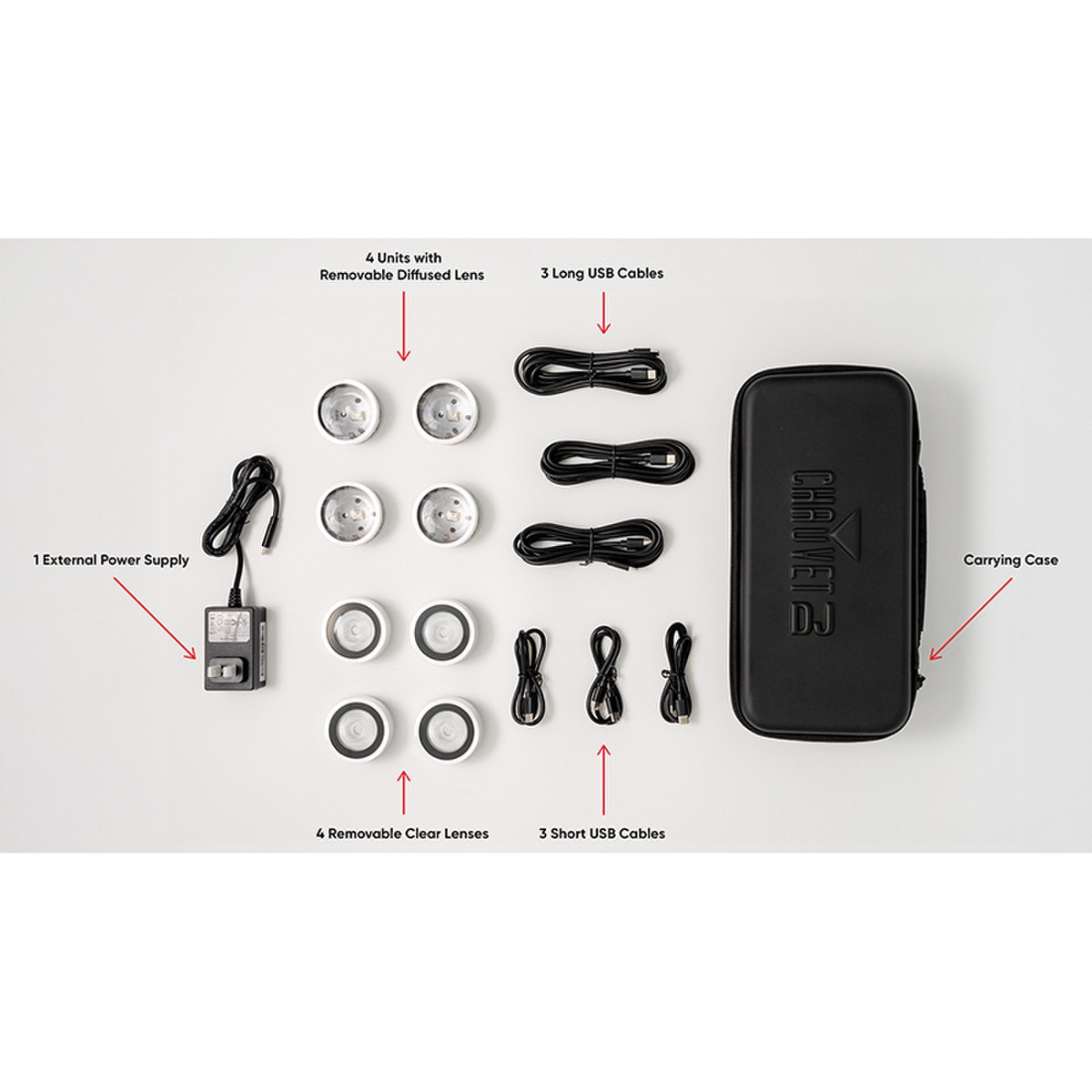

What's Included:

• 4 CoDot ILS
• 8 lenses
• 3 short USB cables (0.5m)
• 3 long USB cables (2m)

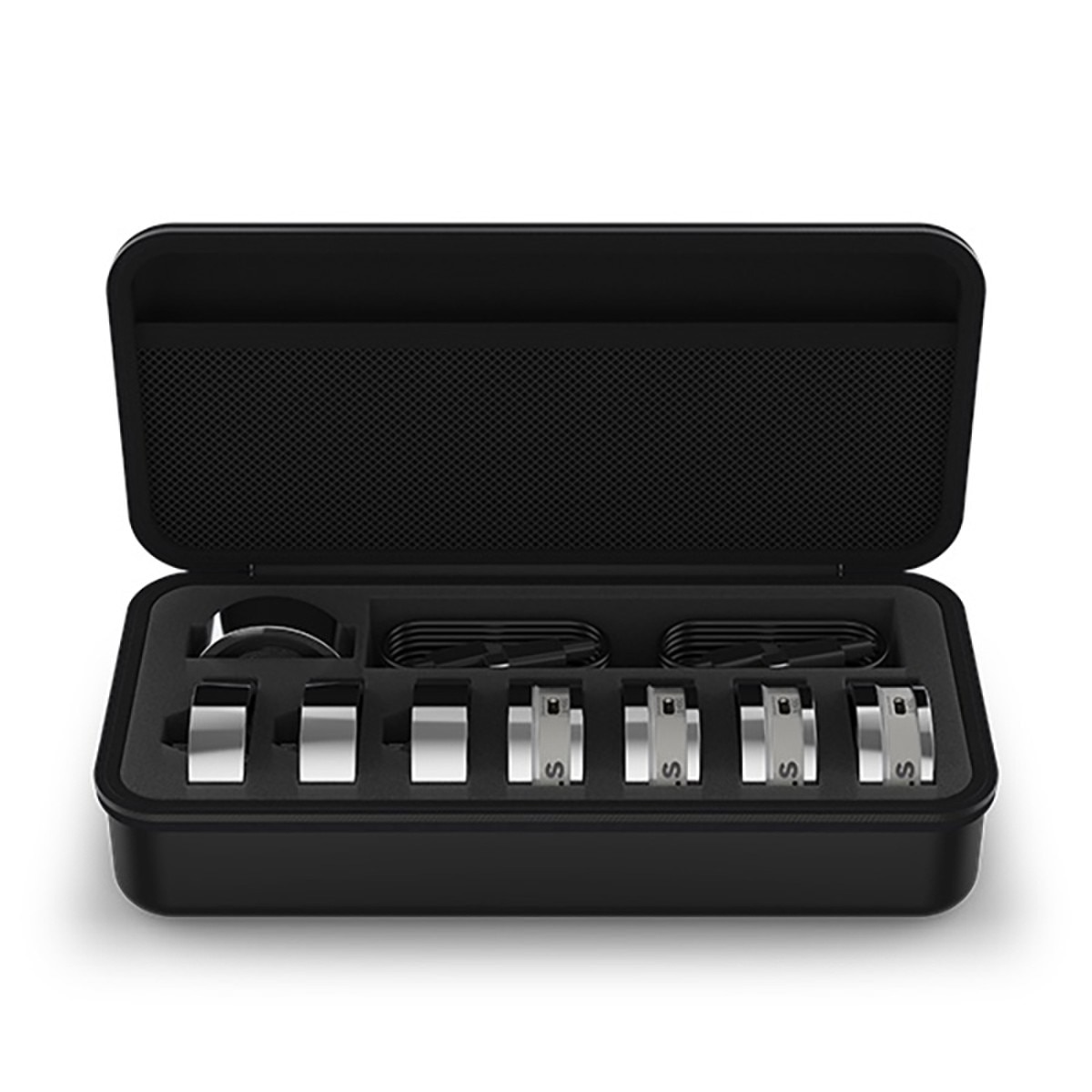

• 1 carry case
• 1 external power supply
• Quick Reference Guide
