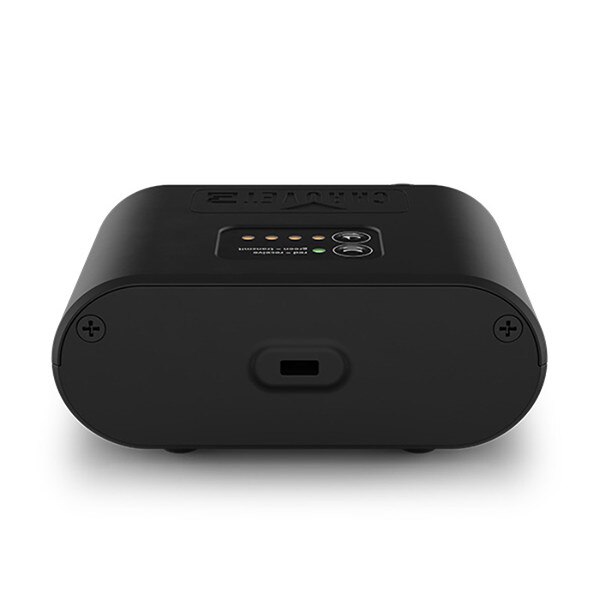

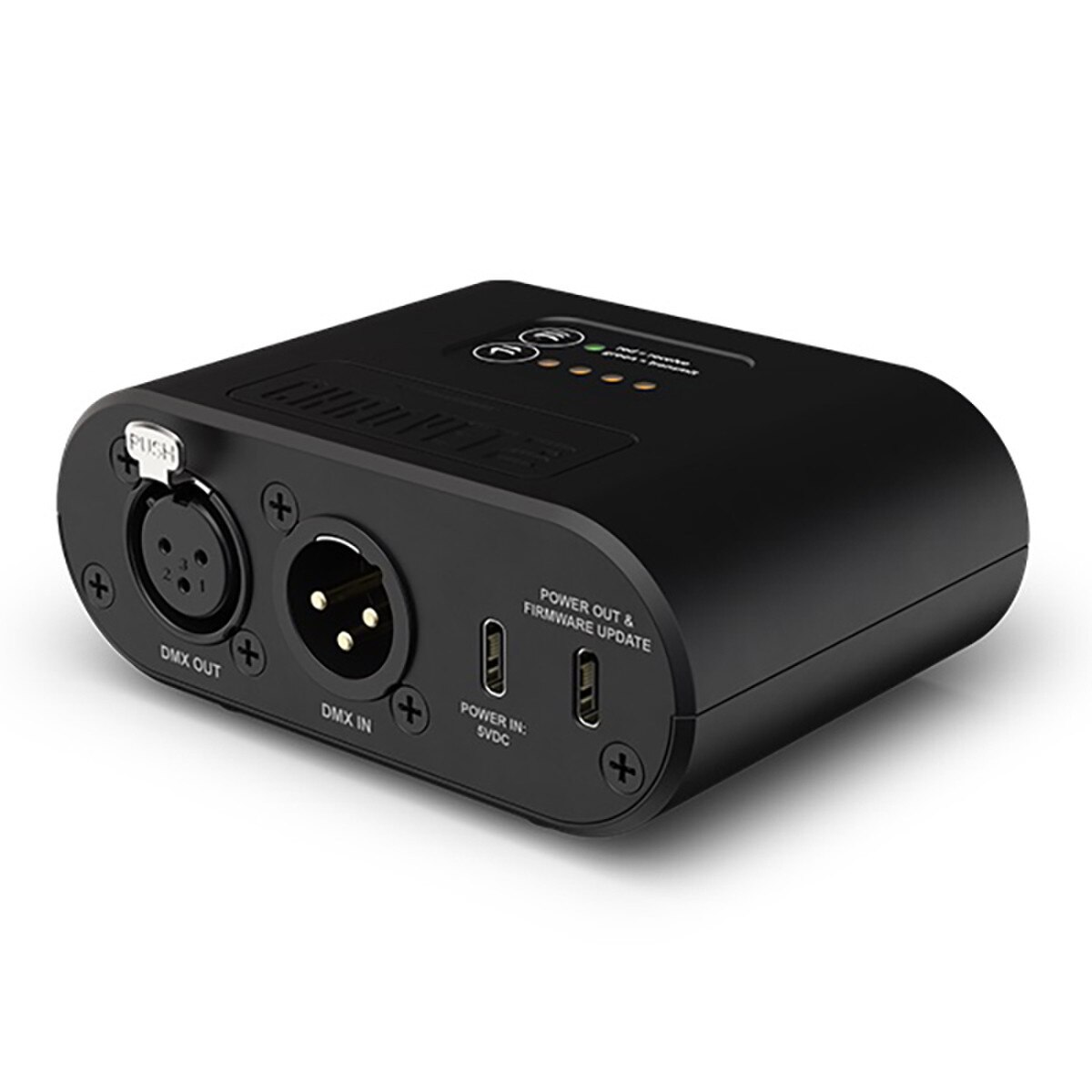

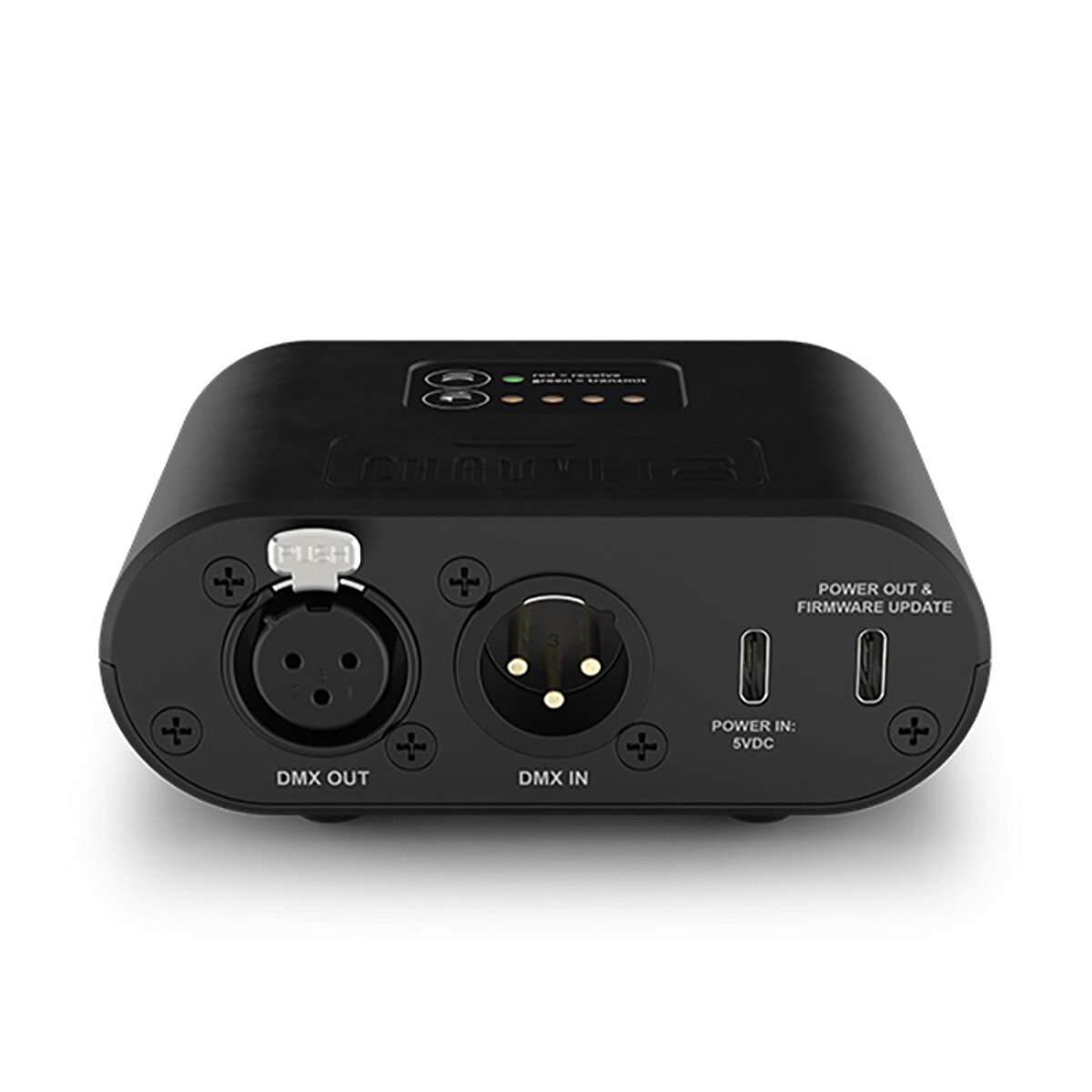

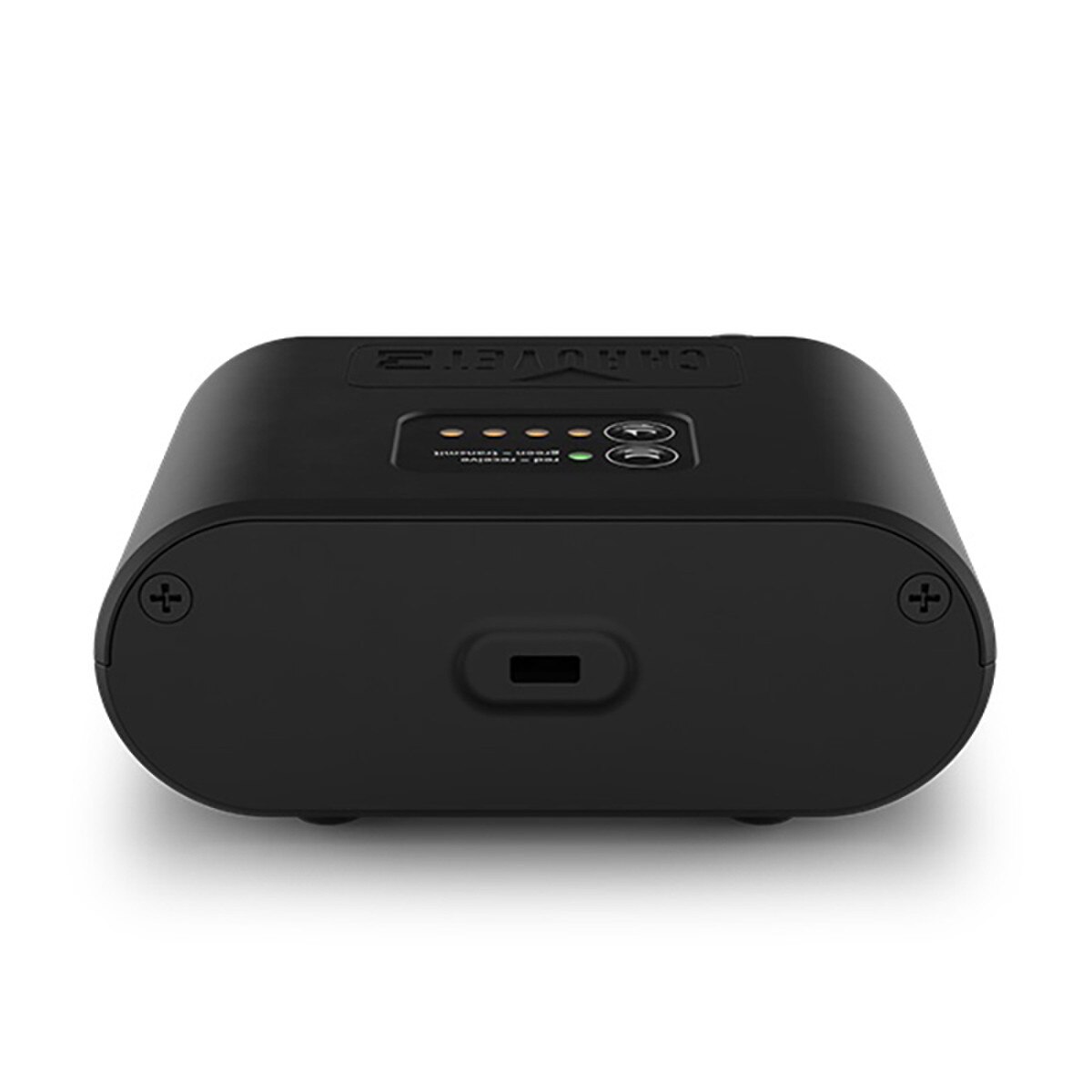

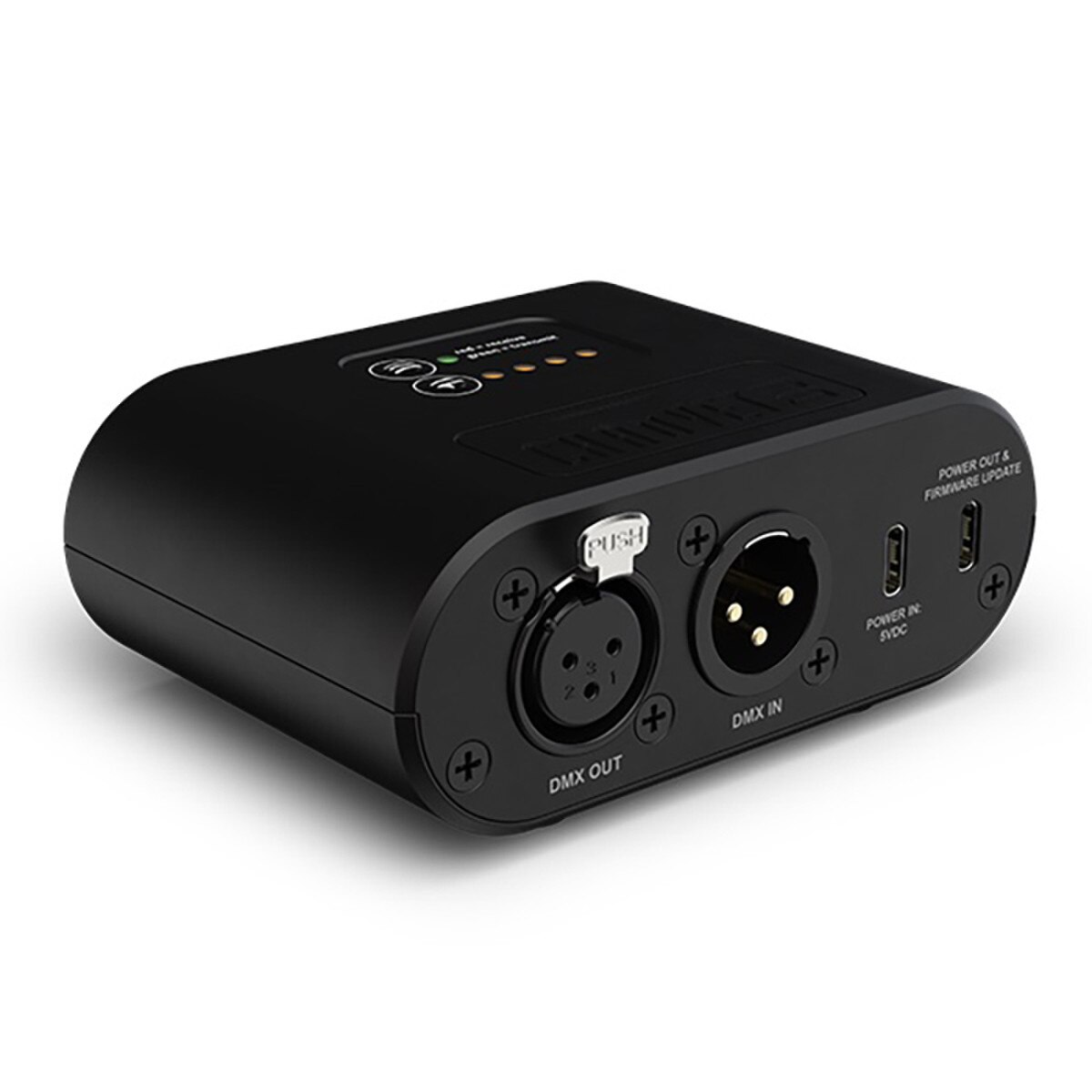

Chauvet DJ D-Fi Hub 2

Sync an unlimited number of D-Fi-ready fixtures wirelessly and simultaneously with D-Fi Hub 2. A compact D-Fi wireless transmitter/receiver that sends and receives wireless DMX signals over an impressively long range while being fully FCC and R&TTE compliant. Compatible with the ILS Command, this unit is the perfect sidekick to your ILS rig. With a fastening strap, USB-C power out and more, ease of use and versatility are built right in to D-Fi Hub 2.

Highlights:

• Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit
• Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
• Compatible with the ILS Command to wirelessly send or receive ILS protocols

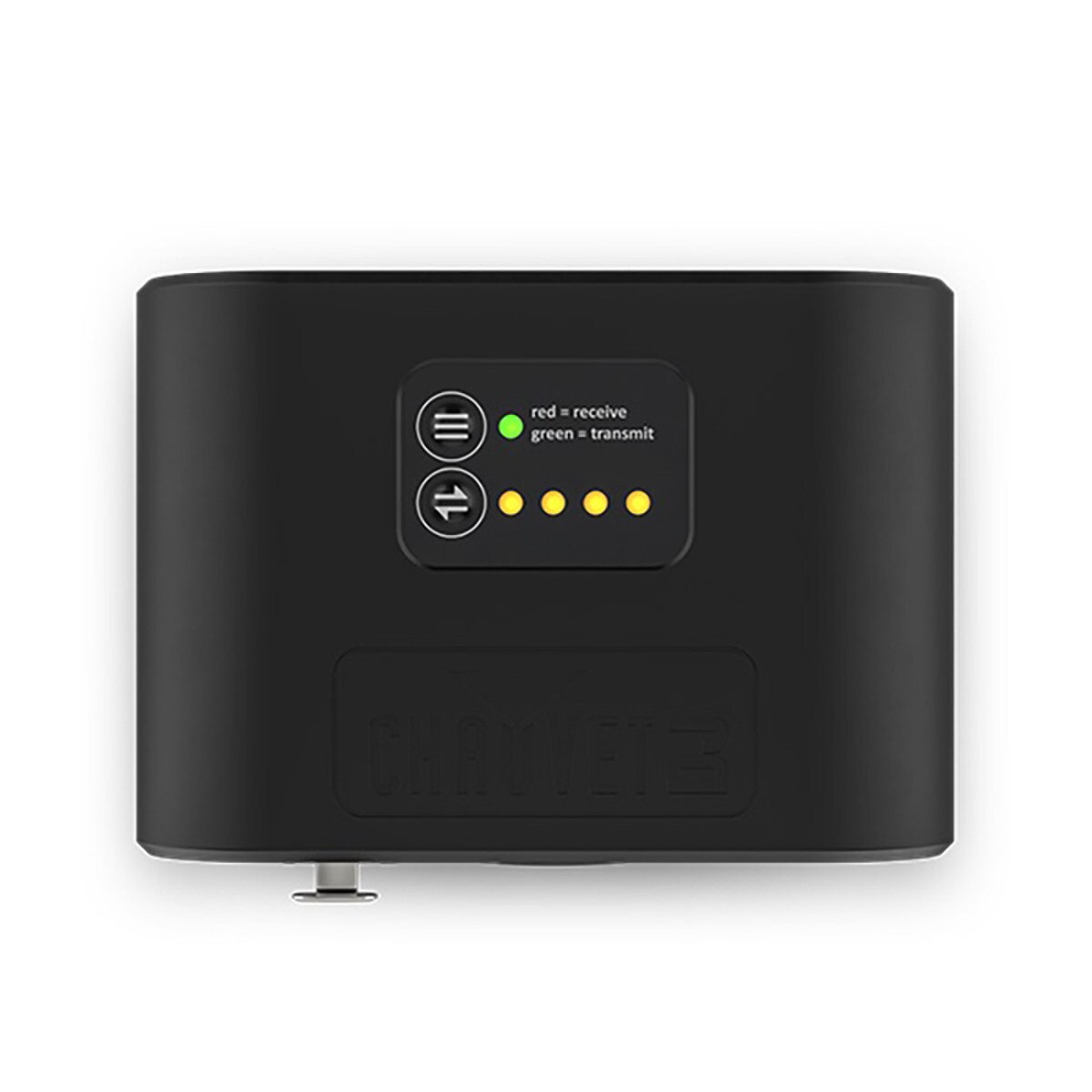

• LED indicators clearly communicate the TX/RX status and wireless D-Fi frequencies
• USB-C passthrough powers additional devices
• Built-in hook and loop fastener strap and M10 threaded holes for direct mounting to truss
• Fully FCC/RTTE compliant

Specifications:

• DMX Channels: 3-pin XLR
• Operating Frequency: 2.412 to 2.484 GHz
• Input Voltage: 5 VDC, 2 A (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 0.2 lb (0.1 kg)
• Size: 3.9 x 3 x 1.6 in (100 x 77 x 41 mm)
• Approvals: CE, ROHS, FCC
• Max Unobstructed Distance: 656 ft (200 m)

What's Included:

• DFI-HUB 2
• Power cord
• Power supply
• Quick Reference Guide

Chauvet DJ D-Fi Hub 2 Quick Reference Guide.pdf
Chauvet DJ D-Fi Hub 2 User Manual.pdf
