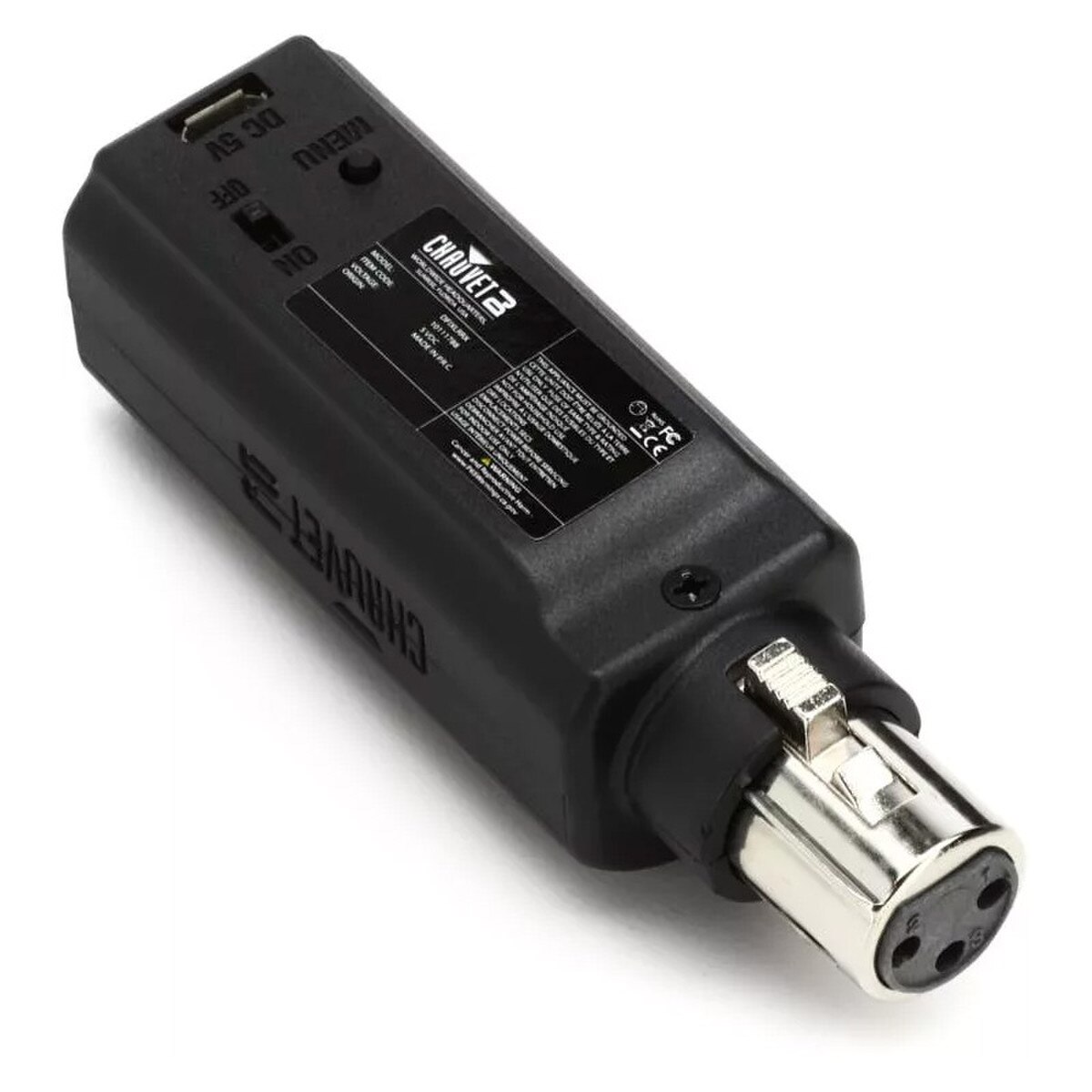

Chauvet DJ D-Fi XLR RX

DMX control goes from wired to wireless with D-Fi XLR RX! This compact battery-powered wireless D-Fi receiver uses revolutionary CHAUVET DJ technology to provide instant wireless communication by plugging directly into the XLR port of DMX-compatible lights. D-Fi XLR RX receives DMX and master/slave signals between similar fixtures.  Handy LED indicators visually show wireless channel operation. D-Fi XLR RX is fully FCC/RTTE compliant.

Features:

• Battery-powered wireless D-Fi receiver provides instant wireless communication
• Plugs directly into your device’s XLR port
• Receives DMX and master/slave signals between similar fixtures
• LED indicators visually show wireless channel operation
• Works without the need of an external power supply
• Fully FCC/RTTE compliant

Specifications:

• Max Unobstructed Distance: 165 ft (50 m)
• Maximum Run Time: up to 10 hours
• Recharge Time: 2.5 hours
• Operating Frequency: 2.412 to 2.484 GHz
• Input Voltage: 5 VDC, 500 mA
• Weight: 1.6 oz. (45 g)Size: 3.5 x 1 x 1.14 in (88 x 27 x 29 mm)
• Approvals: CE, FCC, RTTE
• RF output: 12.72 dBm

Includes:

• D-Fi XLR RX
• Quick reference Guide

D-Fi_XLR_RX_Instructions_Rev1_ML6.pdf
