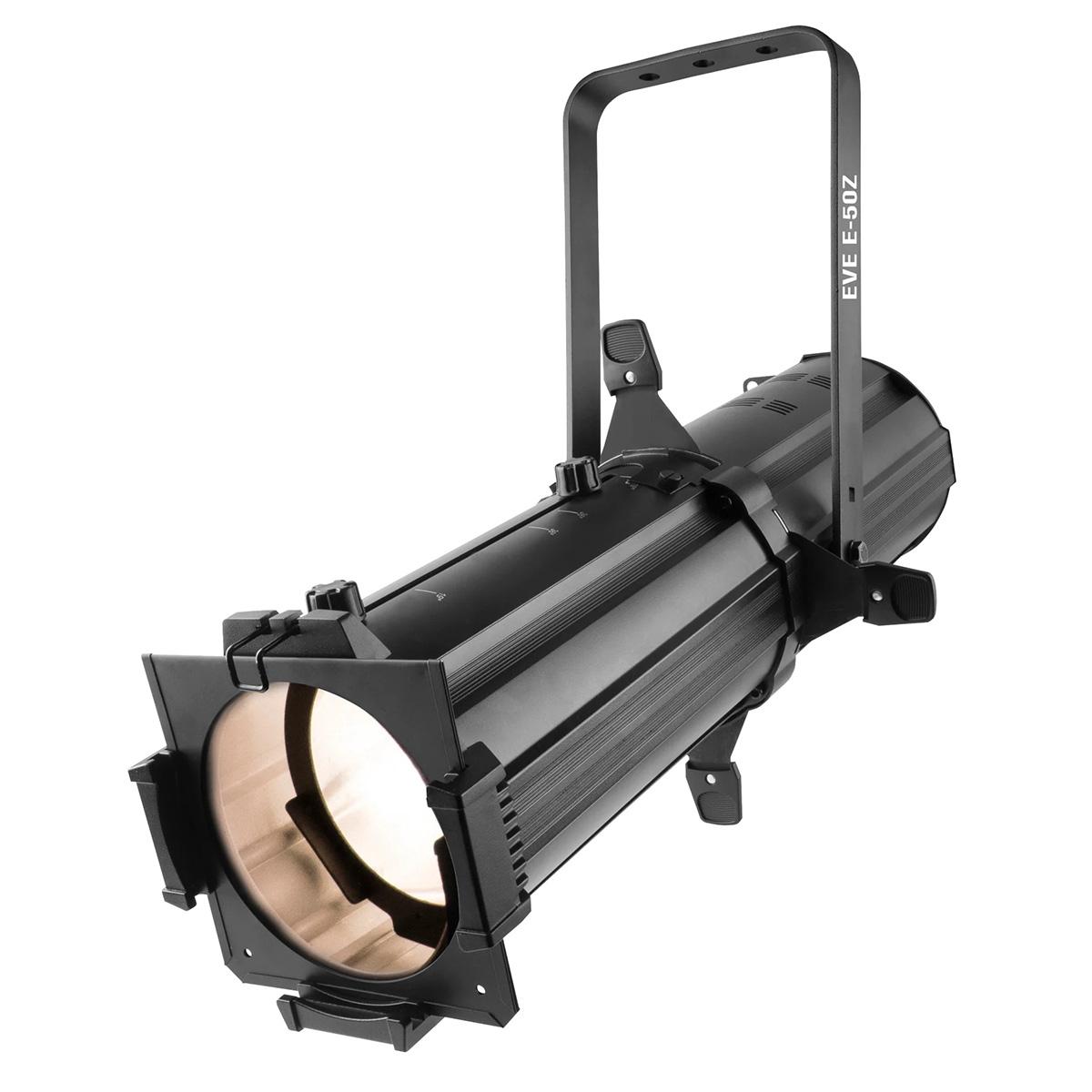

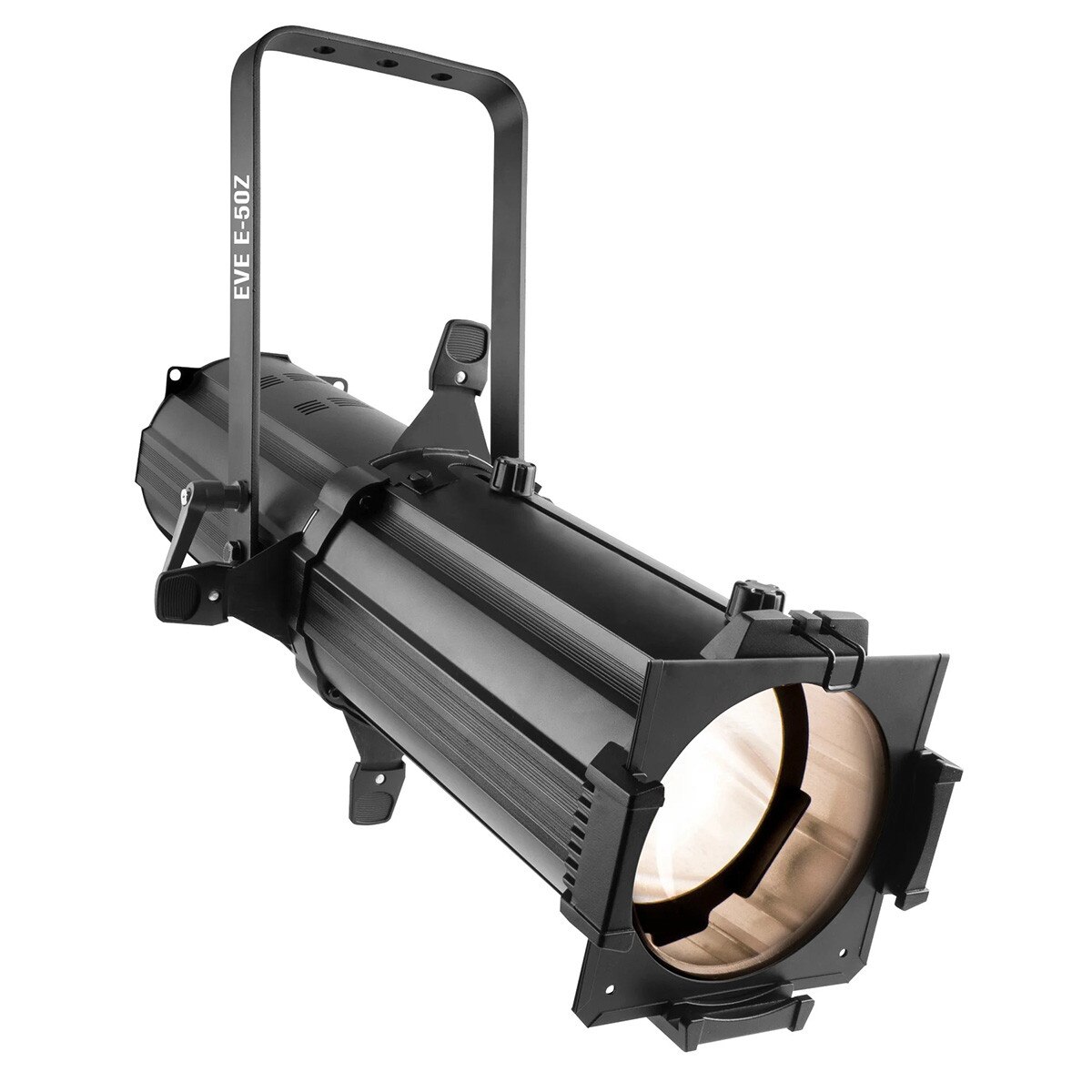

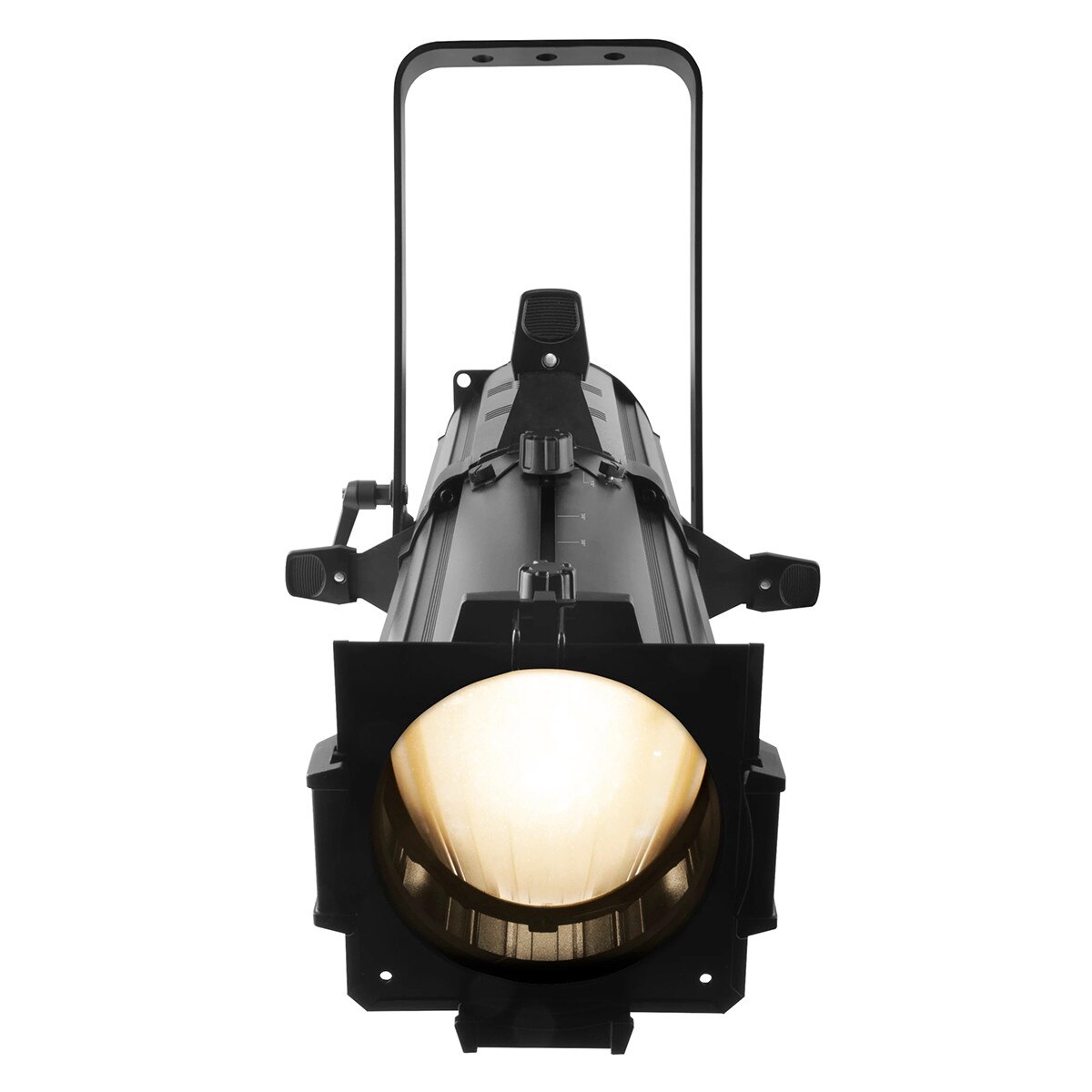

Chauvet DJ Eve E-50Z Ellipsoidal
Details

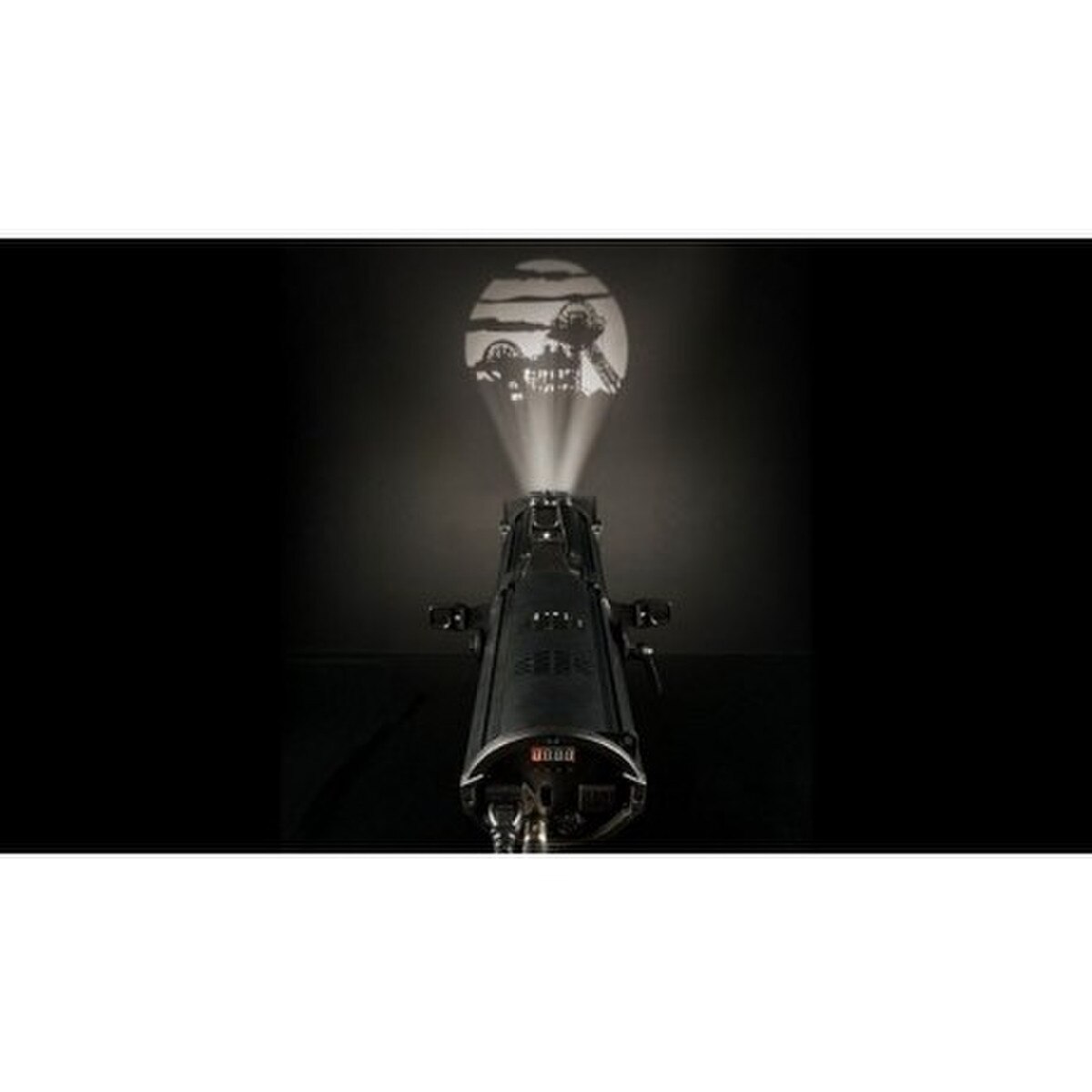

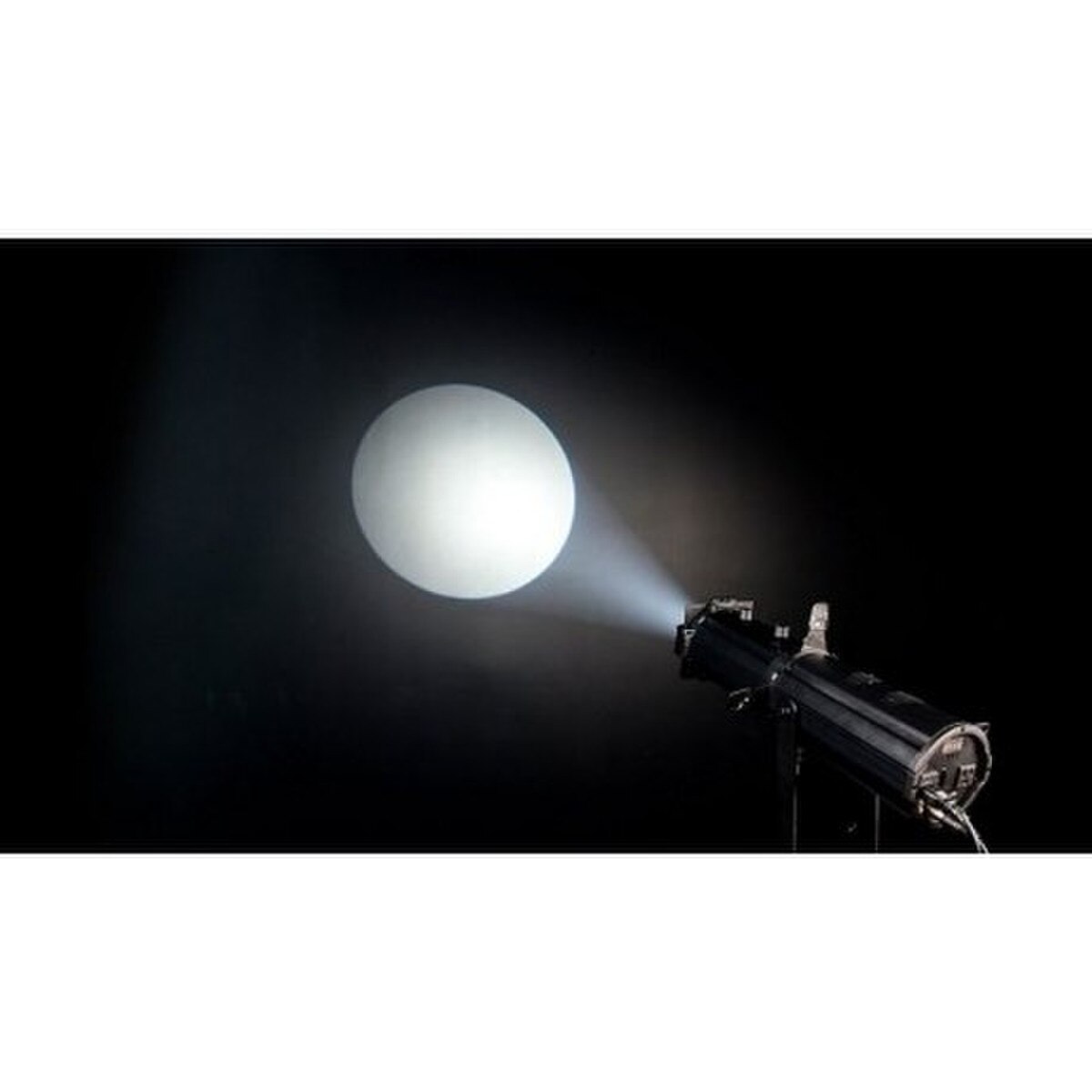

Chauvet's EVE E-50Z is an LED ellipsoidal that shines a hard-edged, warm white spot and features D-Fi™ USB compatibility for wireless Master/Slave or DMX control. Manual zoom gives you the flexibility to project from any distance and its framing shutters let you easily alter and control the projected beam.
The EVE E-50Z includes holders for glass and steel gobos as well as a gel frame. You can operate EVE E-50Z in stand-alone mode eliminating the need for DMX control and you can save time running extension cords by power-linking multiple units. Available in black or white.
Features:
- LED Ellipsoidal shines a hard-edged, warm white spot in any direction
- Easily highlight areas by altering the projected beam with framing shutters
- Flexibility to project from any distance using the manual zoom
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Flicker-free operation suitable for on-camera use

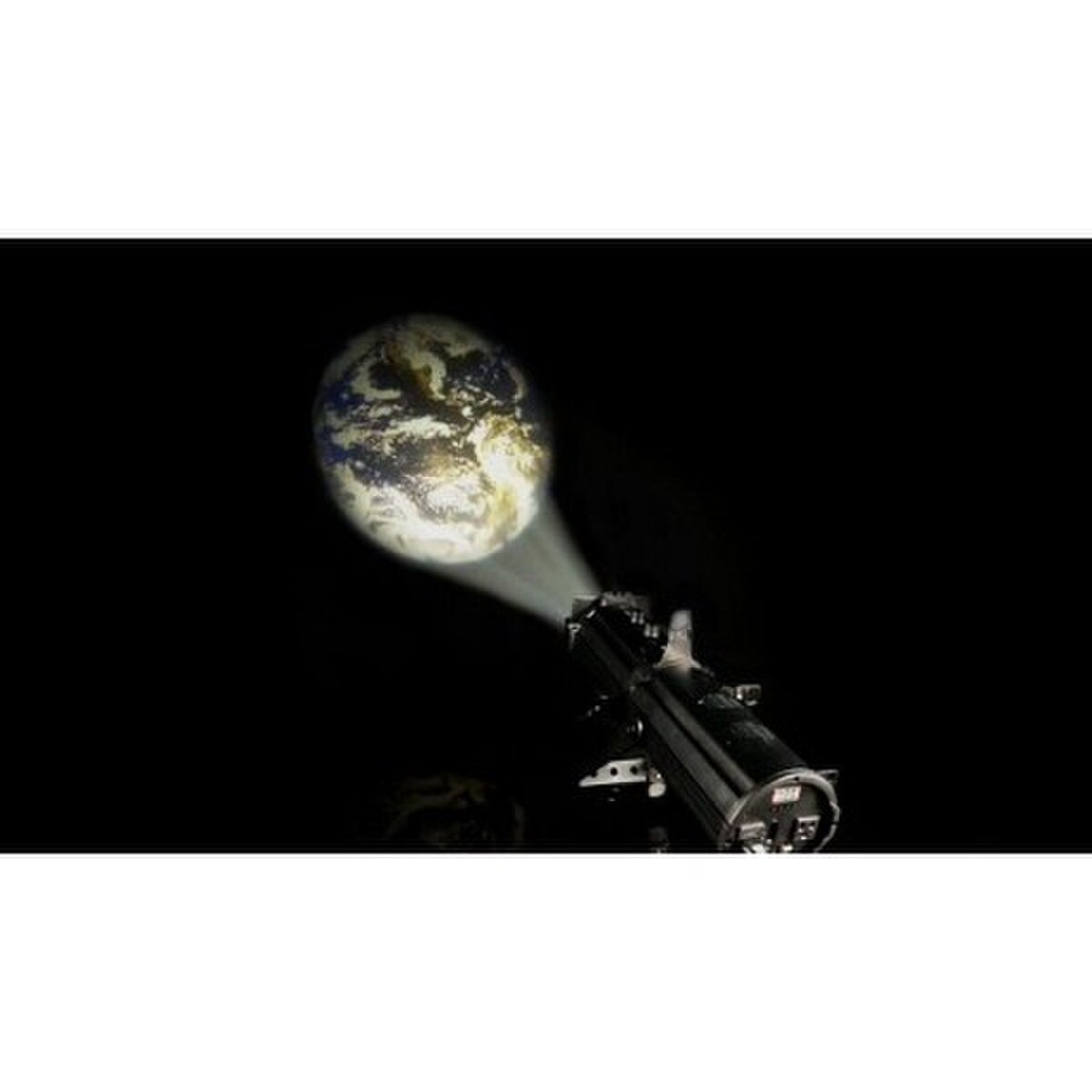

- Includes holders for glass and steel gobos and a gel frame
- Save time running extension cords by power linking multiple units
- Eliminate the need for DMX control with standalone operation
- Available in black or white
Specifications:
- DMX Channels: 1 or 3

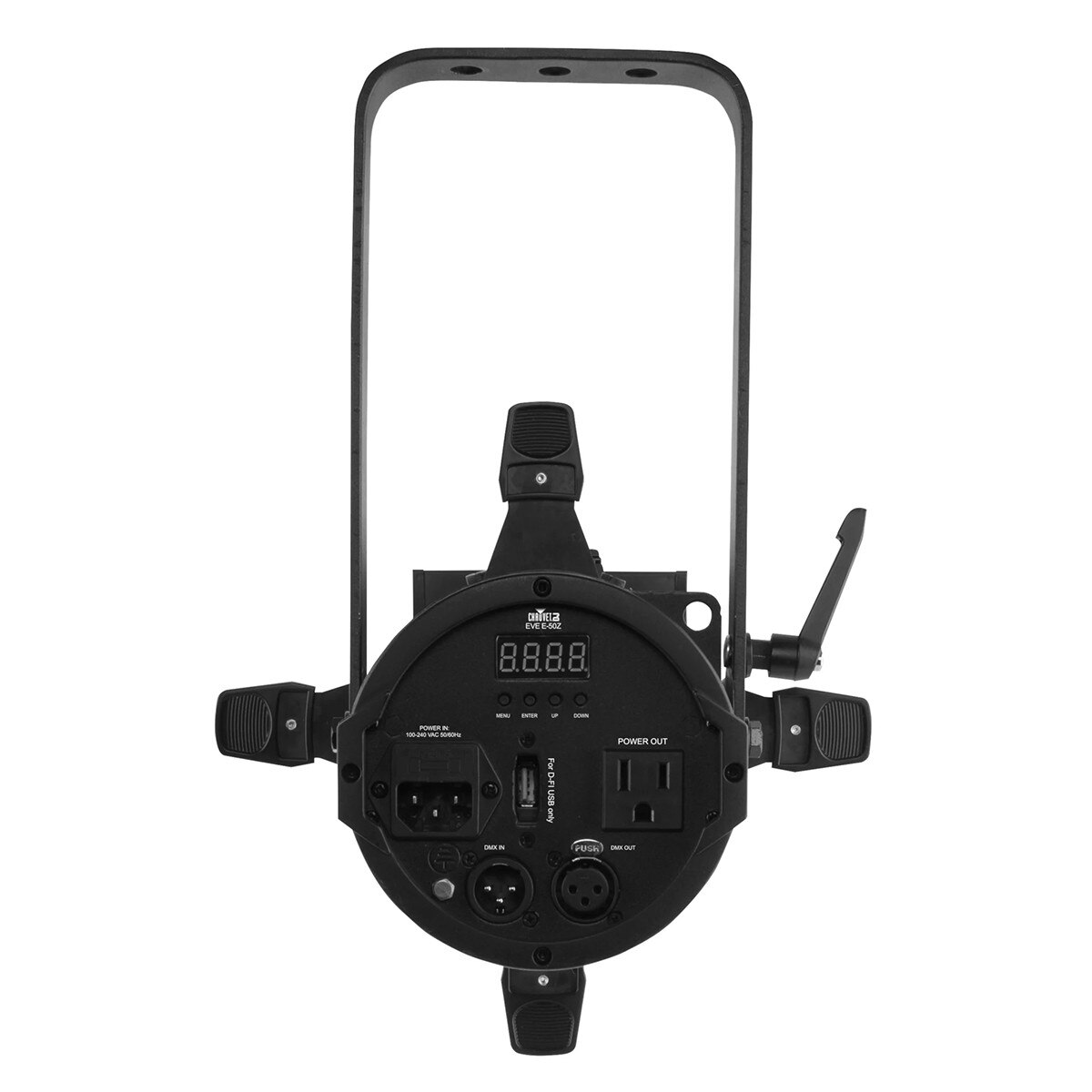

- DMX Connectors: 3-pin XLR
- Light Source: 1 LED (warm white) 50W, (1.3A), 50,000 hours life expectancy
- Strobe Rate: 0 to 29 Hz
- PWM Frequency: 1.2 kHz
Illuminance:
- (20°): 7,910 lux @ 2m
- (39°): 2,710 lux @ 2m
Power Linking:
- 16 units @ 120V
- 26 units @ 230V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
- 59W, 0.5A @ 120V, 60 Hz
- 63W, 0.3A @ 230V, 50 Hz
- Gobo Size: D (53.3mm outside, 43mm image, 2mm max thickness)
- Zoom Angle: (manual): 20° to 39°
- Weight: 9.2 lb (4.2kg)
- Dimensions: 18.9" x 6.2" x 15" (480mm x 157mm x 381mm)
- Approvals: CE
- Color Temperature: 3500K
- Gel Frame Size: 5.5"
- Optional Controllers: D-Fi USB
- CRI: 81
