Chauvet DJ Ezpin Zoom Pack

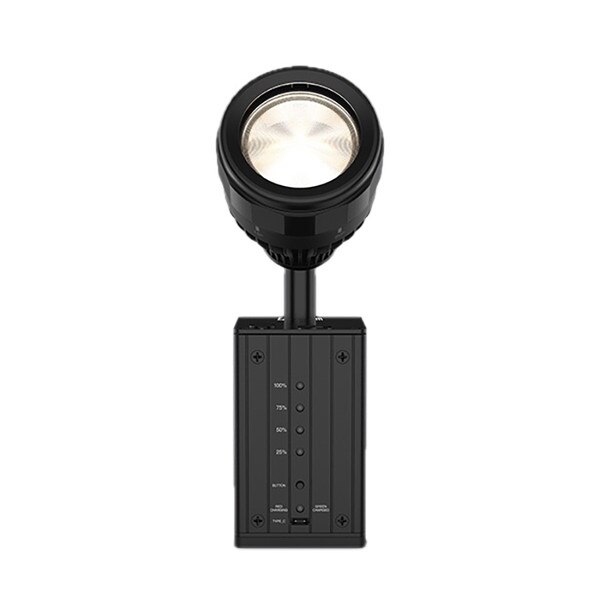

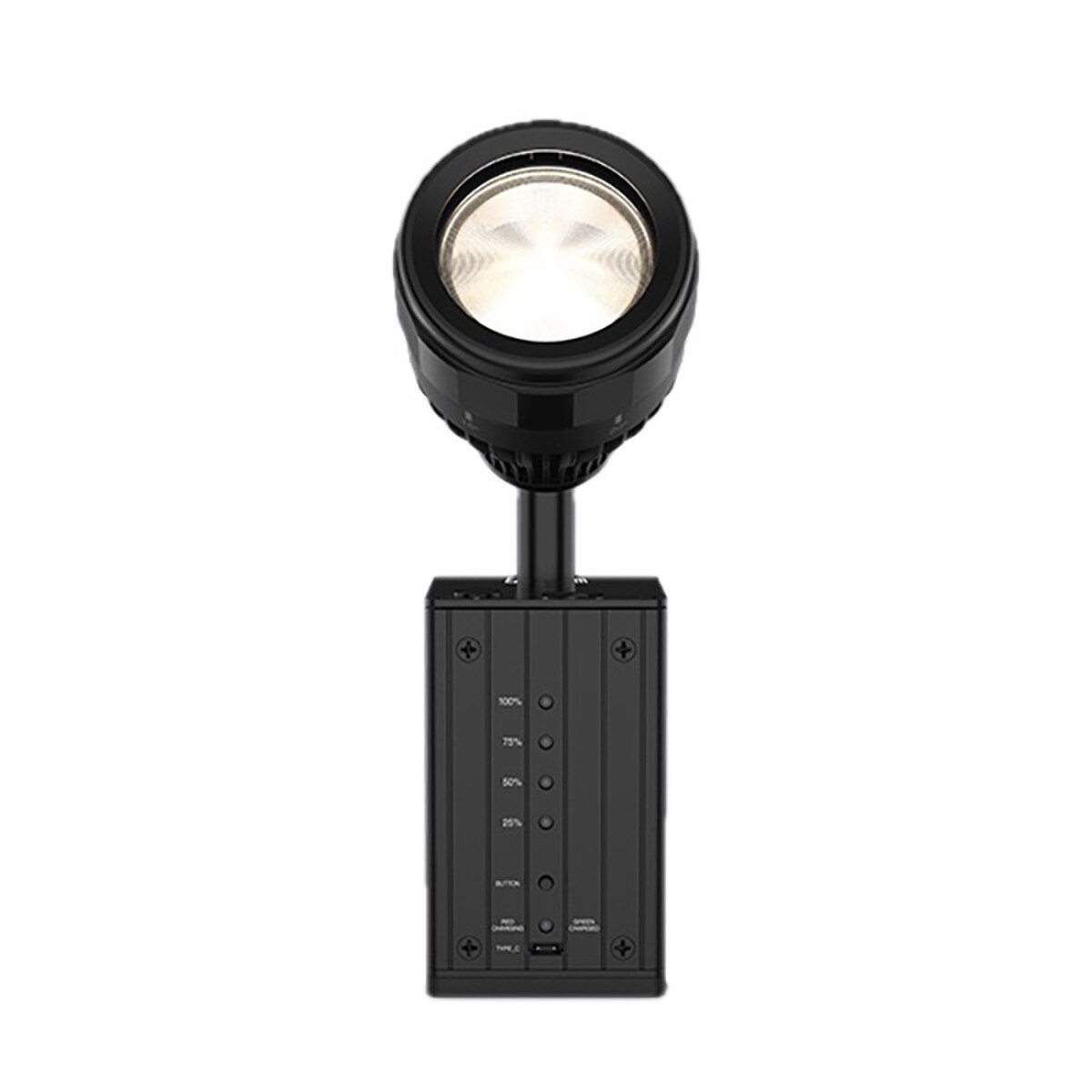

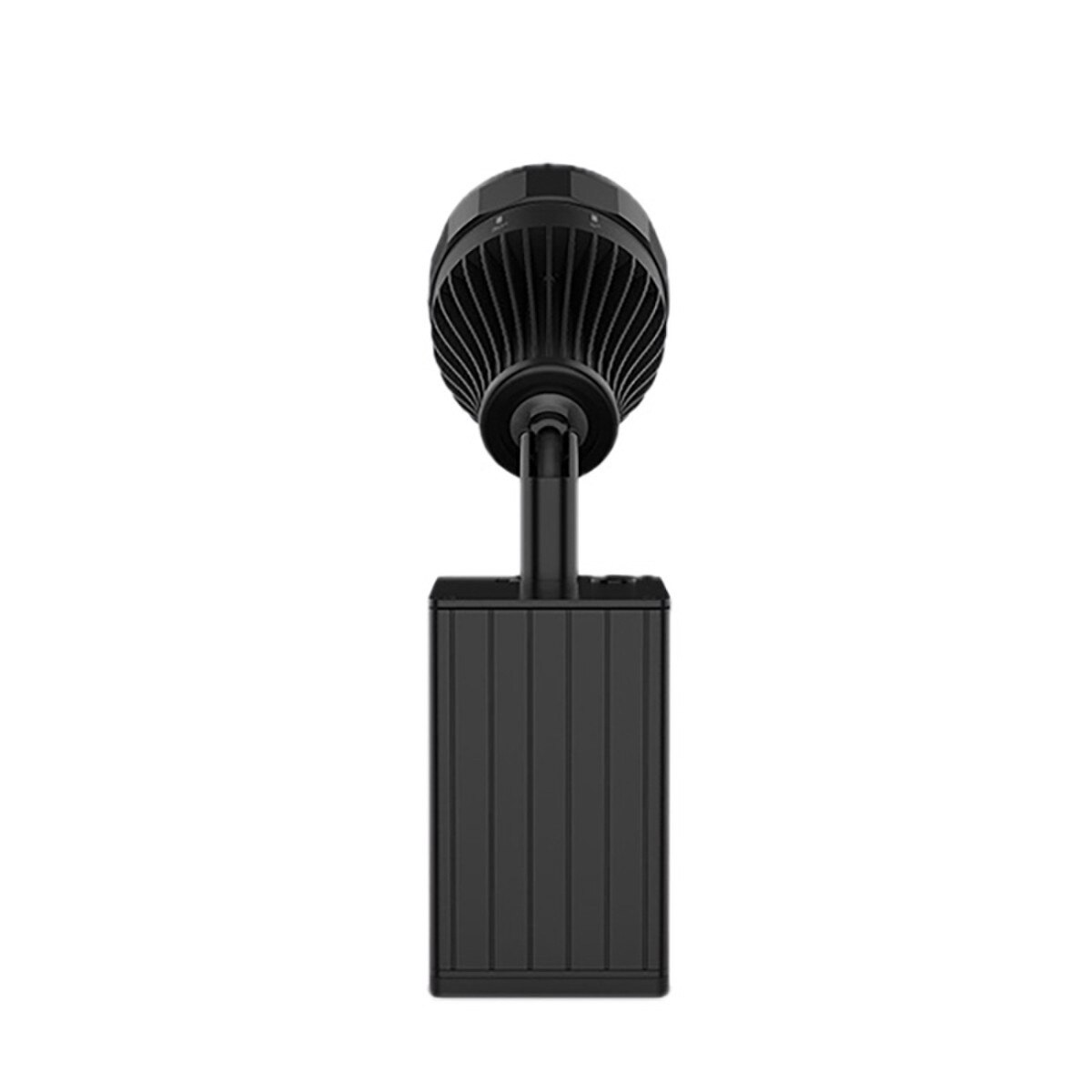

EZPin Zoom Pack takes pin spot lighting to new heights of versatility. EZPin Zoom features manual zoom adjustment with a wide range to accommodate fixture placement at any distance. The unit is equipped with a handy magnetic base that affixes to most metal surfaces, eliminating the need for clamps, while the rechargeable battery allows the fixture to be placed anywhere. EZPin Zoom features a manually adjustable head allowing for maximum room coverage and is attachable to most mic stands. Wireless on/off operation is available with the included IRC-6 remote. The EZPin Zoom Pack system includes 4 EZpin Zoom fixtures, IRC-6 remote, and a carry bag.

Highlights:

• Pin spotting system includes 4 EZpin Zoom fixtures, 1 IRC-6 remote and a FREE carry bag
• Rechargeable battery allows the fixture to be placed anywhere
• Wide zoom range accommodates fixture placement at any distance
• Magnetic base affixes to most metal surfaces, eliminating the need for clamps

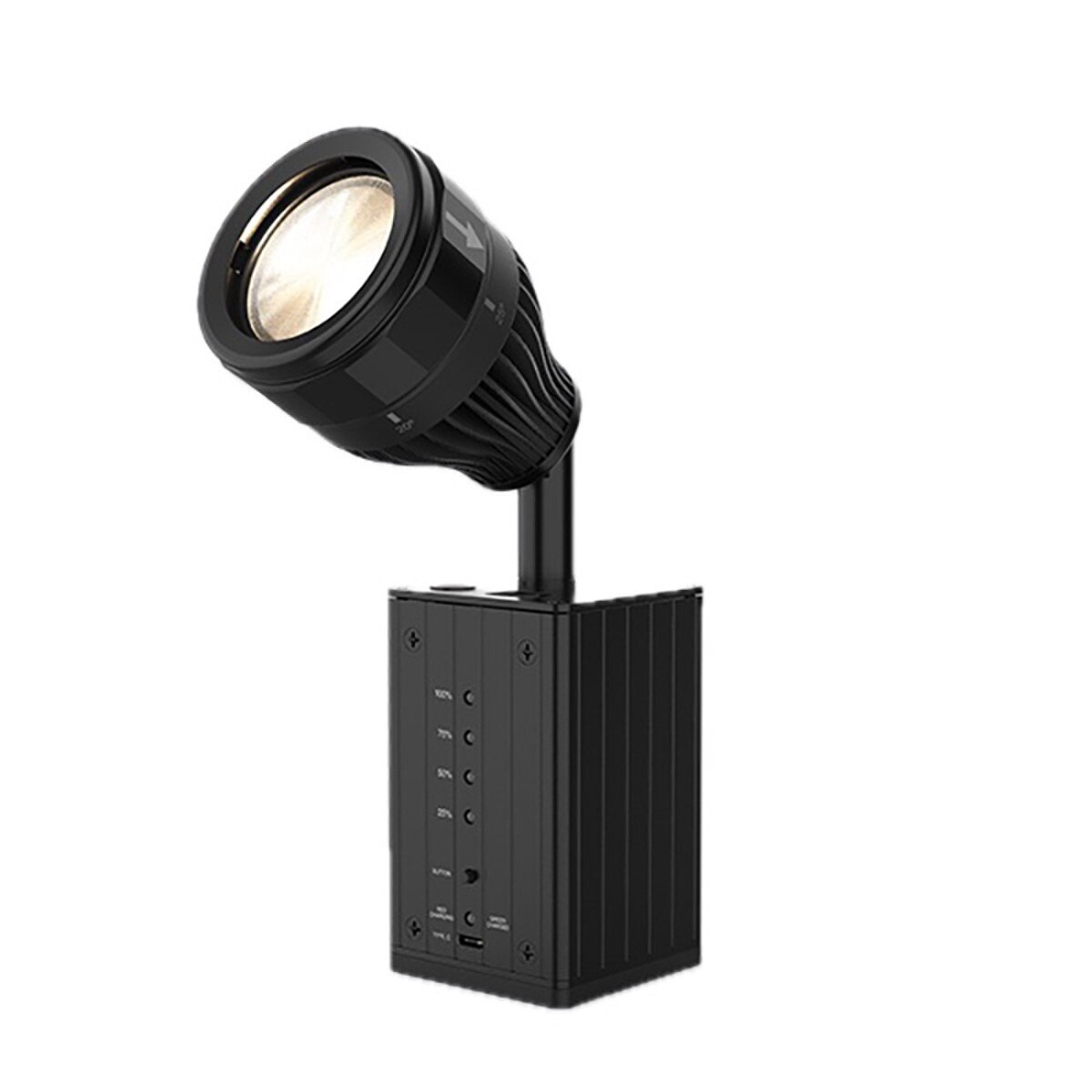

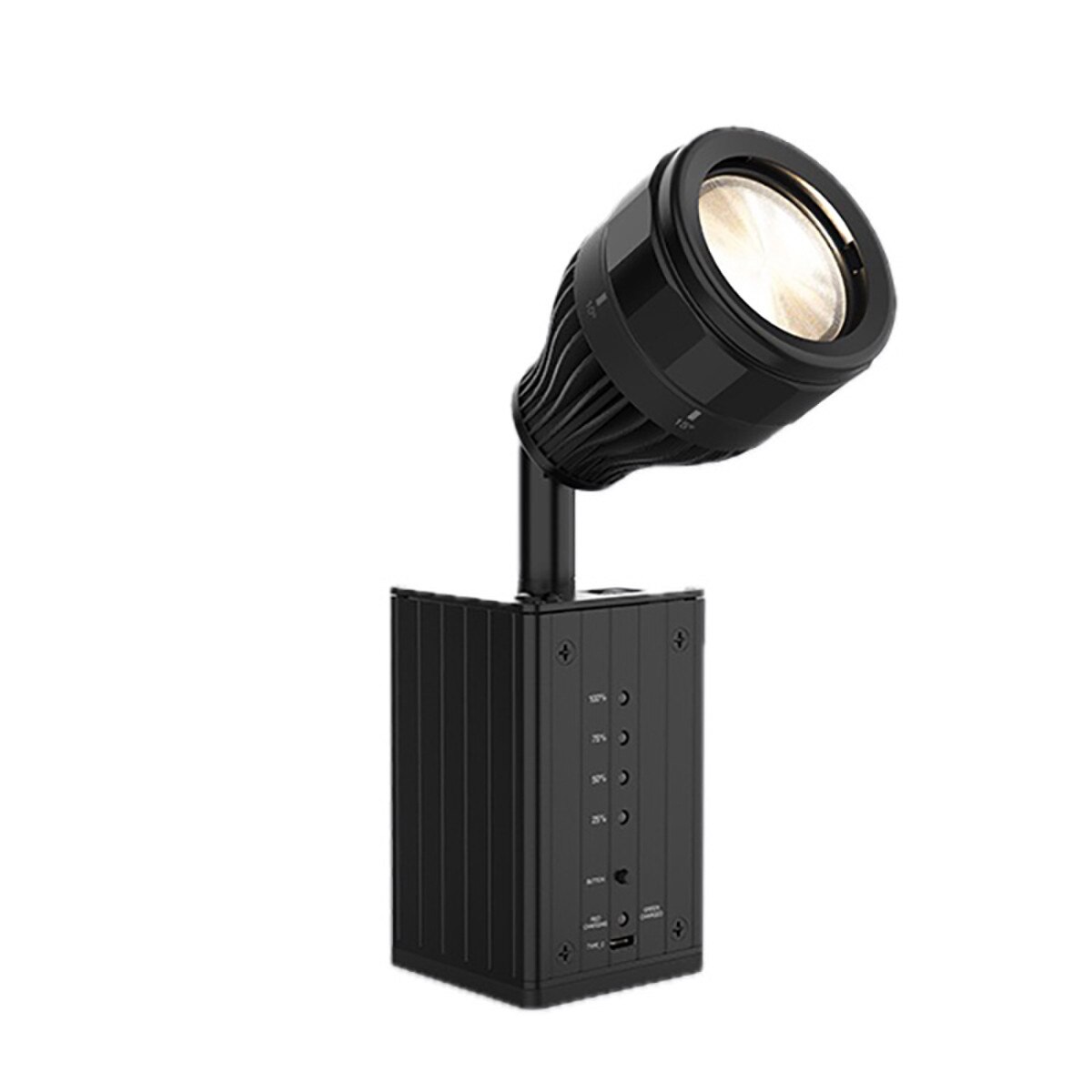

• Manually adjustable head allows maximum room coverage
• Wireless on/off operation is available with the included IRC-6 remote

Specifications:

• Light Source: 1 LED (natural white) 5 W, (1.5 A), 50,000 hours life expectancy
• PWM Frequency: 51Hz
• Maximum Run Time: up to 11 hours
• Recharge Time: 6 hours
• Input Voltage: 5 VDC, 8 A (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 41 W, 0.6 A @ 120 V, 60 Hz
• 40 W, 0.3 A @ 230 V, 50 Hz
• Weight: 1.6 lb (0.7 kg)
• Size: 2.4 x 2.6 x 9.2 in (60 x 66.5 x 234 mm)
• Approvals: CE
• Zoom Range: 5°-25°
• Color Temperature: 4000 K
• Bracket Mounting Hole: M10
• Illuminance: (5°): 3,149 lux @ 2 m
• Illuminance: (25°): 247 lux @ 2 m
• Included gels: 2900 K

What's Included:

• 4 EZpin Zoom
• 4 USB cables
• 1 multi-charger
• 1 IRC-6 Remote
• 4 color gels (2900 K)

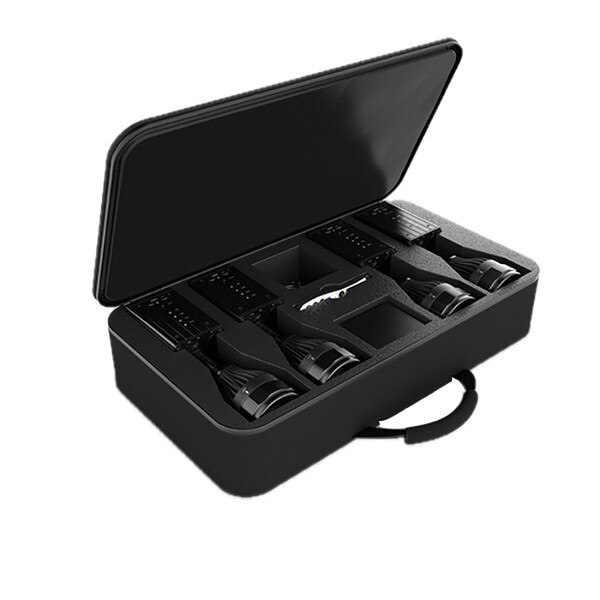

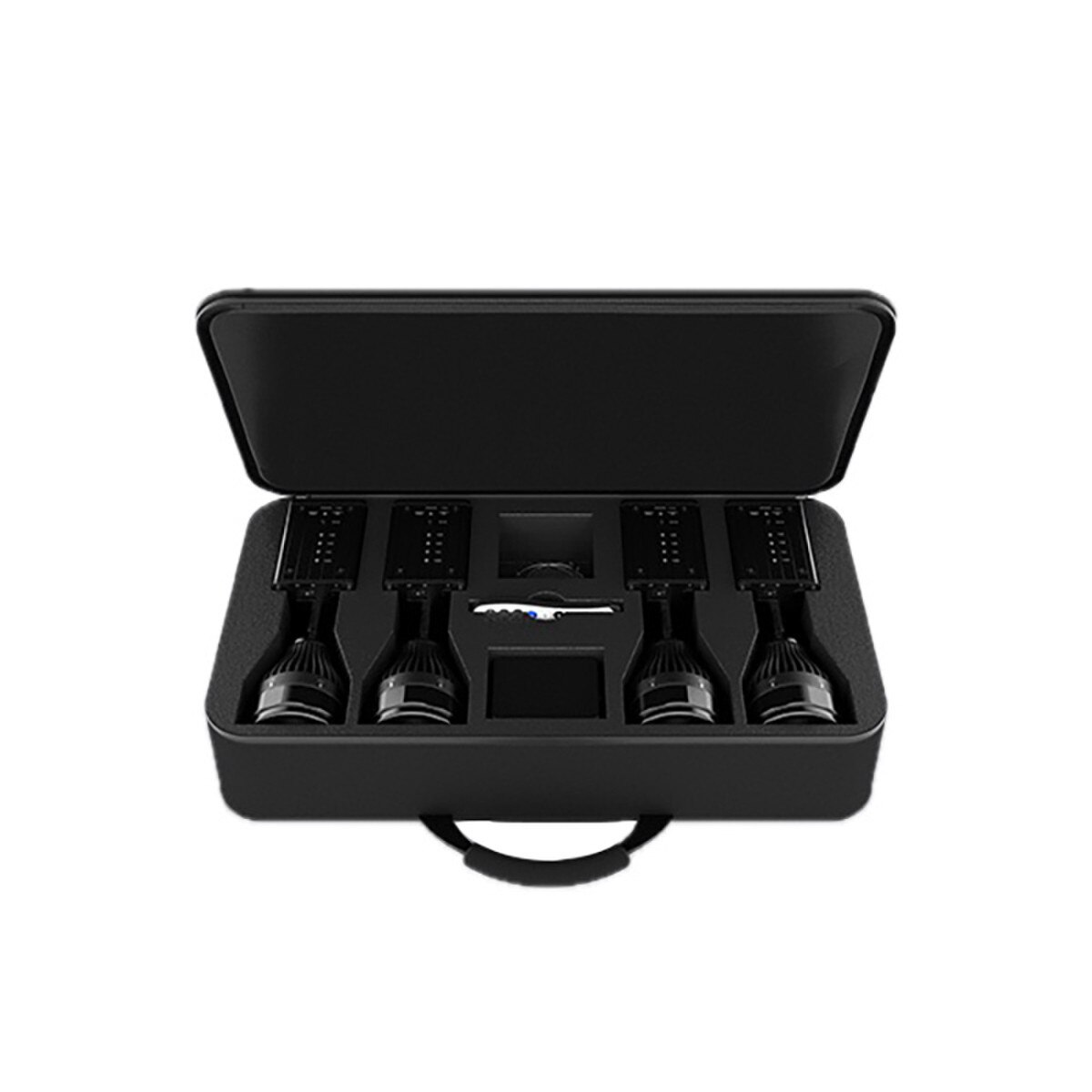

• 1 carrying bag
• Quick Reference Guide

Chauvet DJ EZpin Zoom Pack Quick Reference Guide.pdf
