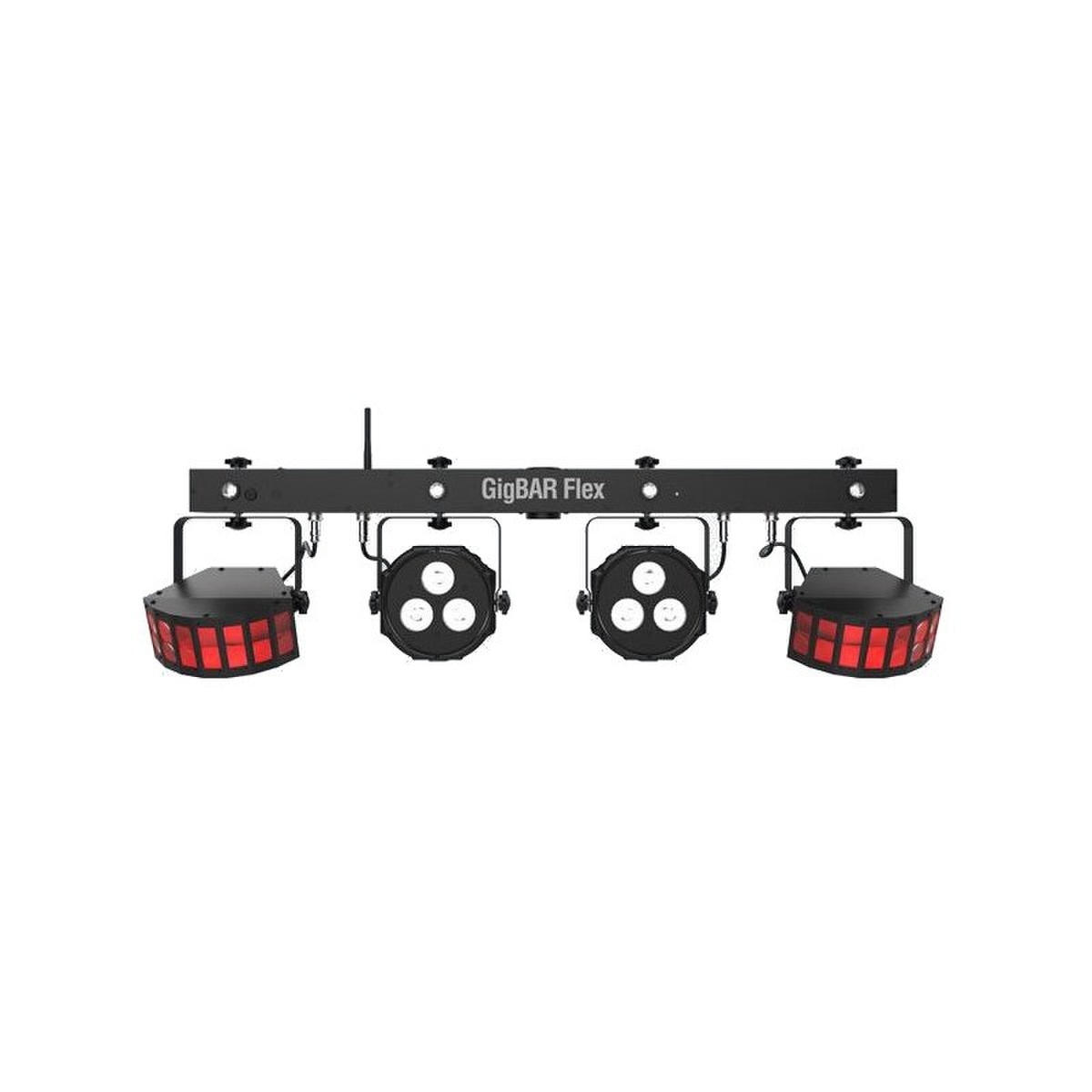

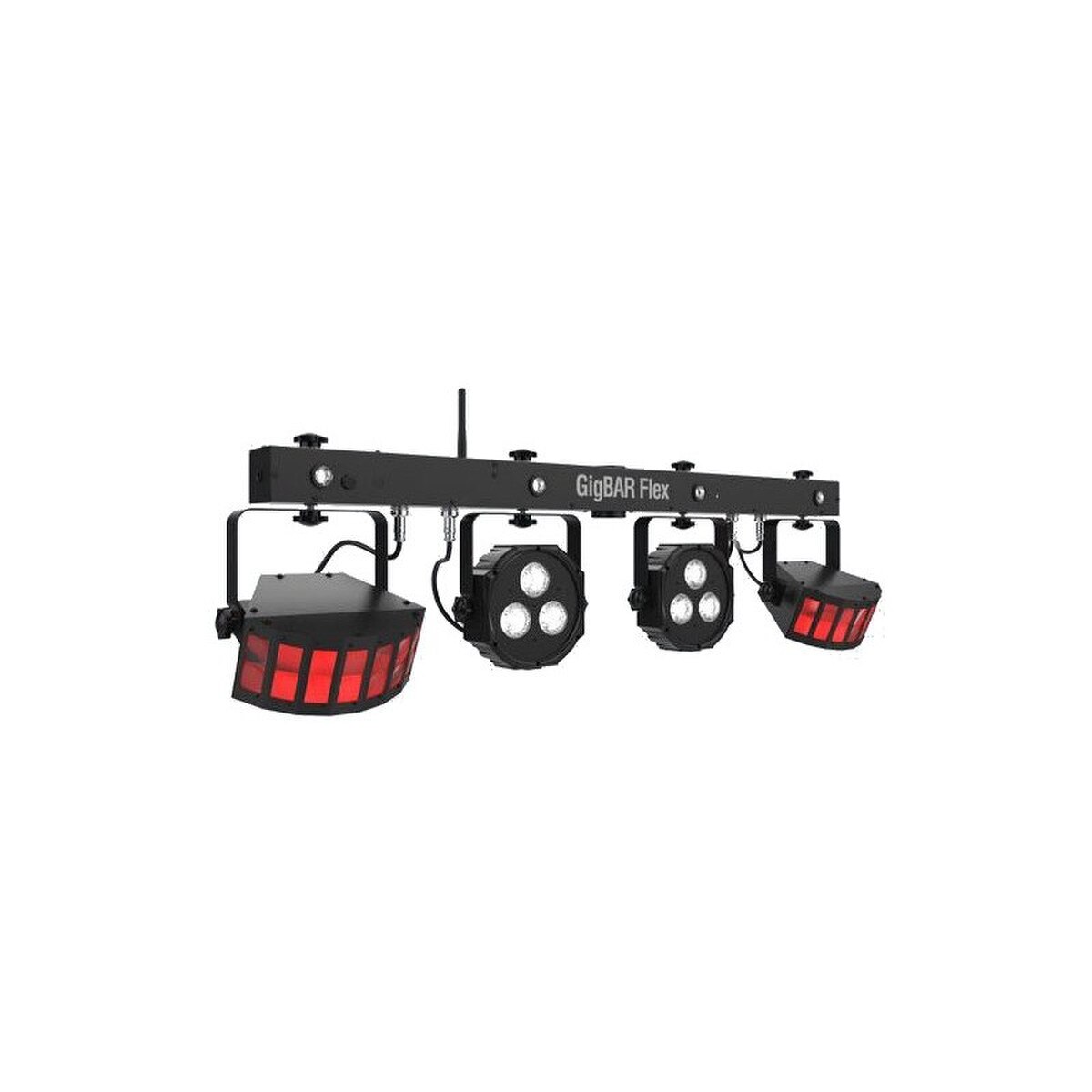

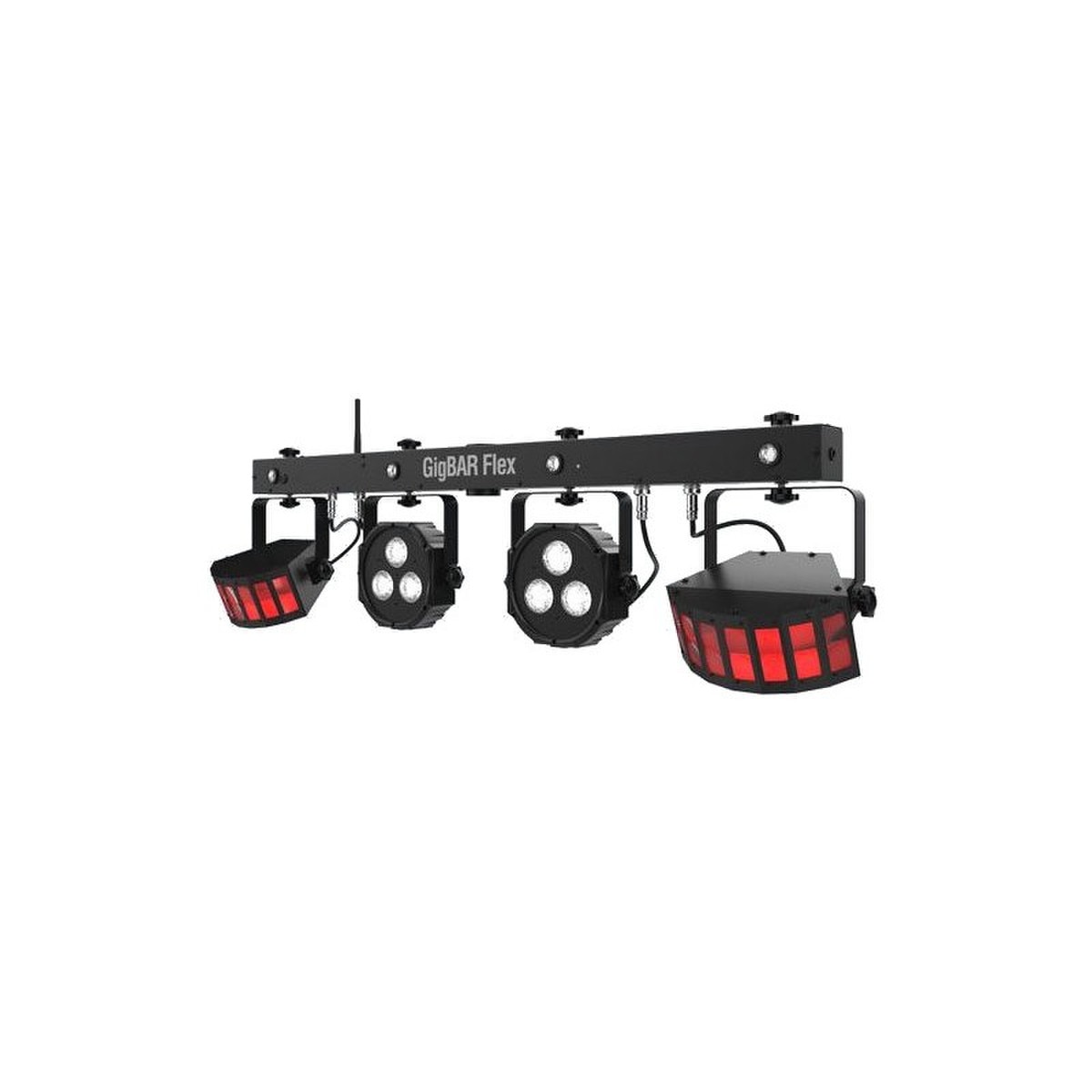

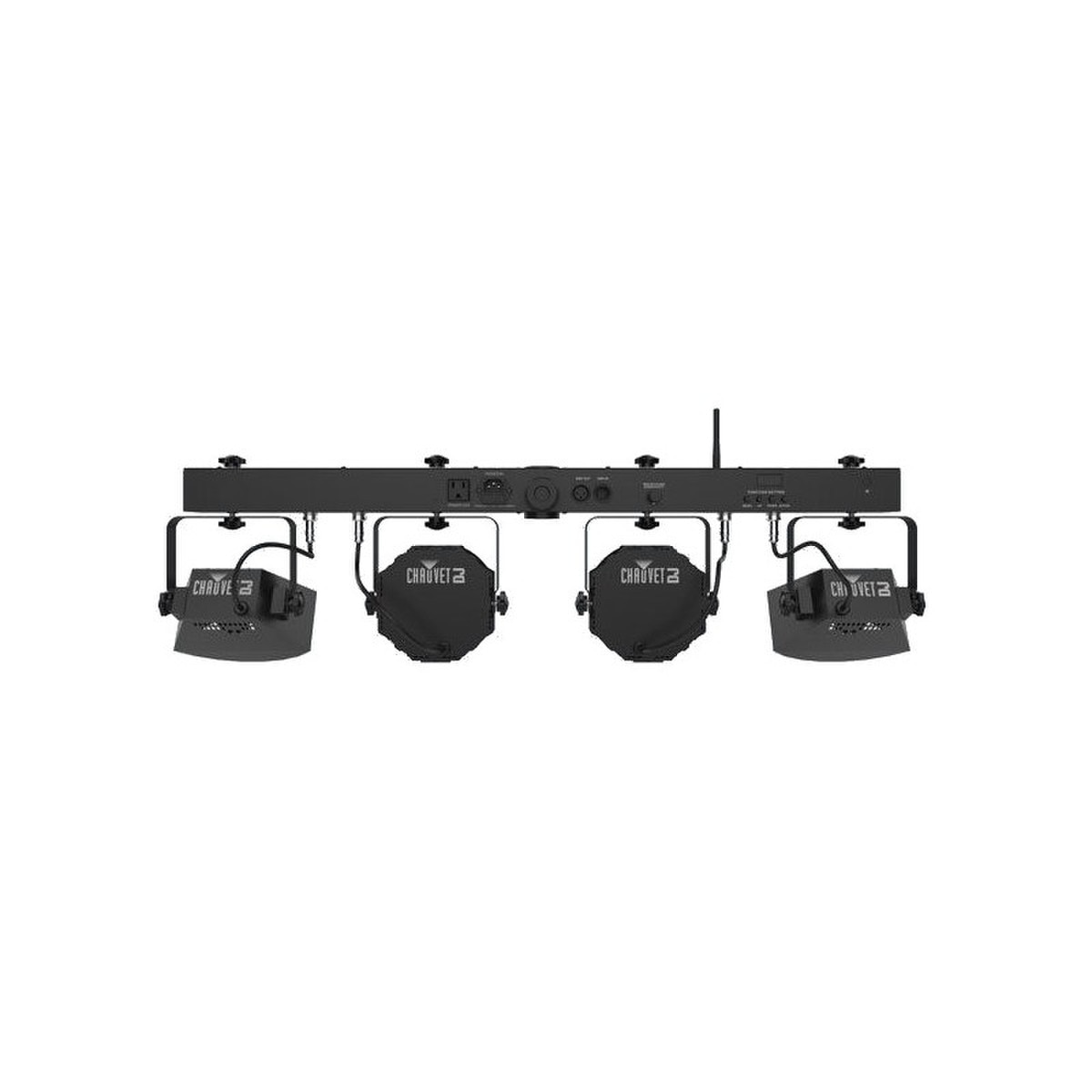

Chauvet DJ Gig Bar Flex Lighting System

GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes. A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.

Features:

• 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience
• Pass-through mounting hole for flexible mounting options with various stage and speaker stands
• Built-in UV (blacklight) for increased color mixing and effects
• Four individually adjustable heads provide wide room coverage and lighting versatility
• Wireless footswitch for convenient hands-free control
• Built-in automated and sound-activated programs make dynamic light shows easy
• Get in and get out quickly with the included wireless footswitch and FREE carry bag
• Master/slave multiple units under the control of a single IRC-6 or wireless foot switch

Specifications:

• DMX Channels: 3, 8 or 20
• DMX Connectors: 3-pin XLR

Light Source:

• (pars): 6 LEDs (quad-color RGB + UV) 3.5W (1 A), 50,000 hours life expectancy
• (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
• (derby): 6 LEDs (2 red, 2 green, 2 blue) 5W (1.6 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 18 Hz

Beam Angle:

• (pars): 13°
• (strobe): 8°

Field Angle:

• (pars): 24°
• (strobe): 18°
• Coverage Angle: (derby): 114°

Illuminance:

• (pars): 1,078 lux @ 2m (per head)
• (strobe): 86 lux @ 2m (per zone)
• Power Linking: 12 units @ 120V; 22 units @ 230V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:

• 45W, 0.7 A @ 120V, 60 Hz
• 46W, 0.4 A @ 230V, 50 Hz
• Weight: 11 lb (5 kg)
• Size: 37x4x15" (949x110x388mm)
• Approvals: CE
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100' (30.5 m)
• Footswitch battery: 12 V A 23

What's Included:

• GigBAR Flex
• Power cord
• Carrying bag
• Wireless footswitch
• IRC-6
