Chauvet DJ GigBAR 2 4-in-1 LED Effects System

(0)No Reviews yet

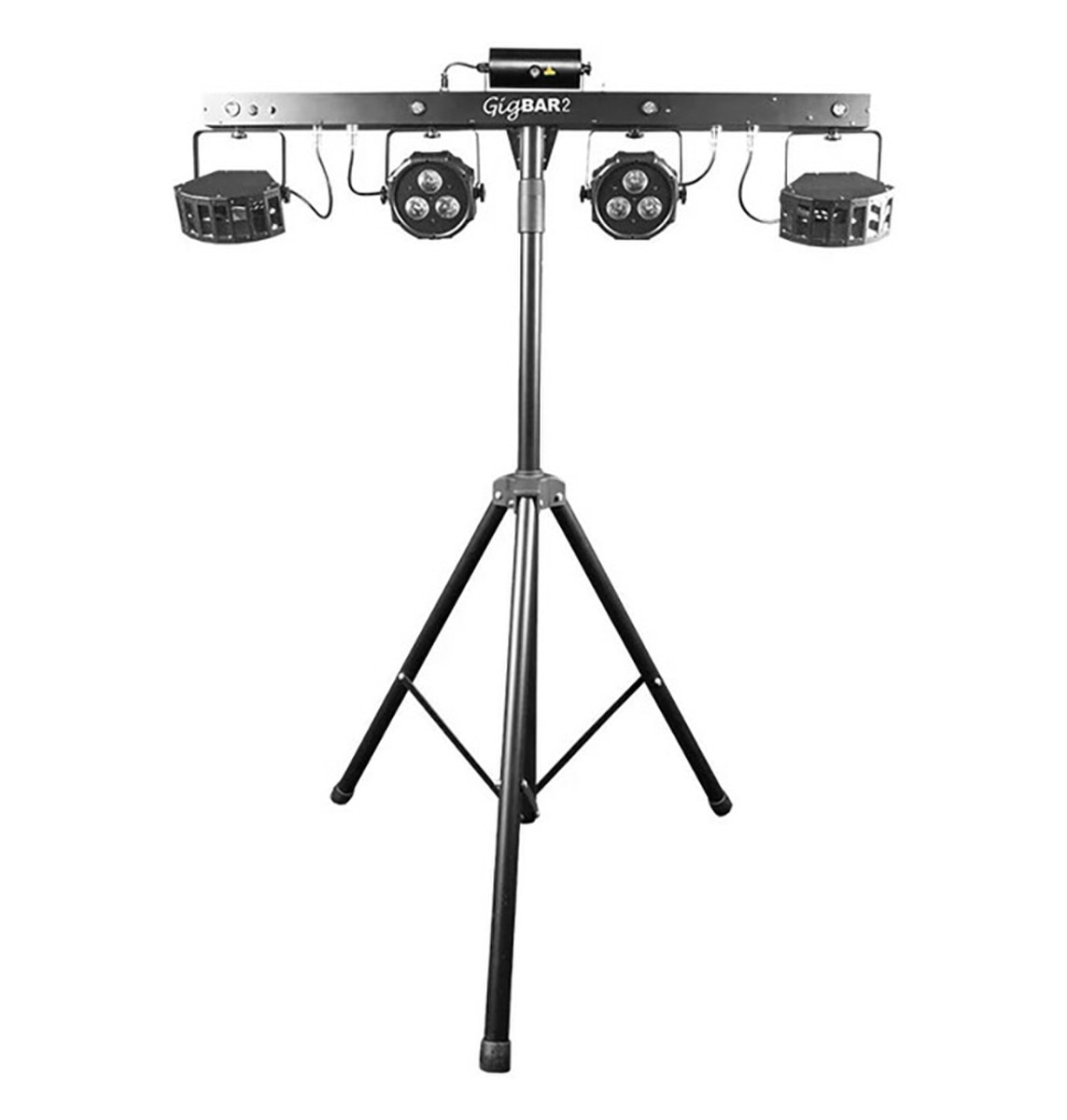

The GigBAR 2 is the ultimate pack-n-go 4-in-1 lighting system including UV in its wash lights and strobes for better color-mixing and effects. The package includes two LED Derby fixtures, LED wash lights, a laser, and 4 high-power, LED strobe lights all mounted on one bar. The unit features phenomenal built-in automated and sound-activated programs including all 4 effects.

You can easily control the unit from the display, IRC-6 remote control, wireless foot switch or DMX to take your gig to a higher level. Master/slave multiple units and save time running cables and extension cords by power-linking multiple units. Get in and get out quickly with the included tripod, wireless footswitch, and carry bags.


  • 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar
  • Added UV in pars and strobes for increased color-mixing and effects
  • 4 individually adjustable and interchangeable heads
  • Mounting brackets to attach to truss
  • 4 high-power, LED strobe lights for chase and slow motion effects
  • Adjustable red and green laser
  • Built-in automated and sound-activated programs that include all 4 effects
  • Easily control from the display, included IRC-6, wireless foot switch, or DMX
  • Master/slave multiple units under the control of a single IRC or wireless foot switch
  • Save time running cables and extension cords by power linking multiple units

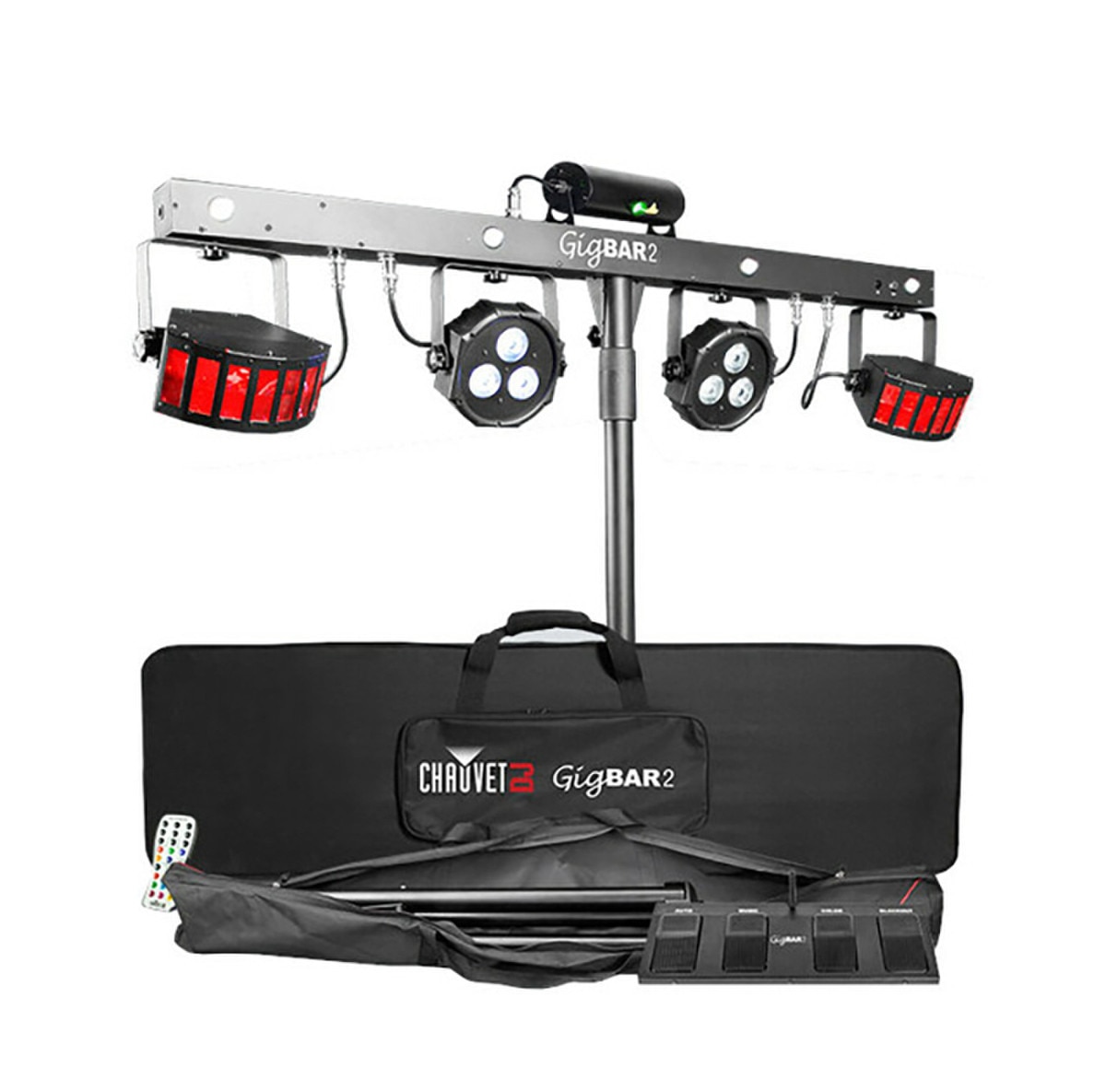

  • Power cord
  • IRC-6
  • Tripod
  • Tripod carry bag
  • Wireless footswitch
  • Warranty card
  • User Manual


  • DMX Channels: 3, 11, or 23
  • DMX Connectors: 3-pin XLR

Light Source:

  • (pars): 6 LEDs (Quad-color RGB+UV) 3.5W (1.1A), 50,000 hours life expectancy
  • (strobe): 4 LEDs (white & UV) 1.8W (600 mA), 50,000 hours life expectancy
  • (derby): 6 LEDs (2 red, 2 green, 2 blue) 6W (1.7A), 50,000 hours life expectancy
  • 650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode
  • Strobe Rate: (strobe): 0 to 18 Hz

Beam Angle:

  • (pars): 13 degrees
  • (strobe): 8 degrees

Field Angle:

  • (pars): 24 degrees
  • (strobe): 18

Coverage Angle:

  • (laser): 93 degrees
  • (derby): 114 degrees
  • Fits Tripod Size: 37.4mm


  • (pars): 1,205 lux @ 2m (per head)
  • (strobe): 86 lux @ 2m (per zone)
  • Power Linking: 8 units @ 120V; 15 units @ 230V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:

  • 68W, 1A @ 120V, 60 Hz
  • 64W, 0.5A @ 230V, 50 Hz
  • Weight: 14.5 lbs (6.6kg)
  • Dimensions: 46.65" x 4.33" x 15.22" (1185mm x 110mm x 386.5mm)
  • Approvals: CE, FDA, FCC
  • Stand Height: 1.5m to 2.5m
  • Tripod leg width: 1.2m
  • Foot Switch Operating Frequency: 433 MHz
  • Foot Switch Max Unobstructed Distance: 30.5m
  • Footswitch battery: 12V A23
