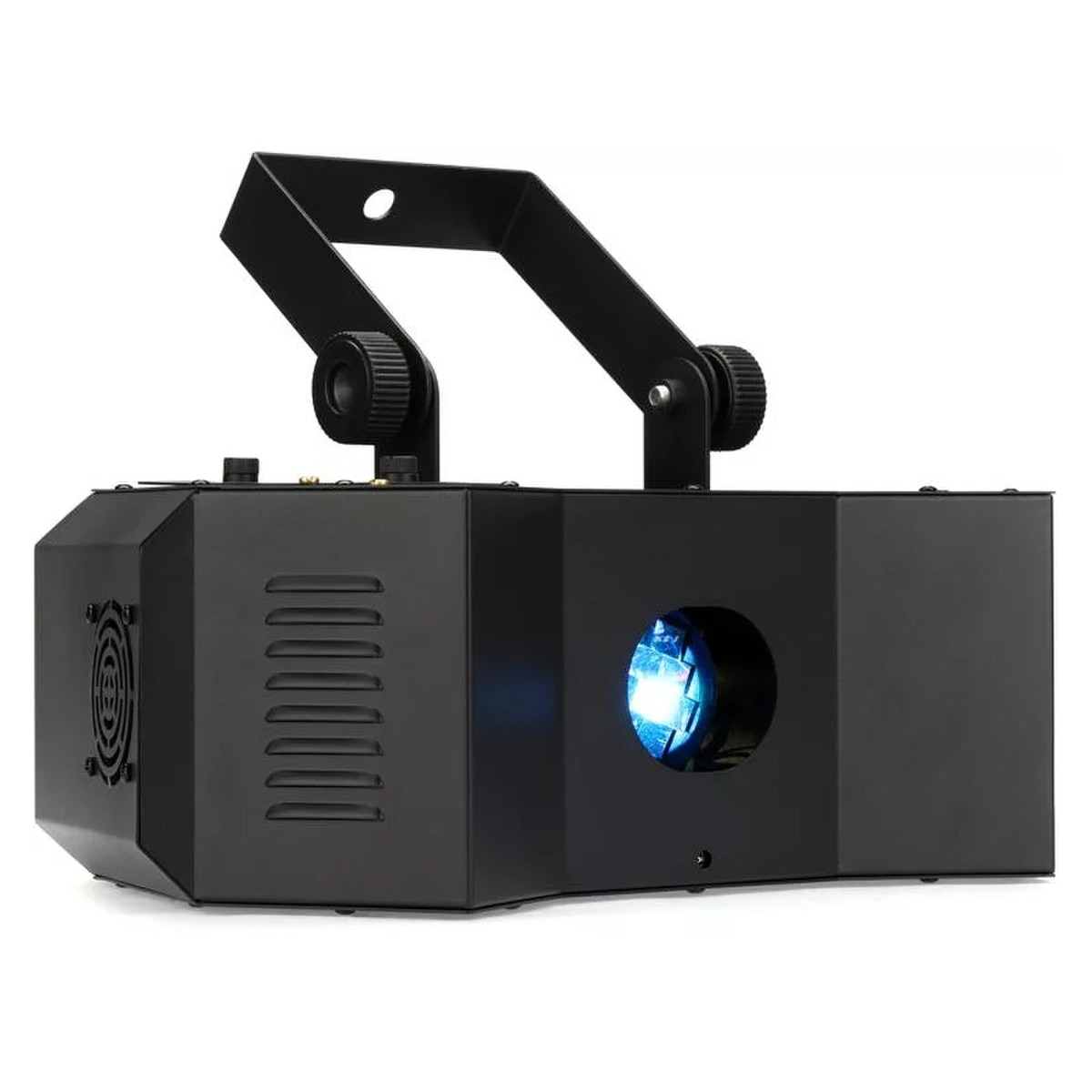

Chauvet DJ Obsession HP
Details
Create eye-popping, animated gobo light shows with Obsession HP, a compact LED effect light fitted with a 100W LED that projects multi-colored, rotating gobos. Obsession HP’s design power and flexibility reaches new heights because gobos are interchangeable and the onboard mirror dish and separate color and gobo wheels easily generate complex lighting looks. Generate a synchronized show in Master/Slave mode with up to 2 units and save time running cables and extension cords by power linking multiple units. Obsession HP is compatible with IRC-6 for flexible control over all features and fits best in the CHS-40 VIP Gear Bag.
Obsession_HP_UM_Rev2.pdf
Obsession_HP_QRG_ML6_Rev2.pdf
Features:
- Compact LED effect light fitted with a 100W LED projects multi-colored, rotating gobos
- Increase design flexibility and effects with inter-changeable gobos
- Easily generate complex looks using the rotating gobo wheel plus mirror dish
- Generate a synchronized show in Master/Slave mode with up to 2 units
- Separate color and gobo wheels allow for creative programming
- Quickly and easily change gobos using the easy-access gobo door
- Includes 10 popular holiday gobos
- Compatible with IRC-6 for flexible control over all features
- Save time running cables and extension cords by power linking multiple units
- Fits best in the CHS-40 VIP Gear Bag
- Includes 10 popular holiday gobos
Specifications:
- DMX Channels: 2 or 8
- DMX Connectors: 3-pin XLR
- Colors: 6 + white, split colors, continuous scroll at variable speeds
- Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
- Light Source: 1 LED (cool white) 100 W, (4 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 4 KHz
- Coverage Angle: 116°
- Power Linking: 3 units @ 120 V; 6 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 176 W, 2.2 A @ 120 V, 60 Hz171 W, 1.3 A @ 230 V, 50 Hz
- Gobo Size: 18.6 mm outside, 12 mm image, 5 mm max thickness
- Weight: 10.2 lb (4.7 kg)
- Size: 14.96 x 8.26 x 12 in (380 x 233 x 305 mm)
- Approvals: CEOptional Controller: IRC-6
Includes:
- Obsession HP
- Power cord
- Quick Reference Guide
- Hearts Gobo
- Stars Gobo
- Bats Gobo
- Ghost Gobo
- Snowflake Gobo
- Christmas Tree Gobo
- Fireworks Gobo
- Balloons Gobo
- Star Gobo
- Tiara
