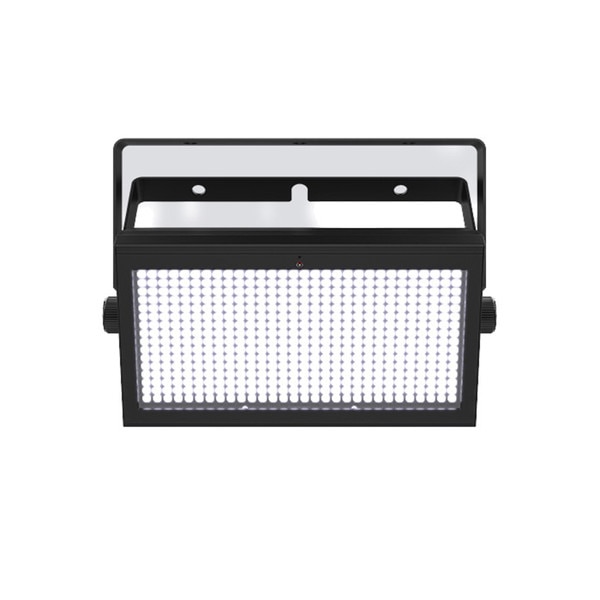

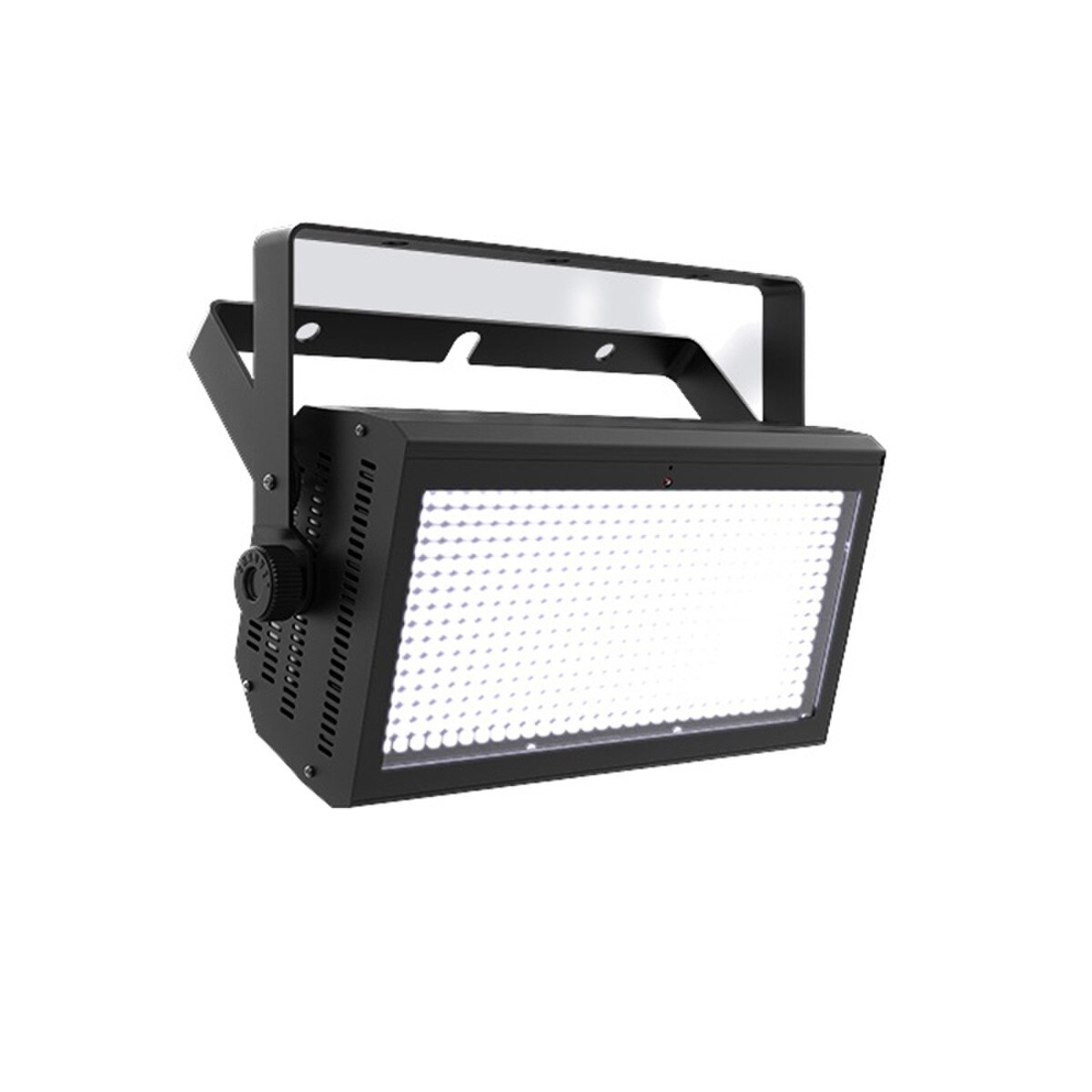

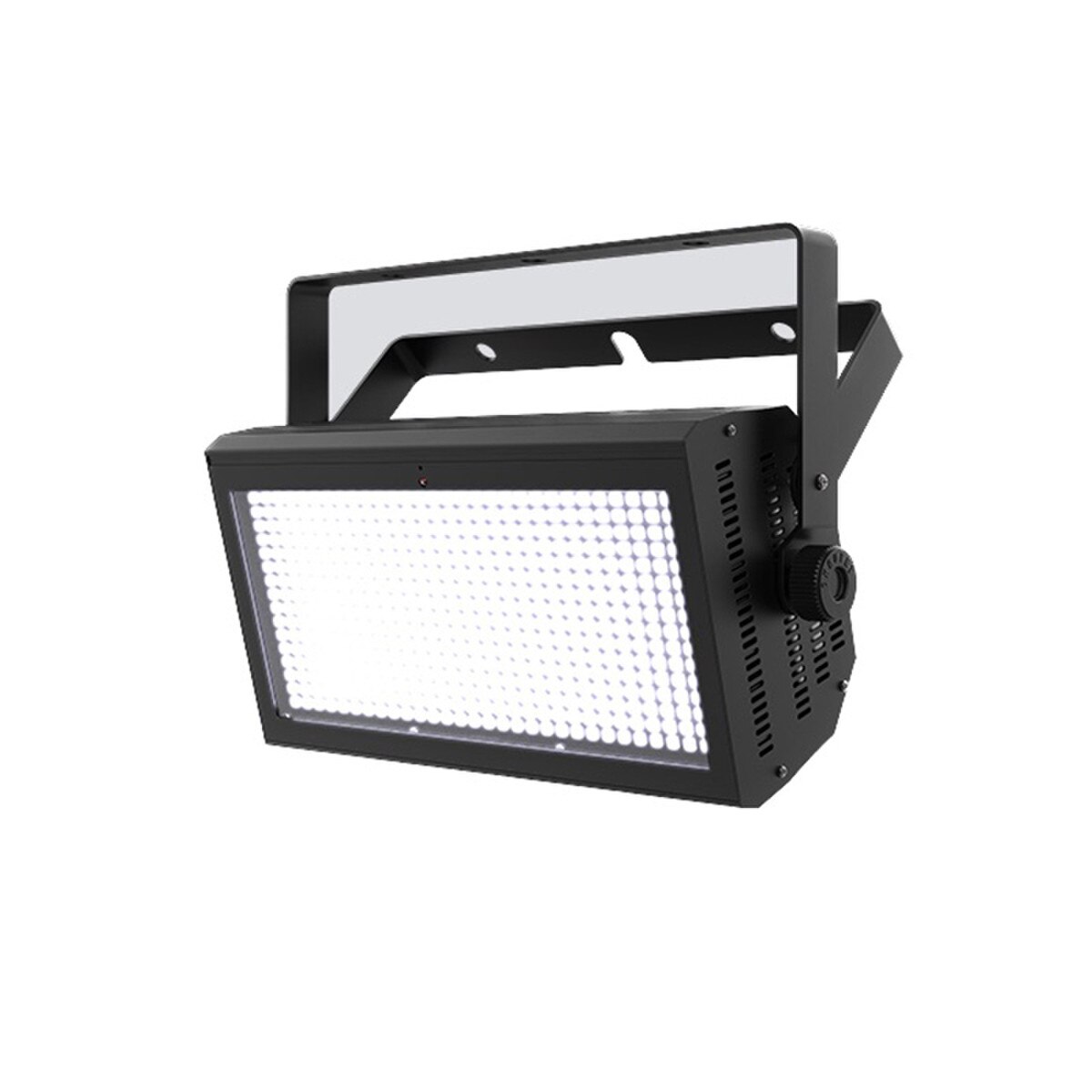

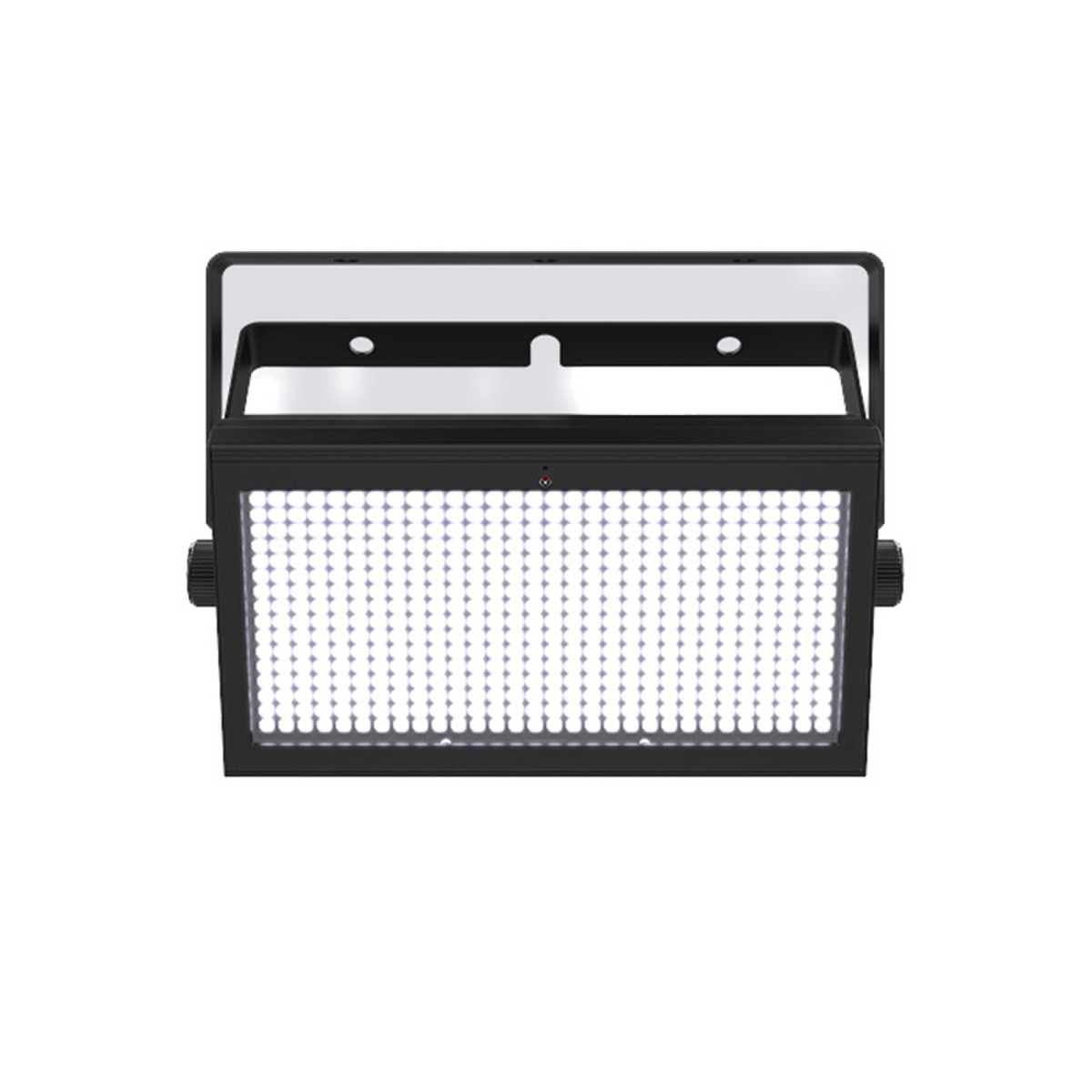

Chauvet DJ Shocker Panel 480

(0)No Reviews yet
$249.99
SKU: Chauvet DJ SHOCKERPANEL480

Details

Shock celebrations to dynamic life with Shocker Panel 480, a punchy, single-zone blinder with cool white SMD LEDs. As a blinder or strobe, eye-catching effects can be triggered easily with the built-in display, DMX, or with the optional IRC6 remote. Shocker Panel 480 is ready for the road too with its rugged housing that makes it ideal for mobile applications and powerCON®-compatible power input/output connections for secure power linking.

Features:

  • Punchy, single-zone blinder with cool white SMD LEDs
  • Rugged housing makes it ideal for mobile applications
  • Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote

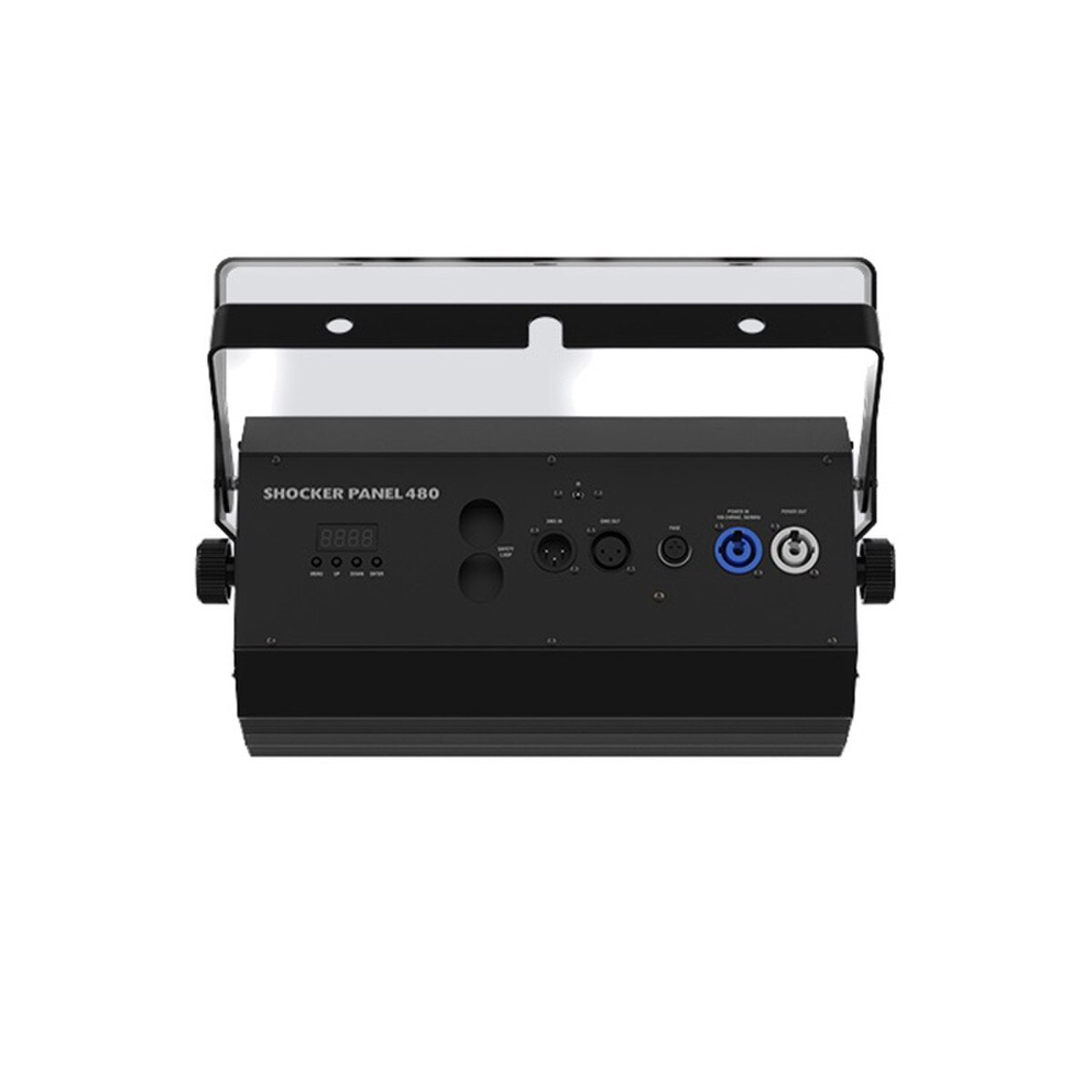

  • powerCON®-compatible power input/output connections for power linking
  • Save time running cables and extension cords by power linking multiple units
  • Easily transports in the optional CHS-25 VIP gear bag

Specifications:

  • DMX Channels: 4
  • DMX Connectors: 3-pin XLR
  • Light Source: 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 28 Hz
  • Beam Angle: 111°
  • Field Angle: 155°
  • Illuminance: 1,348 lux @ 2 m
  • Lumens: 14,974
  • Power Linking: 5 units @ 120 V; 9 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight: 9.4 lb (4.3 kg)
  • Size: 13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm)
  • Power and Current: 208 W, 2.7 A @ 120 V, 60 Hz
  • Power and Current: 200 W, 1.5 A @ 230 V, 50 Hz
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: IRC6
  • Approvals: CE, UKCA

What's Included:

  • Shocker Panel 480
  • Power cord
  • Quick Reference Guide

Shocker Panel 480 User Manual.pdf
Shocker Panel 480 Quick Reference Guide.pdf
