Chauvet DJ SlimBANK Q18 ILS
Details
SlimBANK Q18 ILS is a versatile quad-color (RGBA) LED wash light with brilliant eye candy effects. It features ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and access to built-in automated programs via IRC-6 remote. This light makes it easy to generate complex looks easily with built-in, eye-catching auto programs with sectional control. Adjustable barn doors help direct and focus the light. SlimBANK Q18 ILS has built-in dimming curves for smooth LED fading and is ideal for sound-sensitive environments due to its radiant cooling design.
SlimBANK Q18 ILS - Quick Reference Guide
Features:
- Versatile quad-color LED wash light with brilliant eye candy effects
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate complex looks easily with built-in, eye-catching auto programs with sectional control
- Adjustable barn doors help direct and focus the light
- Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
- Achieve smooth LED fading with built-in dimming curves
- Ideal for sound-sensitive environments due to the radiant cooling design
- Save time running extension cords by power linking multiple units
Specifications:
- DMX Channels: 4, 6, 10 or 16
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (quad-color RGBA) 4 W, (1 A) 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 17°
- Field Angle: 31°
- Illuminance: 4,654 lux @ 2 m
- Power Linking: 9 units @ 120 V; 15 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
65 W, 0. 9 A @ 120 V, 60 Hz
64 W, 0.5 A @ 230 V, 50 Hz - Weight: 6 lb (2.8 kg)
- Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
- Approvals: CE, RoHS, UKCA
- Optional Controllers: IRC6, D-Fi USB
- Bracket Mounting Hole: 13 mm
What's Included:
- SlimBANK Q18 ILS
- Power cord

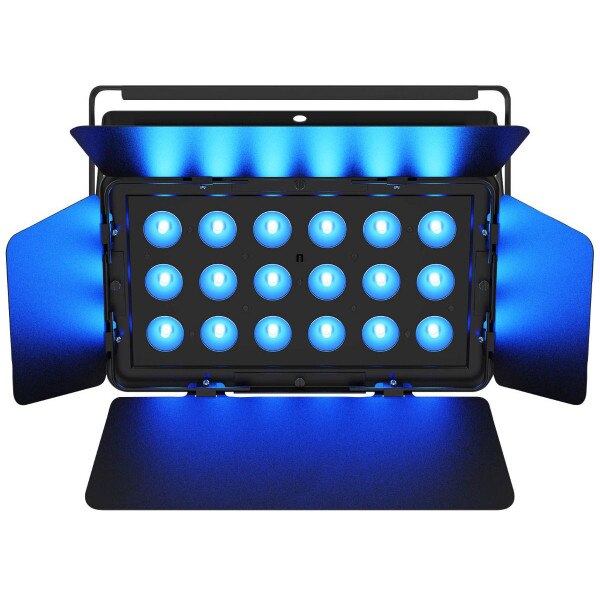

- Barn doors
- Quick Reference Guide
