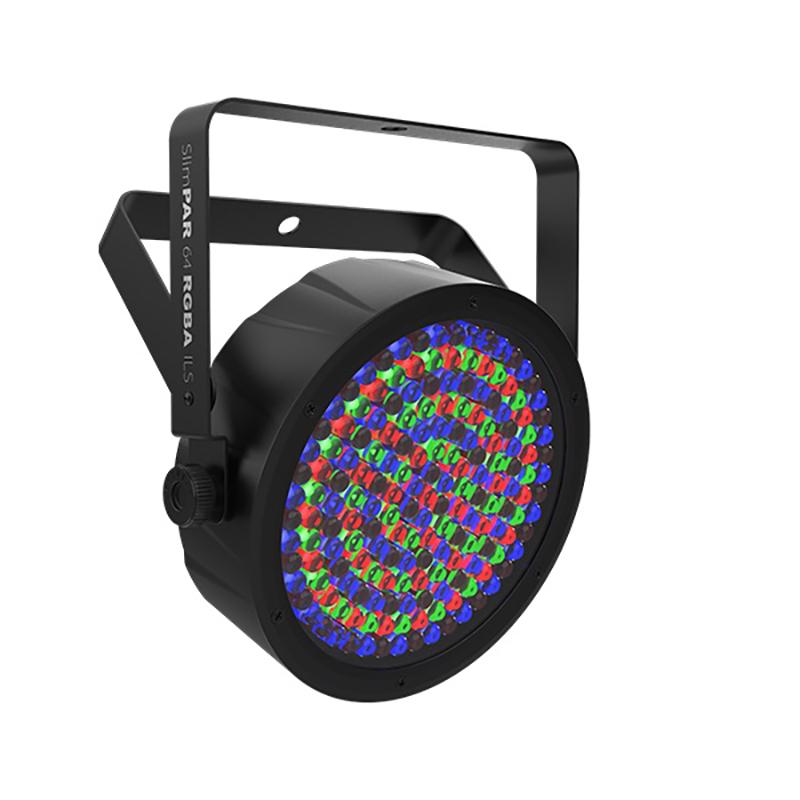

Chauvet DJ SlimPAR 64 RGBA ILS

SlimPar 64 RGBA ILS is a compact wash light with 180quad-color (Red, Green, Blue, and Amber) LEDs. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures thanks to punchy amber LEDs. Its multiple user-configurable settings and power linking capabilities make this fixture ideal for a range of wash lighting needs.

Highlights:

• LED Par designed for any application in need of a compact quad-color wash light
• ILS compatibility for use in the ILS ecosystem
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Convenient access to RGBA color mixing and static colors with or without DMX
• Increase standalone versatility with multiple user-configurable settings
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-30 VIP gear bag

Specifications:

• DMX Channels: 4 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 180 LEDs (39 red, 39 green, 51 blue, 51 amber) 0.25 W (20 mA), 50,000 hours life expectancy.
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 15°
• Field Angle: 24°
• Illuminance: 872 lux @ 2 m
• Power Linking: 33 units @ 120 V; 57 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz
• Weight: 2.2 lbs. (1 kg)
• Size: 9.7 x 11.1 x 2.5 in (246 x 282 x 64 mm)
• Approvals: CE, RoHS, MET
• Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz
• Power and Current: 17 W, 0.1 A @ 230 V, 50 Hz
• Bracket Mounting Hole: 13 mm
• Optional Controllers: ILS Command

What's Included:

• SlimPAR 64 RGBA ILS
• Power cord
• Quick Reference Guide

Chauvet DJ SlimPAR 64 RGBA ILS Quick Reference Guide.pdf
Chauvet DJ SlimPAR 64 RGBA ILS User Manual.pdf
